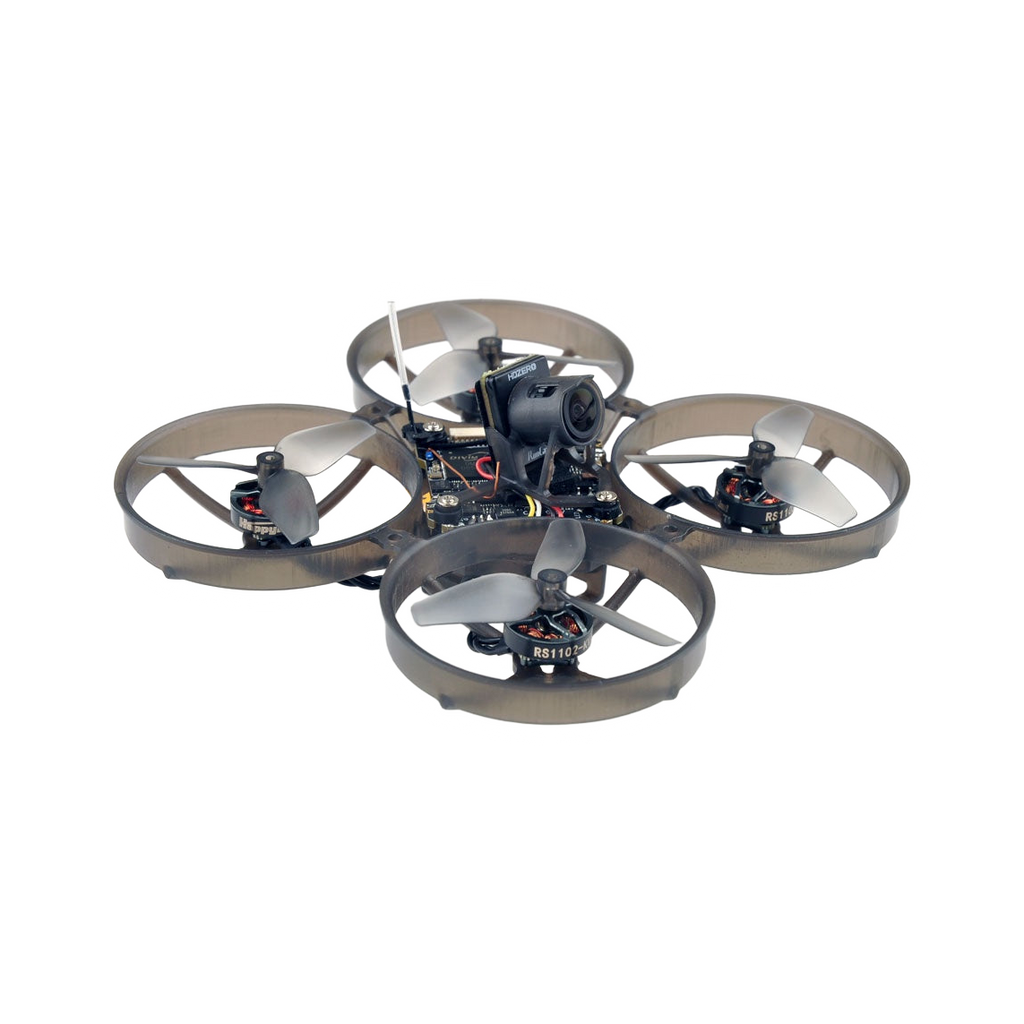

Are you looking to buy HappyModel M8 Freestyle HDZero 80mm Digital HD Micro FPV Whoop in Australia?
The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.
Features
- Equipment with the New HDZERO AIO15 5-IN-1 flight controller
- 2S battery support Powerful and Smooth freestyle flying experience
- UART ExpressLRS receiver support stable control link
- Lighter but powerful for backyard FPV
- HDZERO lighter and good quality Camera
Specifications
- 80mm wheelbase
- 45mm propellers
- Weight only 33.5gram
- RS1102 KV13500 high speed motors
- Recommend 2S 550mah battery(Exclude)
- 2.4G ExpressLRS ready
Spare Parts Specifications
- Motor
- Mode: RS1102 KV13500
- Configu-ration:9N12P
- Stator Diamter:11mm
- Stator Length:2mm
- Shaft Diameter:Φ1.5mm
- Motor Dimension(Dia.*Len):Φ13.5mm*14mm
- Weight(g):2.8g
- No.of Cells(Lipo):1-2S
- Propellers
- Weight:0.33g
- Material: Poly Carbonate
- Pitch:0.9
- Props Dia:45mm
- Hub Thickness:5mm
- Shaft:1.5mm
- Flight Controller
- MCU: STM32G473 (170MHz, 512K Flash)
- Gyro: ICM42688
- On board voltage and amperage meters
- Built-in 15A(each) Blue Jay 4-in-1 ESC
- Built-in 5.8G HDZero VTX
- RF output: 25mw/200mW
- Supported channels: R1-R8, F2/F4, L1-L8
- UFL connector (ultra-lite linear antenna included)
- Built-in Serial ExpressLRS 2.4GHz receiver
- Built-in 5V 3A BEC
- Flight controller firmware target: HDZERO_AIO15
- Power supply: 2S battery (6.4v~8.7v)
- Fully compatible with the popular whoop frames
- Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size
- Weight:7.2g (with motor plugs)
- Onboard 4in1 ESC
- Power supply: 2S LiPo/LiPo HV
- Current: 15A continuous,18A peak (3 seconds)
- Support BLHeli_S Bluejay firmware
- Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
- Default protocol: DSHOT300
- Onboard UART ExpressLRS 2.4GHz Receiver
- Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
- RF Frequency: 2.4GHz
- Antenna: Pre-soldered enameled copper wire 31mm length
- Telemetry output Power: <12dBm
- LUX Camera
- HDZero Lux Camera
- Sensor size: 1/2 inch
- Resolution: 720p60 4:3 and 16:9
- FOV: D:155° H:126° V:94°(4:3)
- FOV: D:145° H:126° V:70°(16:9)
- WDR
Includes
- 1x HappyModel M80 Frame
- 1x HDZero AIO15 5in1 Flight Controller
- 4x RS1102 KV12500 Brushless Motors
- 1x HQprop 45MMX3 Tri-blade props (4cw+4ccw_
- 1x HDZero LUX camera
- 1x Canopy
- 1x Screw driver
