Happymodel Mobula8 2S Whoop HD w HDZero Lux ELRS 2.4GHz
$413.65 AUD
Skip to product information
Out of stock
Happymodel Mobula8 2S Whoop HD w HDZero Lux ELRS 2.4GHz
$413.65 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
34216
Categories:
2s Batteries, ELRS Express LRS Receivers & Modules, FPV Drone Batteries, HappyModel, HD FPV Quads (PNP, BNF, RTF), HDZero, HDZERO Compatible Quads, Quadcopter Parts, Radio Gear
Tags:
2S, ELRS, HD, HDZERO Quad, Mobula, Tinywhoop Quad
Are you looking to buy Happymodel Mobula8 2S Whoop HD w HDZero Lux ELRS 2.4GHz in Australia?

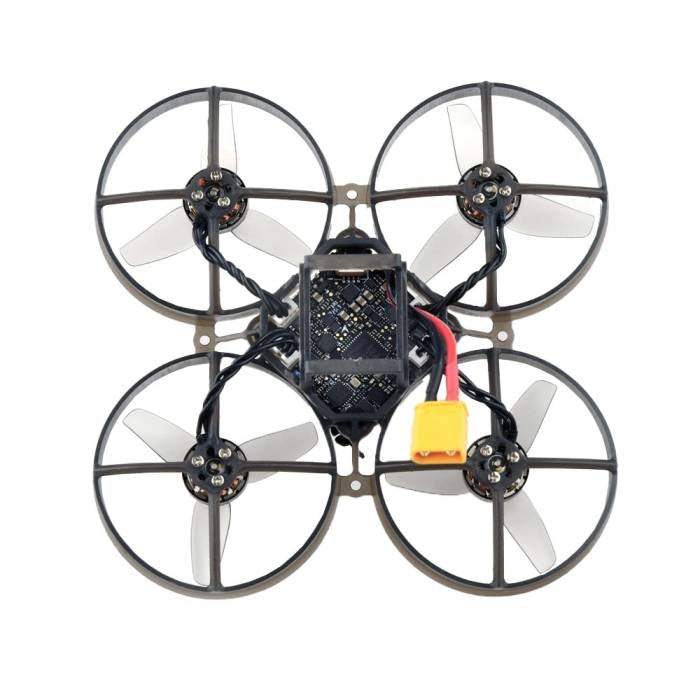

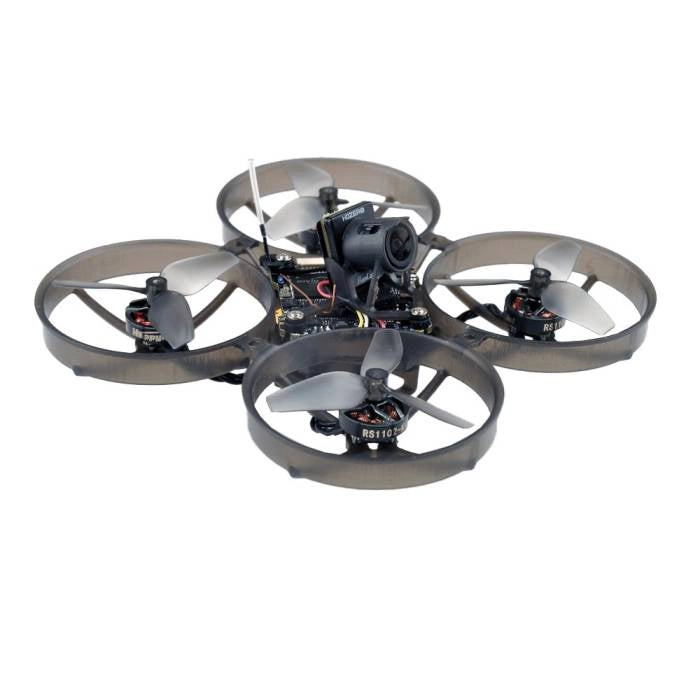

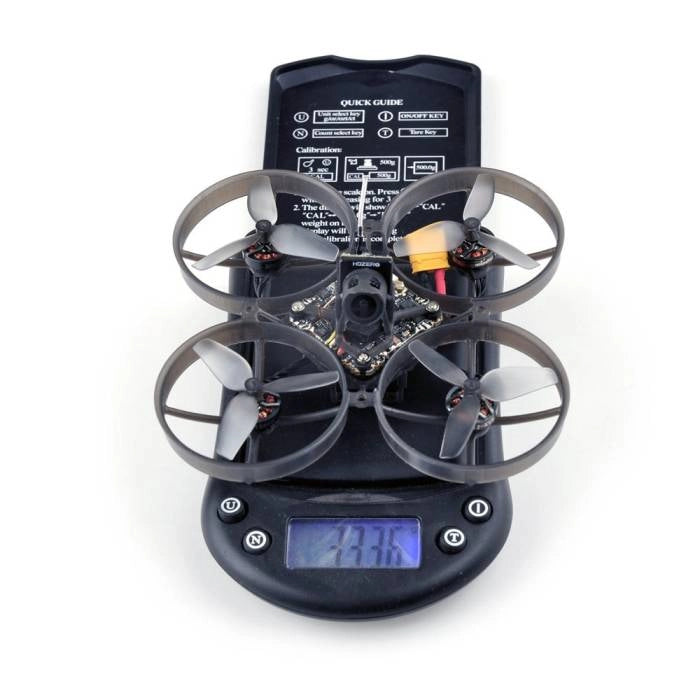

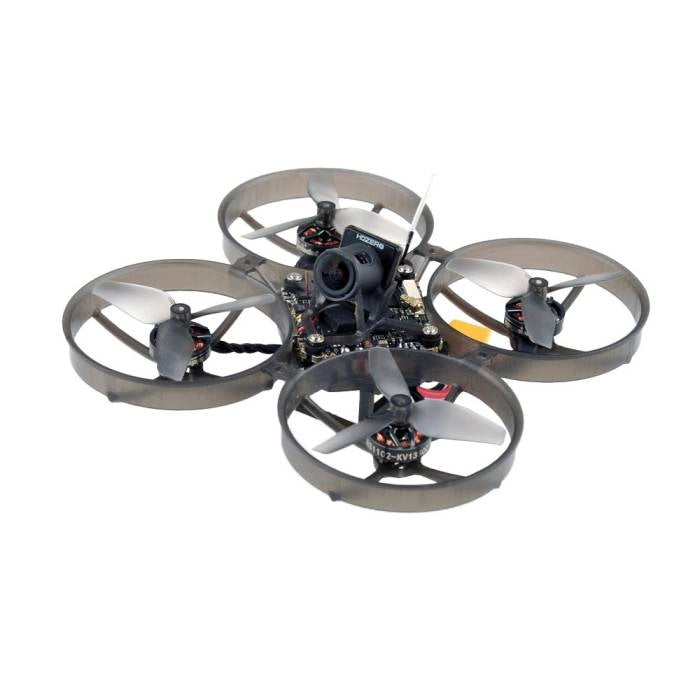

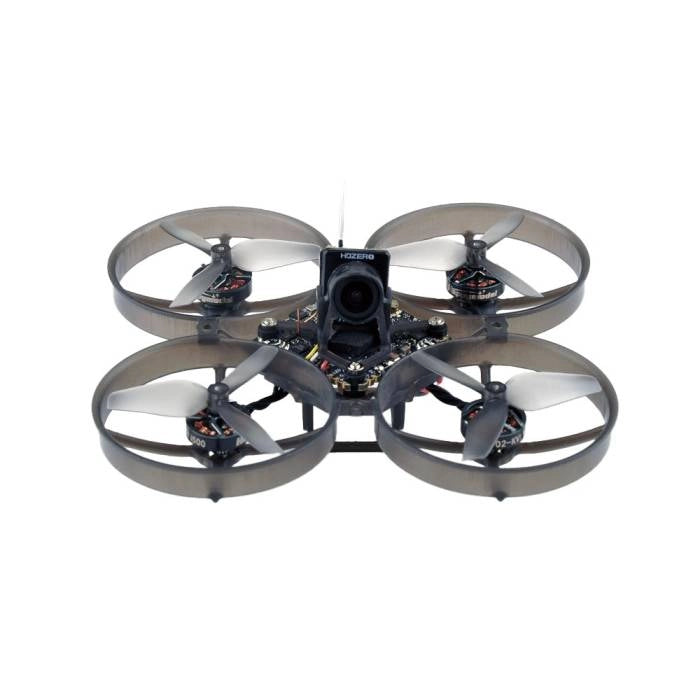

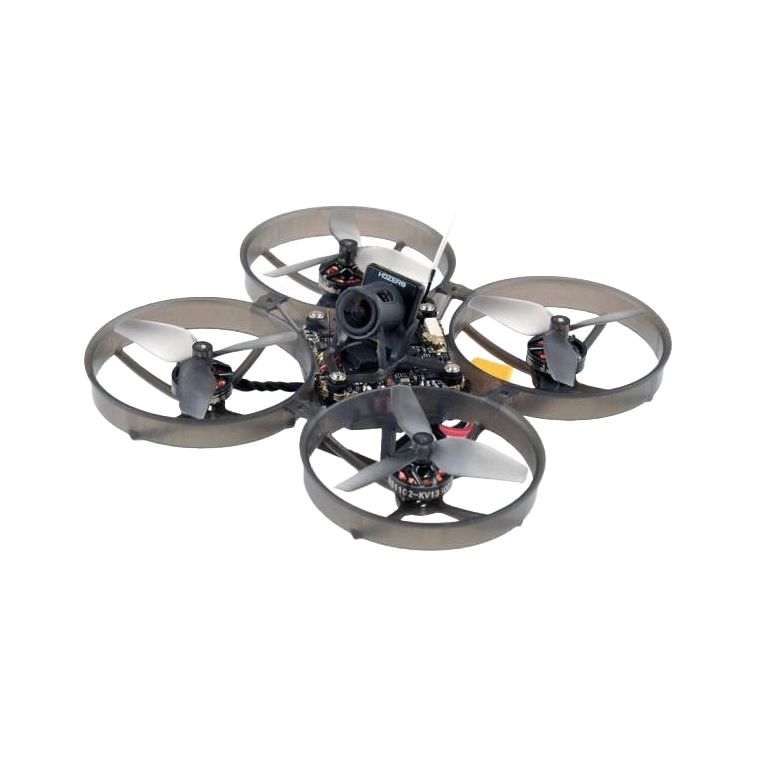

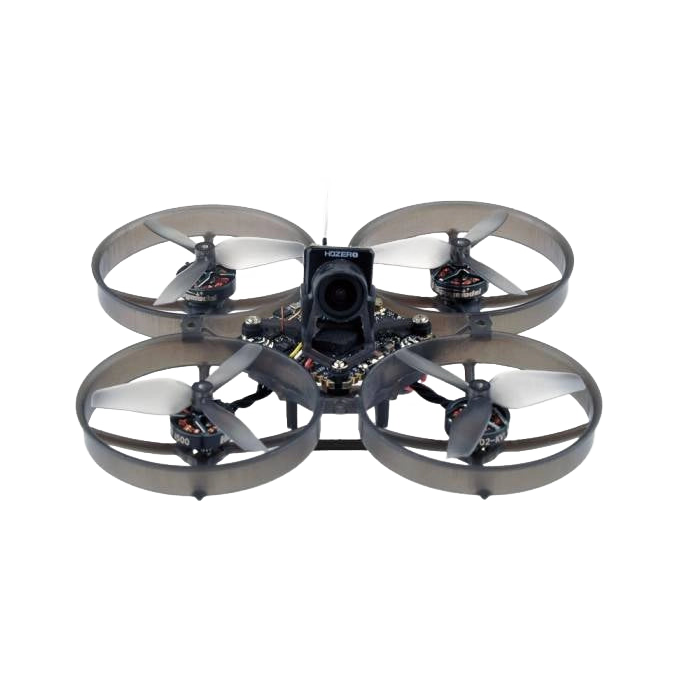

The Happymodel Mobula8 2S Whoop HD w/ HDZero Lux whoop is ready to fly. It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers delivers a smooth and powerful FPV experience.
Features
- Equipped with the New HDZERO AIO15 5-IN-1 flight controller
- 2S battery supports Powerful and Smooth freestyle flying experience
- UART ExpressLRS receiver supports a stable control link
- Lighter but powerful for backyard FPV
- HDZERO lighter and good quality Camera
Specifications
Motor
- Mode: RS1102 KV13500
- Configuration: 9N12P
- Stator Diameter: 11mm
- Stator Length: 2mm
- Shaft Diameter: Φ1.5mm
- Motor Dimension(Dia.*Len): Φ13.5mm*14mm
- Weight(g): 2.8g
- No.of Cells(Lipo): 1-2S
Props
- Weight: 0.33g
- Material: Poly Carbonate
- Pitch: 0.9
- Props Dia: 45mm
- Hub Thickness:5mm
- Shaft: 1.5mm
Flight Controller
- MCU: STM32G473 (170MHz, 512K Flash)
- Gyro: ICM42688
- On board voltage and amperage meters
- Built-in 15A(each) Blue Jay 4-in-1 ESC
- Built-in 5.8G HDZero VTX
- RF output: 25mw/200mW
- Supported channels: R1-R8, F2/F4, L1-L8
- UFL connector (ultra-lite linear antenna included)
- Built-in Serial ExpressLRS 2.4GHz receiver
- Built-in 5V 3A BEC
- Flight controller firmware target: HDZERO_AIO15
- Power supply: 2S battery (6.4v~8.7v)
- Fully compatible with the popular whoop frames
- Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size
- Weight:7.2g (with motor plugs)
Onboard 4in1 ESC
- Power supply: 2S LiPo/LiPo HV
- Current: 15A continuous,18A peak (3 seconds)
- Support BLHeli_S Bluejay firmware
- Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
- Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver
- Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
- RF Frequency: 2.4GHz
- Antenna: Pre-soldered enameled copper wire 31mm length
- Telemetry output Power: <12dBm
LUX Camera
- Sensor size: 1/2 inch
- Resolution: 720p60 4:3 and 16:9
- FOV: D:155° H:126° V:94°(4:3)
- FOV: D:145° H:126° V:70°(16:9)
Includes
- 1x Happymodel Mobula8 2S Whoop HD w/ HDZero Lux - ELRS 2.4GHz
- 1x Happy Model M80 Frame
- 1x HDZero AUI 5-IN-1 Flight Controller
- 4x RS1102 13500KV
- 1x HQ Prop 45MMX3 tri-blade propellers (4x CCW, 4x CW)
- 1x HDzero Lux Camera
- 1x Canopy
- 1x Screw Driver
