HDZero AIO15 2S/3S Digital AIO Flight System HDZ5015

Name: HDZero AIO15 2S/3S Digital AIO Flight System HDZ5015
Brand: HDZero
SKU: 33444
Price: 194.76 AUD
Availability: InStock

$194.76 AUD

GST included

1 In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Pickup available

1/80 Somersby falls RD, Somersby NSW

Usually ready in 2 hours

SKU: 33444

Barcode: MF-1014177437

Shipping Weight: 35g

W/H: W-04-E-09

Categories: 25.5 x25.5 AIO Flight Controllers / ESC Combos, 2s Batteries, 3s Batteries, 4 in 1 ESC, AIO, BMI270 Gyro FPV Flight Controllers, Drone ESCs, Flight Controllers, FPV Antennas, FPV Drone Batteries, HDZero, ICM42688-P Gyro FPV Flight Controllers

Tags: 15 Amp, 25x25 ESC, 25x25 Flight Controllers, 2S, 3S, 4 in 1, 5.8ghz, BMI270, ICM42688-P

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy HDZero AIO15 2S/3S Digital AIO Flight System HDZ5015 in Australia?

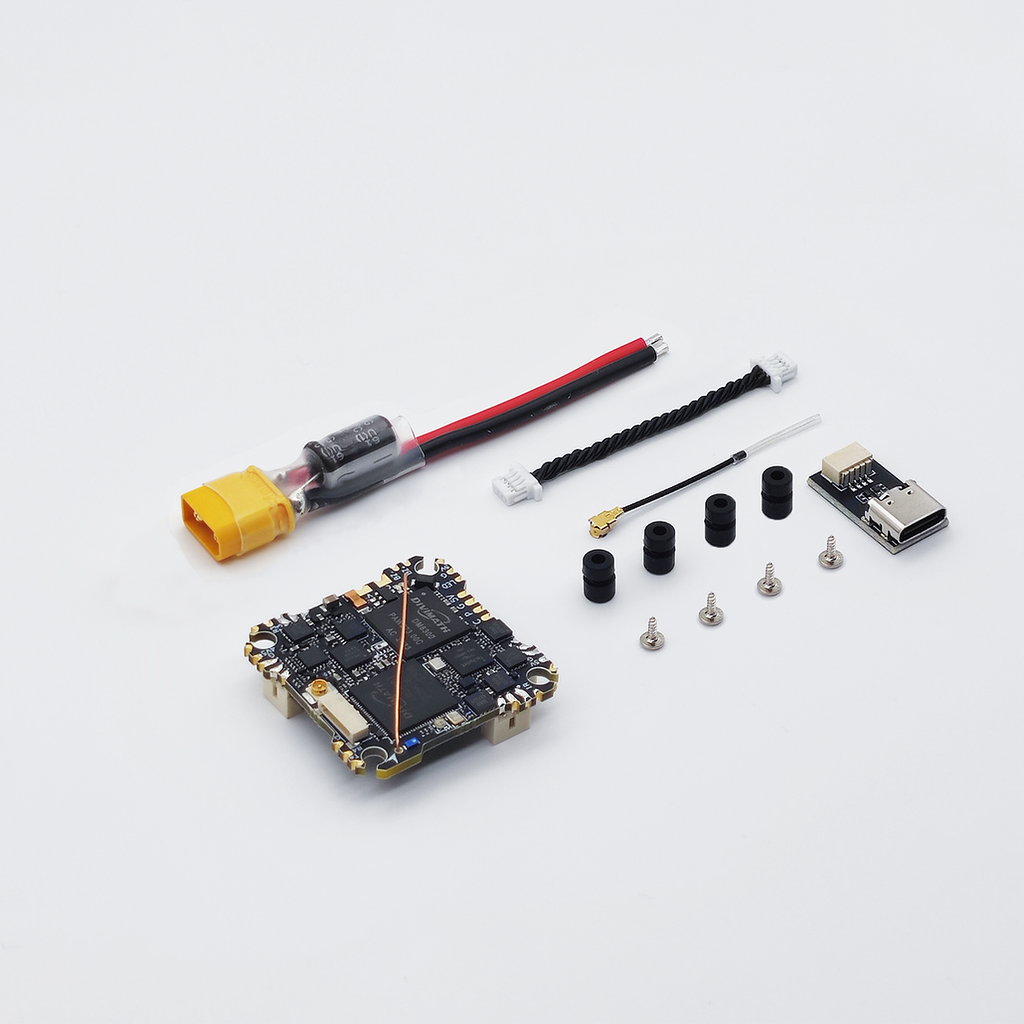

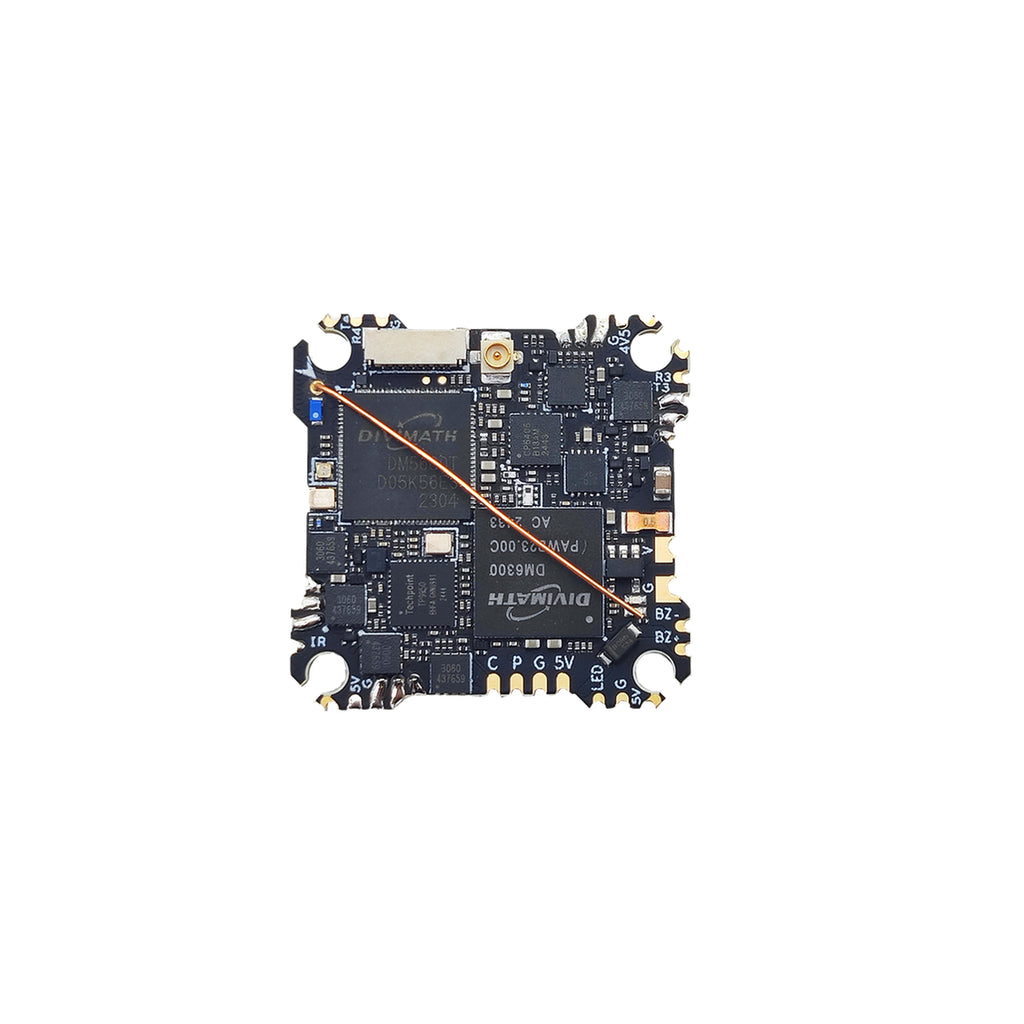

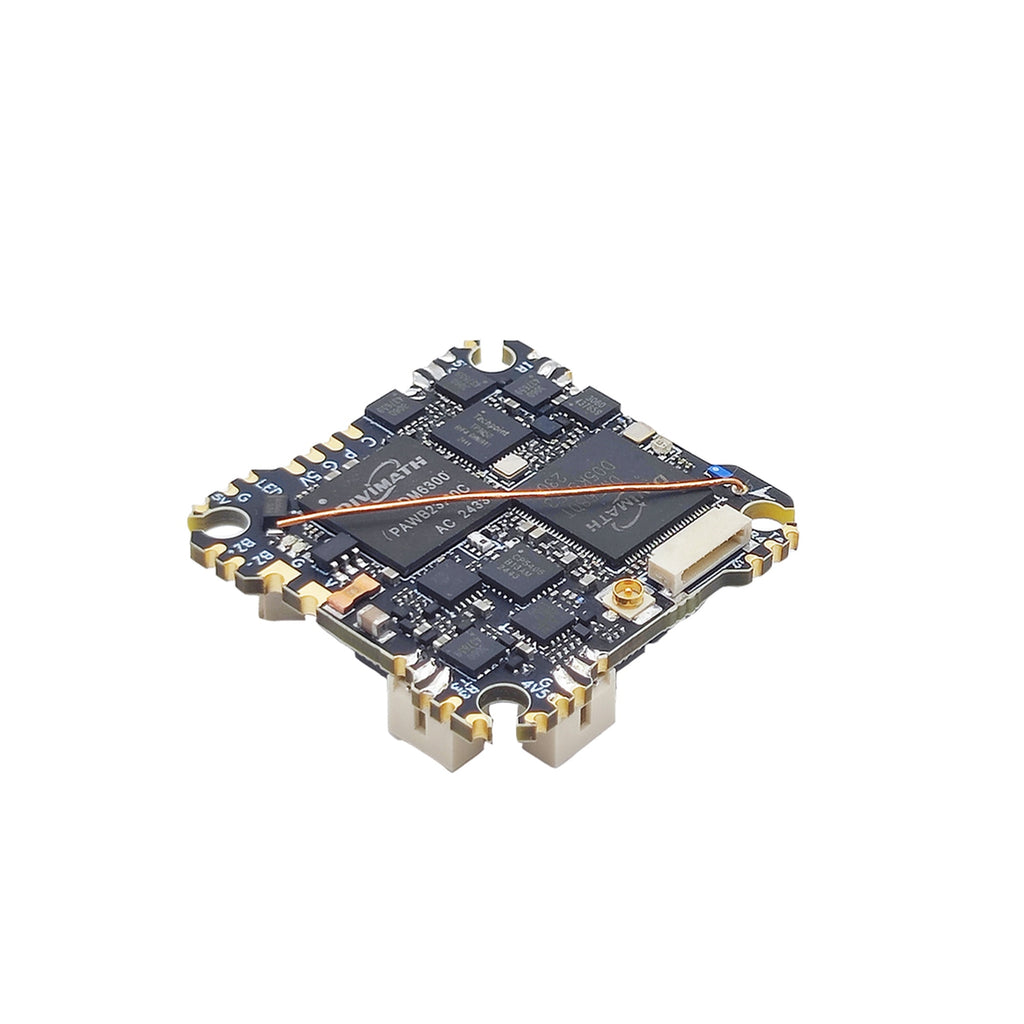

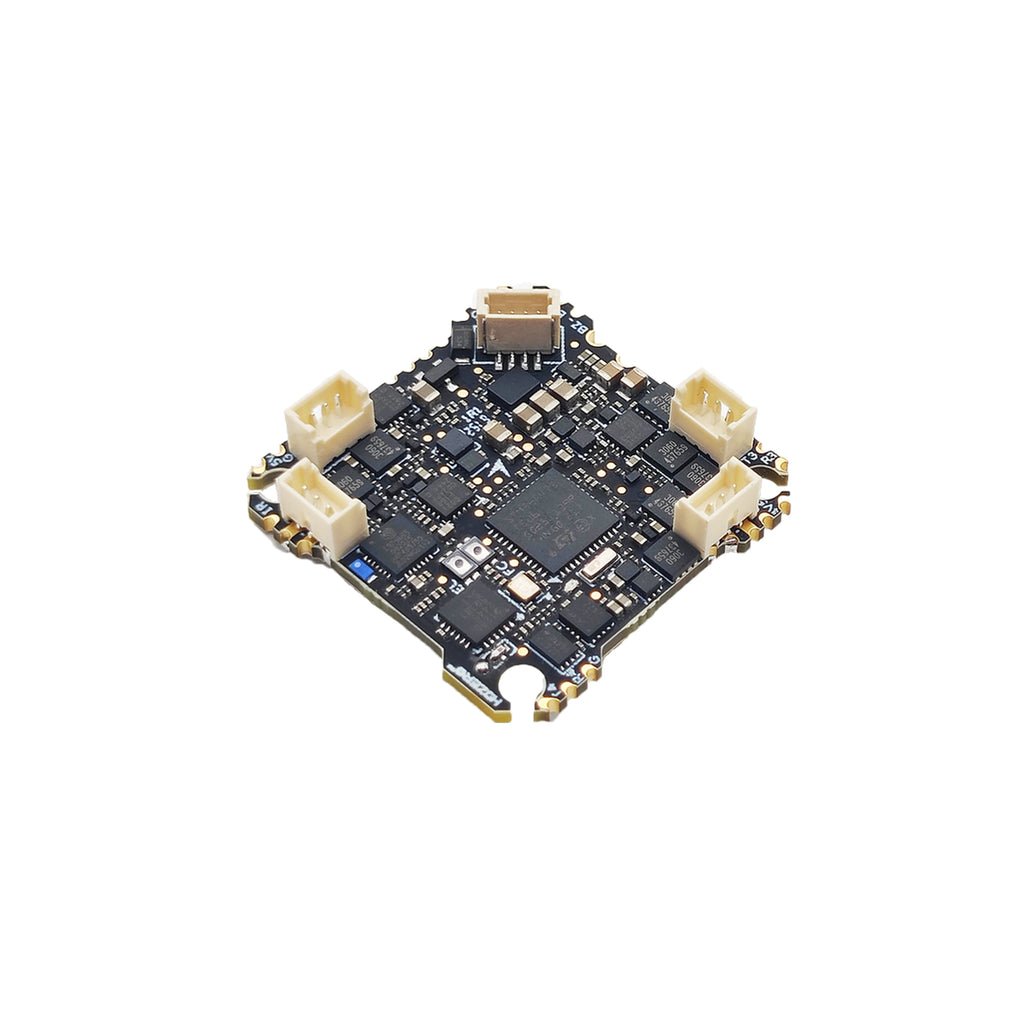

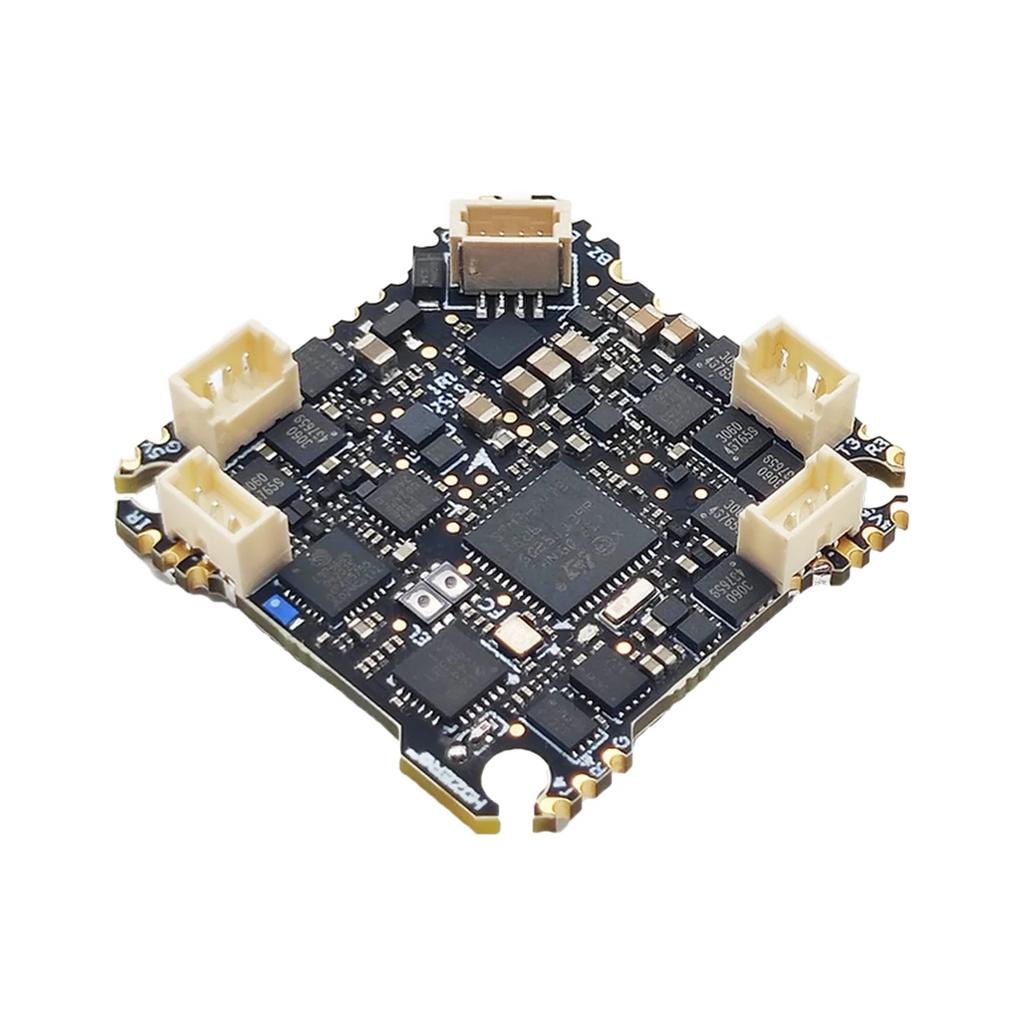

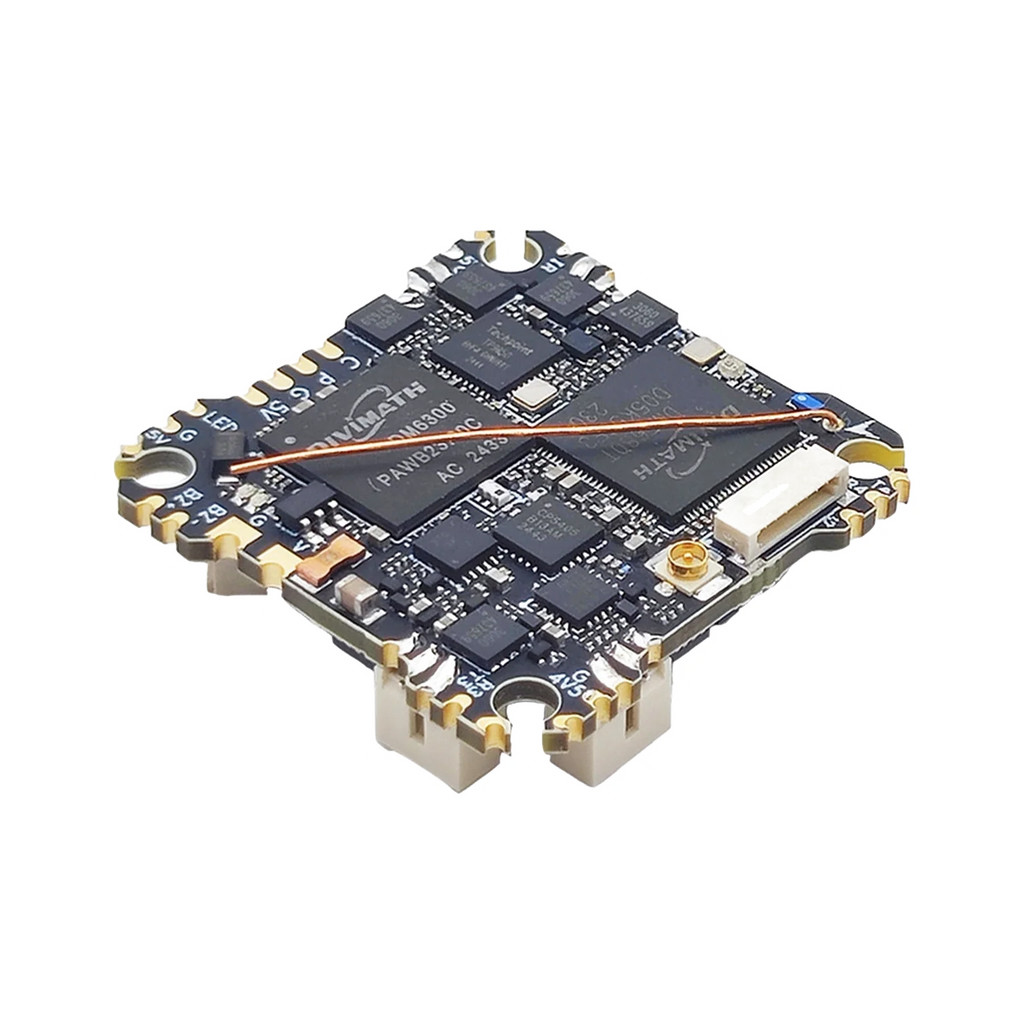

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.

With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.

Designed in Response to Pilot Feedback

Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:

5A ESCs
1S voltage only

The AIO15 solves this with:

15A ESCs (18A peak)
2S-3S battery support

Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.

Features

Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 - L8
U.FL connector with included ultra-light linear antenna
- Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
5V BEC
- 5V @ 1A output for accessories and camera
