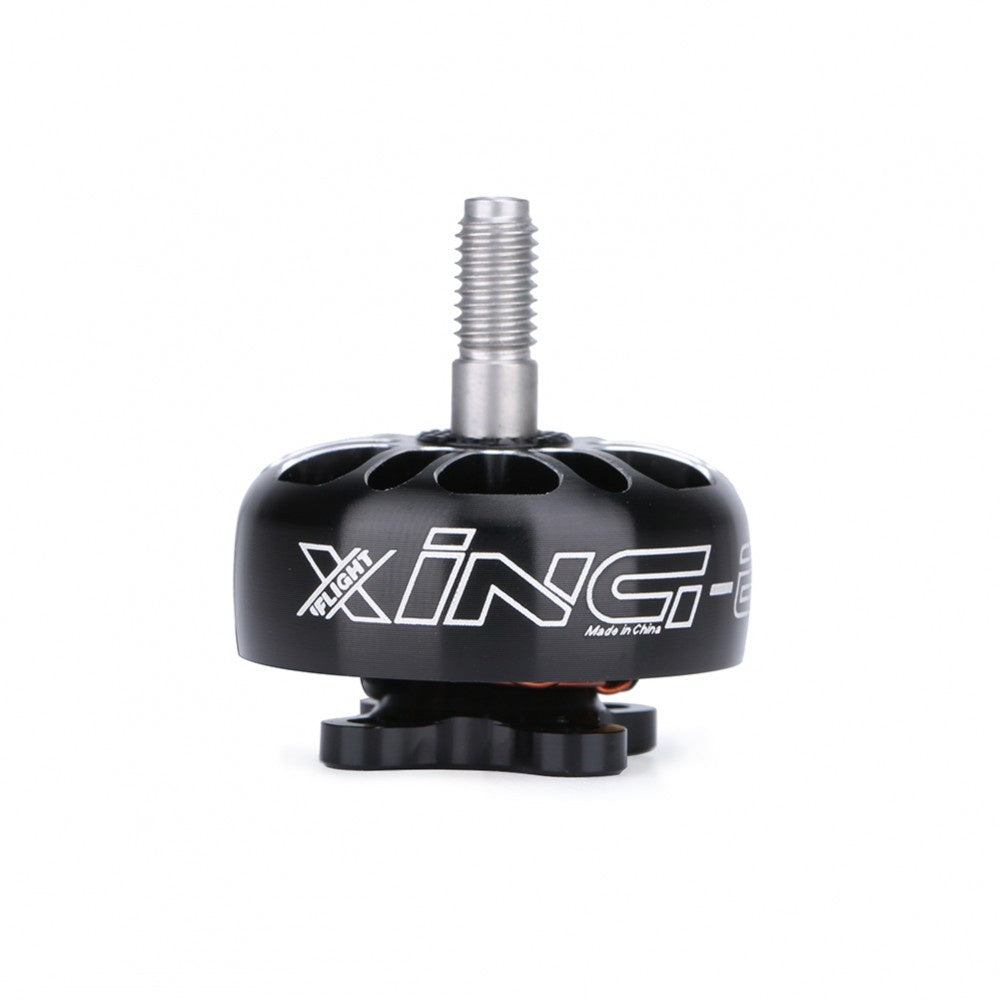

iFlight Xing-E Pro 2306 FPV Motor
$26.95 AUD
GST included
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
20291
Shipping Weight:
44g
W/H:
W-02-E-16
Categories:
Drone Motors, iFlight, iFlight Motors, Quadcopter Motors
Tags:
1700kv, 17xxKV, 23xx, 24xxkv, Drone Motor
Are you looking to buy iFlight Xing-E Pro 2306 FPV Motors in Australia?
XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.

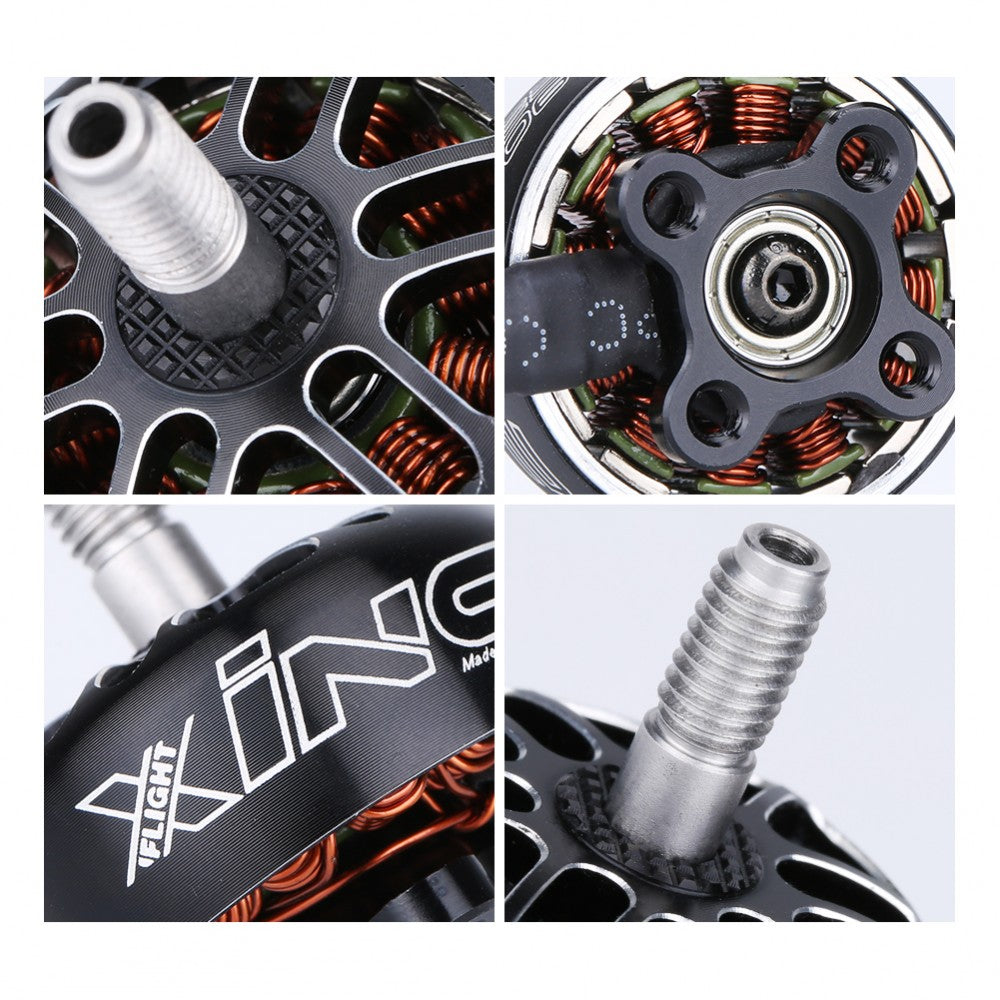

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
- High-strength 4mm Steel shaft
- N52SH High-temperature magnets, NSK bearings
- 16x16mm hole pattern
- Single strand copper winding
- 6061 CNC machined aluminum top and base parts
- Hex bolt shaft set screw
Specifications
- Configuration: 12N14P
- Stator Diameter: 24mm
- Magnets: N52SH Curved
- Bearing Size: 9x4x4
- Shaft Diameter: 4mm / Steel
- Base Mounting Pattern: 16x16mm M3 Thread
- Motor Dimension:29.5x18.7mm

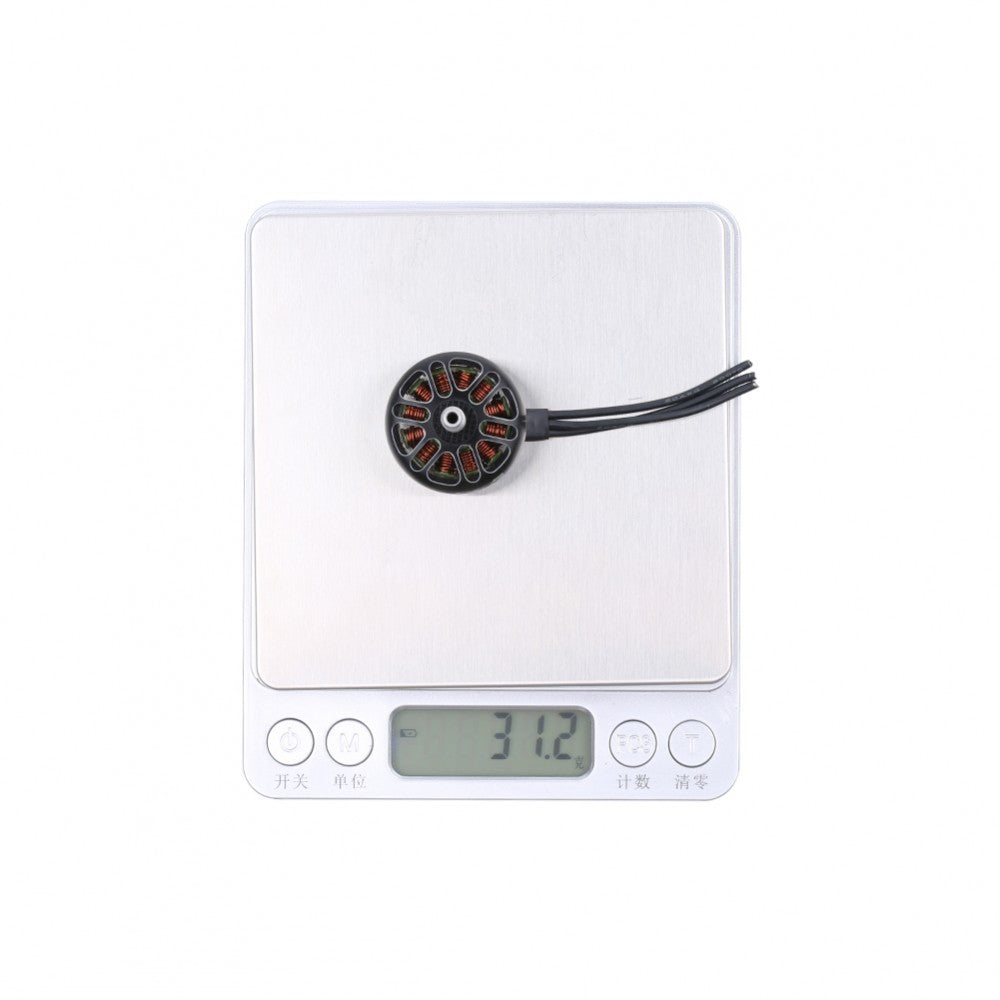

- Weight:33.1g (150mm wires)
- Idle Current @12.6v (Io):2.1A
- Cells (LiPo): 2-6S
- Max Burst Current <10s:55.22A
- Max Power (W) 60s:885.4W
- Internal Resistance (Rm): 40.6mΩ
- Motor Wire Length: 150mm / 20AWG

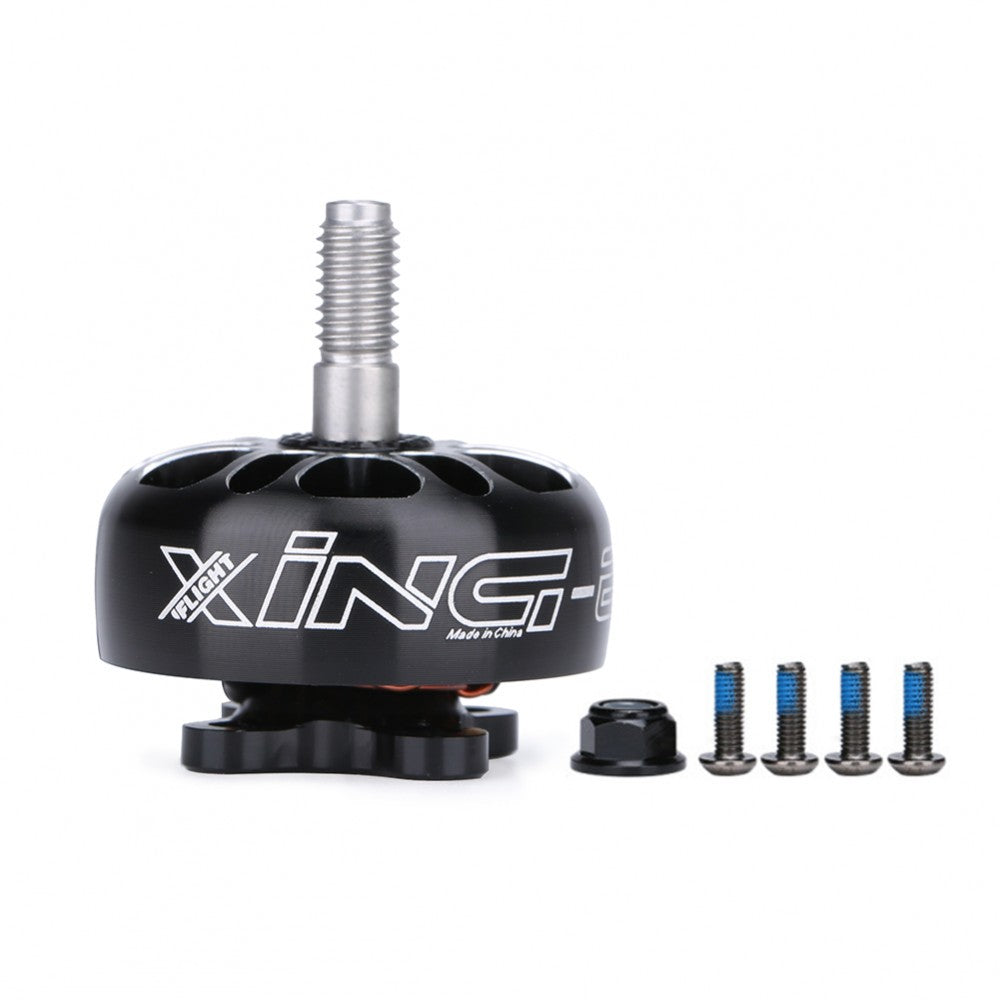

Package includes
- 1pc x MOTOR XING-E Pro 2306 motor
