Matek BEC20S-PRO 7-85V To 5V/8V/12V-5A

Name: Matek BEC20S-PRO 7-85V To 5V/8V/12V-5A
Brand: Matek
SKU: 34901
Price: 34.95 AUD
Availability: InStock

$34.95 AUD

GST included Shipping calculated at checkout.

10+ In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 34901

Shipping Weight: 12g

W/H: W-02-C-18

Categories: Matek

Tags: Regulator

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Wide 7V to 85V Operating Input Range with TVS protection

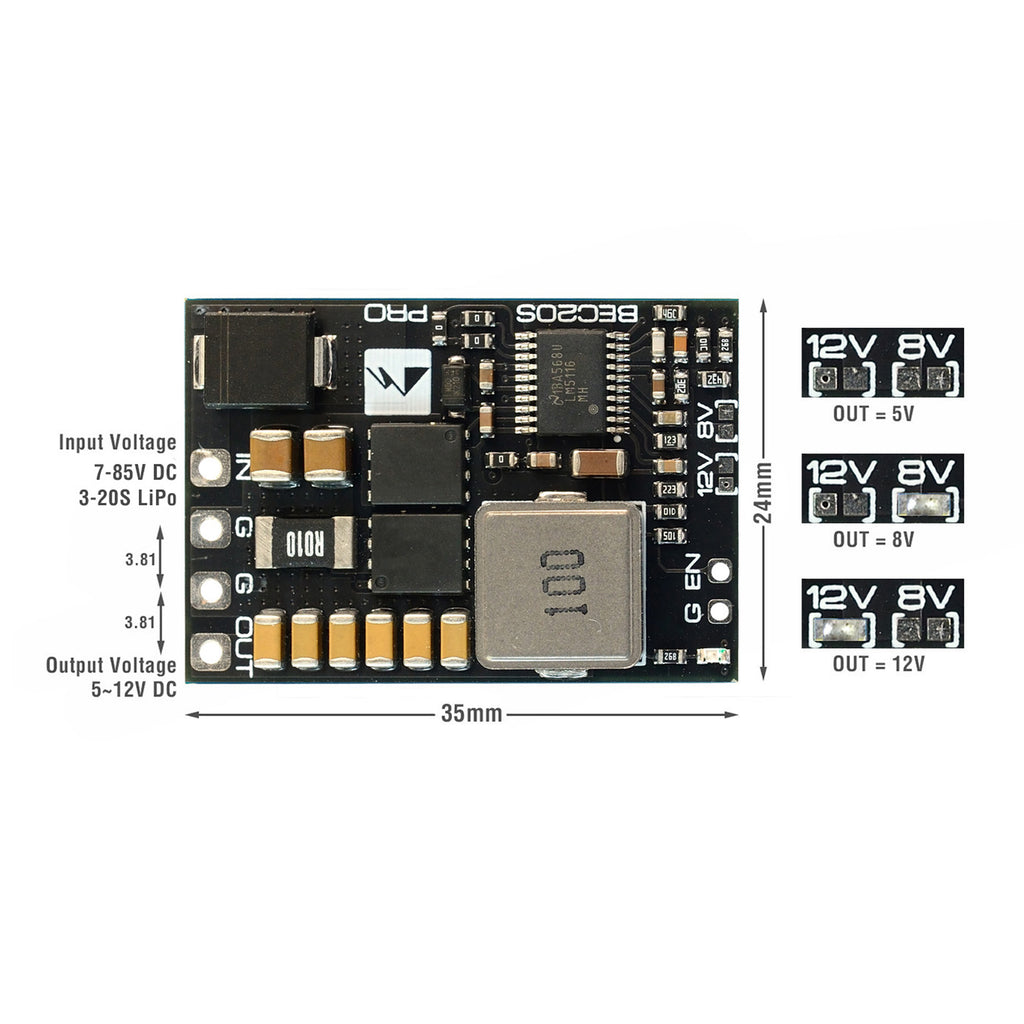

3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
Supports continuous output current of up to 5A, peak current of 9A.
Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
EN pin: if the EN pin is below 0.5 V, Output shutdown.
Standby current: 5~10mA
No reverse-input voltage protection
Thermal Shutdown
Output Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
Dropout voltage: 2V (Input>=14V is required for stable 12V output)
Pins distance: 3.81mm
Size & Weight: 35 x 24 x 5.5mm, 5g
Packing: 1pc/package
3D step
