Name: Matek CRSF to PWM Converter w/ Vario CRSF-PWM-V10
Brand: Matek
SKU: 26086
Price: 24.20 AUD
Availability: InStock

$24.20 AUD

GST includedShipping calculated at checkout.

3 In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Usually ready in 2 hours

SKU: 26086

Shipping Weight: 7g

W/H: U-02-C-12

Categories: Matek, Radio Gear, TBS Crossfire

Tags: Accessories, Crossfire

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

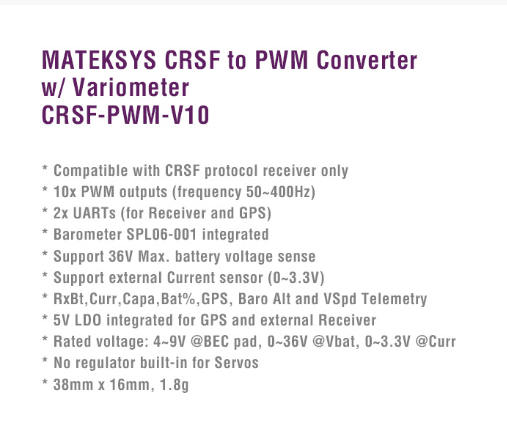

Compatible with CRSF protocol receiver only
Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
10x PWM outputs
PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
2x UARTs (for Receiver and GPS)
Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats, Vspd, Baro Alt (Start with EdgeTX 2.7.1/OpenTX 2.3.15 and ExpressLRS 2.5)
36V Max. battery voltage sense (1K:10K voltage divider built-in)
Compatible with external Current sensor (0~3.3V)
Vbat and Current sensor scale configurable
Failsafe value configurable
Firmware upgradeable
5V LDO (300mA) integrated for GPS and external Receiver.
Rated voltage: 4~9V @BEC pad, 0~36V @Vbat, 0~3.3V @Curr
No regulator built-in for servos, Servos must be powered via BEC pad by external 5-9V source.

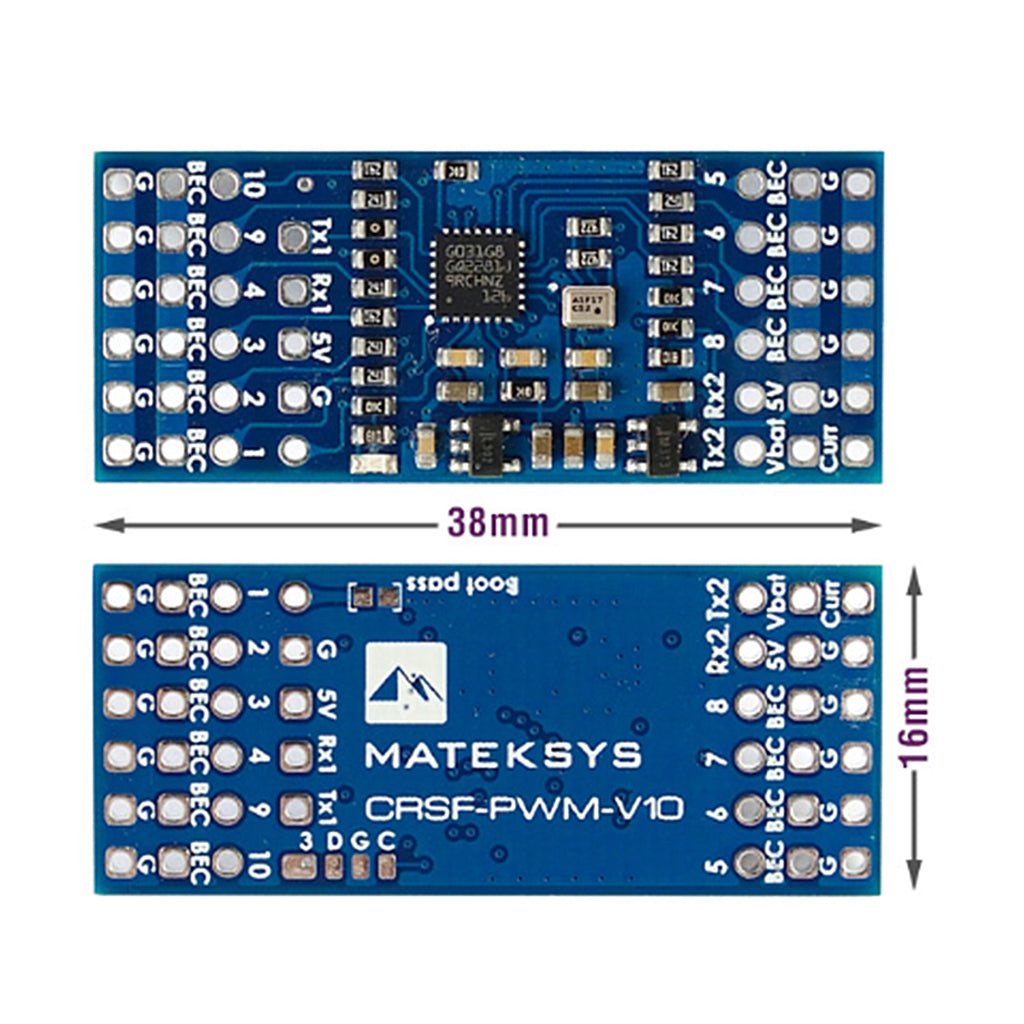

38mm x 16mm, 1.8g
Packing: 1x CRSF-PWM-V10, Dupont 2.54 pins
