Product details


Are you looking to buy Matek ExpressLRS True Diversity Receiver ELRS-R24-TD (2.4ghz) in Australia?

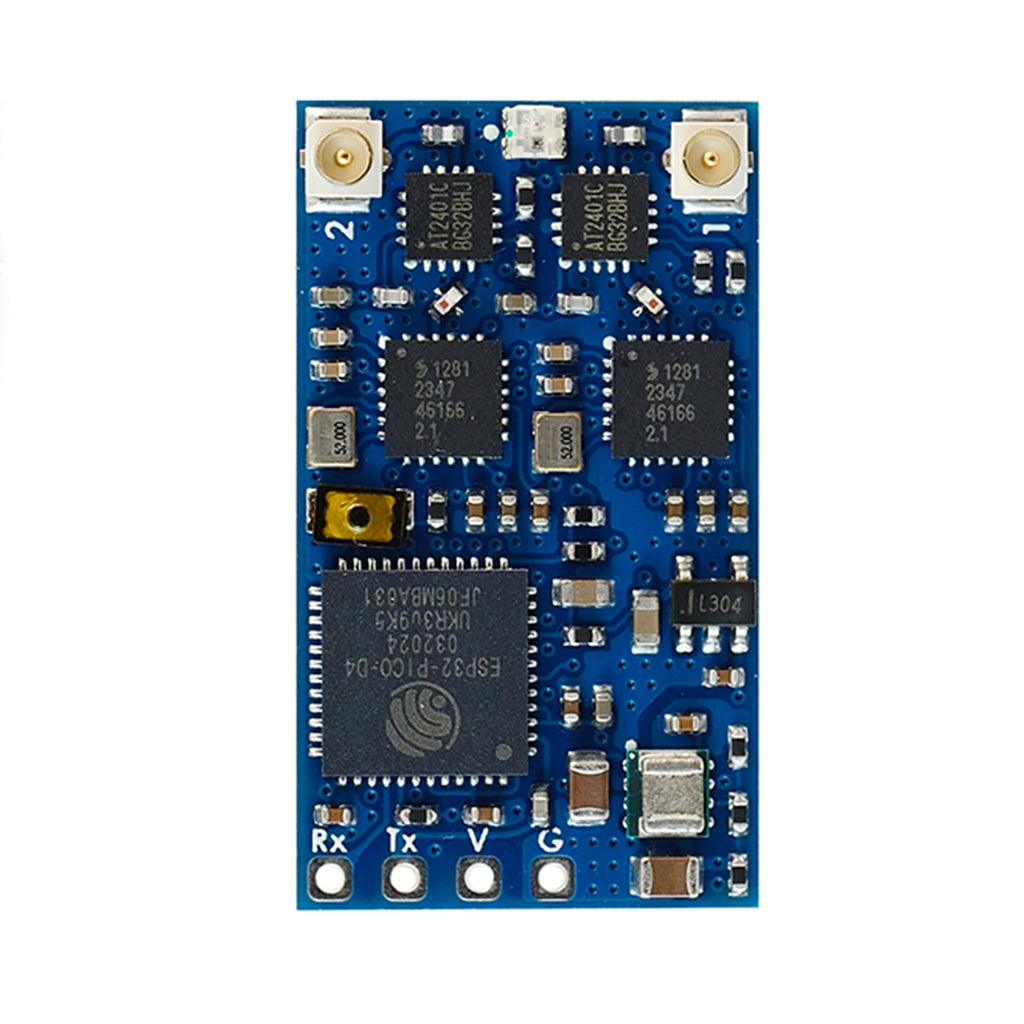

The Matek ExpressLRS 2.4GHz True Diversity Receiver, R24-TD, is a high-performance receiver designed for RC enthusiasts looking for precision and reliability. It features the ESP32-PICO-D4 chipset and the SX1281 radio module, providing robust performance on the 2.4GHz ISM frequency band.

Features

  • True Diversity: Ensures better signal reception and reduced interference.
  • RGB LED Status Indicators: Different colours and blink patterns indicate various states such as startup, binding mode, and connection status.
  • Preloaded Firmware: Comes with ExpressLRS 3.3.2 and a default binding phrase, which requires flashing for customisation.

Specifications

  • ESP32-PICO-D4, SX1281, ExpressLRS Firmware
  • PA/LNA: AT2401C
  • RF Frequency: 2.4GHz ISM
  • Telemetry power: 20dbm (100mW)
  • True Diversity
  • Receiver protocol: CRSF
  • Antenna connector: IPEX MHF-1
  • Power supply: 4-13V DC @ “V” Pad
  • Power dissipation:  100mA~170mA@5V IN
  • PCB size: 28mm x 16mm
  • Weight: 4g w/ antenna

Includes

  • 1x ELRS-R24-TD
  • 2x IPEX MHF1 Antennas. 15cm
