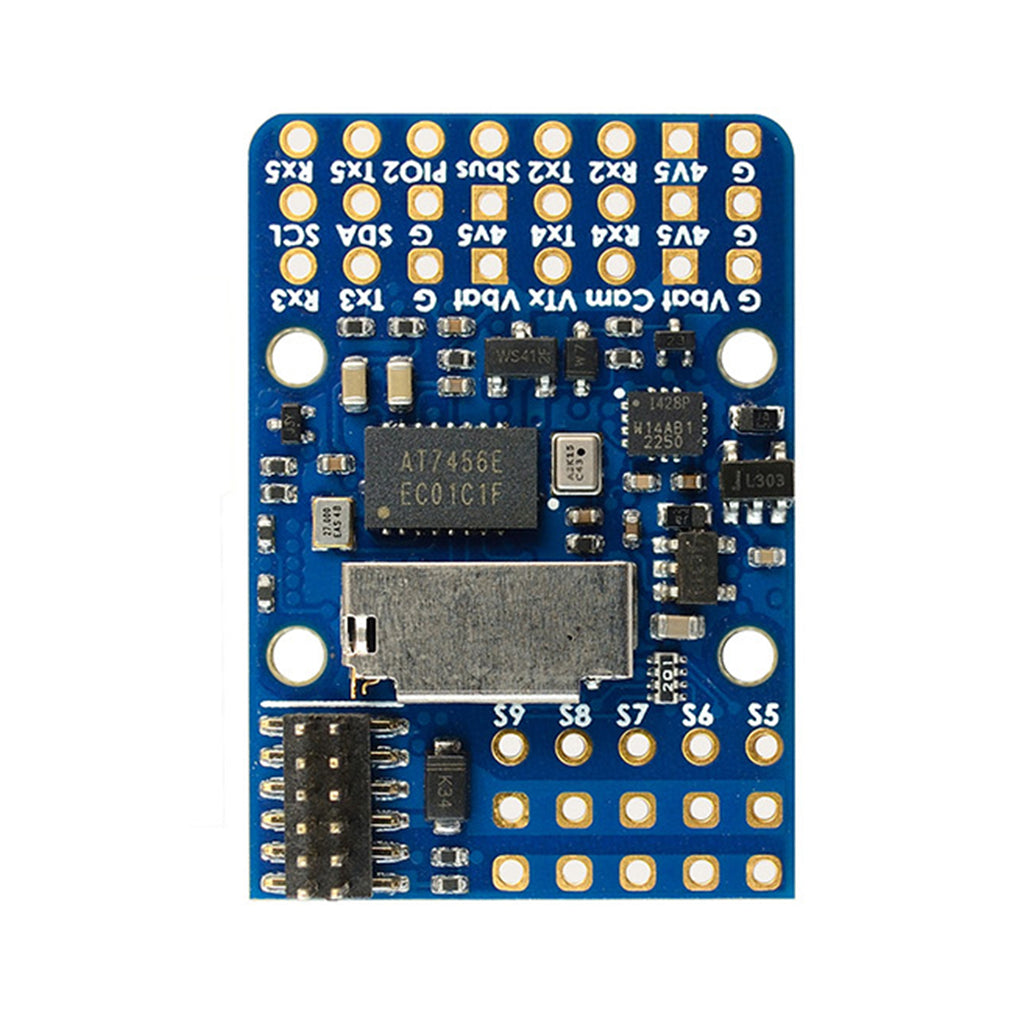

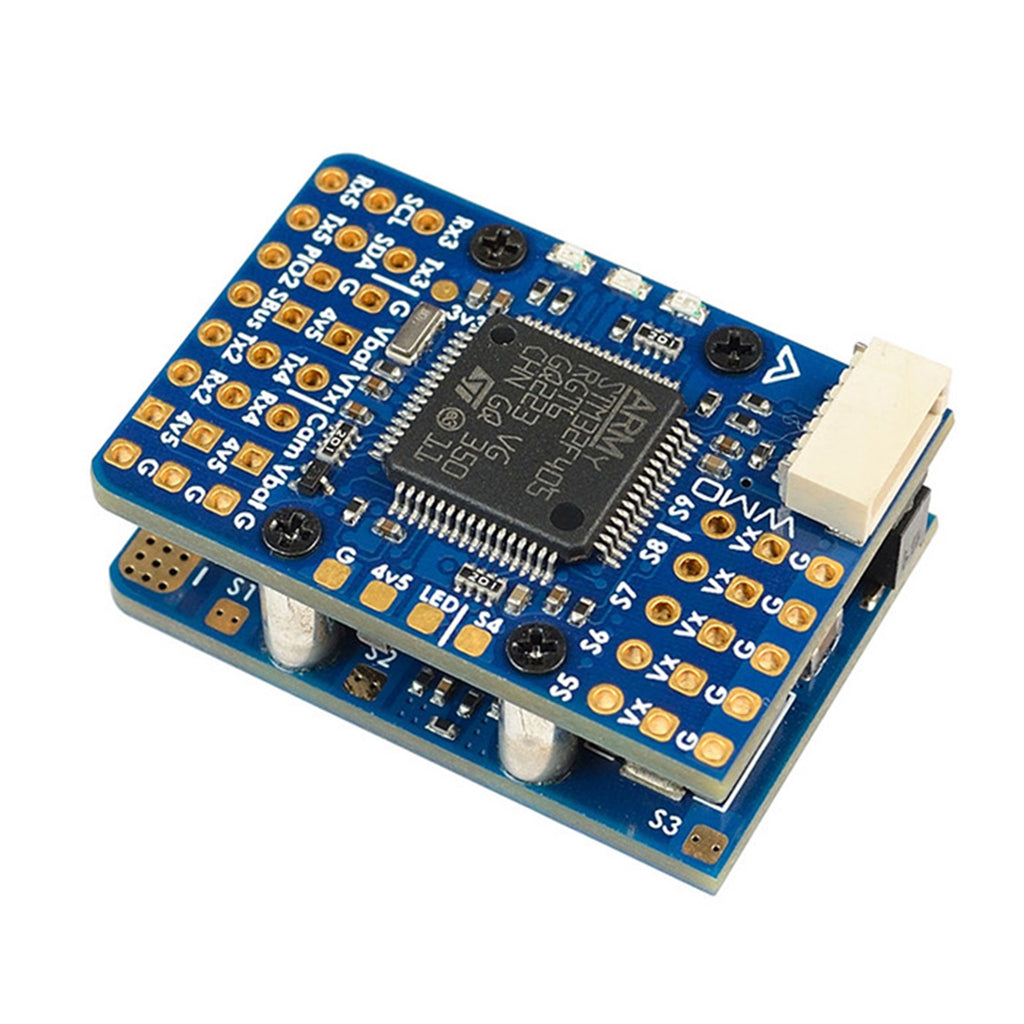

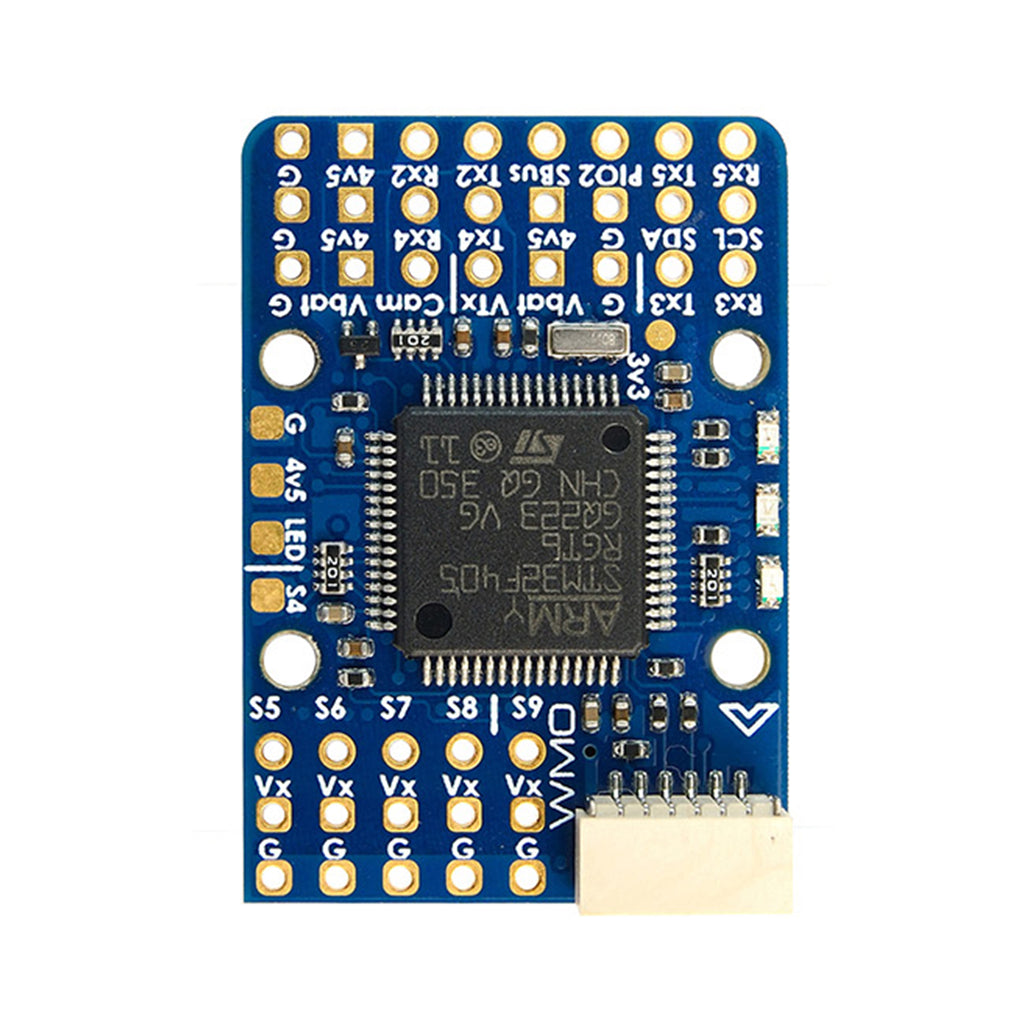

Matek F405-WMO Flight Controller

Are you looking to buy Matek F405-WMO Flight Controller in Australia?

The F405-WMO Flight Controller is engineered for reliable performance in fixed-wing and multi-rotor applications. Featuring the STM32F405 processor, built-in OSD, and versatile connectivity, it provides smooth control and precise handling. Compact and efficient, it’s a solid choice for pilots who want advanced functionality without unnecessary complexity.

Specifications

• FC

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: SD card slot
  • 4x UARTs
  • 10x PWM outputs
  • 1x I2C
  • 2x ADC (VBAT, Current)
  • 1x spare PINIO
  • Vbat output ON/OFF control
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input

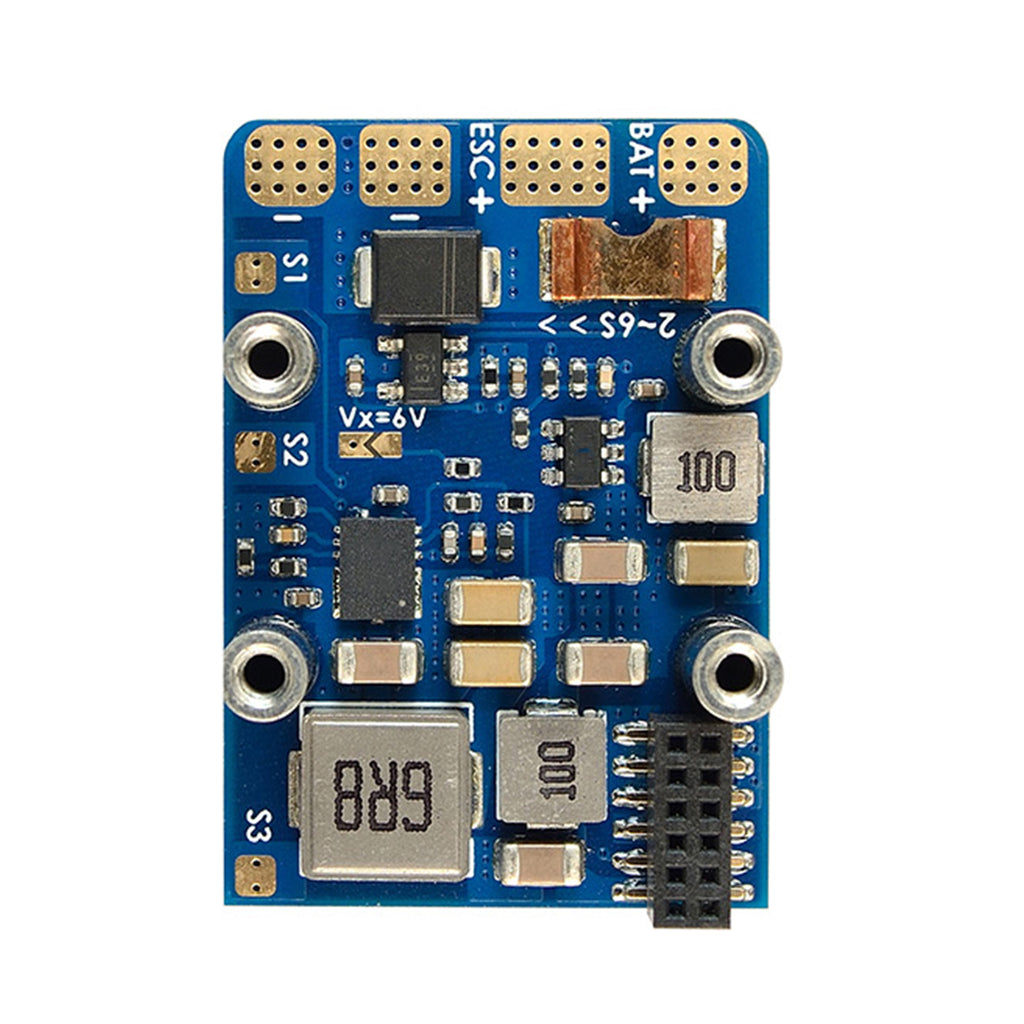

• Power
  • 5.4~30V DC IN (2~6S LiPo)
  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
  • PDB/Current sense resistor: 90A continuous, 132A burst.
  • BEC 5V(4v5) 2A for FC & Peripherals
  • BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option
  • Filtered Vbat for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:20k
• FC Firmware
  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE_SD
• Physical
  • Dimensions: 32 x 22 x 12.7 mm
  • Weight: 9g

Layout

Wiring

Includes

• 1x F405-WMO
• 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P cable for USB extender.
• Dupont 2.54 pins  (Board is shipped unsoldered)
