Are you looking to buy Matek mLRS MAVLink 900M CAN Receiver MR900-30C in Australia?
Specifications
- STM32G431KB, mLRS firmware
- LoRa SX1262 with TCXO
- PA/LNA SE2435L
- RF Frequency: 900MHz (868MHz, 915MHz FCC)
- 915MHz RF power: 17dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
- 868MHz RF power: 17dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
- Antenna connector: IPEX MHF-1
- CAN: Bi-directional Serial MAVLink & RC out (DroneCAN protocol), Default
- TX1/RX1: Bi-directional Serial MAVLink
- TX2: RC out(CRSF or SBUS) one buttom for DFU mode and Bind
- Power supply: 4.5-13V DC @ “V” Pad
- Power dissipation: Average 340mA/Peak 850mA@5V IN(31Hz, 30dbm)

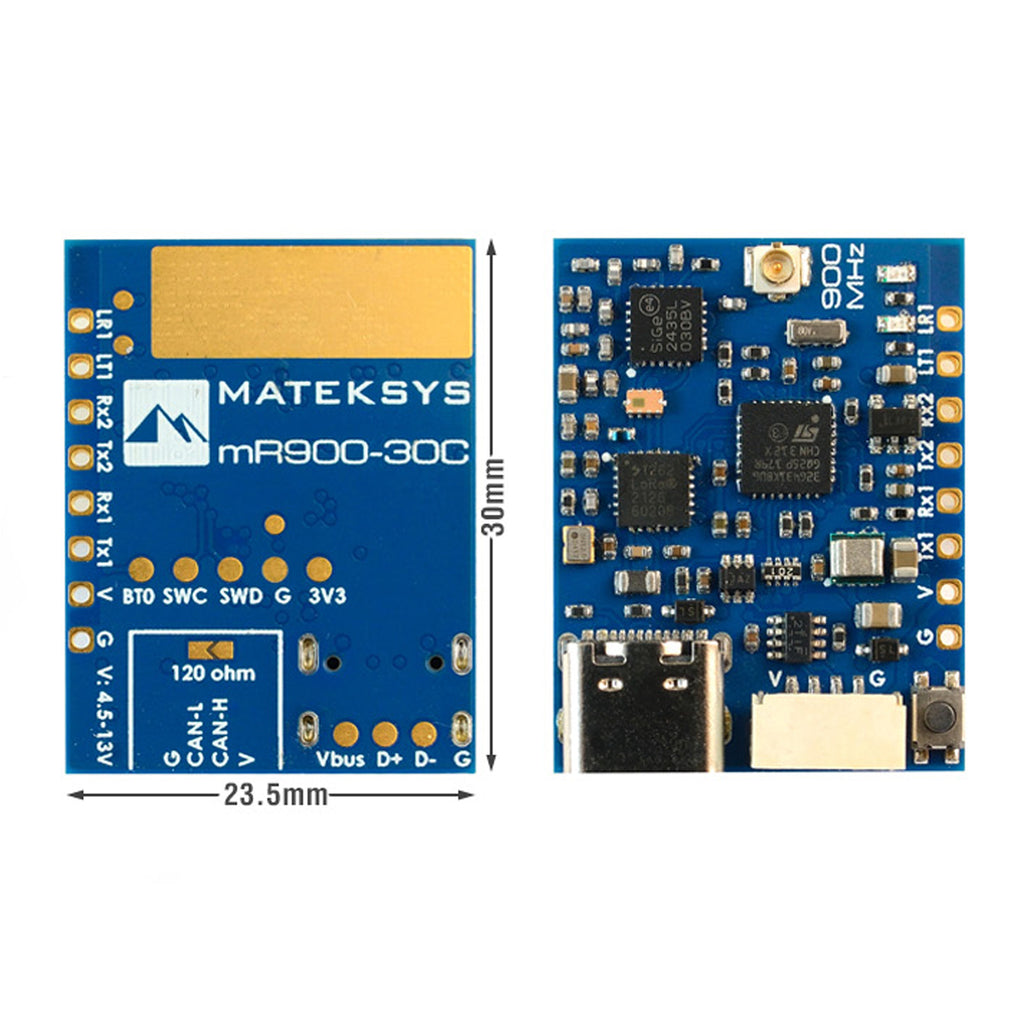

- PCB Size: 30×213.5mm
- Weight: 6g w/ antenna
Includes
- 1x mR900-30C
- 1x IPEX MHF1 dipole antenna. 8cm
- 1x Heatsink 20*20*6mm
LED Status
- [Red flashing 2Hz], not connected to transmitter
- [Green flashing 1Hz], connected to transmitter
- [Red and Green alternately], Binding mode enabled
Binding
- After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
- https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware
- mLRS https://github.com/olliw42/mLRS/tree/main/firmware/pre-release-stm32
- Targets: rx-matek-mr900-30C-g431kb
