Are you looking to buy Micro Motor Warehouse CL-0820-15-11T coreless motor for Latrax Alias in Australia?

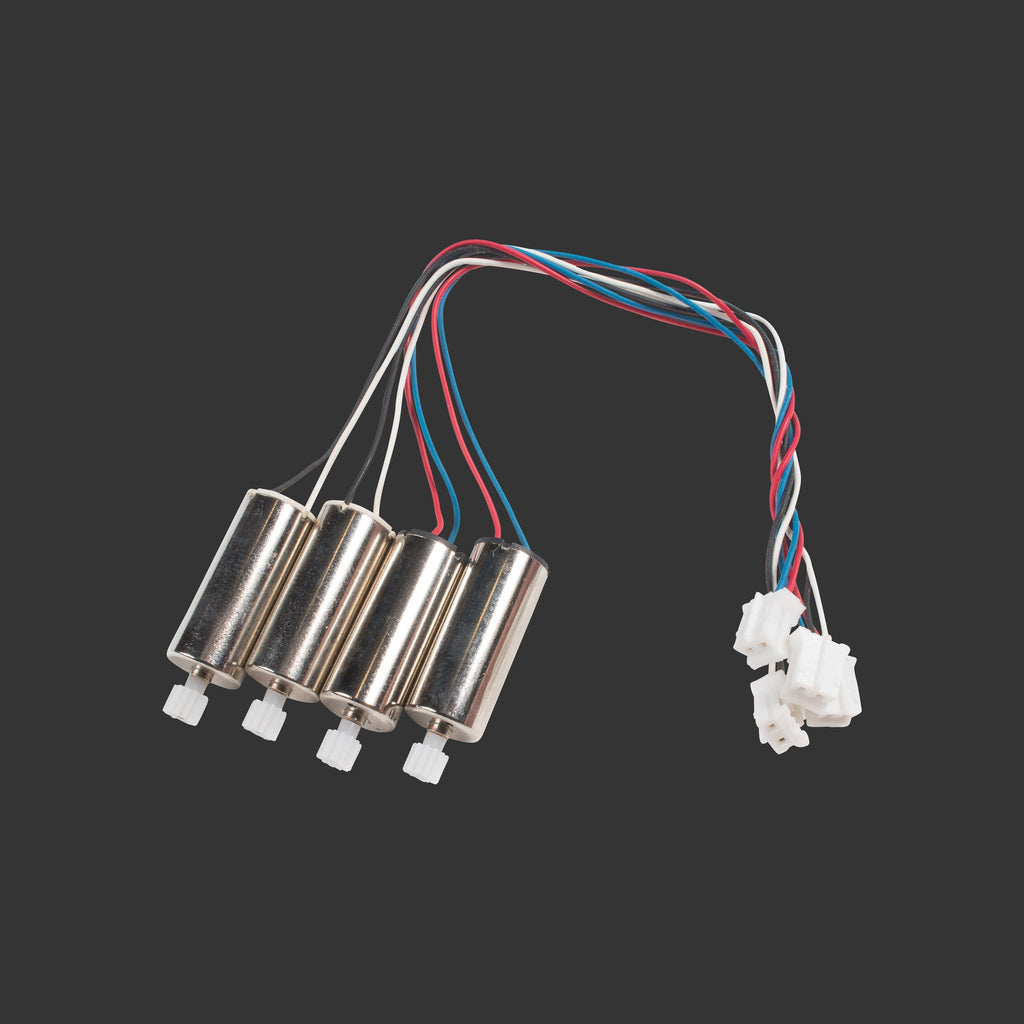

package size: 4pcs (2x CW, 2x CCW)
This is the geared version of the 0802-15, including 11T polymer pinions, with pre-fitted JST-PH plugs (compatible to Latrax Alias).
-> Alias motor installation instructions (picture)
To mount this motor in many other geared quads, such as the Helimax 230Si, and the Galaxy Visitor 3, you will have to solder or fit your own plugs. Only use with 1S (single cell, 3.7V) batteries!
performance data:
- speed: 15.000K
- operating voltage: 1.5-3.7V
- max. thrust: 40g (direct drive, Hubsan X4 propeller)
- 2.75A max. load current at 3.7V (Hubsan X4 propeller)
- factory lifetime rating: 5-6 hours

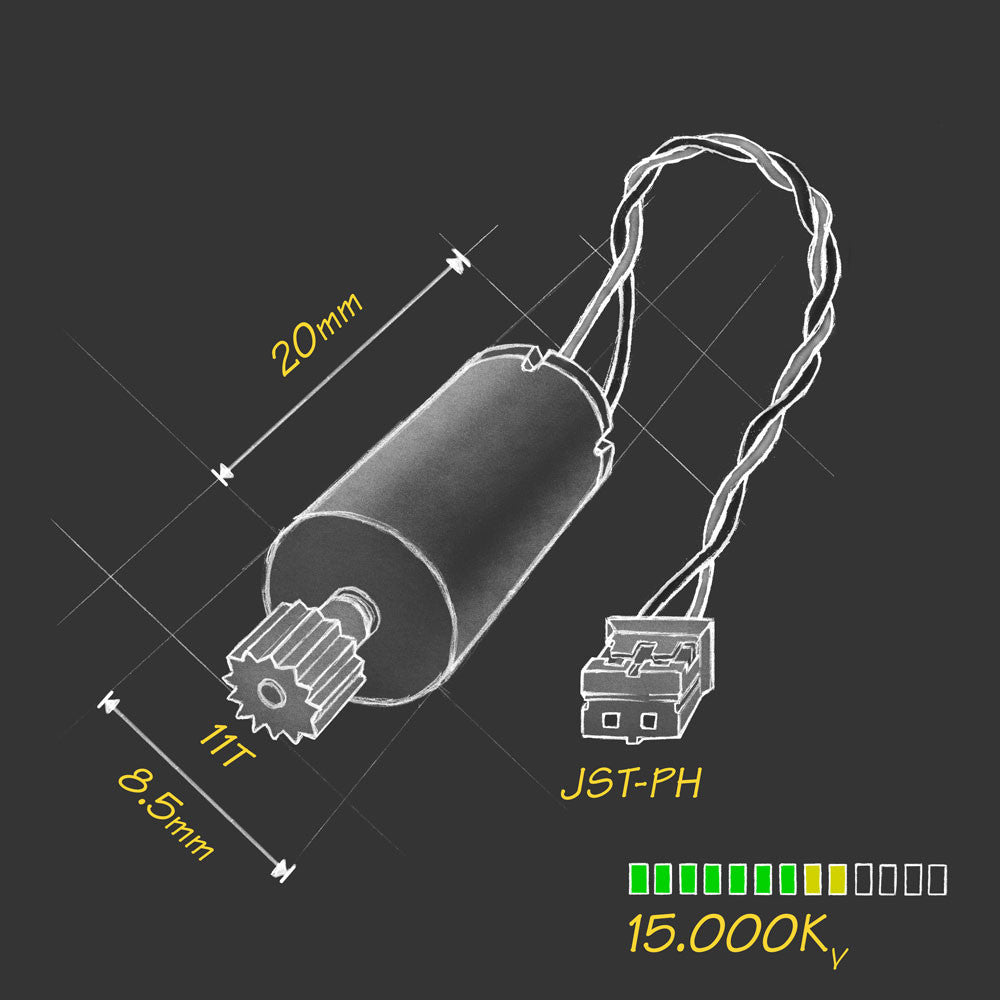

dimensions:
- can diameter: 8.5mm
- can length: 20mm
- shaft diameter: 1mm
- shaft length: 5mm
- wire length: 120mm
- weight: 4.9g
All motor packs contain equal amounts of clockwise and counter clockwise motors. To maximise performance and life span, dont run them in reverse!
Motor rotation and correct polarity is indicated by the wire color:

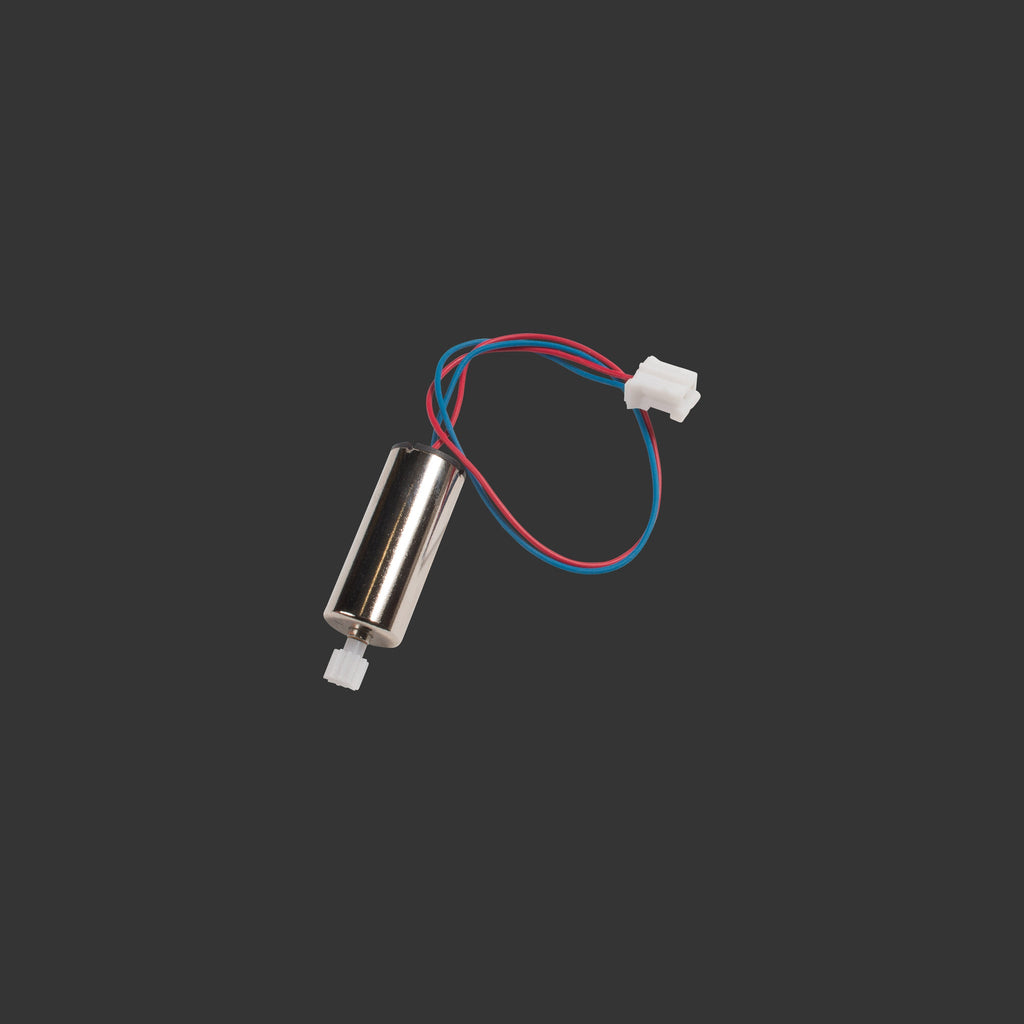

clockwise: red +, blue -

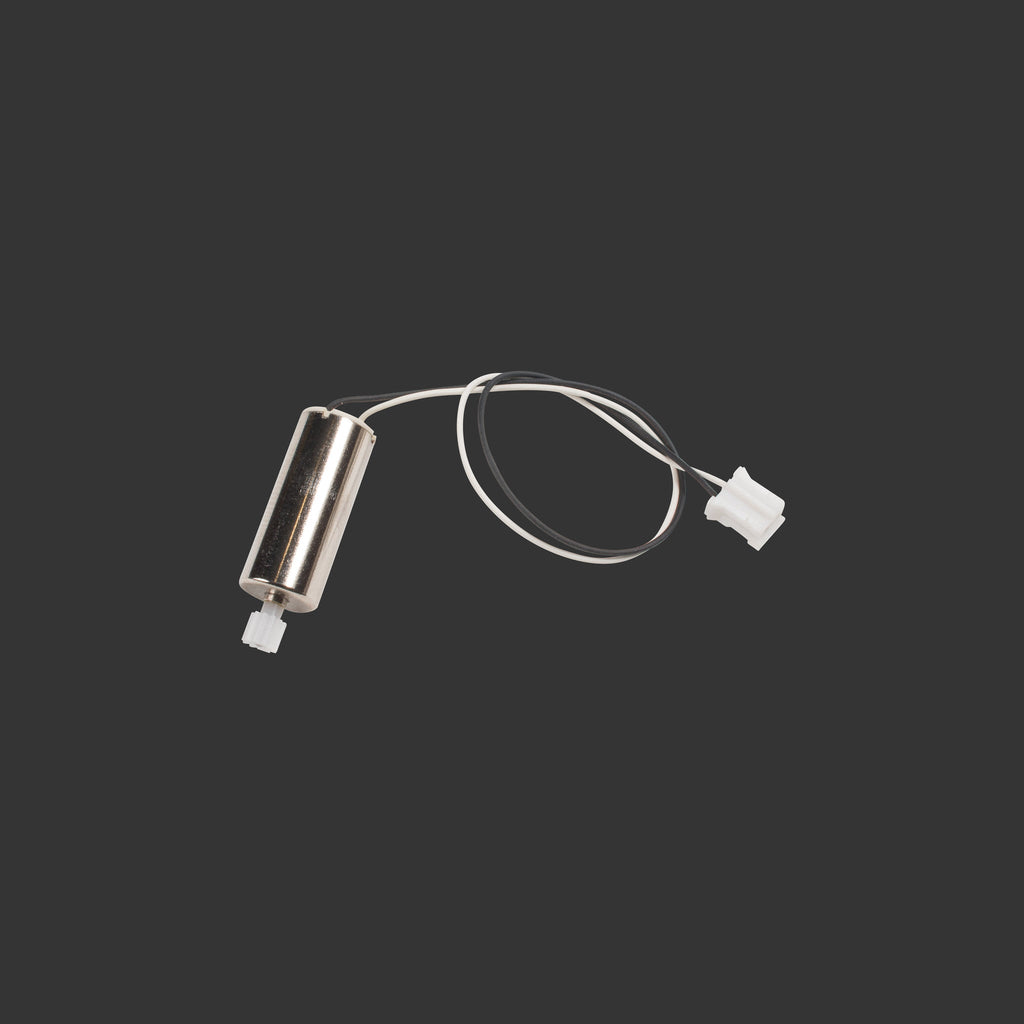

counter clockwise: white +, black -
Link to reviews and comparison to other micro motors on rcgroups:
1s micro/mini brushed quadcopter specifications and performance data
