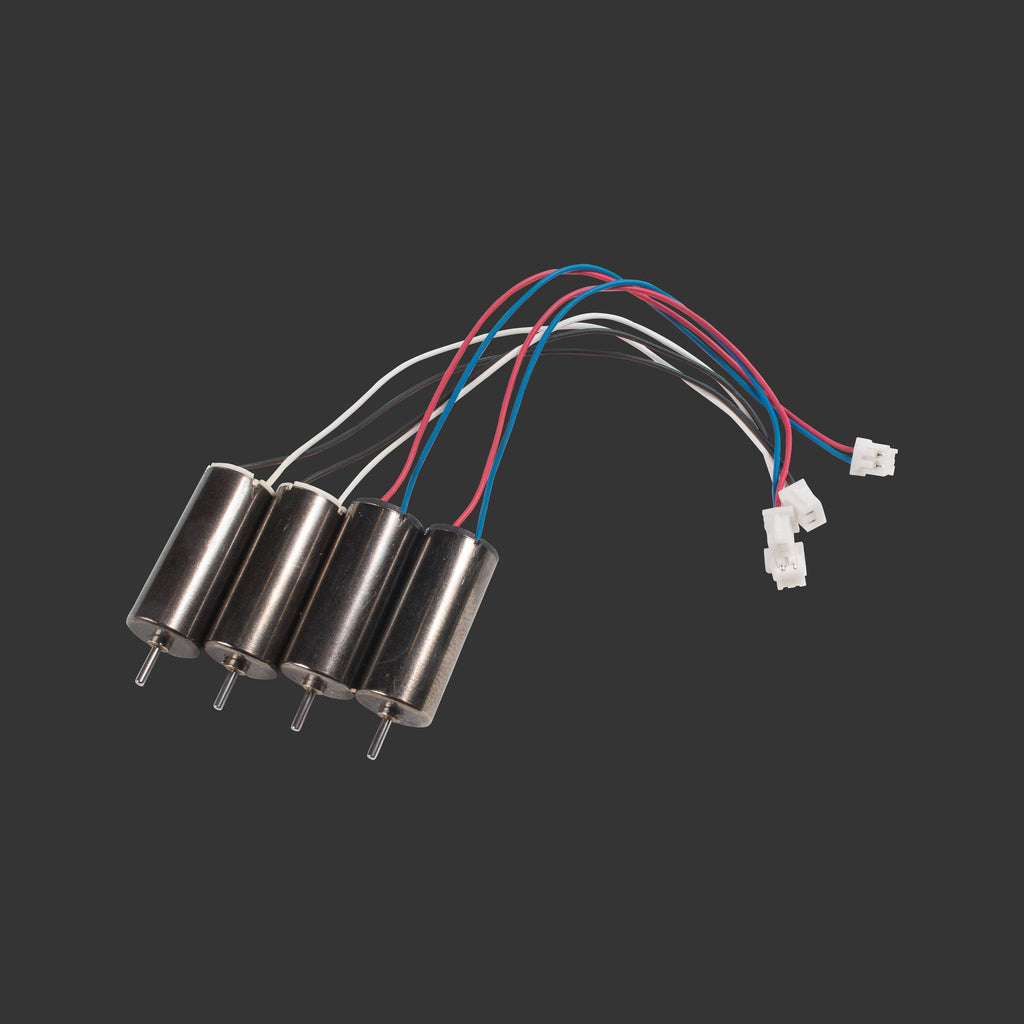

Micro Motor Warehouse CL-0820-18 coreless brushed motor
1pcs / CW
$7.95 AUD
Skip to product information
200+ In stock
Micro Motor Warehouse CL-0820-18 coreless brushed motor
$7.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
CL-0820-18-CW
Shipping Weight:
5g
W/H:
U-03-J-07
Categories:
Micro Motor Warehouse Australia, Quadcopter Motors
Tags:
8520 Whoop, Alien Classic, brick, Hubsan 107C/D, micro-H, whoop part
Are you looking to buy Micro Motor Warehouse CL-0820-18 coreless brushed motor in Australia?
The CL-0820-18 "Dark Edition
specifications:
- speed: 17.800Kv
- operating voltage: 1.5-3.7V
- 5A+ current at 3.7V (66mm Parrot propeller)
- factory lifetime rating: 5-6 hours
- can diameter: 8.5mm
- can length: 20mm
- shaft diameter: 1mm
- shaft length: 5mm
- weight: 4.9g
- wire length: 8cm
- plug: Micro-JST-1.25
- housing: dark anodised
Motor rotation and correct polarity is indicated by the wire color:

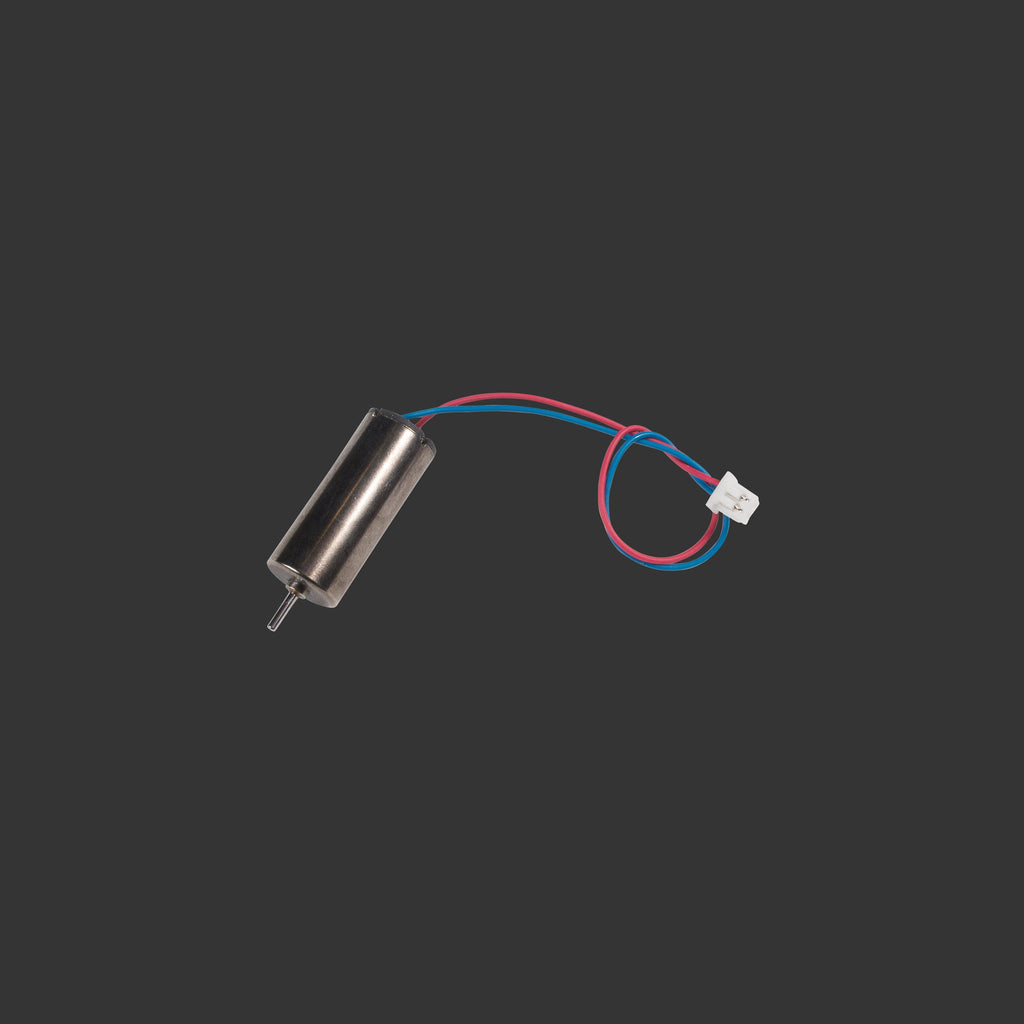

clockwise: red +, blue -

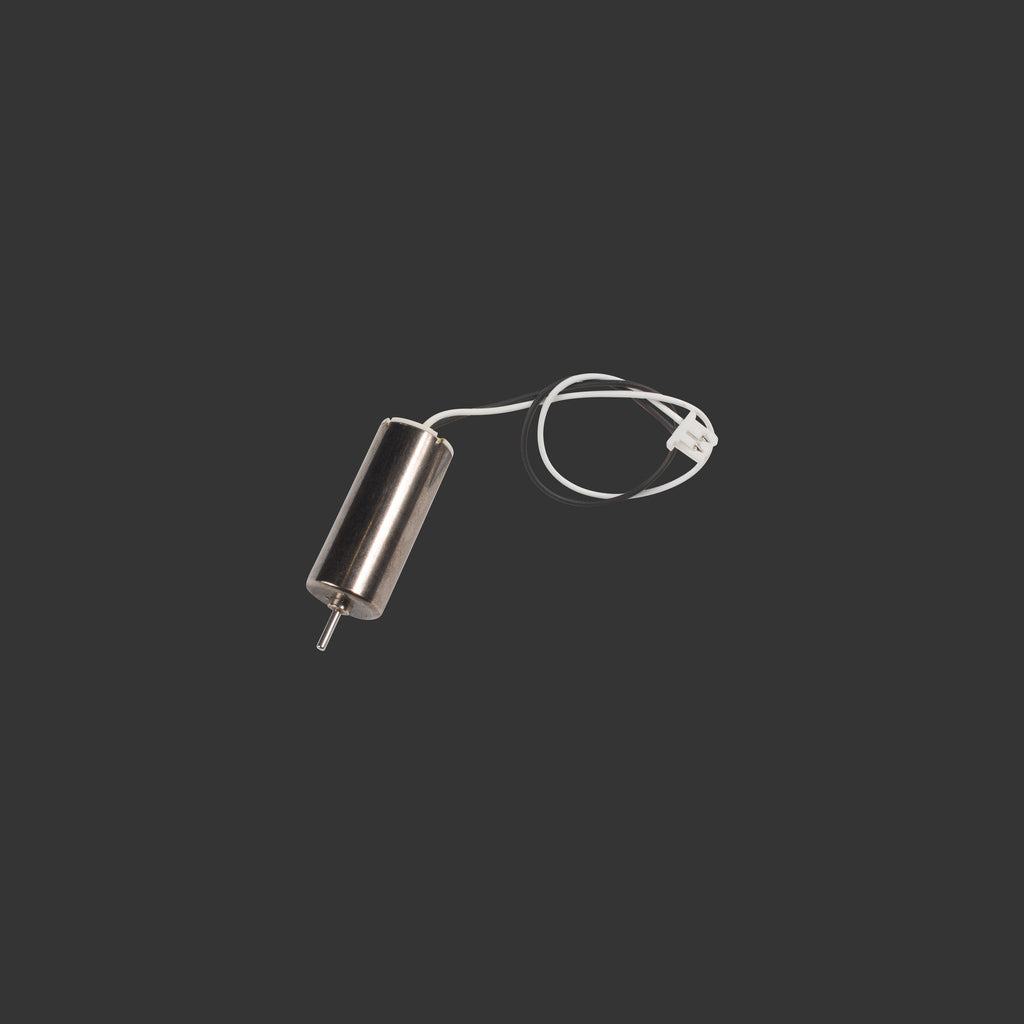

counter clockwise: white +, black -
