Are you looking to buy Matek mLRS MAVLink Receiver mR900-22 (915mhz) EOL in Australia?
Specifications

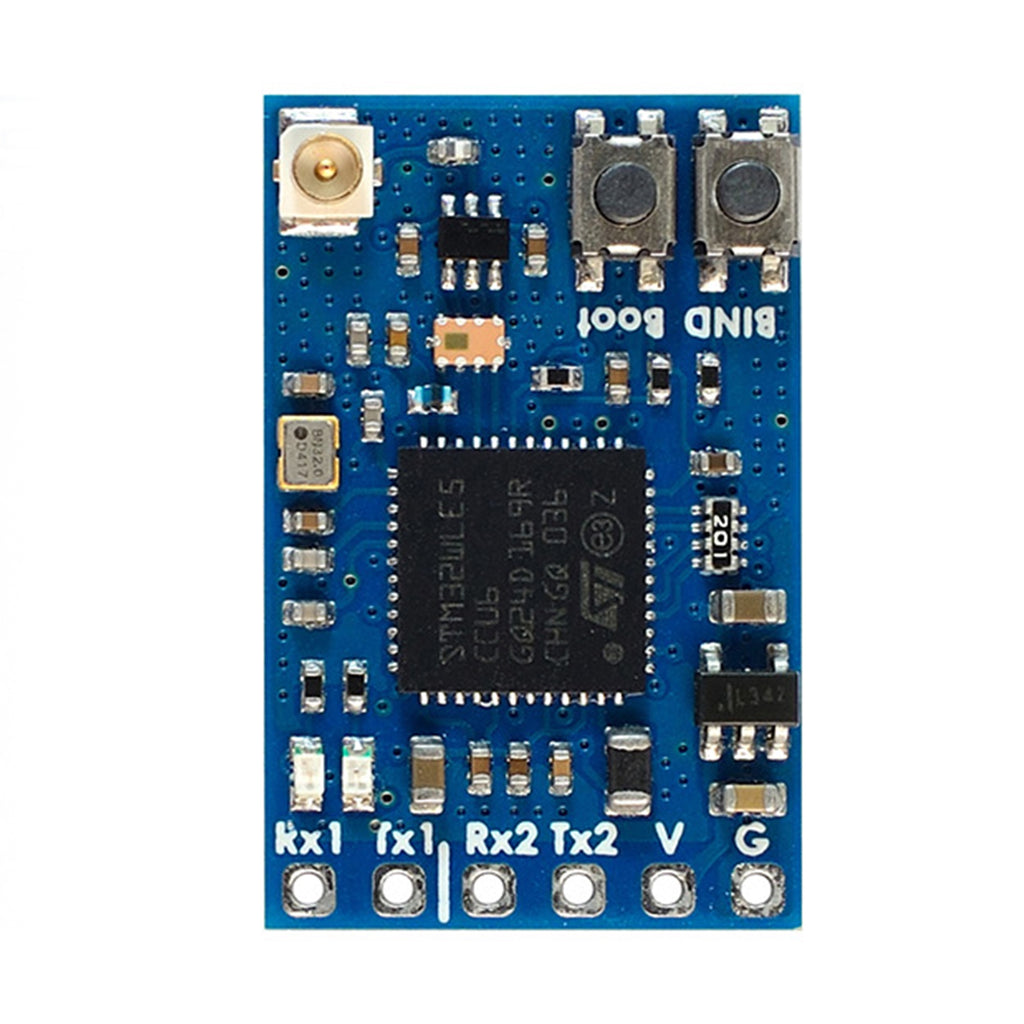

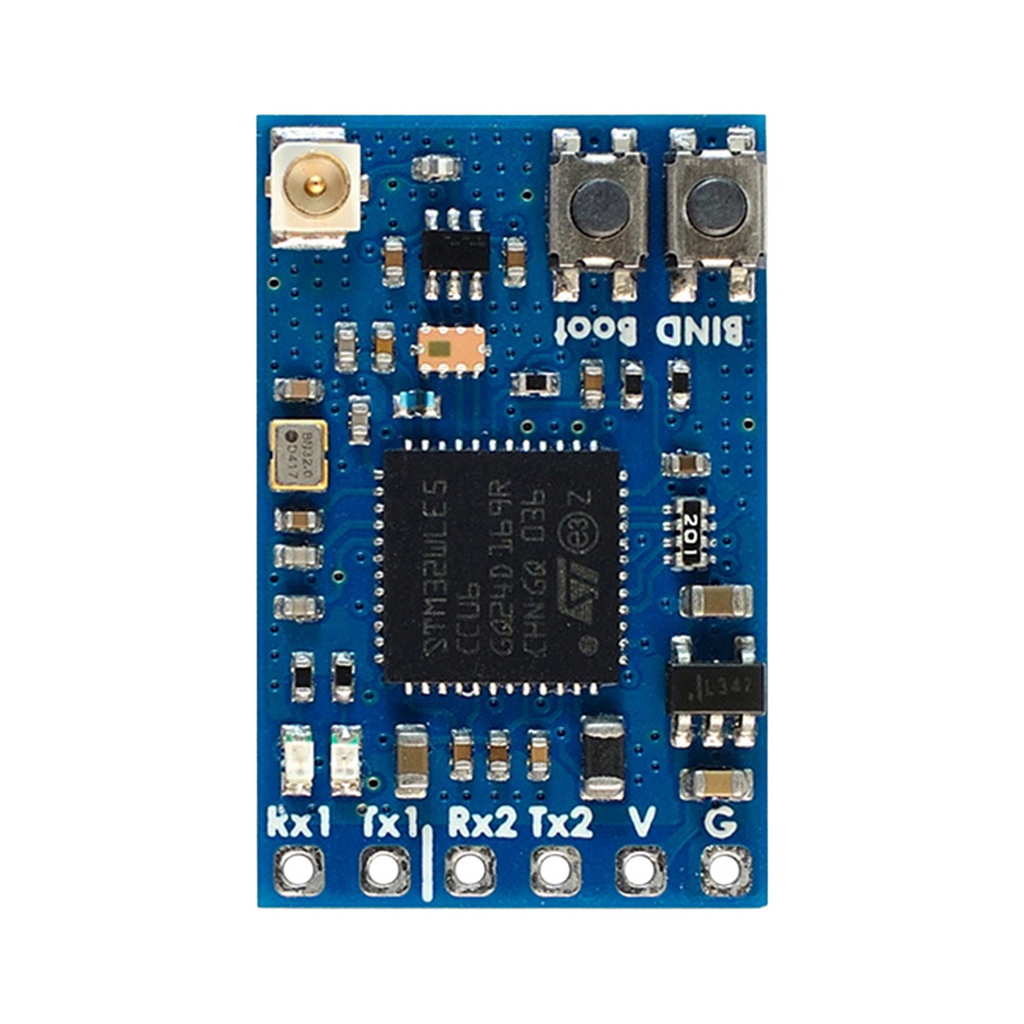

- STM32WLE5CC with TCXO, mLRS firmware
- RF Frequency: 900MHz (868MHz, 915MHz FCC)
- RF power: -9dBm(min) / 0dBm / 10dBm / 20dBm / 22dBm(158mW)
- Antenna connector: IPEX MHF-1

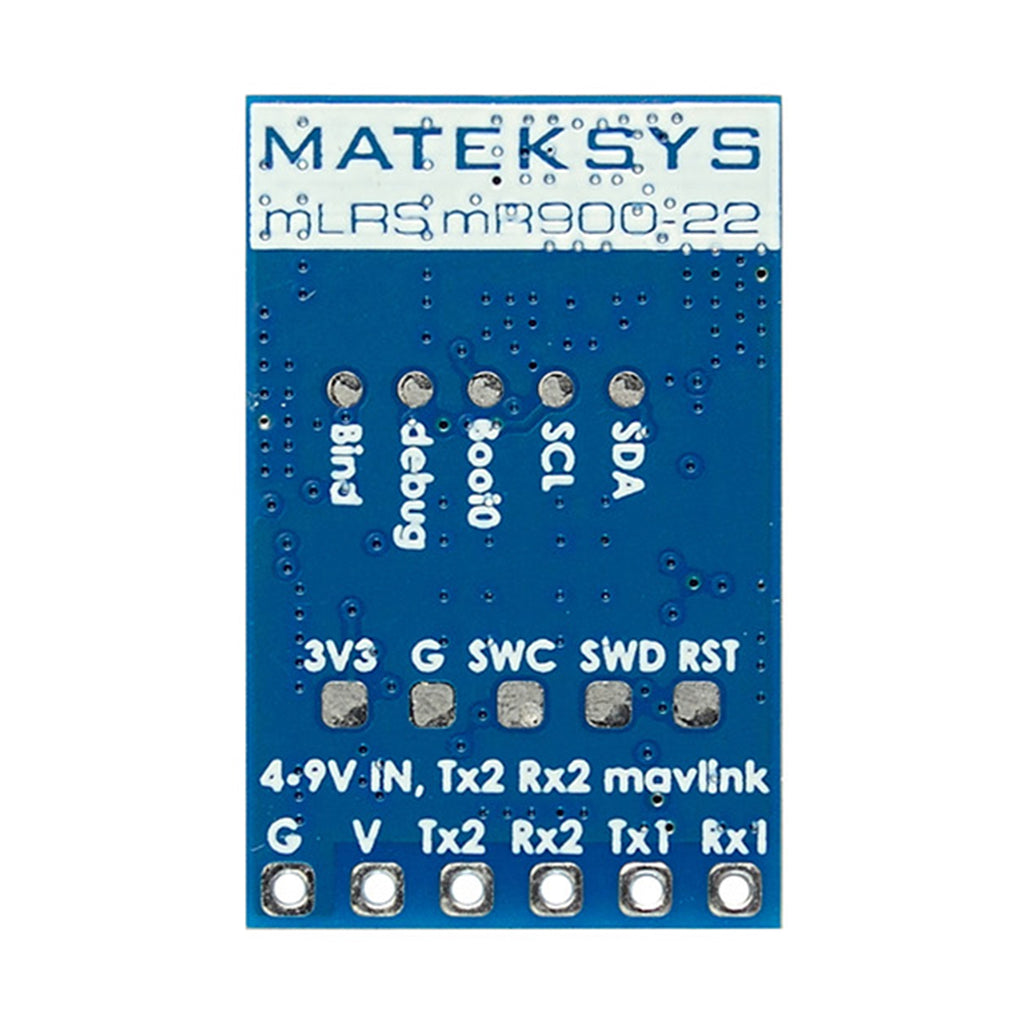

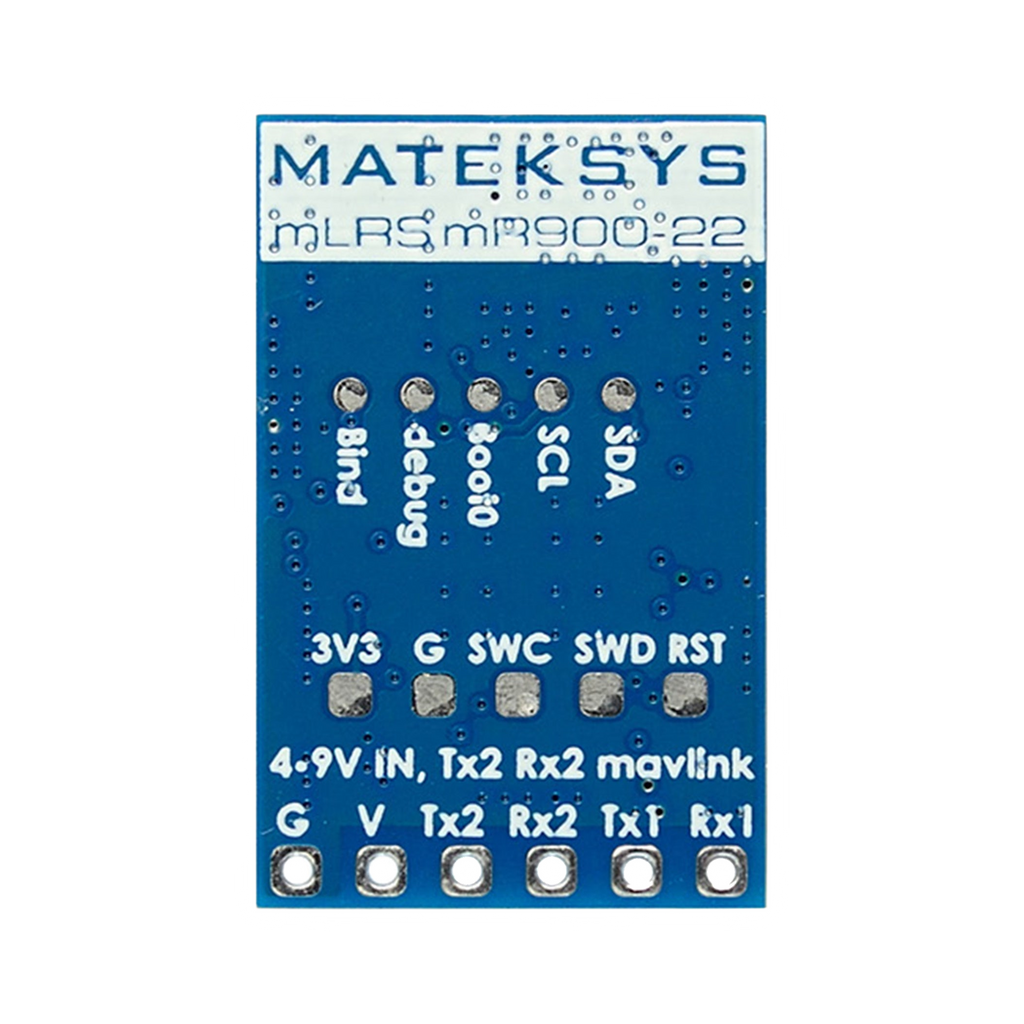

- TX2/RX2: Bi-directional Serial MAVLink
- TX1: RC out(CRSF or SBUS)
- 2x buttons for Boot mode and Bind
- Power supply: 4-9V DC @ “V” Pad
- Power dissipation: 67mA@5V IN(31Hz, 22dbm)
- PCB Size: 24 x 15.5 mm
- Weight: 2.3g w/ antenna
Includes
- 1x mR900-22

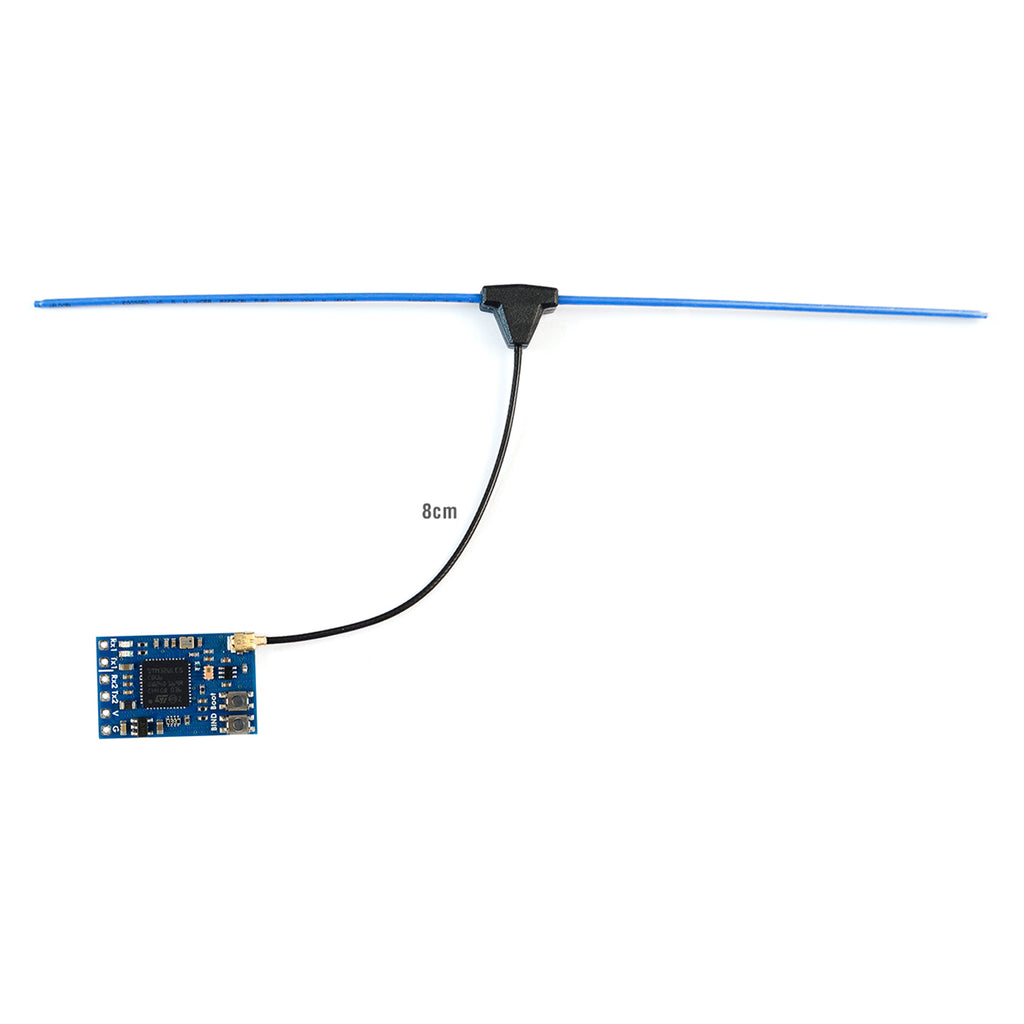

- 1x IPEX MHF1 dipole antenna. 8cm
LED Status
- [Red flashing 2Hz], not connected to transmitter
- [Green flashing 1Hz], connected to transmitter
- [Red and Green alternately ], Binding mode enabled
Binding
- After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
- https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware
- mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
- Targets: rx-matek-mr900-22-wle5cc-xxx
