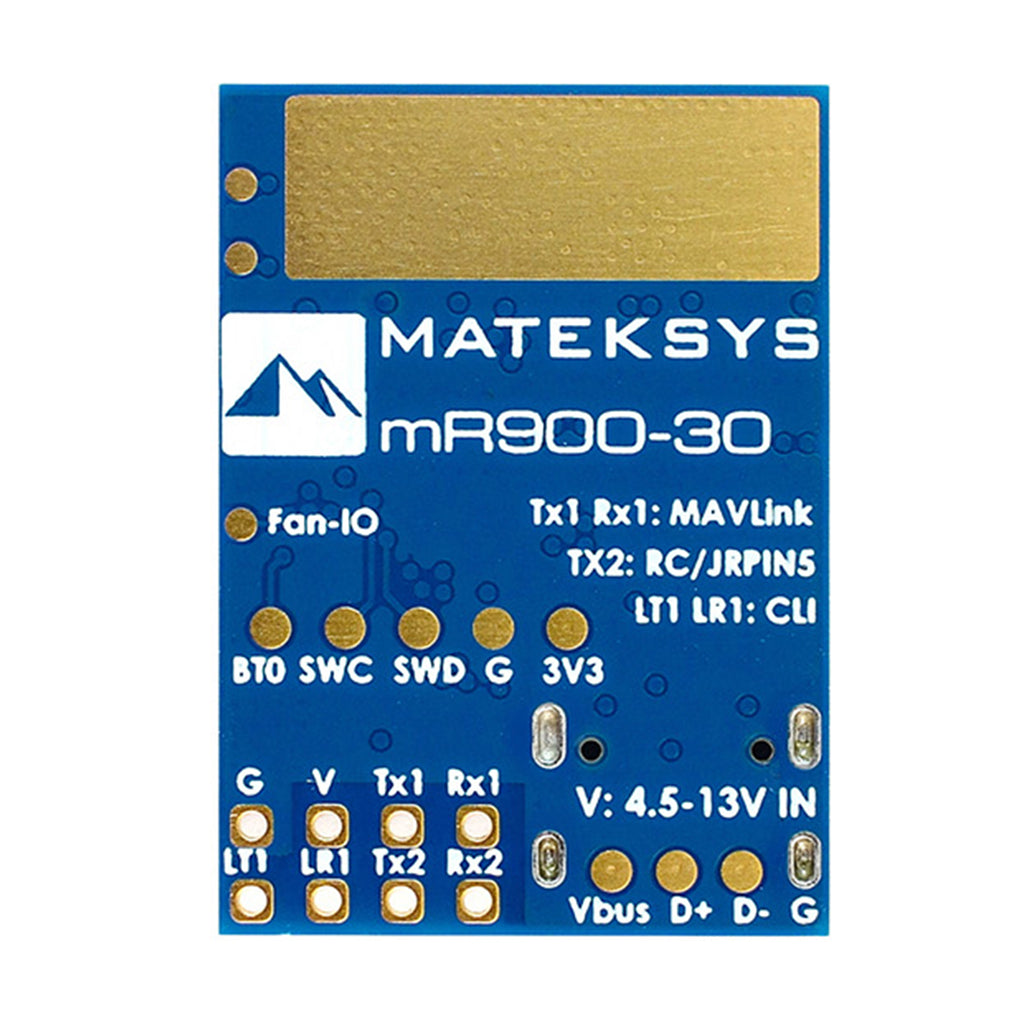

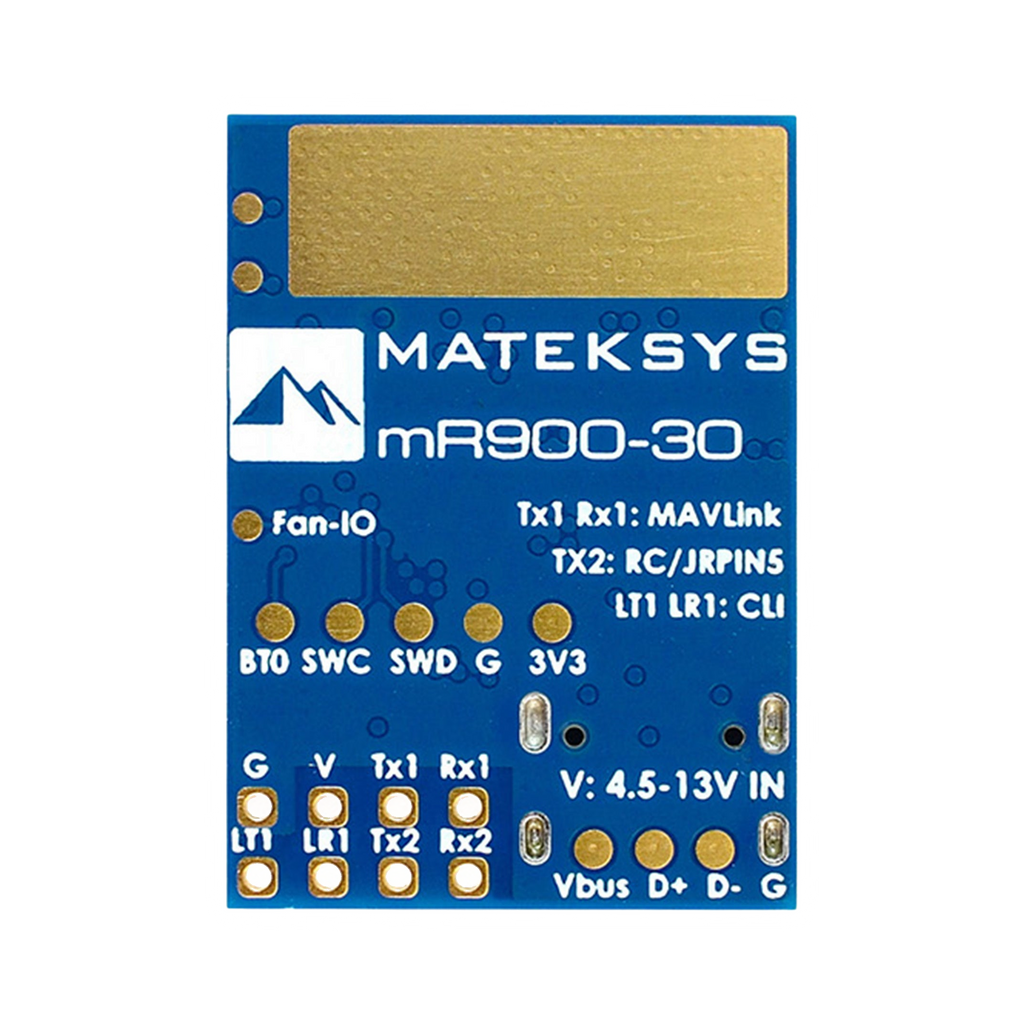

Matek mLRS MAVLink Receiver mR900-30 (915mhz)
$44.88 AUD
Skip to product information
2 In stock
Matek mLRS MAVLink Receiver mR900-30 (915mhz)
$44.88 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
We open 7:30am Monday - weekend orders are usually ready to collect by 10am
Product details
SKU:
31061
Shipping Weight:
15g
W/H:
V-04-F-01
Are you looking to buy Matek mLRS MAVLink Receiver mR900-30 (915mhz) in Australia?
Specifications

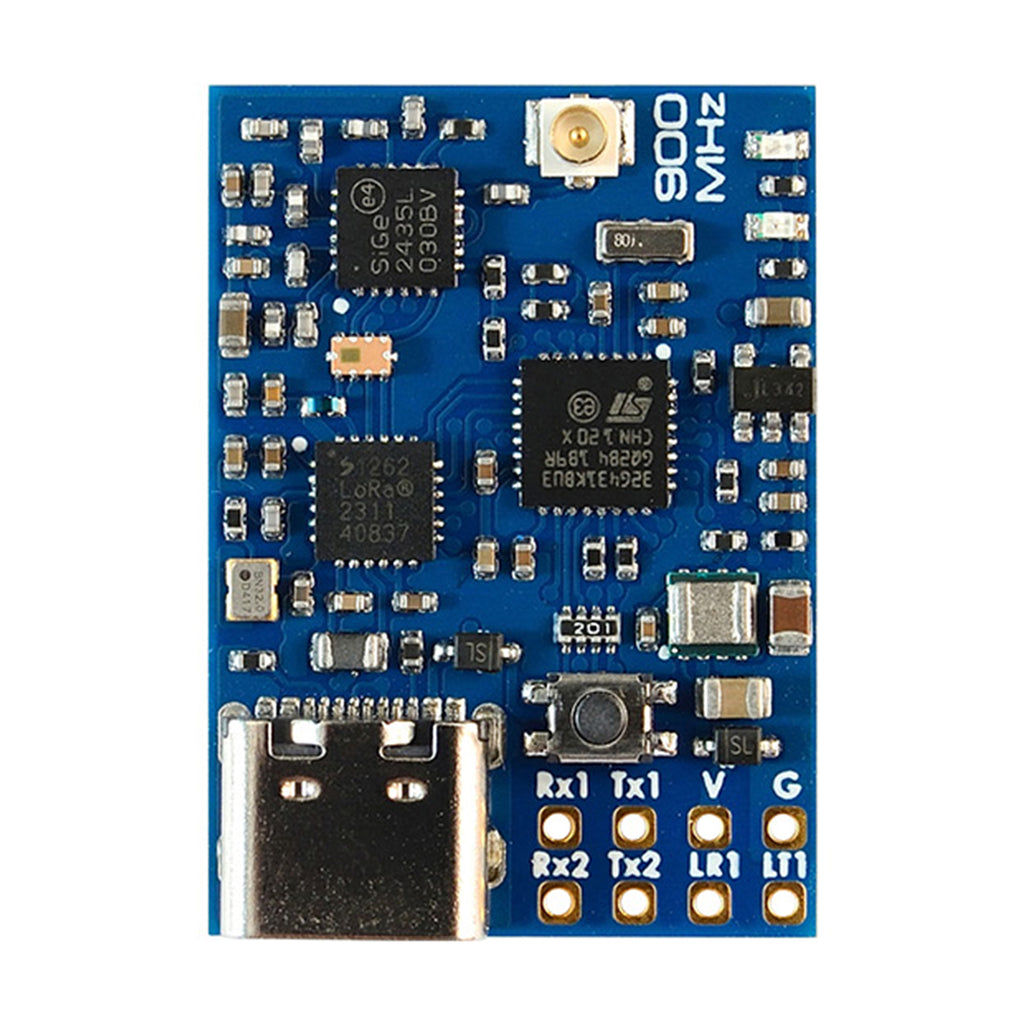

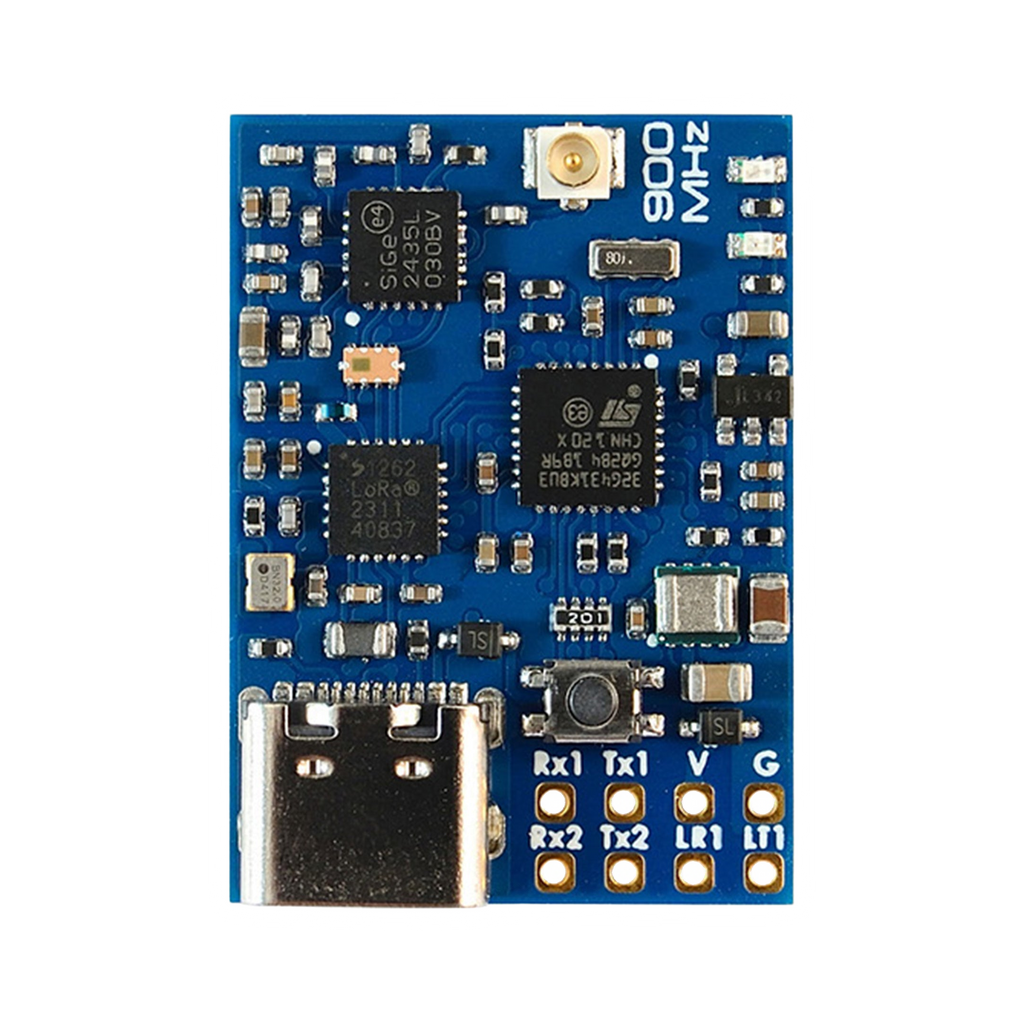

- STM32G431KB, mLRS firmware
- LoRa SX1262 with TCXO
- PA/LNA SE2435L
- RF Frequency: 900MHz (868MHz, 915MHz FCC)
- 915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)
- 868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)
- Antenna connector: IPEX MHF-1
- TX1/RX1: Bi-directional Serial MAVLink
- TX2: RC out(CRSF or SBUS)
- one buttom for DFU mode and Bind
- Power supply: 4.5-13V DC @ “V” Pad
- Power dissipation: 340mA@5V IN(31Hz, 30dbm)
- PCB Size: 29x21mm
- Weight: 5.3g w/ antenna
Includes
- 1x mR900-30
- 1x IPEX MHF1 dipole antenna. 8cm
- 1x Heatsink 20*20*6mm
LED Status
- [Red flashing 2Hz], not connected to transmitter
- [Green flashing 1Hz], connected to transmitter
- [Red and Green alternately ], Binding mode enabled
Binding
- After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
- https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware
- mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
- Targets:
- RX Receiver: rx-matek-mr900-30-g431kb
- TX module mode: tx-matek-mr900-30-g431kb-default
- TX SiKtelem mode: tx-matek-mr900-30-g431kb-siktelem
