Moblite7 HDZERO 1S 75mm digital HD brushless whoop V3
$369.00 AUD
Skip to product information
Out of stock
Moblite7 HDZERO 1S 75mm digital HD brushless whoop V3
$369.00 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSWUnavailable for pickup
Product details
SKU:
28712
Shipping Weight:
135g
W/H:
V-04-F-04
Categories:
BNF Quads, FPV Coming Soon, FPV Drones (Ready to Fly and Bind and Fly), HappyModel, HDZero, HDZero Compatible Quads, Quadcopter Parts, Sub250 Quads (Under 250g), Tiny Whoop
Tags:
BNF, Complete Quad, HD BNF, HDZERO Quad, Micro Frames, Mobula, sub250 Quads, Tinywhoop Quad
0 Hand-picked accessories
Compatible options selected by our team
Are you looking to buy a HappyModel Moblite7 HDZERO 1S 75mm digital HD brushless whoop V3 in Australia?
Specifications
- Brand Name: Happymodel
- Model: Moblite7 HDZERO V3
- Frame wheelbase: 75mm

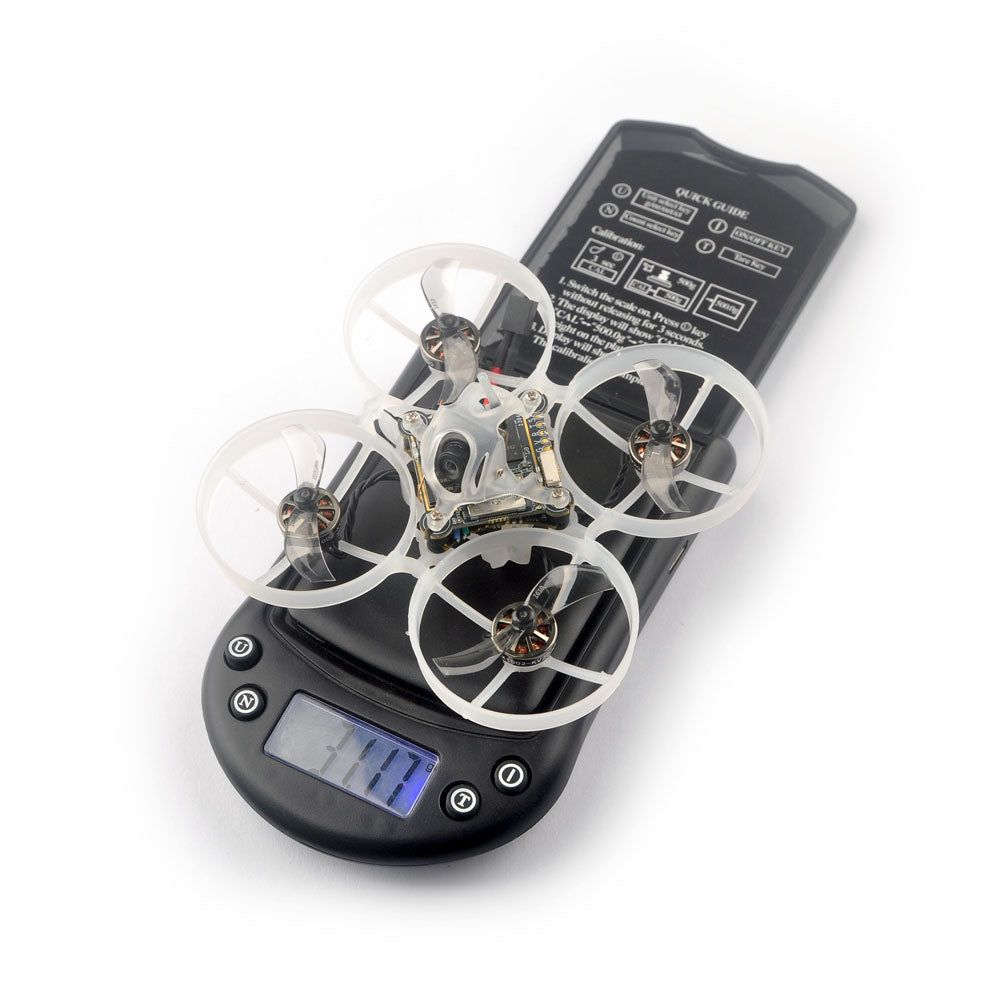

- Weight: 31.5 gram without battery
- Size: 98mm*98mm*50mm
- UART ELRS v3.0 ready
- Compatible with 1S Lipo battery or Lihv battery

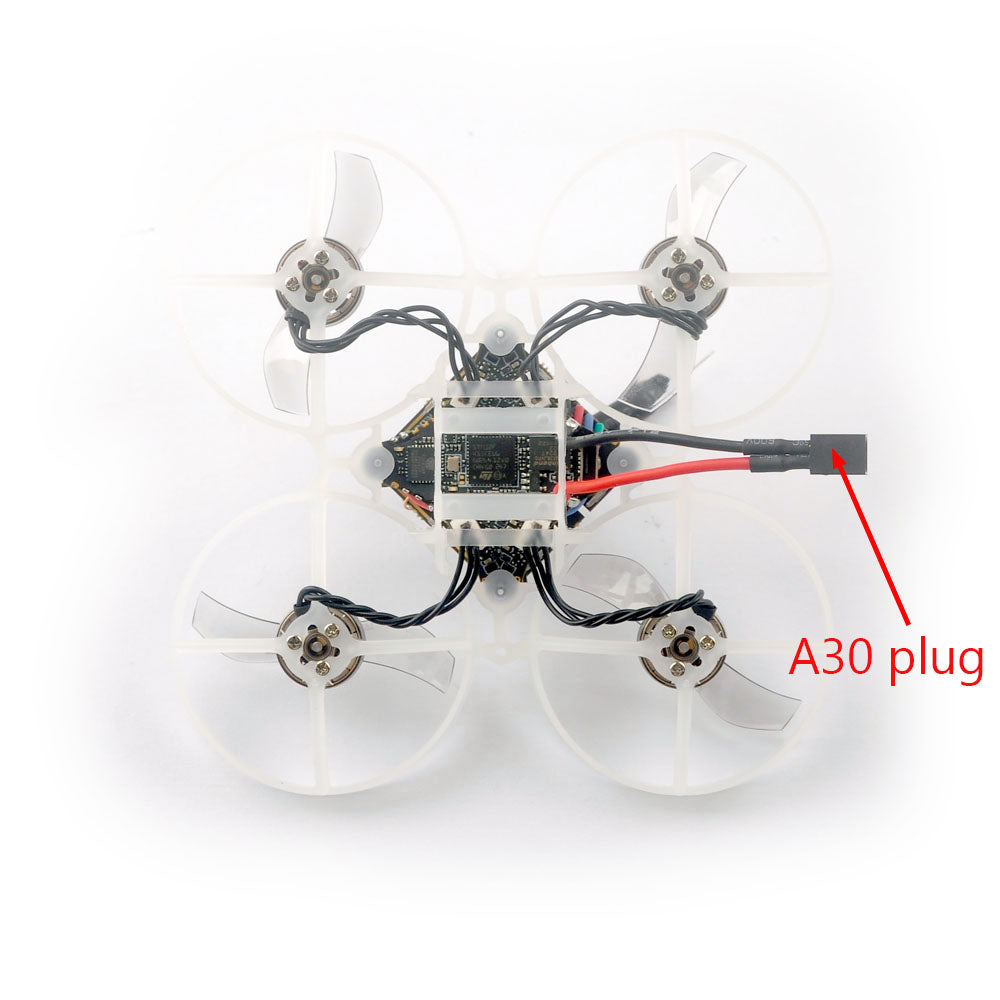

- Battery Plug: GNB A30
- Onboard blackbox ready
Flight Controller SuperX HD ELRS
- Betaflight 4.4.2 firmware ready
- Firmware target: CRAZYBEEF4DX
- MCU:STM32F411CEU6 (100MHz, 512K FLASH)
- Sensor: BMI270 or ICM42688P (SPI connection)
- Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
- Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
- Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
- Bluejay ESC Firmware ready
- Built-in 5V 1A BEC
- Built-in voltage detection
- No betaflight analog osd chip
Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support ESC-Configurator and BLHELI_S Suite configurator
- Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
- Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver
- RF Frequency: 2.4GHz
- Antenna: enameled copper wire 31mm length
- Telemetry output Power: <12dBm
- Receiver protocol: CRSF
- Default firmware version: ExpressLRS V3.0.1
- The same hardware with Happymodel EP1 receiver
- Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
Motor
- Model: EX1002 20000KV
- Configu-ration:9N12P
- Stator Diameter:10mm
- Stator Length:2mm
- Shaft Diameter:Φ1.5mm
- Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
- Weight(g):2.5g
- No.of Cells(Lipo):1S only
Propeller Gemfan 1610-2 Bi-Blades
- Weight:0.24g
- Material: PC
- Pitch:1 inch
- Props Dia:40mm
- Center Hole Dia:1.5mm
HDZero Nano Lite Camera
- 14x16x11 mm
- 1.5gram
- 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
- Excellent low light performance
- Fov:
- 4:3: D:130° H:108° v:84°
- 16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
- 1S Input
- 25mW/200mW RF Output-SmartAudio Support
- 25.5×25.5 M2 Soft Mounting- Antenna Retention
- Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
- 4.5grams/4mm Thickness (without shielding)

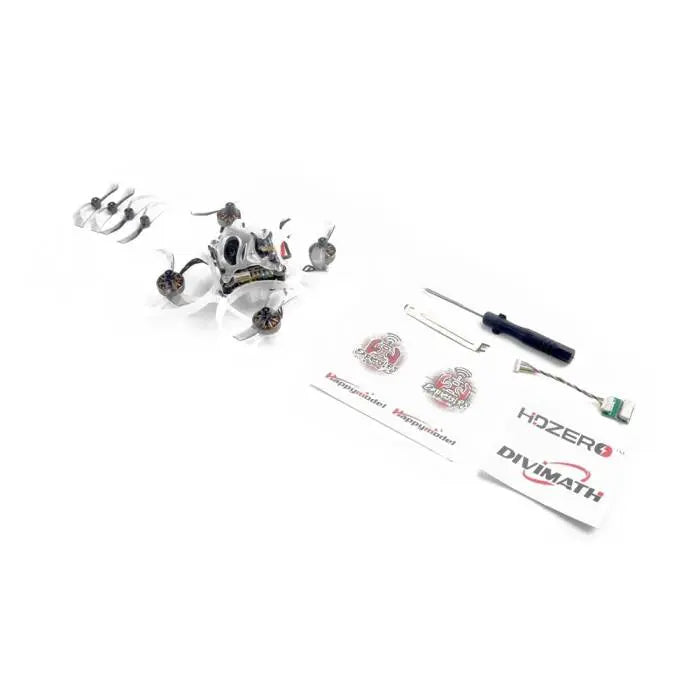

Includes
- 1x Mobula7 v4 75mm Frame+Canopy
- 1x SuperX HD ELRS AIO Flight Controller
- 4x Happymodel 1002 KV20000 Unibell Brushless motor
- 1x Gemfan 1610-2 bi-blades Propeller (4cm+4ccw)
- 1x HDZero Nano Lite Camera
- 1x HDZero Whoop Lite VTX
- 1x Spare Canopy
- 1x Propeller disassemble tool
- 1x Screw driver
