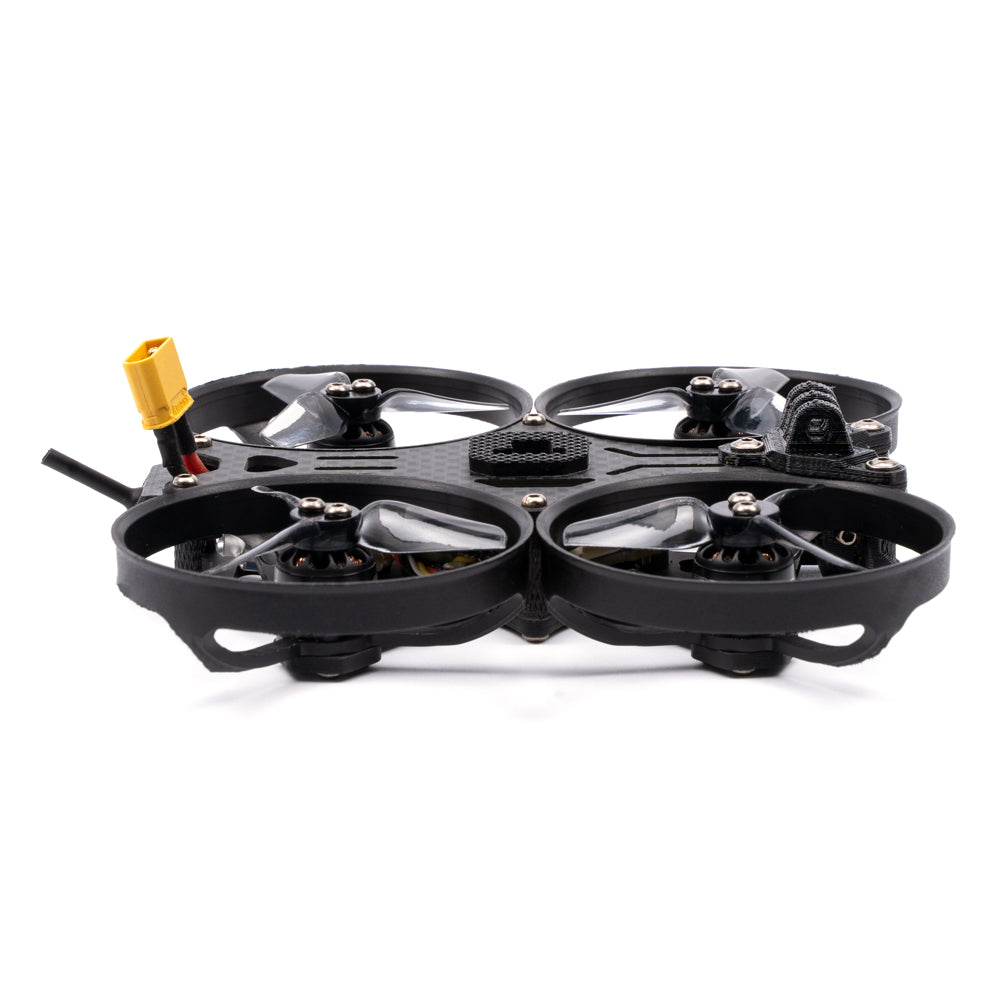

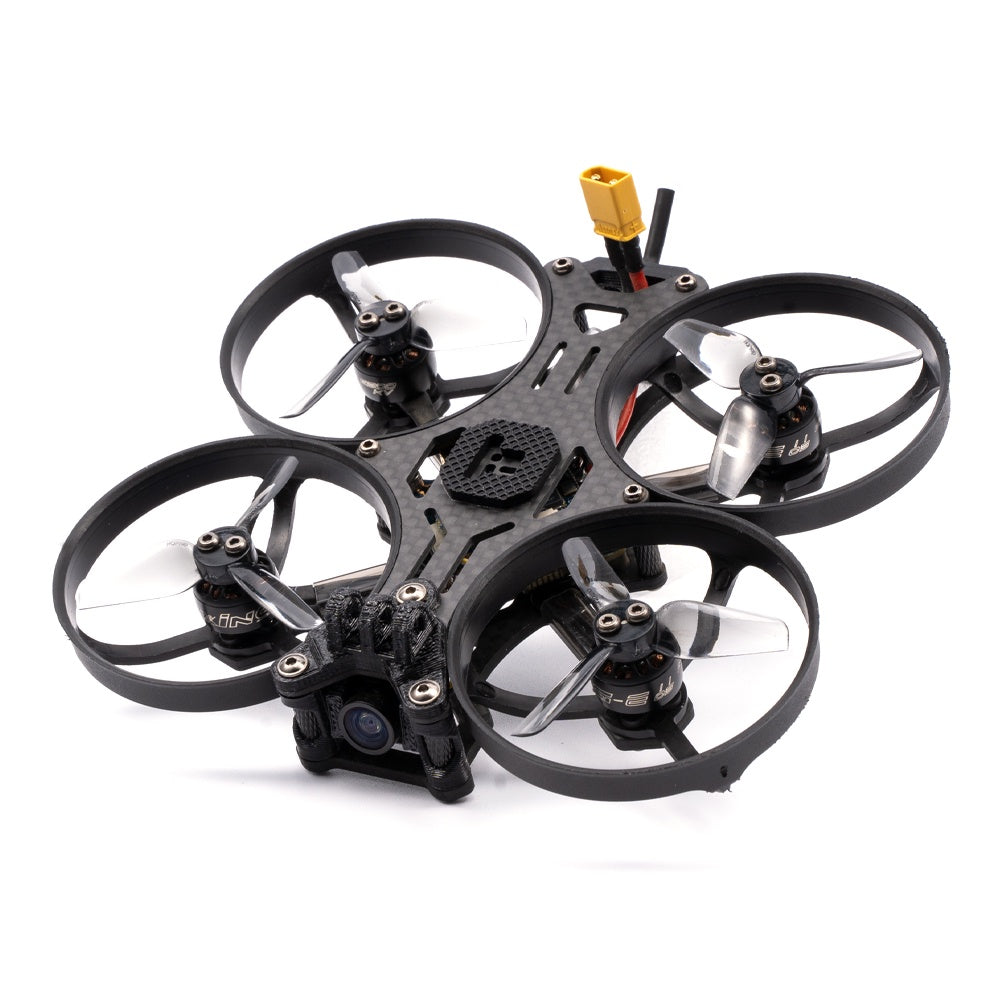

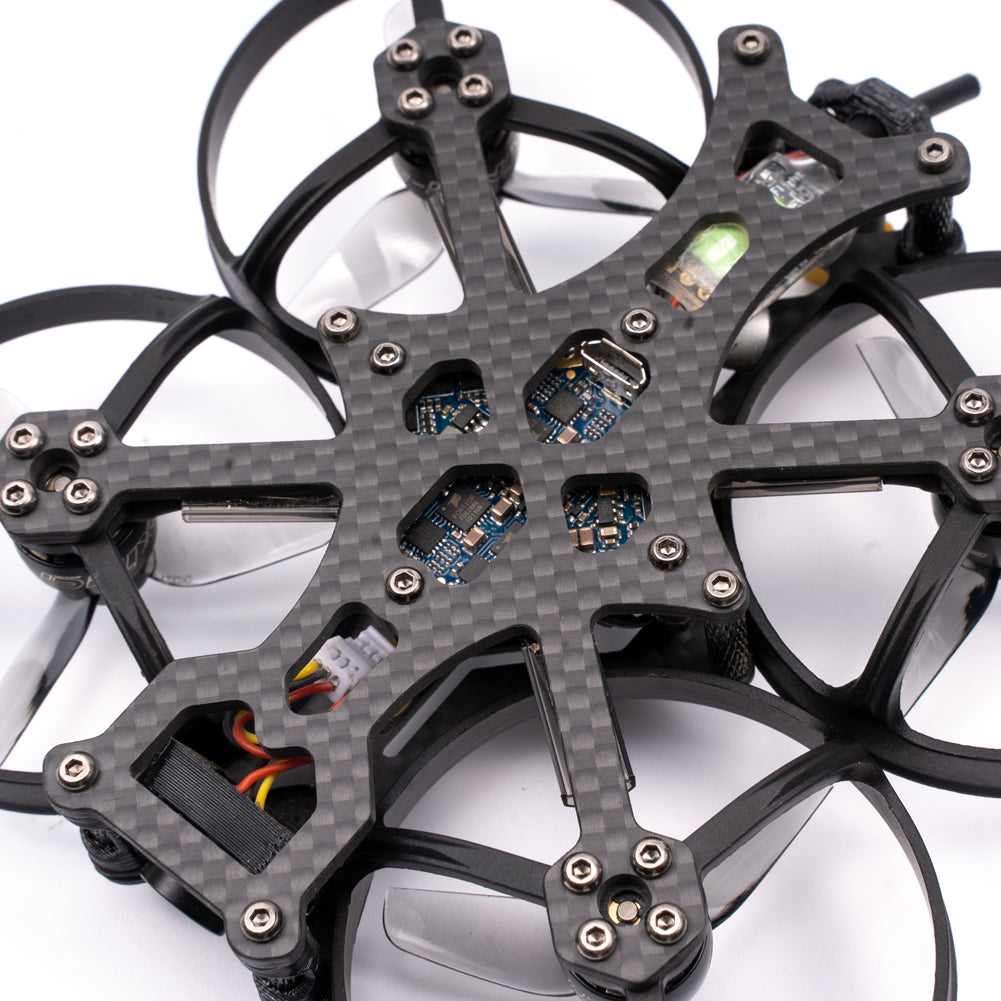

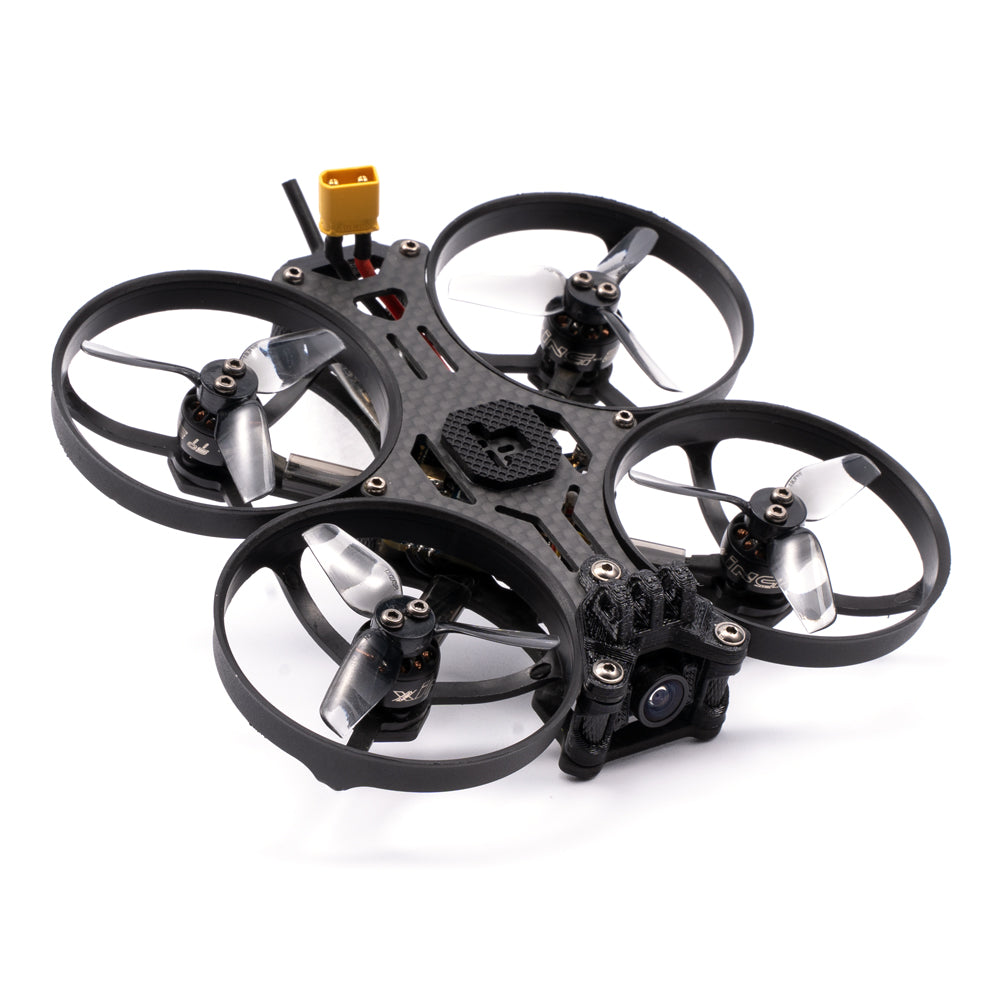

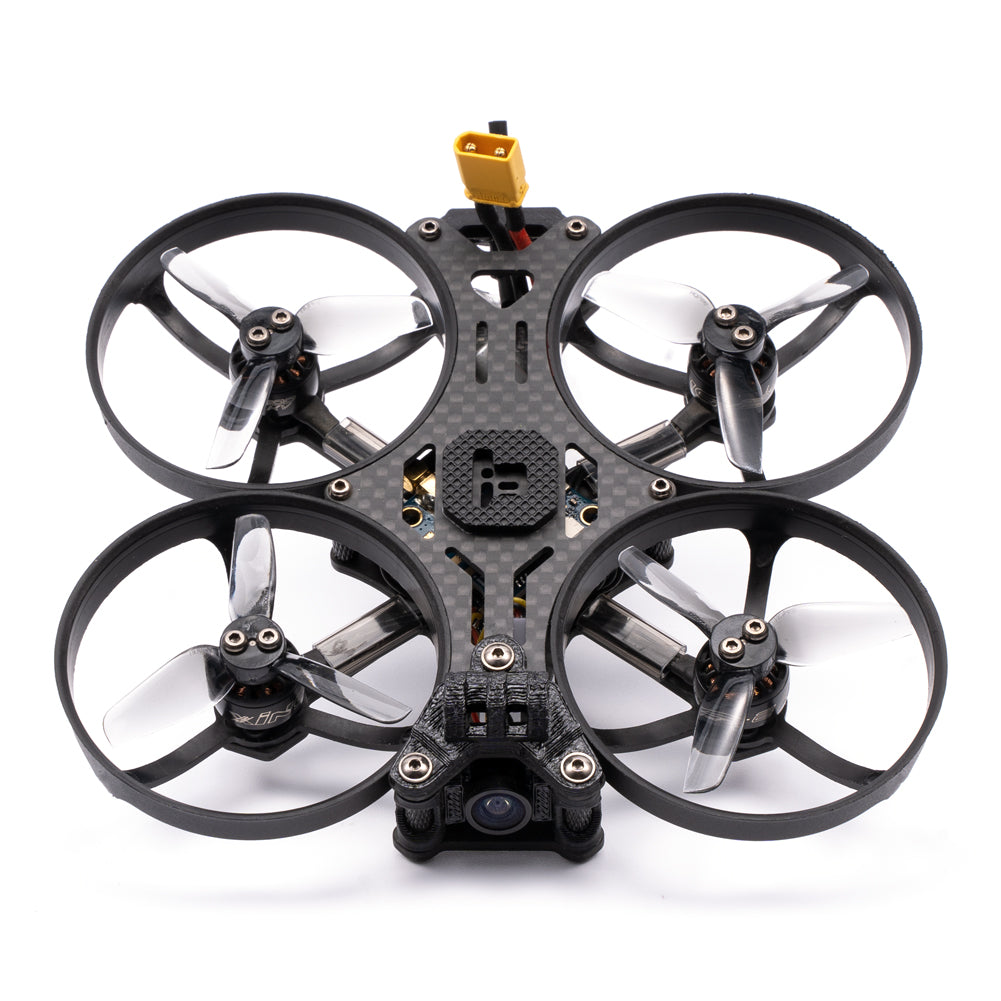

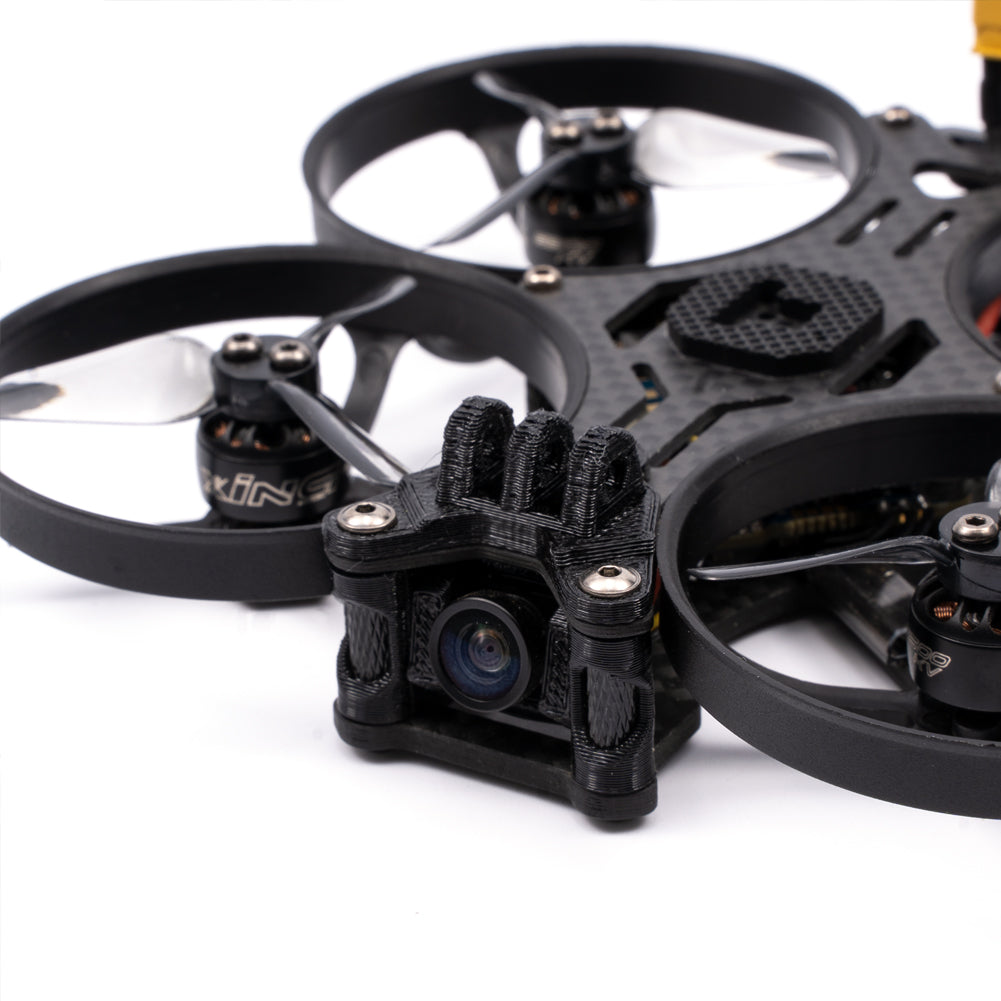

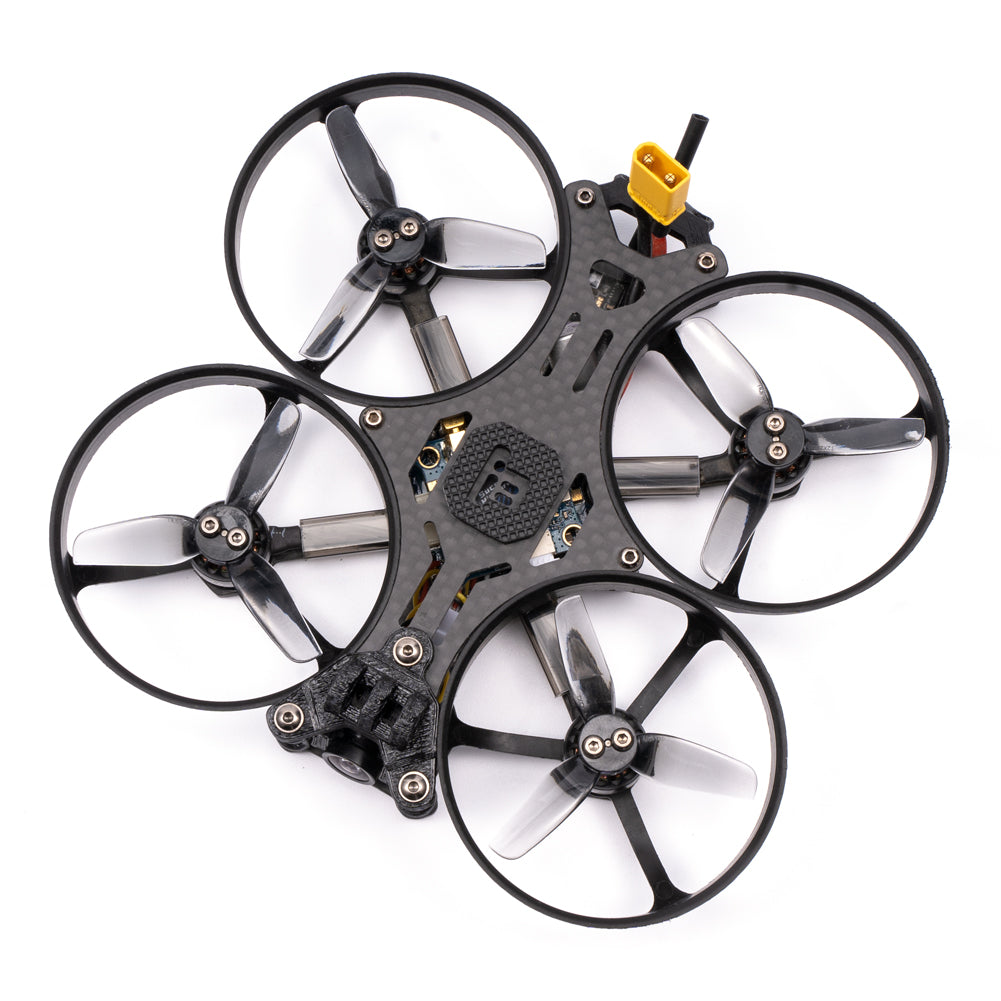

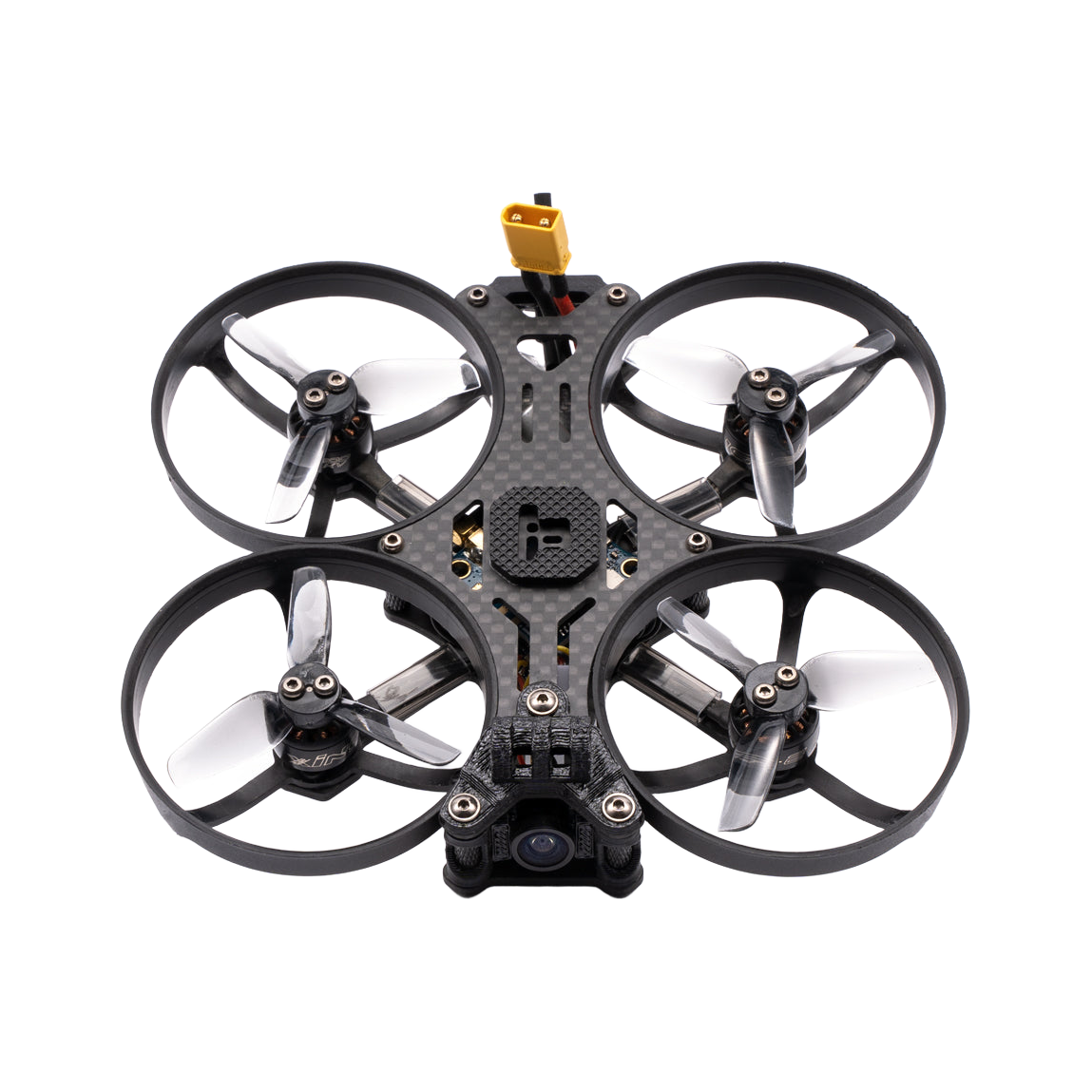

iFlight ProTek R20 Analog 3S ELRS 2.4G - BNF
$274.95 AUD
Skip to product information
Out of stock
iFlight ProTek R20 Analog 3S ELRS 2.4G - BNF
$274.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
24138
Shipping Weight:
240g
W/H:
U-02-E-08
Categories:
BNF Quads, ELRS Express LRS Receivers & Modules, iFlight, iFlight Protek Cinewhoops, iFlight Quads, Radio Gear, Sub250 Quads (Under 250g)
Tags:
BNF, ELRS, sub250 Quads
Are You Looking For ProTek R20 Analog BNF ELRS 2.4G In Australia?
PRODUCT DESCRIPTION
- ProTek R20 BNF Specs:
- VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable
- Weight: 89.2g (without battery)
- Bottom plate thickness: 2.5mm
- Motor: XING-E 1105 6500KV
- Top plate thickness: 1.5mm
- Body Size: 132mm*122mm
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Whoop F4 AIO 1.1
- Arm Thickness: 2.5mm
- Propeller size: 2 inch
- Wheelbase: 94mm
Specifications:
- AIO//Whoop AIO F4 V1.1 AIO
- Mounting pattern: 25.5*25.5mm/φ3mm
- Firmware Target: IFLIGHT_F411_PRO
- Constant current: 20A，25A (Burst)
- Config：IFLIGHT_F411_PRO.config
- Connector: Micro-USB
- ESC Firmware: Q-H-15
- BEC output: 5V 2A
- ESC Telemetry: NO
- Size: 30.5*30.5mm
- BLHeli: BLHeli-S
- Barometer: NO
- Blackbox: 8MB
- Gyro: BMI270
- INA pad: nR2
- Weight: 7.4g
- Input: 2-4S
VTX//SucceX Mini Force 5.8GHz 600mW VTX Adjustable
- Power: PIT/25/200/400mW/600mW
- Antenna interface: MMCX
- VTX protocol : IRC Tramp
- Output 40 channels
- Size: 29*29mm
- Mounting pattern: 20*20Φ3/25*25 mmΦ2
- Weight: 4g
ProTek R20 Analog Quad BNF Included Components and Parts
pre-built and tested Quadcopter
1 x iFlight Lipo Strap 10*150mm (Color May Vary)
2 x HQ 2*2*3 (Set of 4 - Color May Vary)
1 x ProTek R20 AnalogBNF
