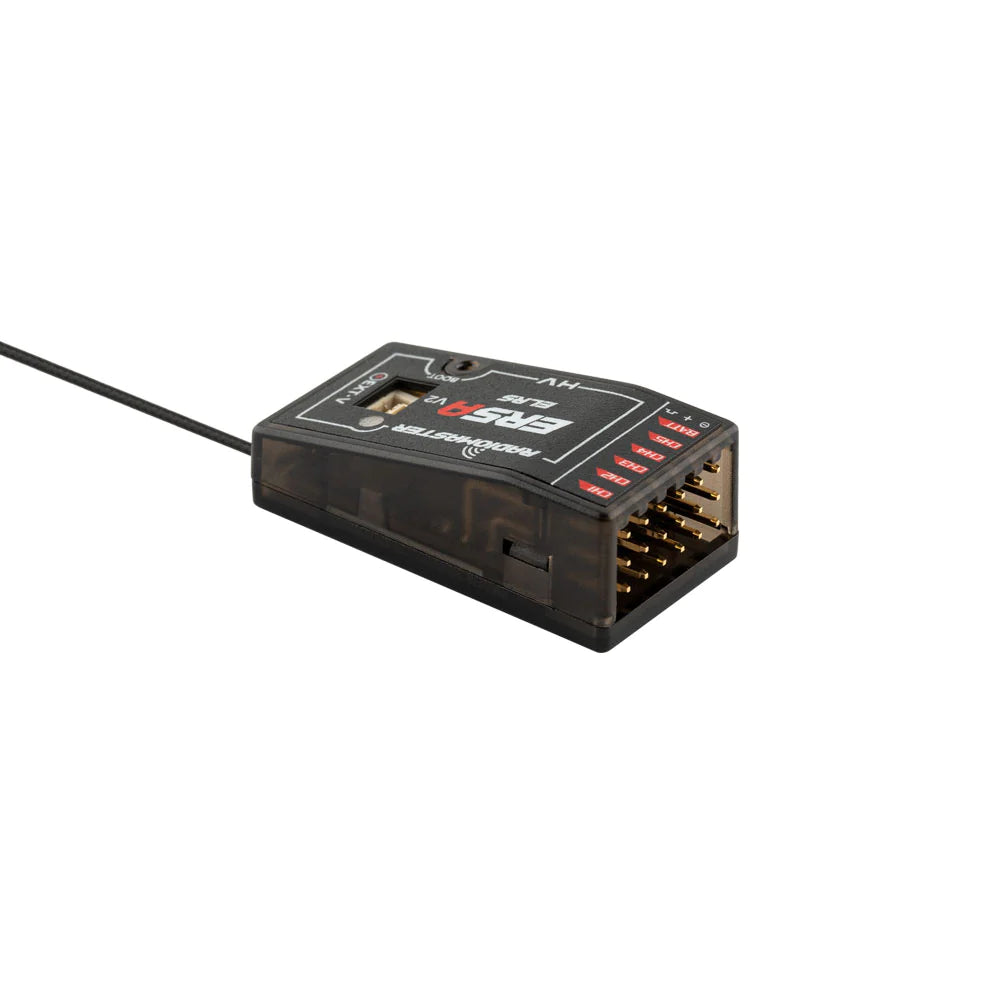

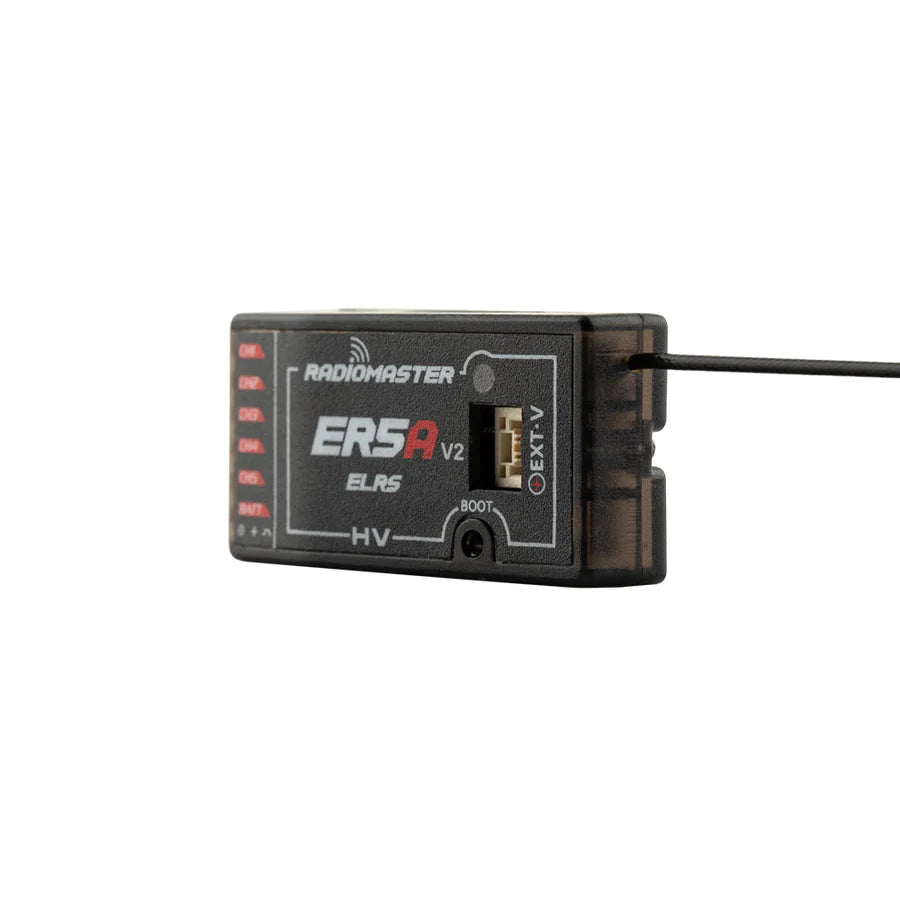

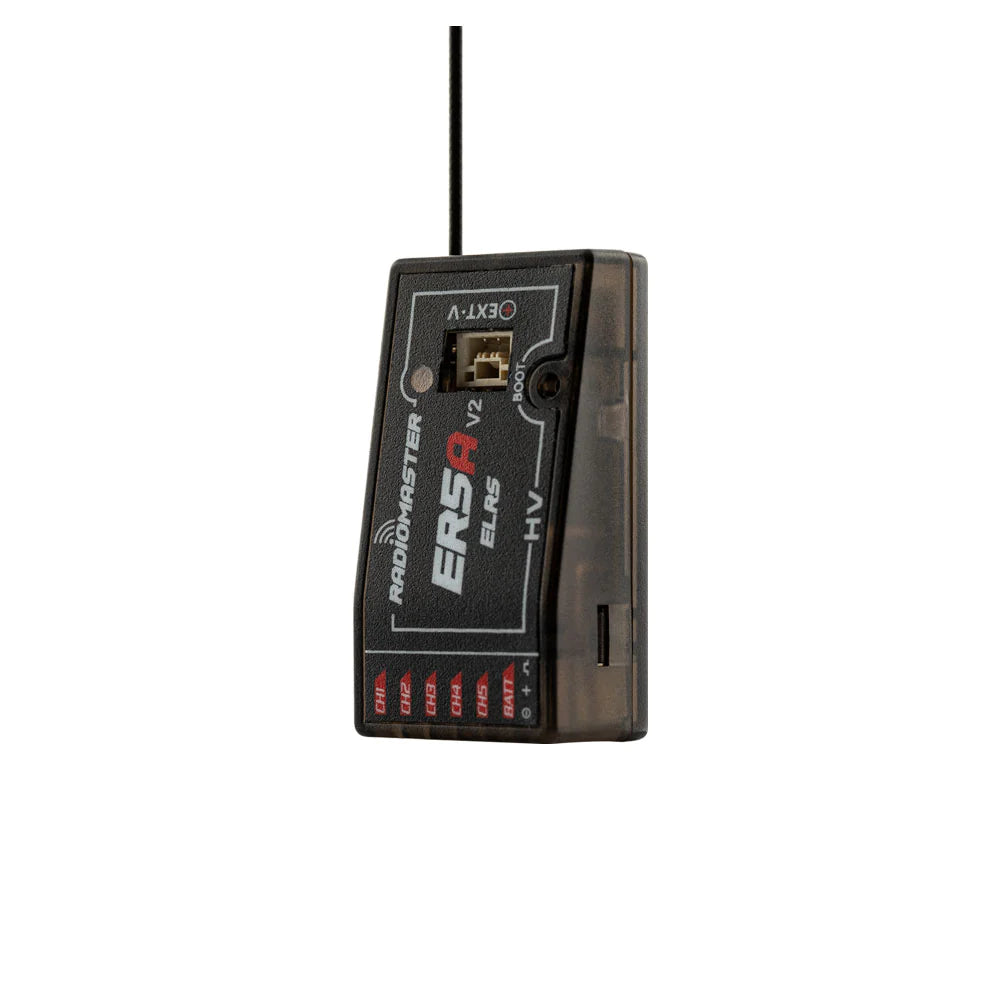

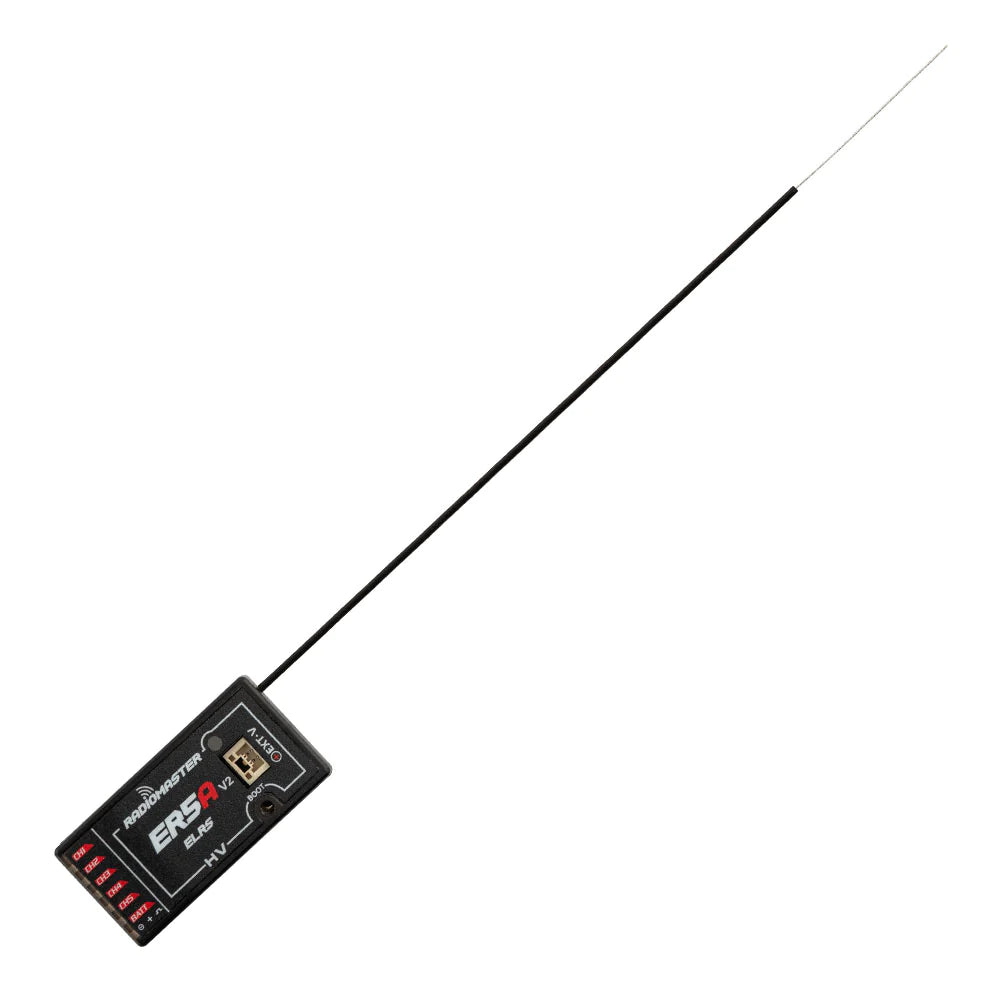

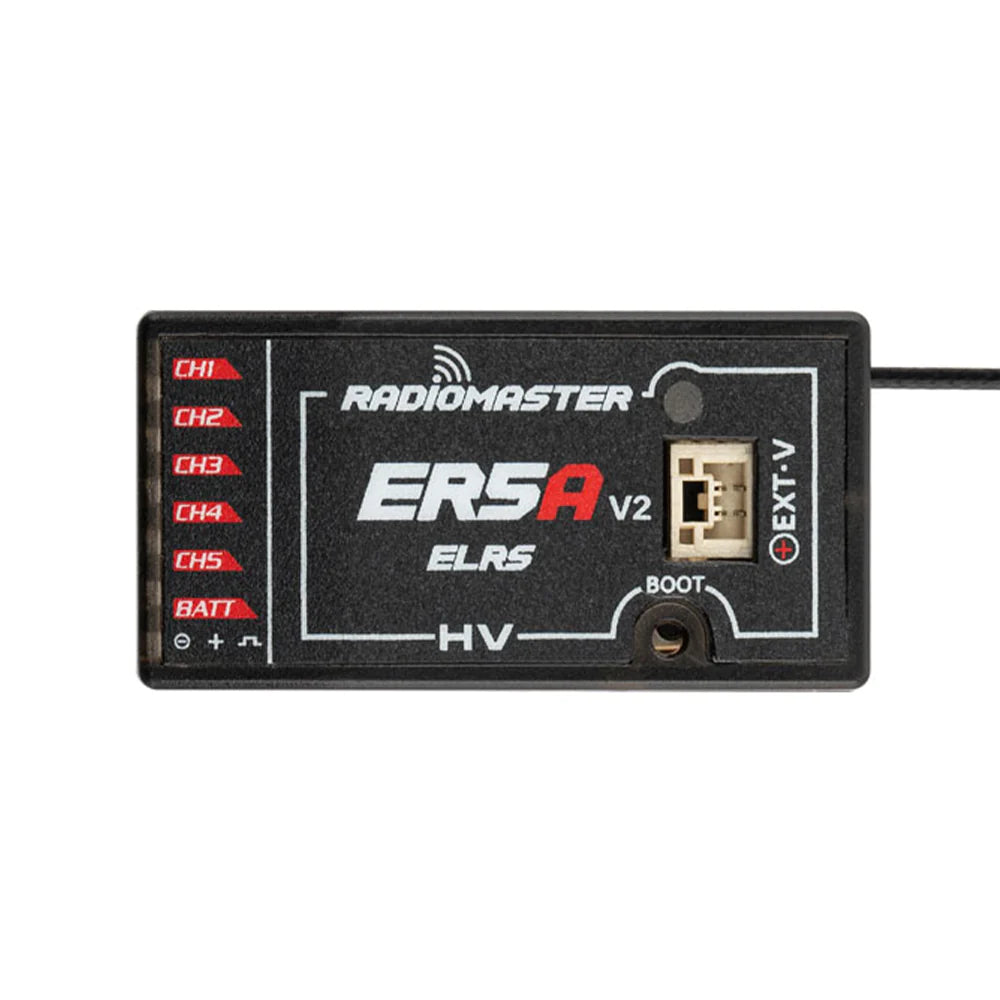

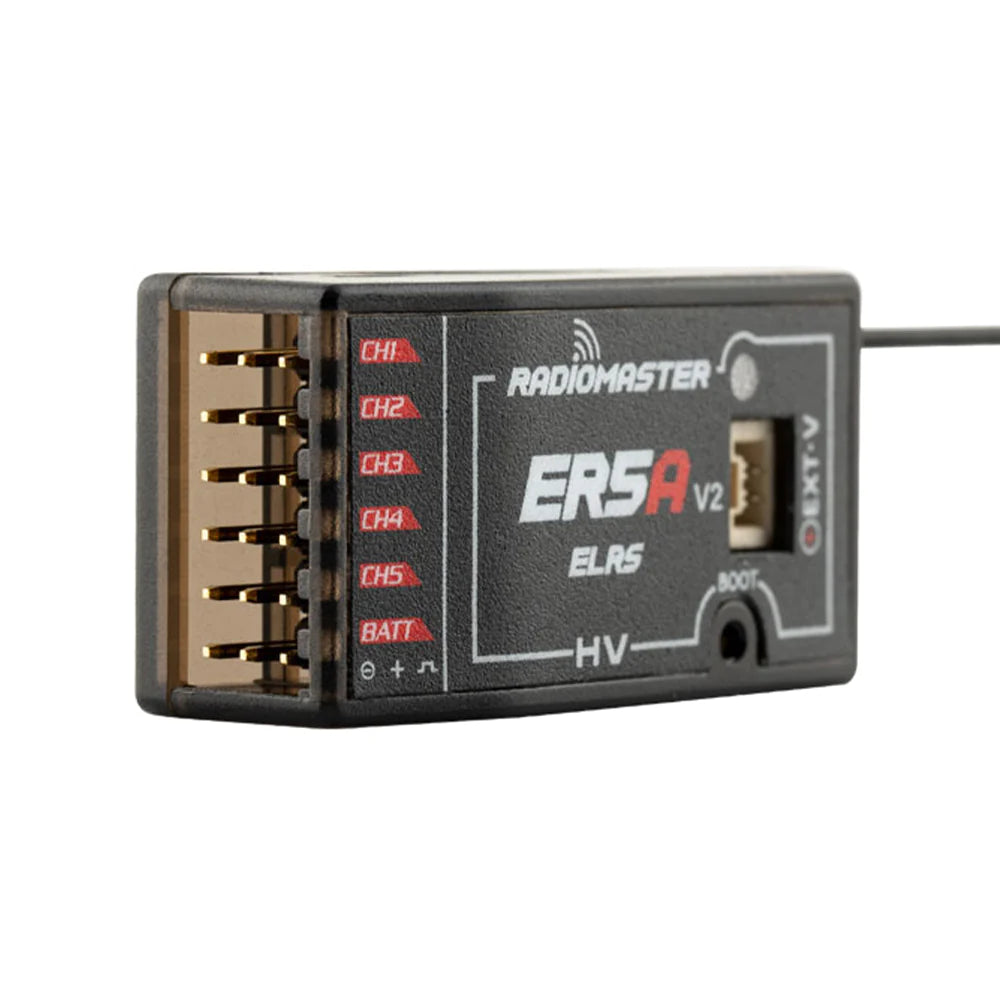

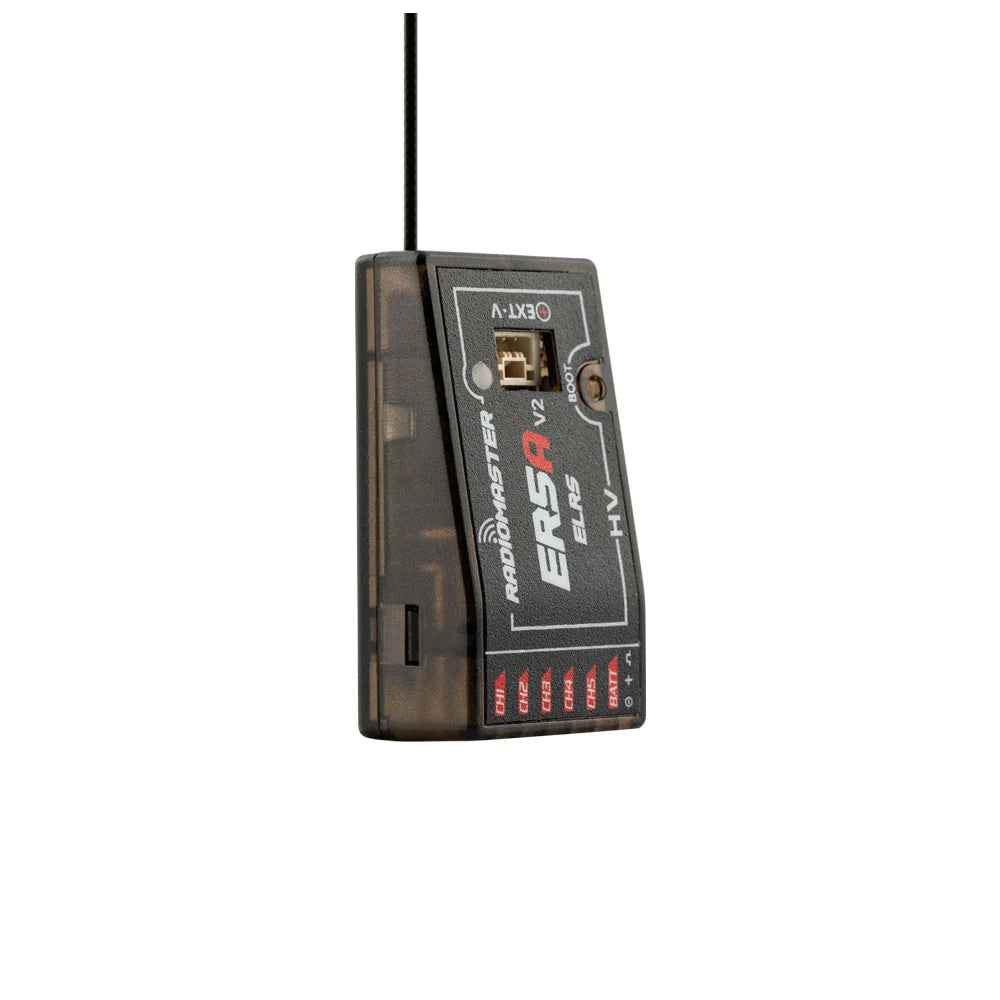

RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
  • RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)
RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)

RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)

$34.95 AUD
GST included Shipping calculated at checkout.

Delivery options

RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz)

Pickup

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. Usually ready in 2 hours.

Delivery options
6 In stock
Price match

Request a price match

RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz) Our price: $34.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
Product details
SKU: 29437
Shipping Weight: 20g
W/H: W-04-B-09
Categories: Drone RC RX Receivers, ELRS 2.4GHz Receivers, ELRS Express LRS Receivers & Modules, FPV Recent Stock Arrivals, New FPV Products, Radio Gear, RadioMaster
Tags: 2.4ghz, ELRS, Receiver

Are you looking to buy RadioMaster ER5A V2 ELRS PWM Receiver (2.4ghz) in Australia?

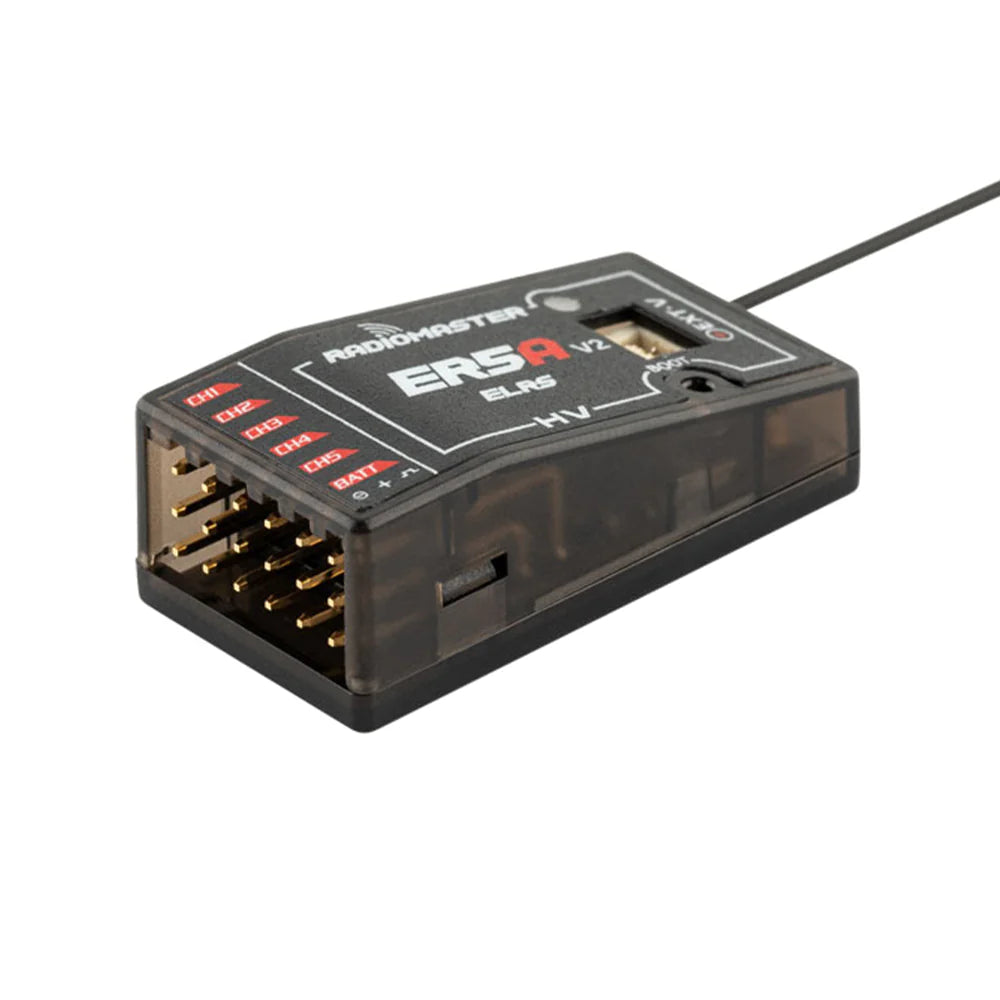

ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for aircraft applications.

ER5A V2 2.4GHz ELRS PWM Receiver

Features

  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Support 5 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Optimized ground up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Compact size, easy to install. Perfect for aircraft applications

Specifications

  • Item: ER5A V2 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5-8.4V
  • Antenna type: High-sensitivity antenna
  • Wireless Protocol: ELRS 3.3.0 pre-installed
  • Channels: 5
  • Telemetry Voltage Detection Range: DC 4.0 - 35V
  • RF Telemetry: Yes
  • Telemetry Power: 10mw
  • Weight: 6.7 grams
  • Size: 37.0 * 19.3 * 13.0mm
  • Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

ER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM ReceiverER5A V2 2.4GHz ELRS PWM Receiver

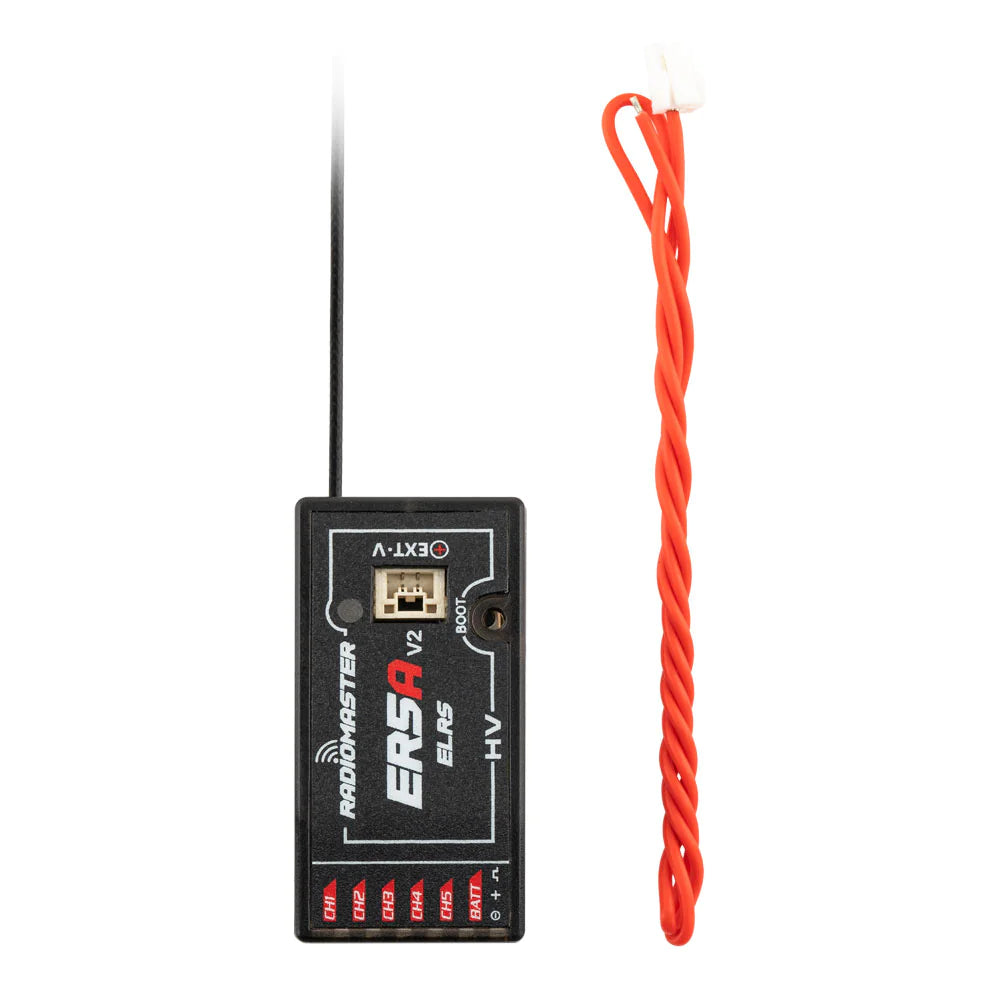

Includes

  • 1 * ER5A V2 2.4GHz ELRS PWM Receiver
  • 1 * Voltage telemetry wire
  • 1 * User Card

Browse More

  • 5 stars: 3 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
N
Neil A Johnson
These are good

These are good. I really like the battery voltage on telemetry, and 5ch lets me have individual ailerons. Works well with my Boxer radio.

H
Huddson Mackenzie-Holland
worked like a dream

Super easy to setup and use and a super stable connection

R
Ross B
Great compact ELRS receiver

I normally use the ER6 as a hard shell receiver but this ER5A is wonderful. Hard shell, a little smaller but the same functionality and telemetry.

If you don’t need the 6th channel this is a great option.
