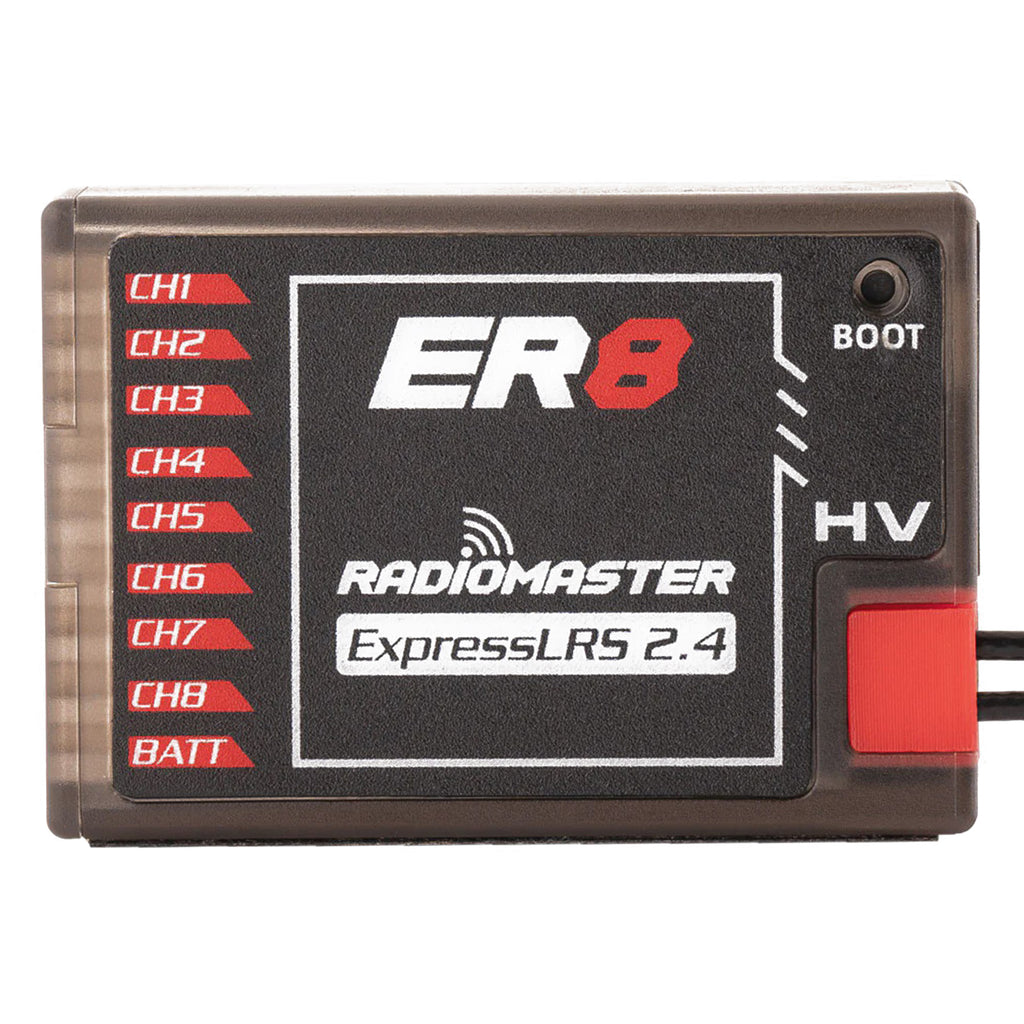

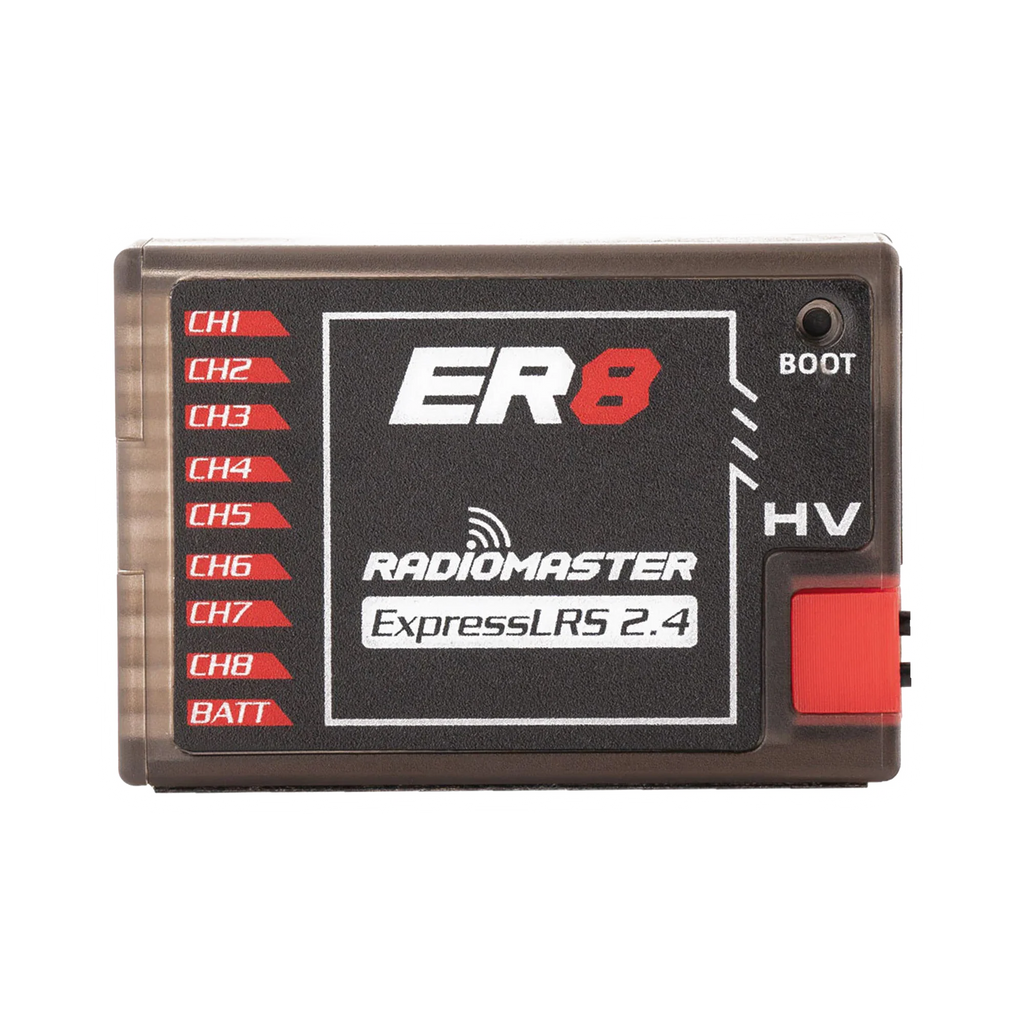

RadioMaster ER8 ELRS PWM Receiver (2.4ghz)

Name: RadioMaster ER8 ELRS PWM Receiver (2.4ghz)
Rating: 5.00 (3 reviews)

$58.50 AUD $58.99 AUD Save 1%

GST included Shipping calculated at checkout.

--d --h --m --s

1 In stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 27519

Barcode: HP0157.RX-ER8

Shipping Weight: 85g

W/H: W-03-C-02

Categories: Drone RC RX Receivers, ELRS Express LRS Receivers & Modules, FPV Antennas, Radio Gear, Radiomaster

Tags: 2.4ghz, ELRS, Receiver

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy RadioMaster ER8 ELRS PWM Receiver (2.4ghz) in Australia?

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The Radiomaster ER8 receiver has been specially designed for fixed-wing users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features

Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 8 PWM Channels
Optimized ground up PCB design
Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector
Standard 20 cm High Sensitivity Antenna
Reserve 4pin CRSF input port
Shell adopts one-piece molding process with high structural strength
For fixed-wing aircraft and more

RadioMaster ER8 2.4GHz ELRS PWM Receiver

Specifications

Item: ER8 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: 20cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 8CH PWM
Telemetry power: maximum 100mw (LUA Adjustable)
Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 16.5 grams
Size: 43*30*15mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2400 PWM RX

Includes

1 x ER8 2.4GHz ELRS PWM Receiver
1 x Voltage telemetry wire (Type-B)
1 x CRSF wire
1 x ELRS- RX- SBUS wire
1 x User Card

Browse More

Browse All Radiomaster Receivers
Browse All Receivers
Browse All Radiomaster

5 stars: 3 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

RadioMaster ER8 ELRS PWM Rx

RadioMaster ER8 ELRS PWM Rx has has had many flights in my 2.8mtr Electric Sailplane. (Vortex) Rx was flashed to ELRS 4.01 and has performed flawlessly. Tx power is set to dynamic but even flying far away (line of sight) tx mostly sits at 25mw
As always, Great service from Phaser FPV
Paul

Excellent ELRS PWM receiver

Excellent ELRS PWM receiver with separate CRSF serial output and voltage sensor. Using it in a medium sized glider and just added the GPS unit to track speed. Very nice build quality and solid but light weight case. Very happy with it.

Excellent receiver!

ELRS completely solved the link dropout problems which were plaguing my aircraft in a challenging location while I was previously using an older protocol. The ER8 was physically easy to install, and like all ELRS receivers the configuration possibilities are very flexible. The single-wire pack voltage telemetry is lightweight and very useful during the flight. I honestly cannot think of anything negative to say, and I'm now only prepared to fly ELRS receivers like the ER8.
