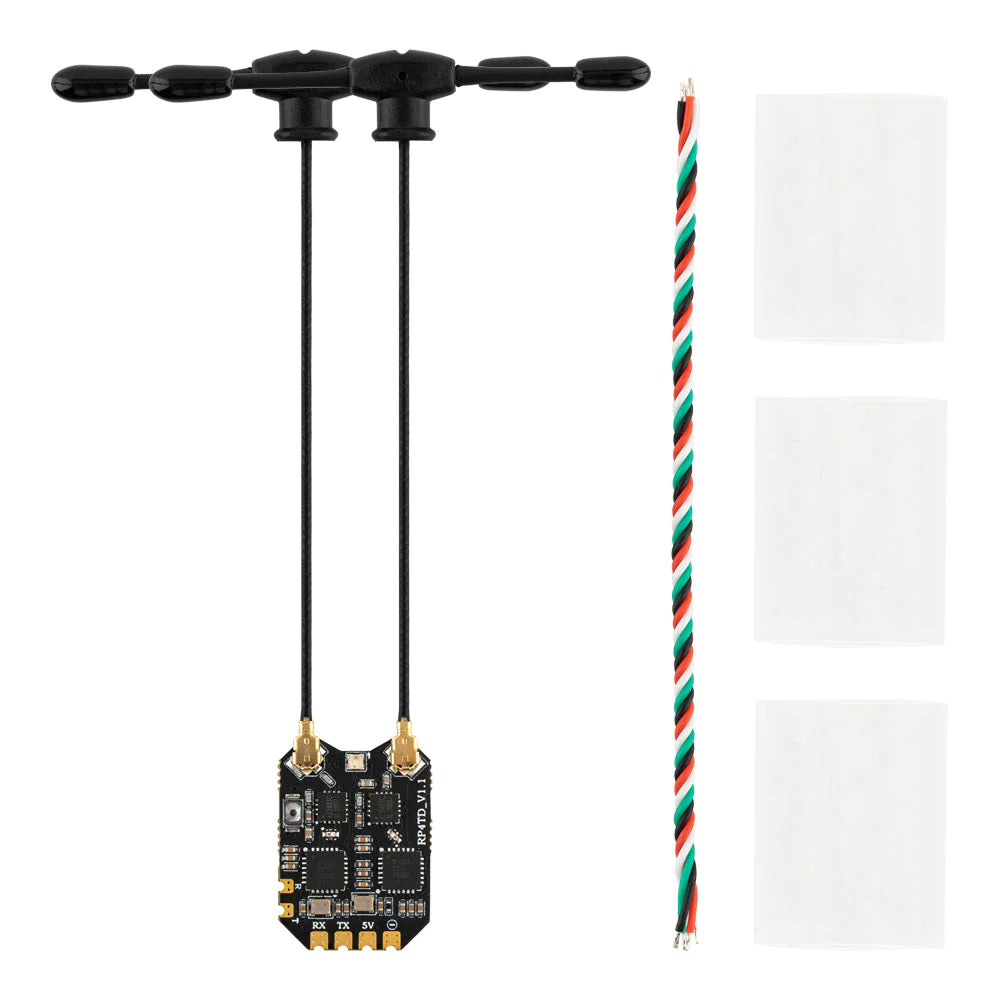

RadioMaster RP4TD ExpressLRS Diversity Receiver (2.4ghz)

Name: RadioMaster RP4TD ExpressLRS Diversity Receiver (2.4ghz)
Brand: RadioMaster
SKU: 29664
Price: 36.99 AUD
Availability: InStock

$36.99 AUD $42.99 AUD Save 14%

GST included Shipping calculated at checkout.

--d --h --m --s

5 In stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 29664

Barcode: HP0157.RX-RP4TD

Shipping Weight: 16g

W/H: W-02-C-02

Categories: Drone RC RX Receivers, ELRS Express LRS Receivers & Modules, FPV Antennas, Radio Gear, Radiomaster, Specials

Tags: 2.4ghz, ELRS, Price Match, Receiver

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy a RadioMaster RP4TD ExpressLRS 2.4GHz Diversity Receiver in Australia?

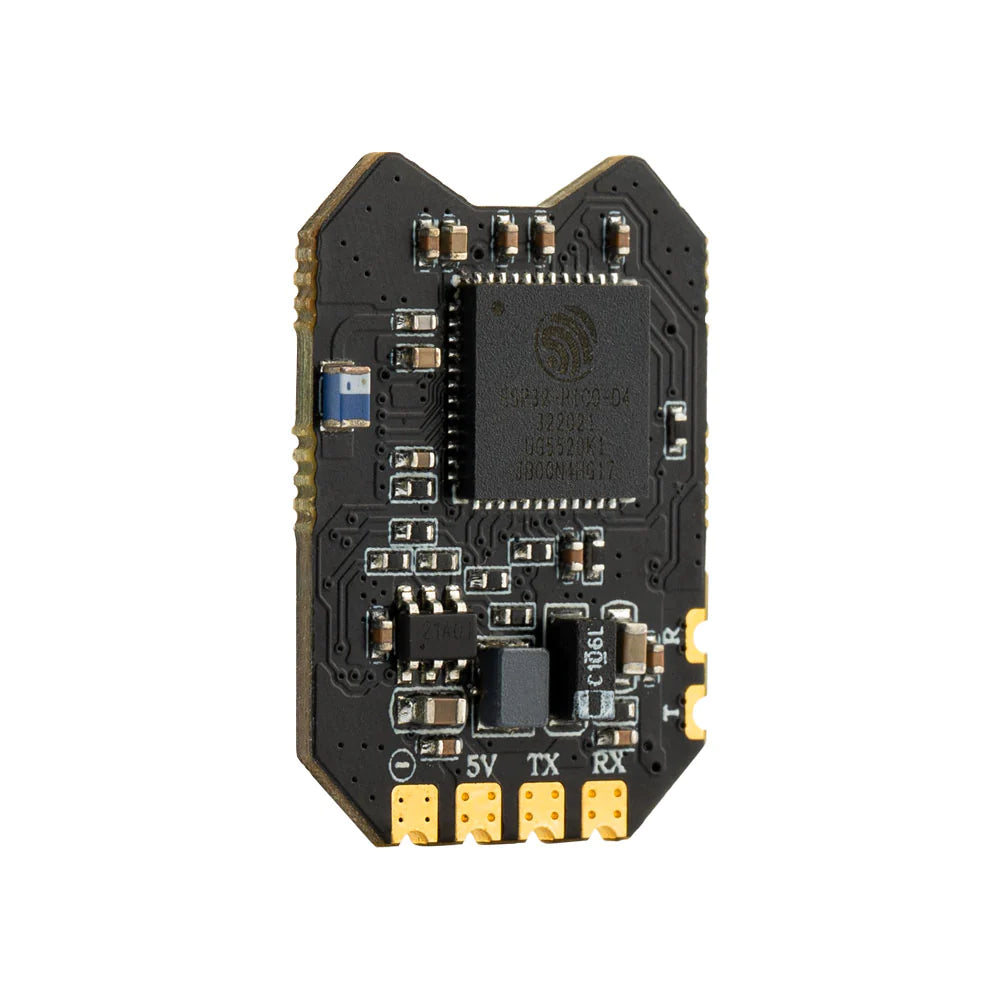

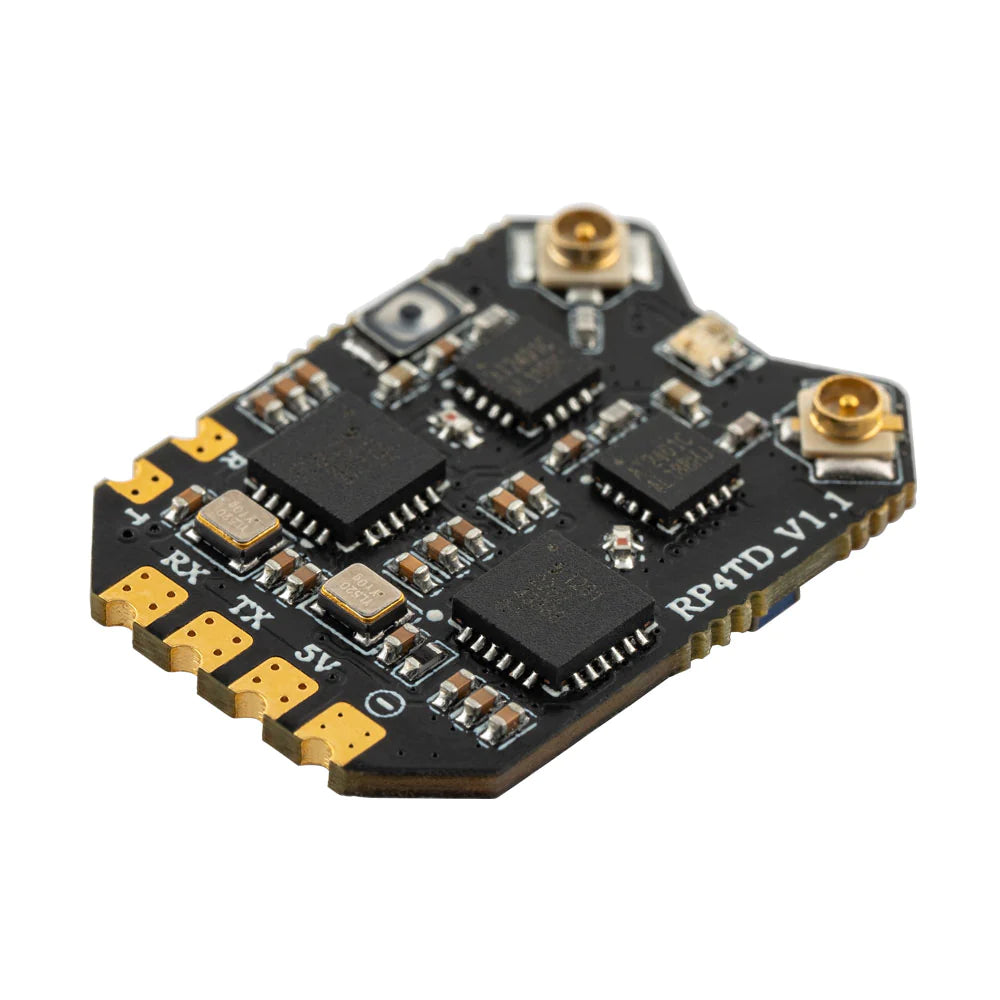

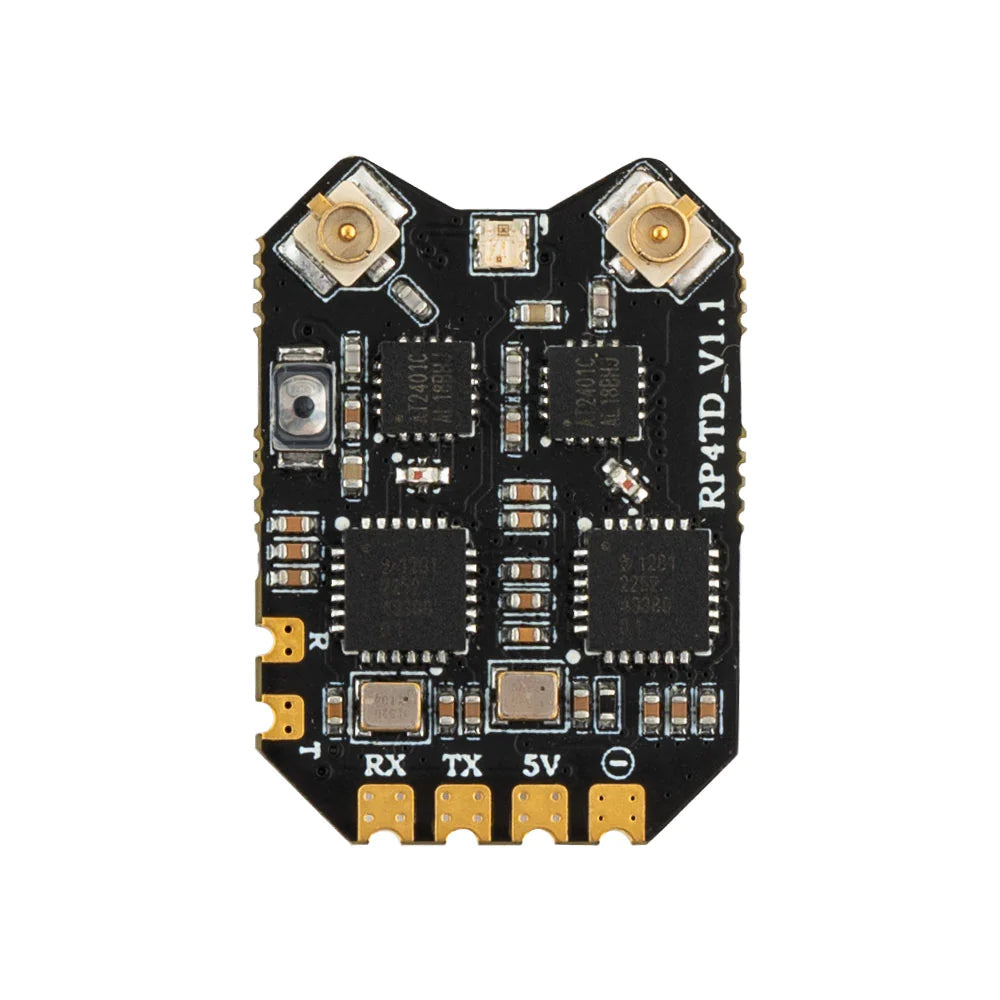

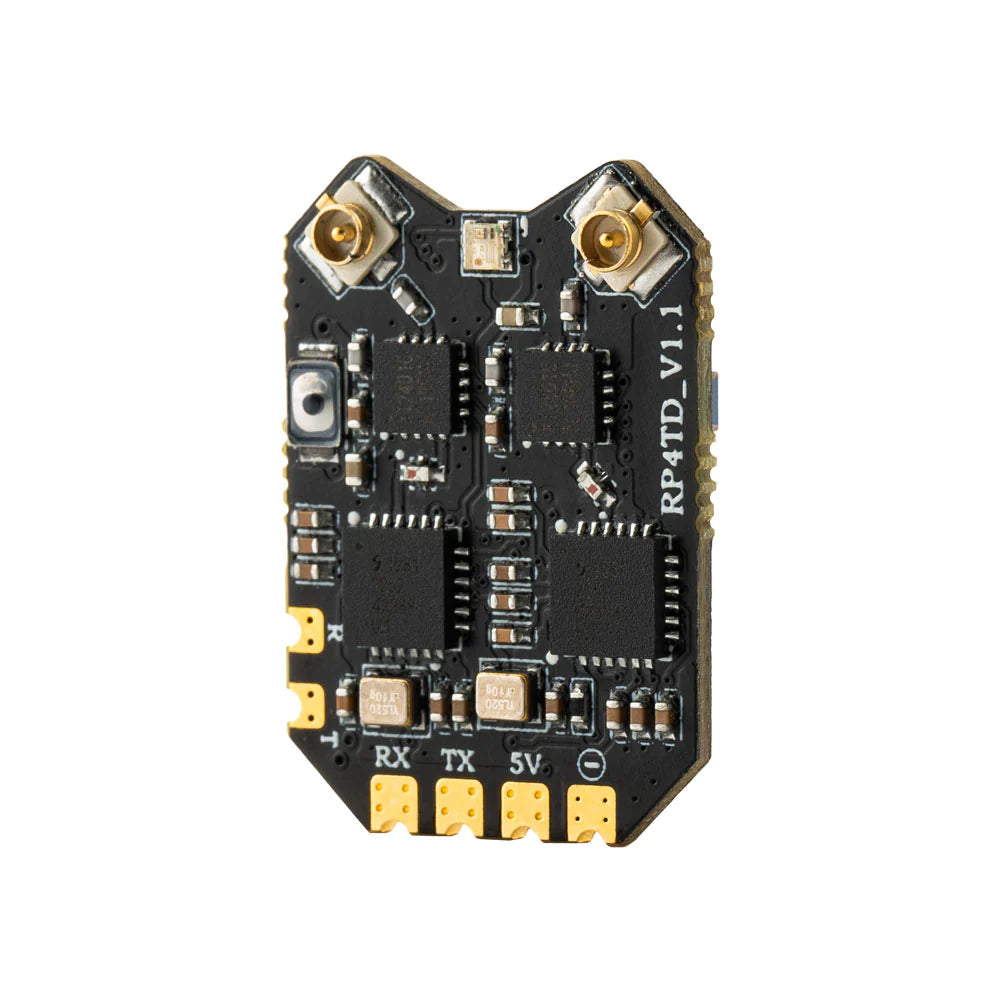

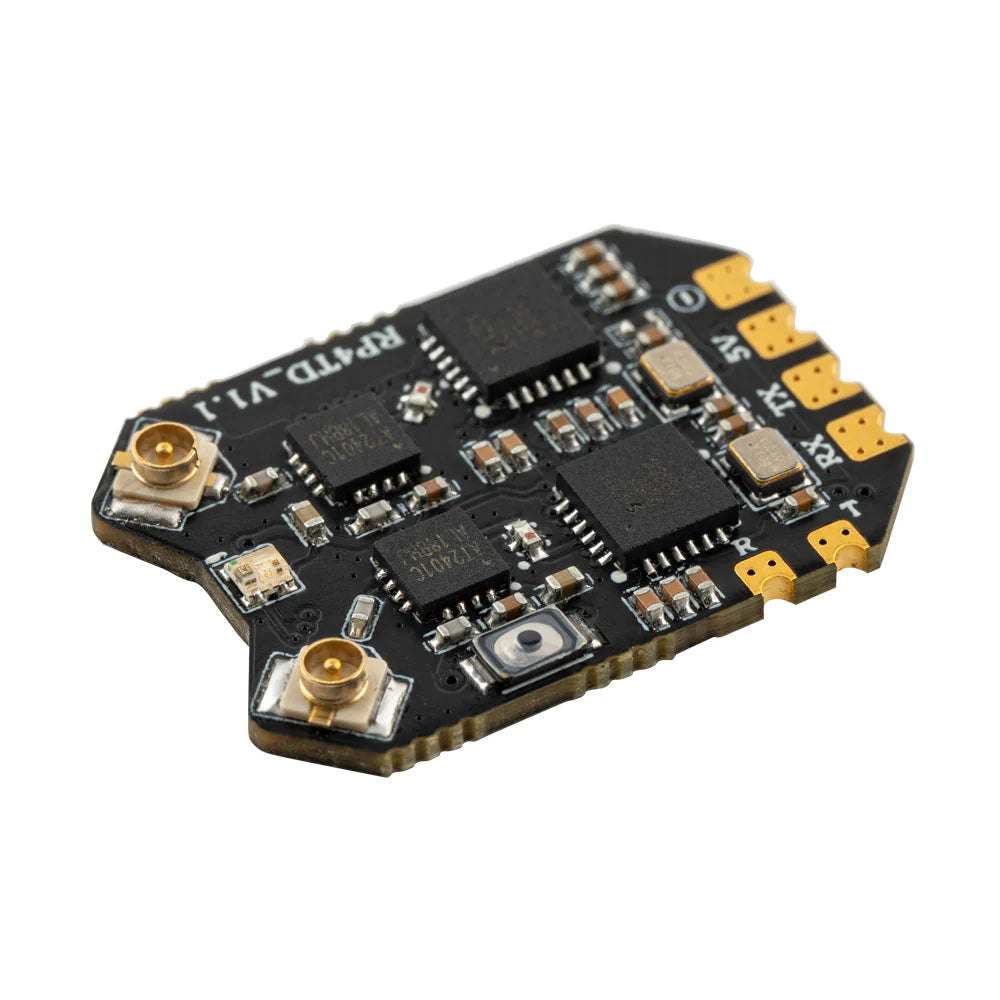

Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimised circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class. The RP4TD features built in WIFI so you can wirelessly upgrade firmware to configure the receiver via the built-in WebUI with your PC or mobile phone.

Suitable for drones and fixed-wing models, the receiver can be installed in virtually any application that requires a serial receiver!

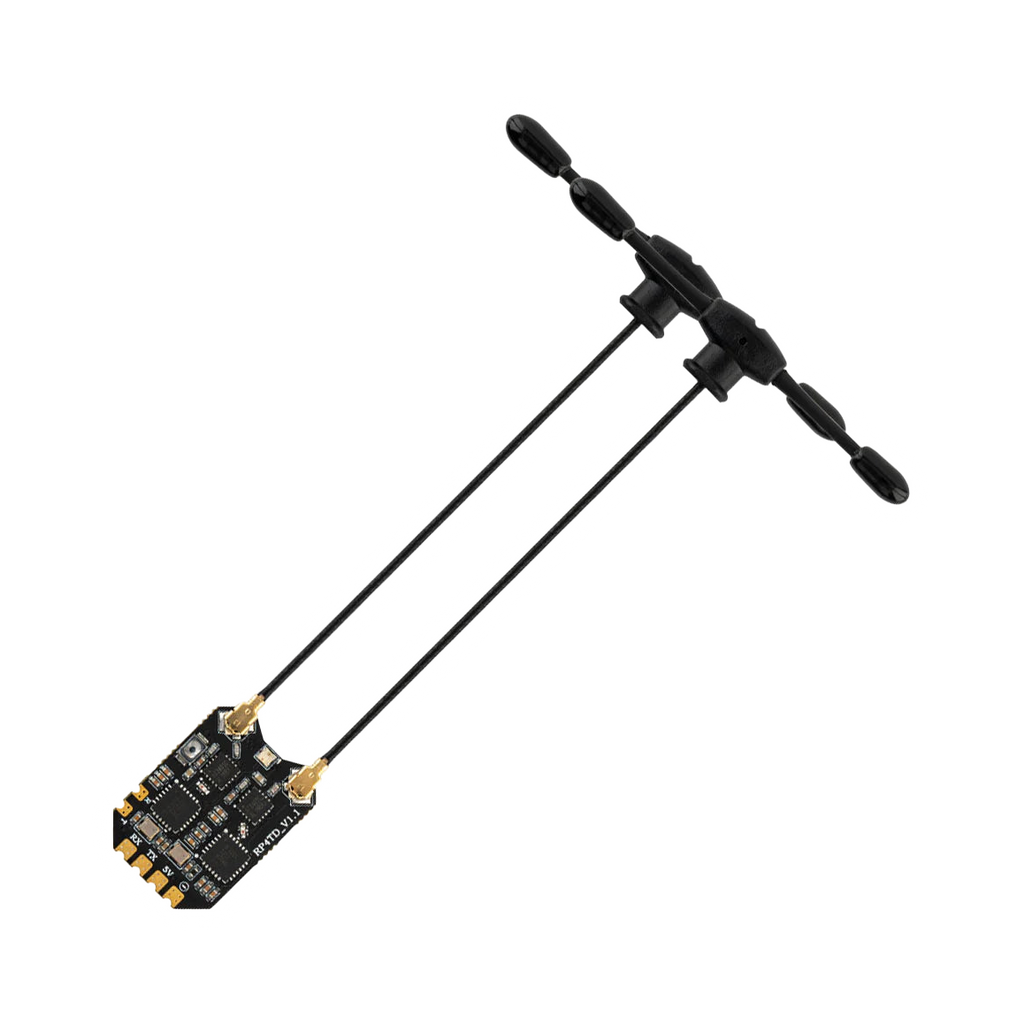

RP4TD ExpressLRS 2.4GHz Diversity Receiver

Features

Gemini mode compatible
Reliable DCDC Power supply circuit
Class leading SNR and RSSI performance
Optimized PCB design for better heat dissipation
Upgraded antenna with greater durability and performance
UART pads for extended applications
Dual TCXO (temperature compensated crystal oscillator)
2x 100mw RF Telemetry power output
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
Type: ISM
MCU: ESP32
RF Chip: SX1281 x 2

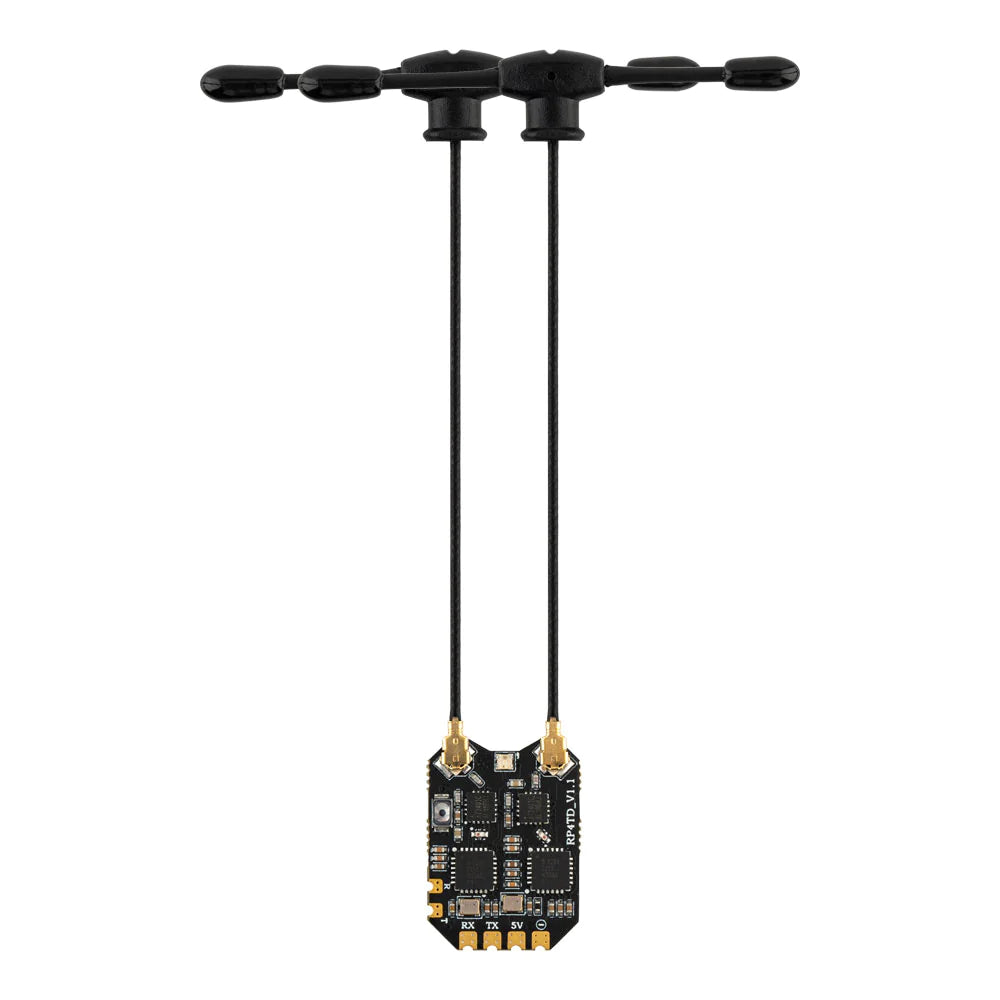

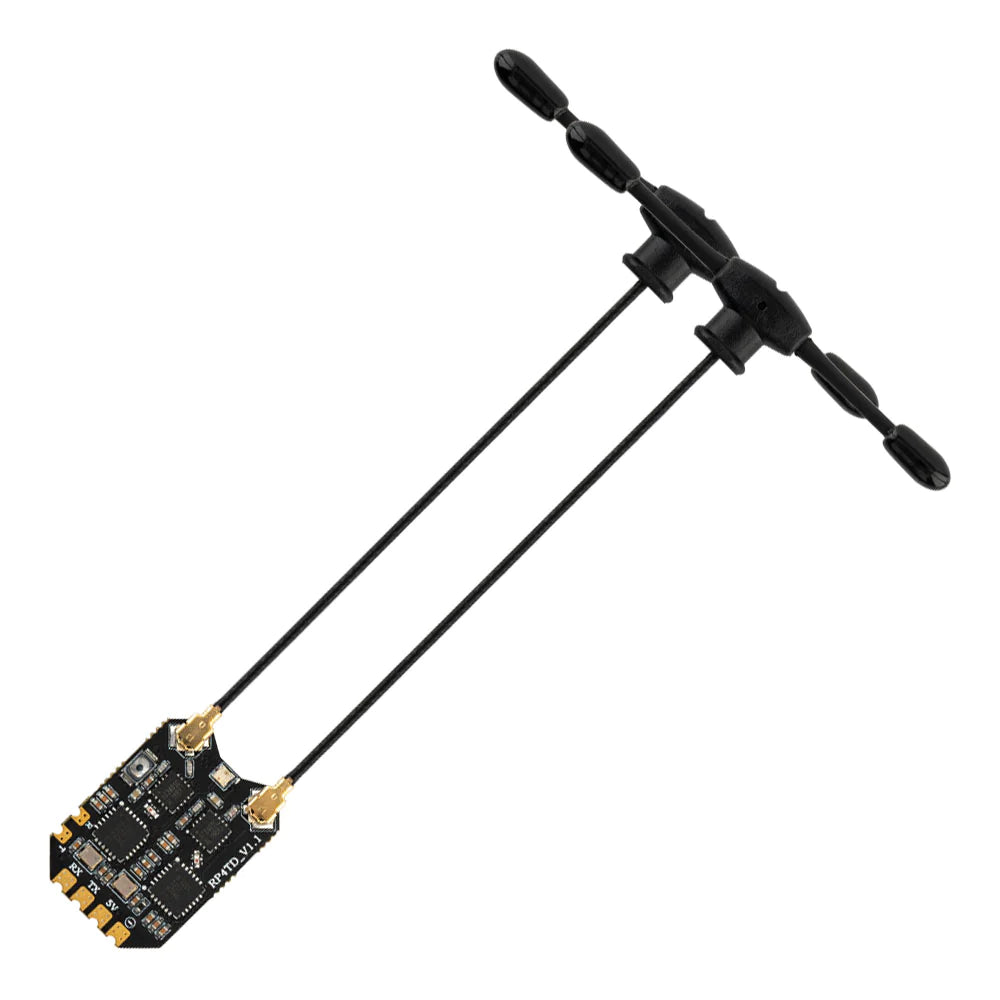

Antenna: 65mm 2.4GHz T Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2x 100mW
Working Voltage: DC 4.5-12.0V

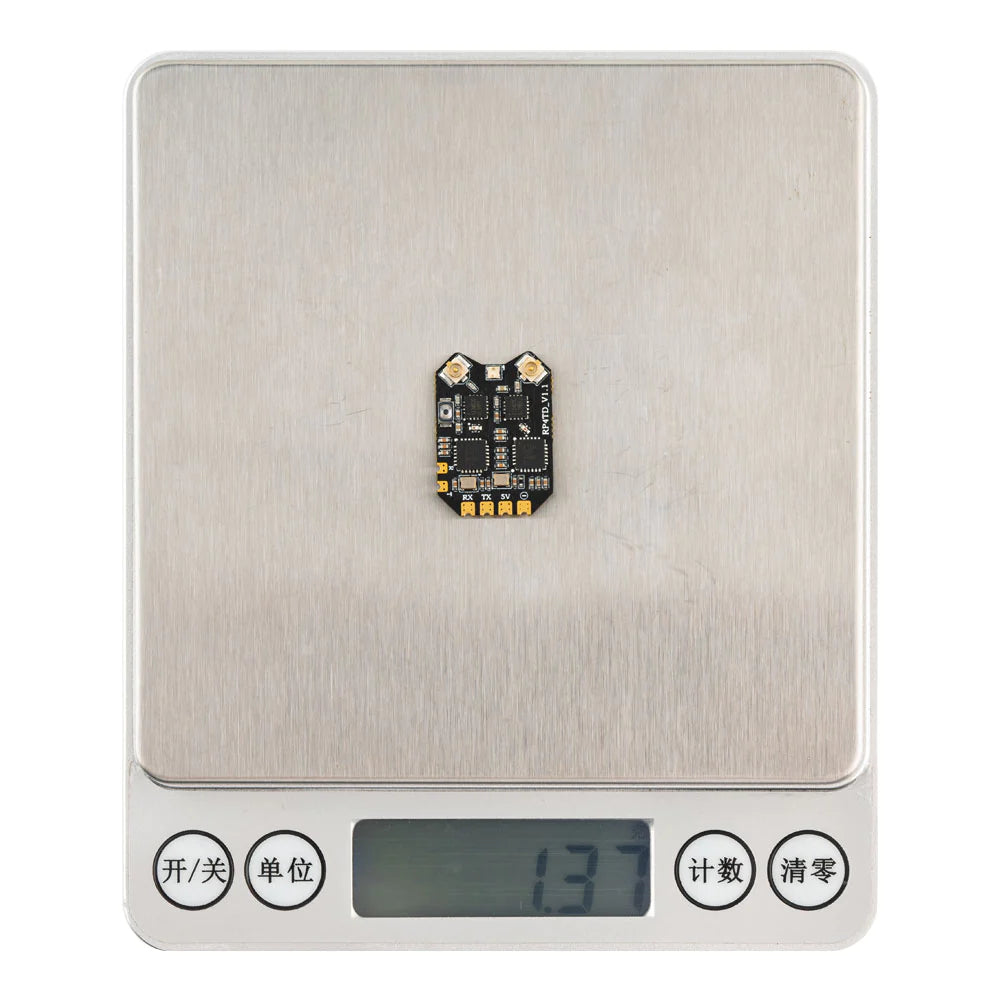

Weight: 1.4g (without antenna)
Dimension: 23.7*16.3*4.0mm
Firmware Version: ExpressLRS V3.3.0 pre-installed
FW Target: RadioMaster RP4TD 2400 RX
Bus interface: CRSF
Extend interface: UART

Dual TCXO (Temperature compensated crystal oscillator)

The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. In our testing, we found that two TCXOs offer better advantages in true diversity receivers.

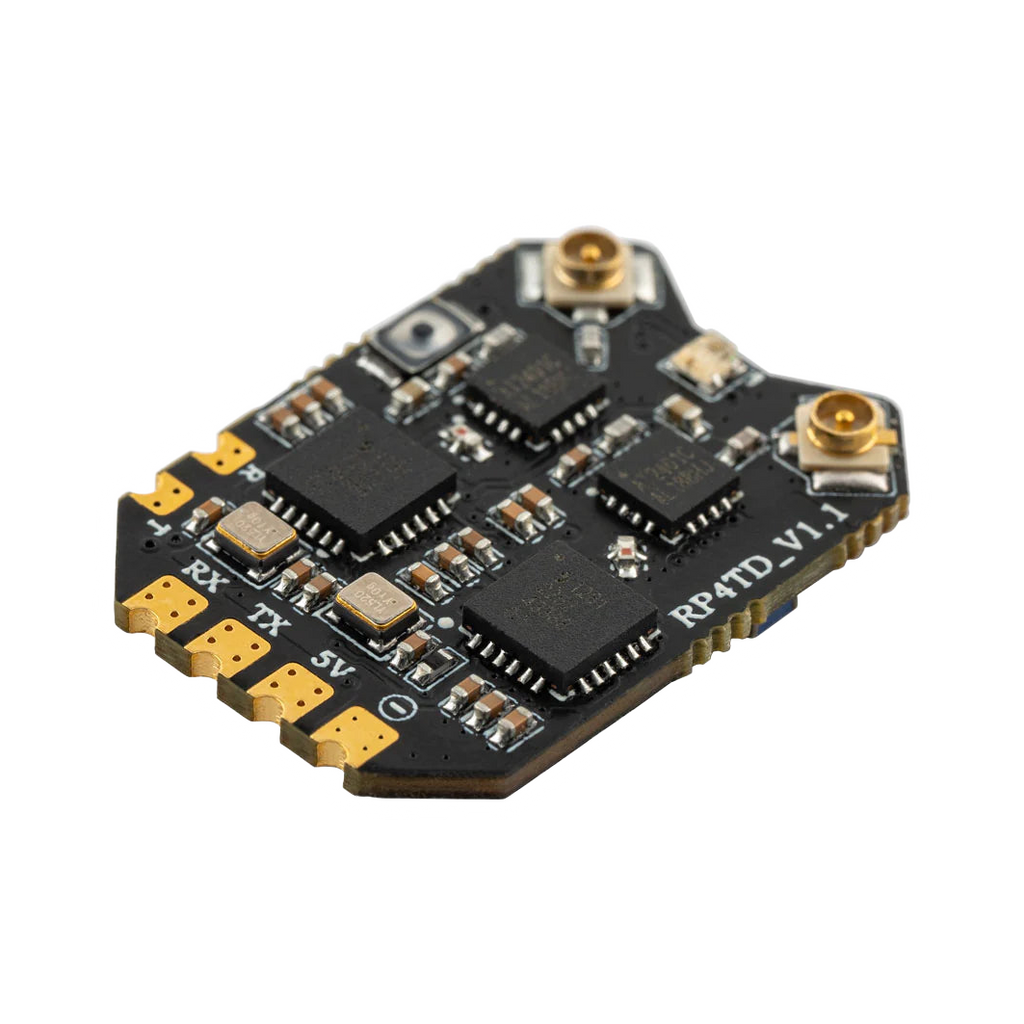

RP4TD ExpressLRS 2.4GHz Diversity Receiver
