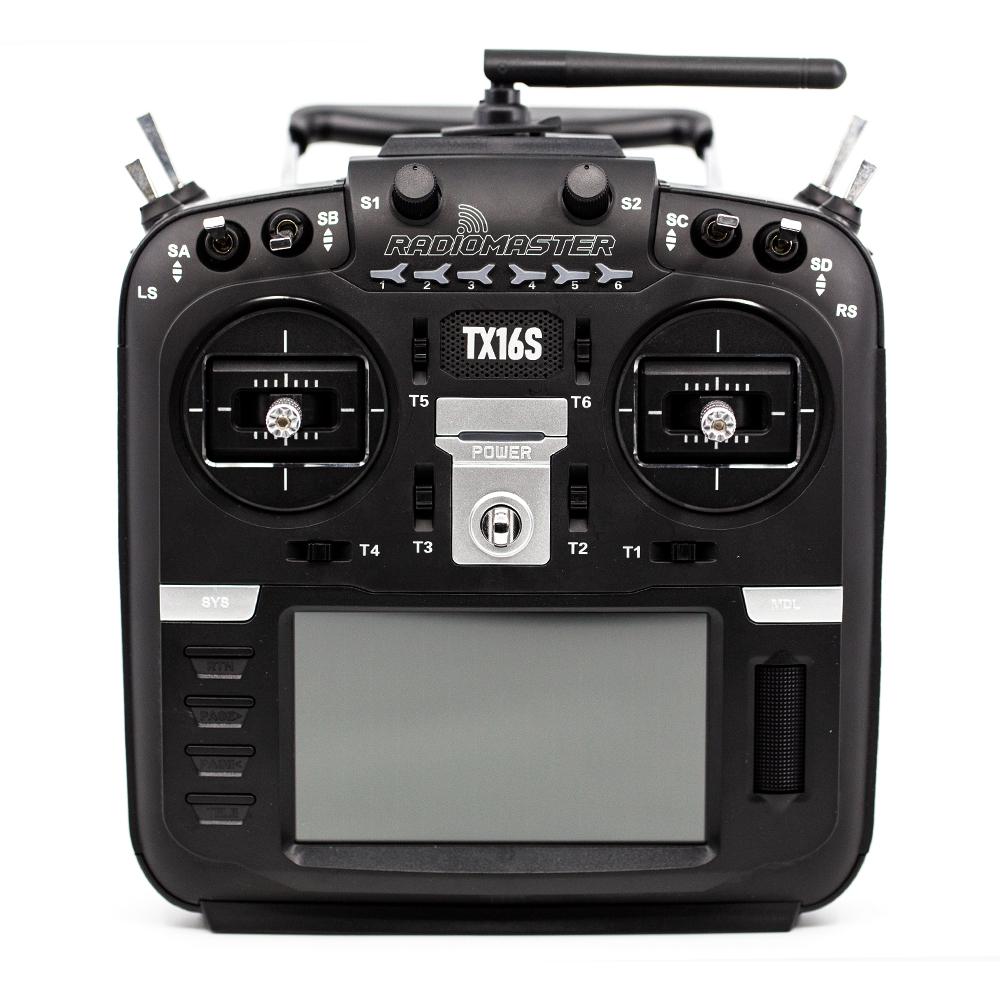

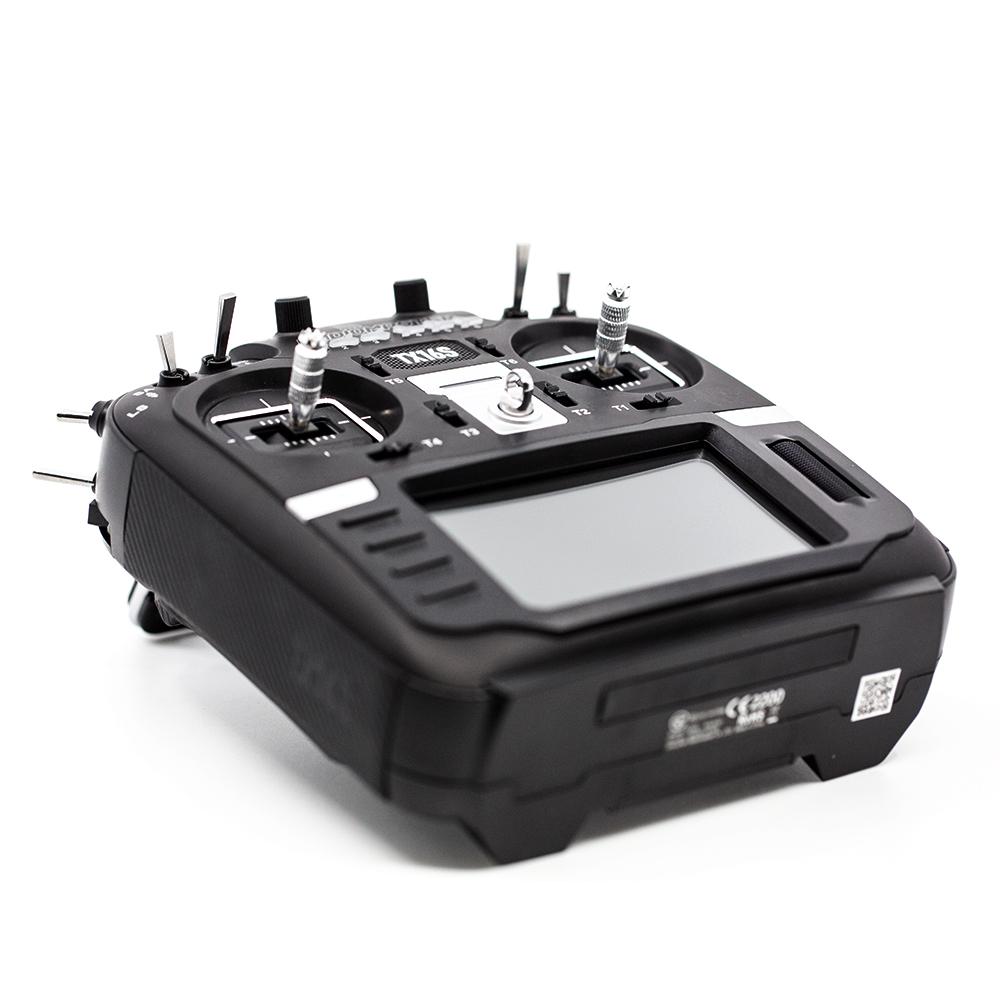

Are you looking to buy a RadioMaster TX16S MK II Radio in Australia?
The RadioMaster TX16S Mark II Radio Transmitter is the latest in radio transmitter technology. This radio features AG01 Gimbals, a Multi-Protocol 4-in1 Internal Module, OpenTX and EdgeTX compatibility, and 2.4GHz radio frequency with 16 Channels. This updated design includes an easily removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. The 4.3" IPS color dispay provides easy programming with touch panel precison and the brand new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for pilots!
BATTERY OPTIONS
- 2x 18650 batteries (use these with the included battery tray)
- RadioMaster 5000mah 2S Li-ion Battery
- Radiomaster 6200mAh 2S LiPo Battery
- GNB 6500mAh 2S LiPo Battery
Features
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- New charge circuitry with integrated reverse-polarity protection
- Optional high/low rear grips included for improved ergonomics
- Redesigned battery cover for improved battery access
- Improved internal circuity and optimized power supply
- Rear mounted audio jack provided headphone output
- Improved S1/S2 knobs with clear center-detents
- Retooled body shell with improved fit and finish
- Multi-Protocol 4-in1 version
- AG01 Gimbals
Specifications
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Upgrade method: Supports USB-C online / SD card offline upgrade
- Antenna gain: 2db (transmit power adjustable)
- Transmitter module: (CC2500 CYRF6936 A7105 NRF2401)
- Option 1: Internal 4-in-1 multi-protocol module
- Transmitting power: (protocol dependent)
- Internal 4-in-1 multi-protocol module : Max 100mw
- Channels: Up to 16 channels (depending on the receiver)
- Module Firmware: Multiprotocol Module (41N1)
- Gimbal:
- Option 2: AGO1 CNC Hall sensor
- Module Bay: JR compatible module bay
- Transmission frequency: 2.400GHz-2.480GHz
- Remote control distance:> 2km @ 22dbm
- Weight: 750g (without battery)
- Working voltage: 6.6-8.4V DC
- Radio firmware: EdgeTX
- Working current: 400mA
- Size: 287x129x184mm
- Color: Black
Includes
- 1x RadioMaster TX16S MKII 2.4GHz 16CH Radio Transmitter
- 1x 18650 BatteryTray (Battery Not Included)
- 1x Raised Grips (Set of 2)
- 1x Flat Grips (Set of 2)
- 1x TX16S Key Chain
- 1x Screen Protector
- 1x USB-C Cable
PLEASE NOTE THE ANTENNA MUST BE CONNECTED AT ALL TIME. REMOVAL OF THE ANTENNA WHILE POWERED ON WILL DAMAGE THE TRANSMITTER!
FOR THIS REASON WE WILL NOT WARRANTY SIGNAL PROBLEMS!
