RadioMaster XR1 Multi-Frequency ExpressLRS Reciever

$23.70 AUD

GST included Shipping calculated at checkout.

5 In stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW

Usually ready in 2 hours

Product details

SKU: 31966

Barcode: HP0157.XR1-2400

Shipping Weight: 20g

W/H: V-03-E-12

Categories: Drone RC RX Receivers, ELRS Express LRS Receivers & Modules, FPV Antennas, Radio Gear, Radiomaster

Tags: 2.4ghz, Dual Band, ELRS, Receiver

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy RadioMaster XR1 Multi-Frequency ExpressLRS Reciever in Australia?

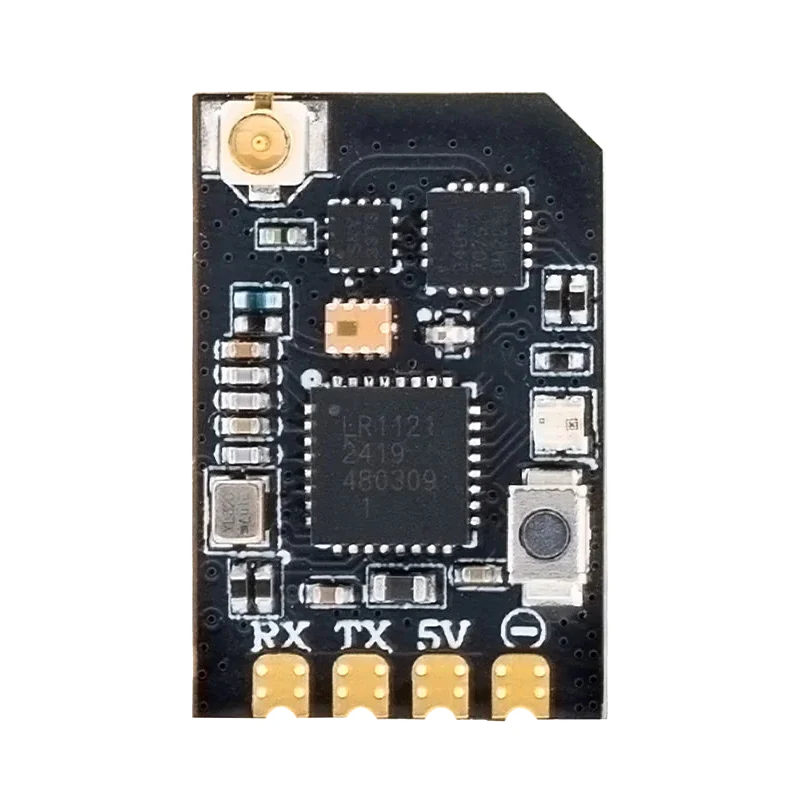

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20 x 13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly on 2.4GHz OR Sub-G 900MHz bands. Whether you’re flying on 2.4GHz or 900MHz, the XR1 delivers exceptional range and sensitivity in a small, lightweight package — perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality.

Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.

Features

Telemetry RF power: 100mW
ExpressLRS 2.4GHz or Sub-G 900MHz
ESP32C3 high-performance MCU
Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
Secondary UART port
Castled pads for easy soldering

Specifications

Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
Type: ISM2.4 or FCC915
MCU: ESP32C3
RF chip: Semtech LR1121
RF connector: IPEX-1

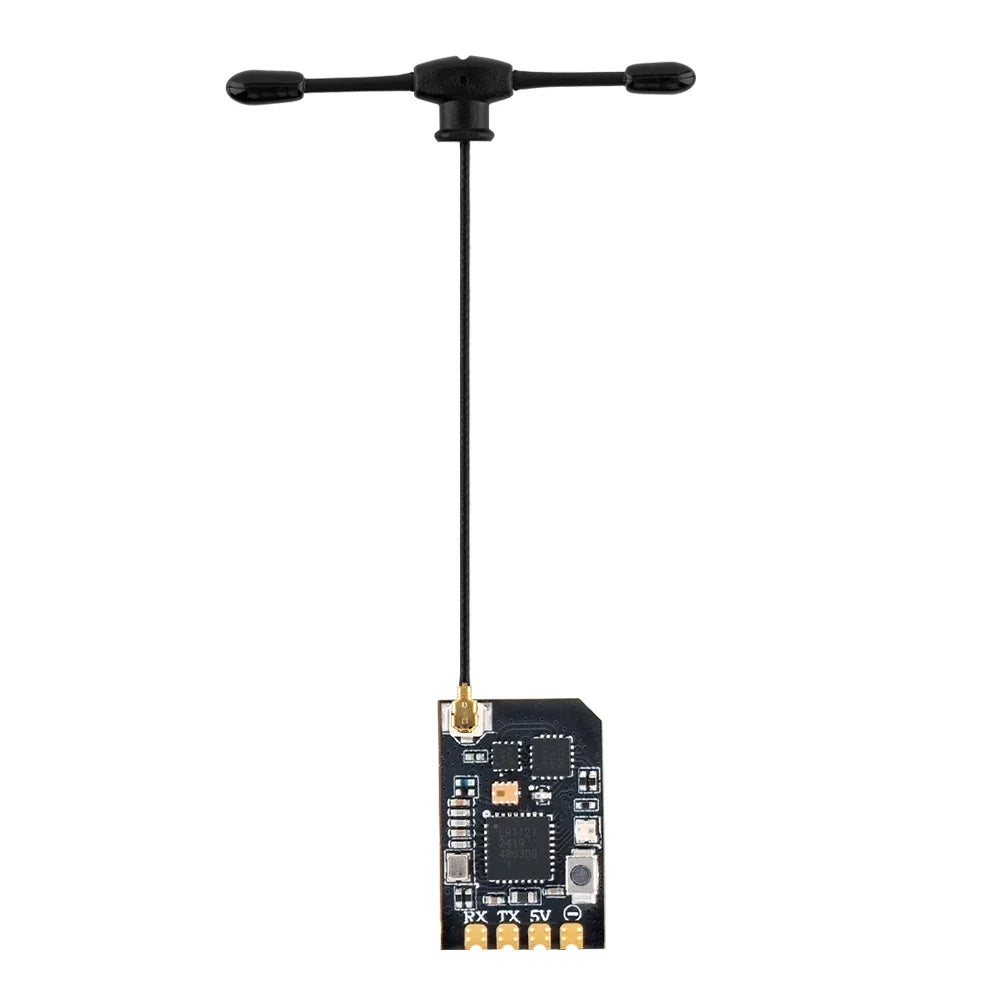

Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
Frequency Range: 2.4GHz or Sub-G 900MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimension: 20mm * 13mm * 3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target: RadioMaster XR1 2.4/900 RX
Bus interface 1: CRSF
Bus interface 2: UART

Tailored to Your Needs

The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
