Are you looking to buy MMW Micro Motor Warehouse Ryze (DJI) Tello Motors (4pcs, coreless, speed: fast) in Australia?
Replacement/upgrade motors for the Ryze Tello, motor connectors included!
Since there are no motor connectors on the Tello flight controller, you will need to solder Micro-JST 1.25 connectors to the wire ends.

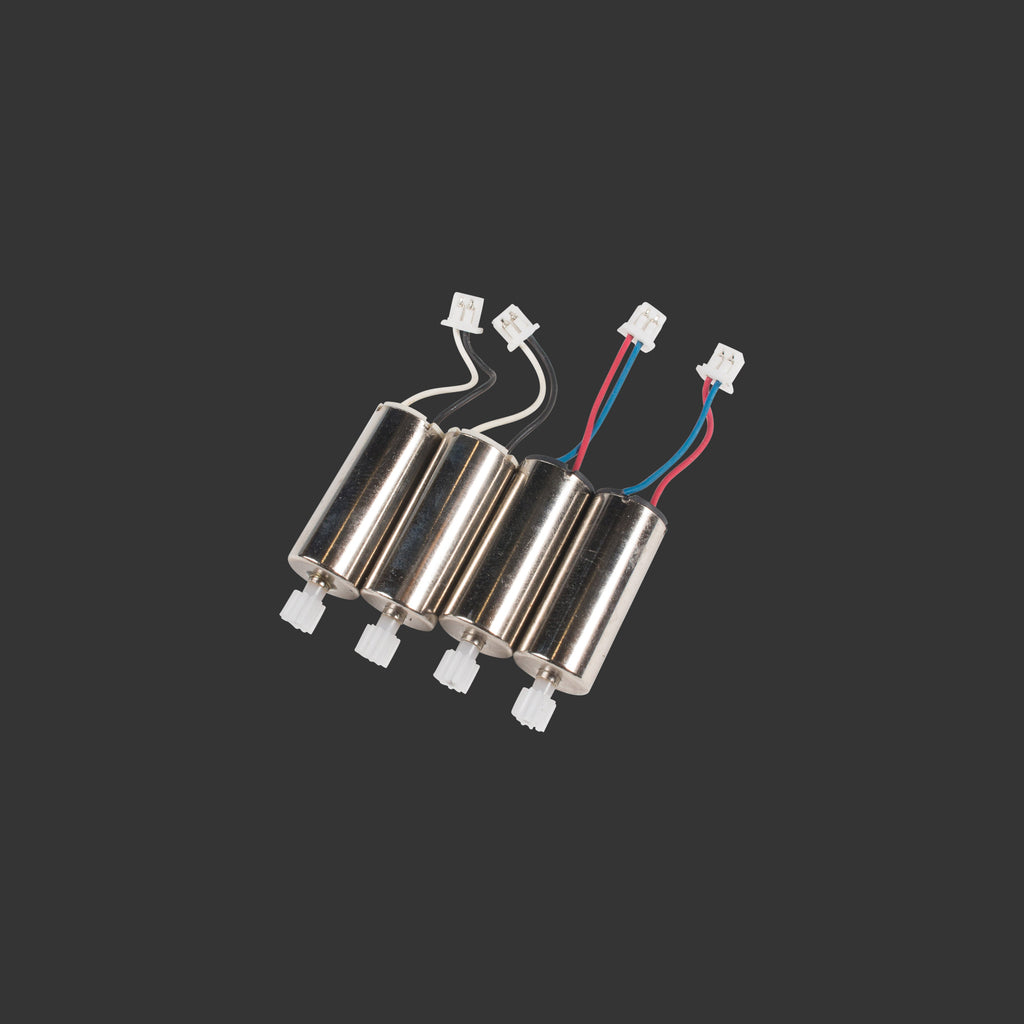

package content:
- 2x CW motor
- 2x CCW motor

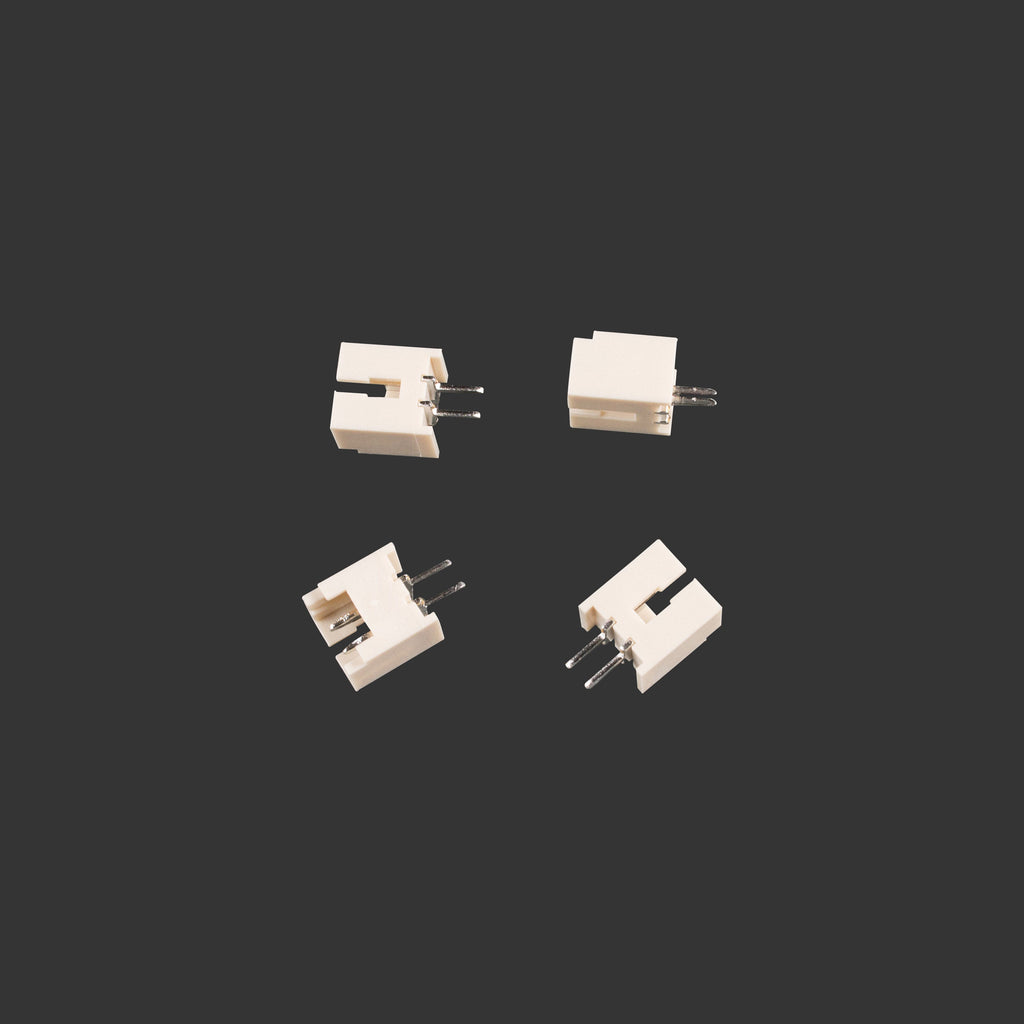

- 4x Micro-JST-1.25 socket
instructions:
- solder connectors to motor wires
- black -> black, white -> white
- blue -> black, red -> blue
performance data:
- speed: 15.000Kv
- operating voltage: 1.5-3.7V
- factory lifetime rating: 5-6 hours
dimensions:
- can diameter: 8.5mm
- can length: 20mm
- shaft diameter: 1mm
- shaft length: 5mm
- weight: 4.9g
All motor packs contain equal amounts of clockwise and counter clockwise motors. To maximise performance and life span, dont run them in reverse!
Motor rotation and correct polarity is indicated by the wire color:
clockwise: red +, blue -
counter clockwise: white +, black -
