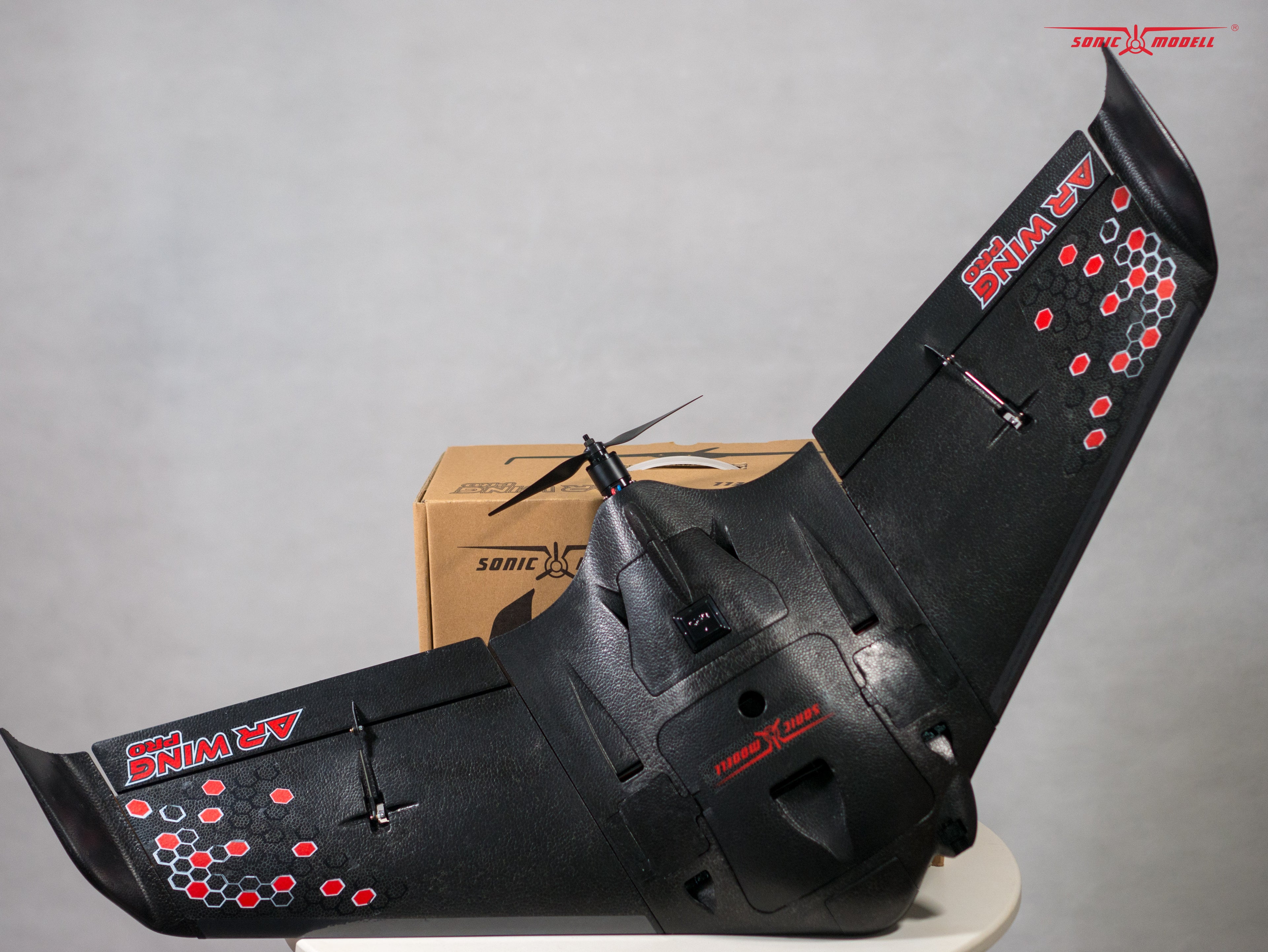

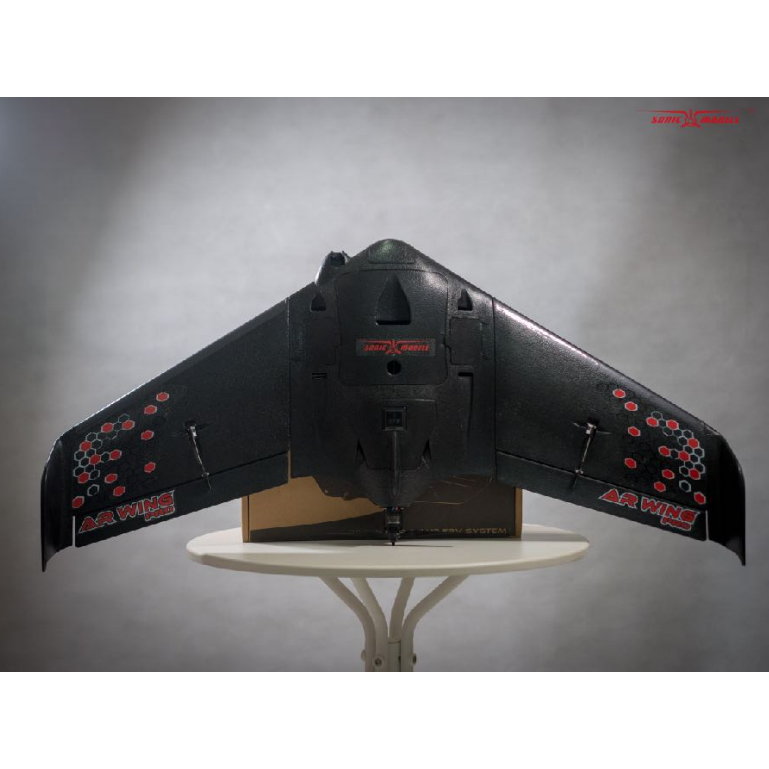

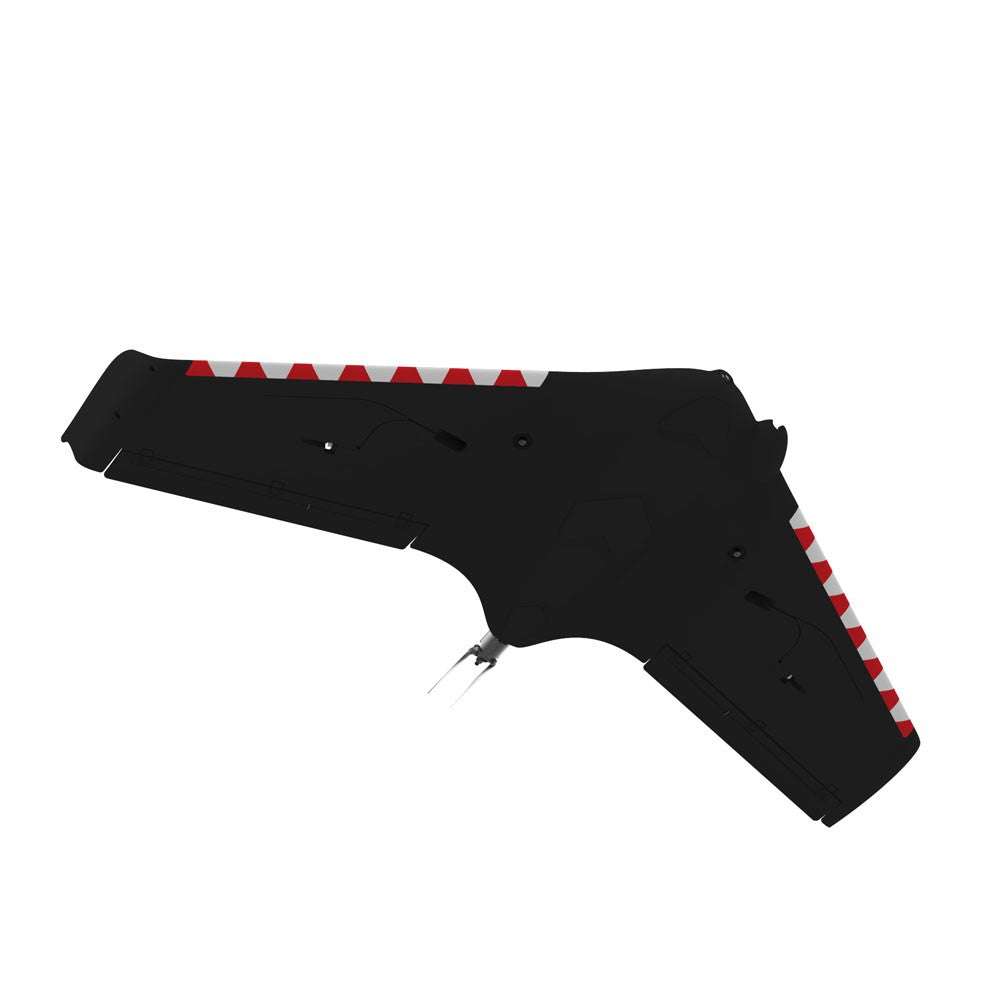

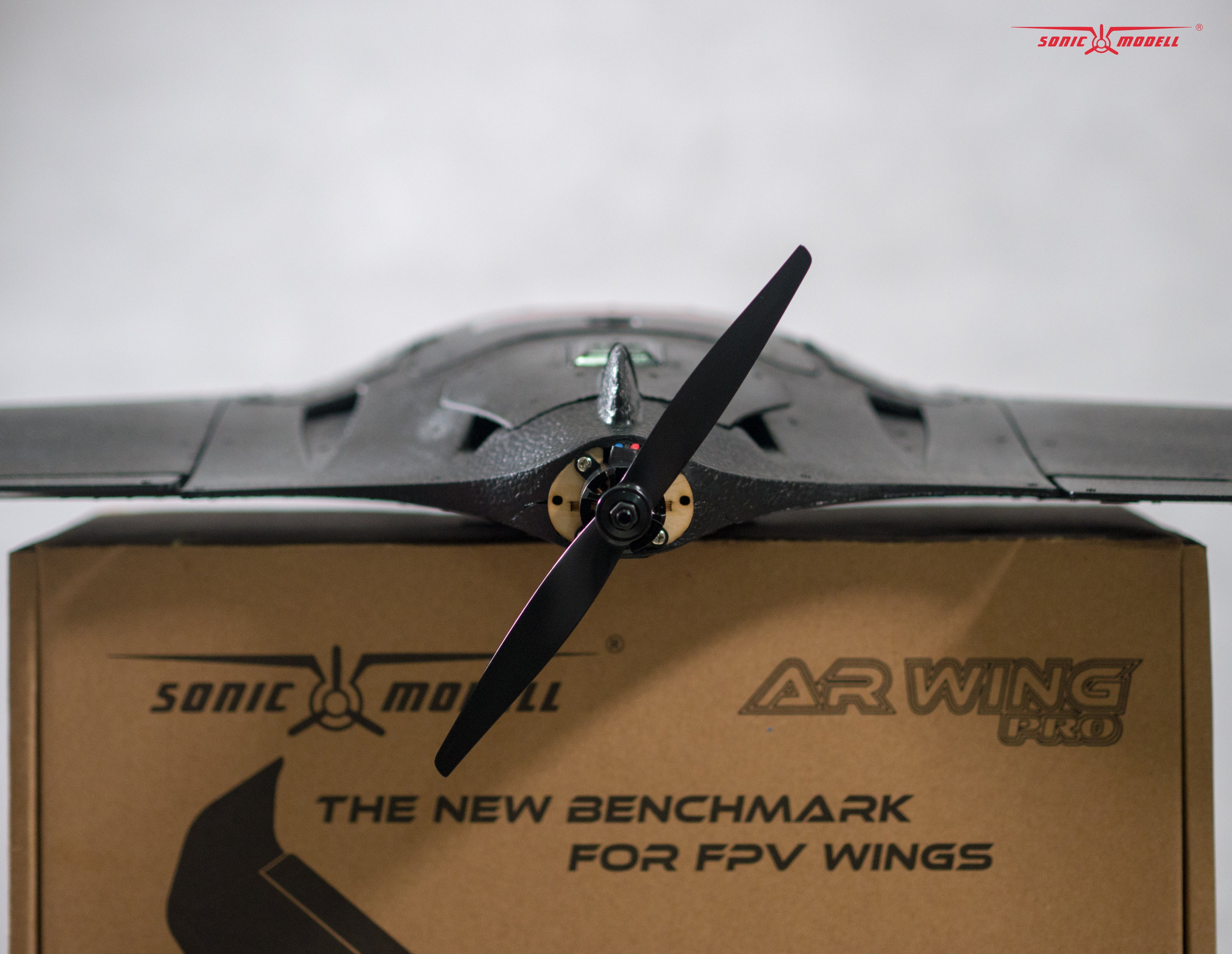

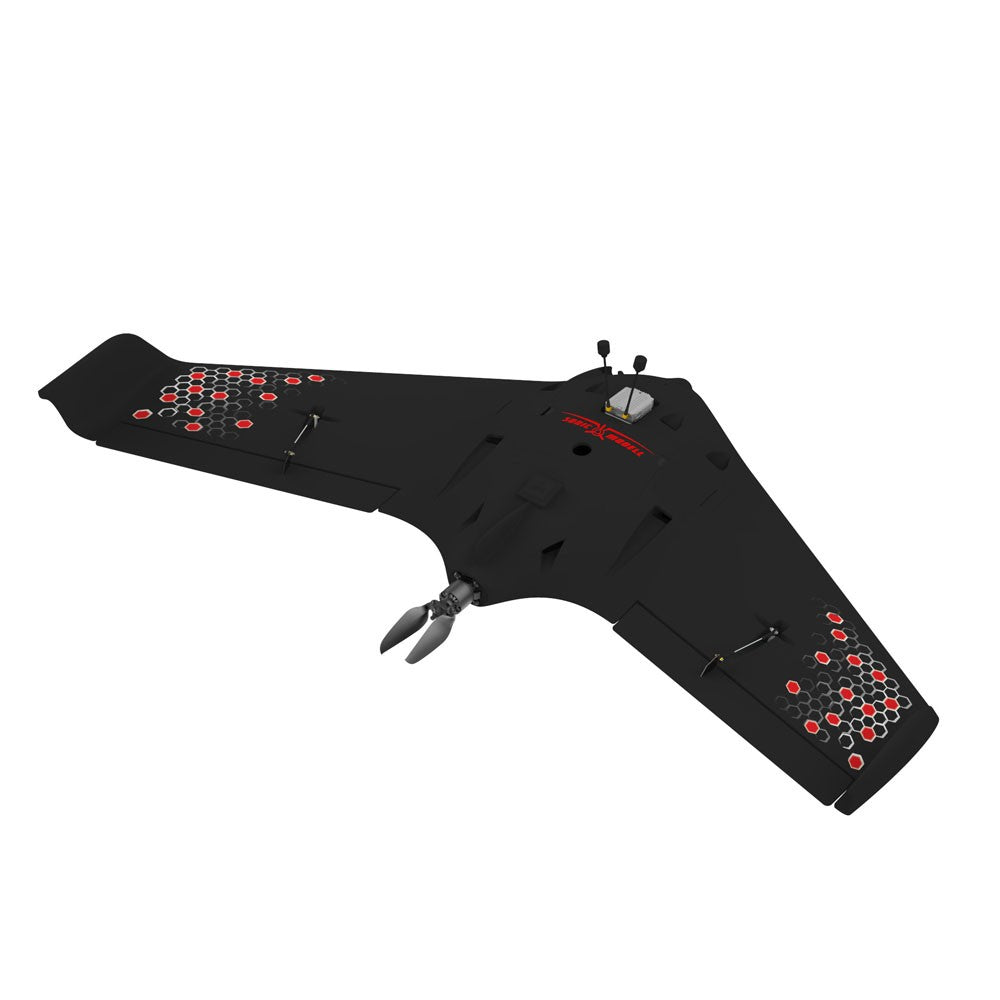

Sonicmodell AR Wing Pro 1000mm Wingspan

Name: Sonicmodell AR Wing Pro 1000mm Wingspan
Rating: 5.00 (3 reviews)

$199.00 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 16997

Shipping Weight: 1550g

W/H: Z-01-C

Categories: Drone Wings, FPV Coming Soon, Sonicmodell (Also Known as ZOHD), Wing Kits, ZOHD (Also known as Sonicmodell)

Tags: Wing Kit, Wings

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy a Sonicmodell AR Wing Pro in Australia?

The Sonicmodell AR Wing Pro is a much-needed upgrade of the classic ar wing. Now allowing all new and old technology to be fitted with simplicity. It hosts mounts for new DJI HD FPV systems as well as original HD cameras from Gopro to Runcam

Features

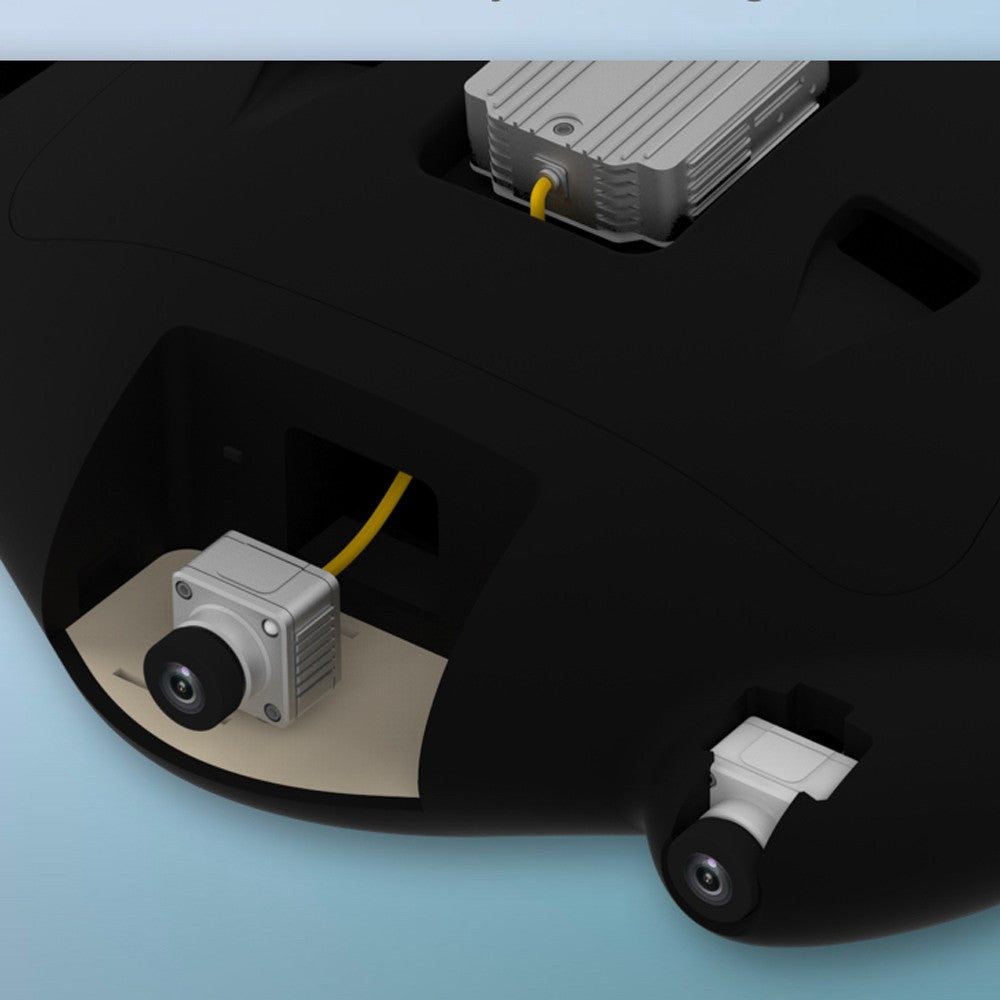

The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System
Aerodynamic designed FPV pocket in both sides of fuselage, with high efficient NACA air cooling system to ensure a long-lasting performance of your FPV gear work in any conditions.
Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability and crash resistance.

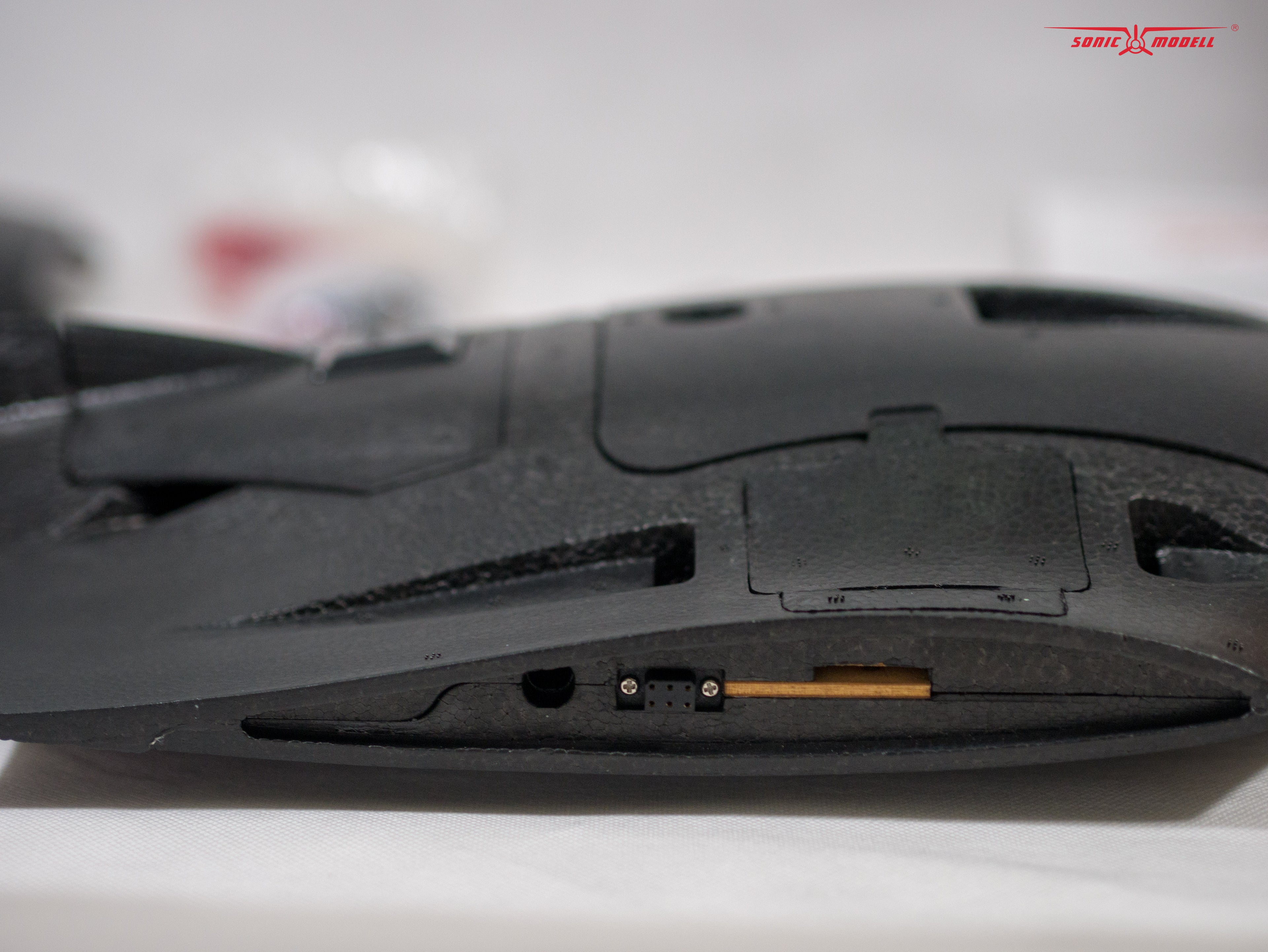

Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.

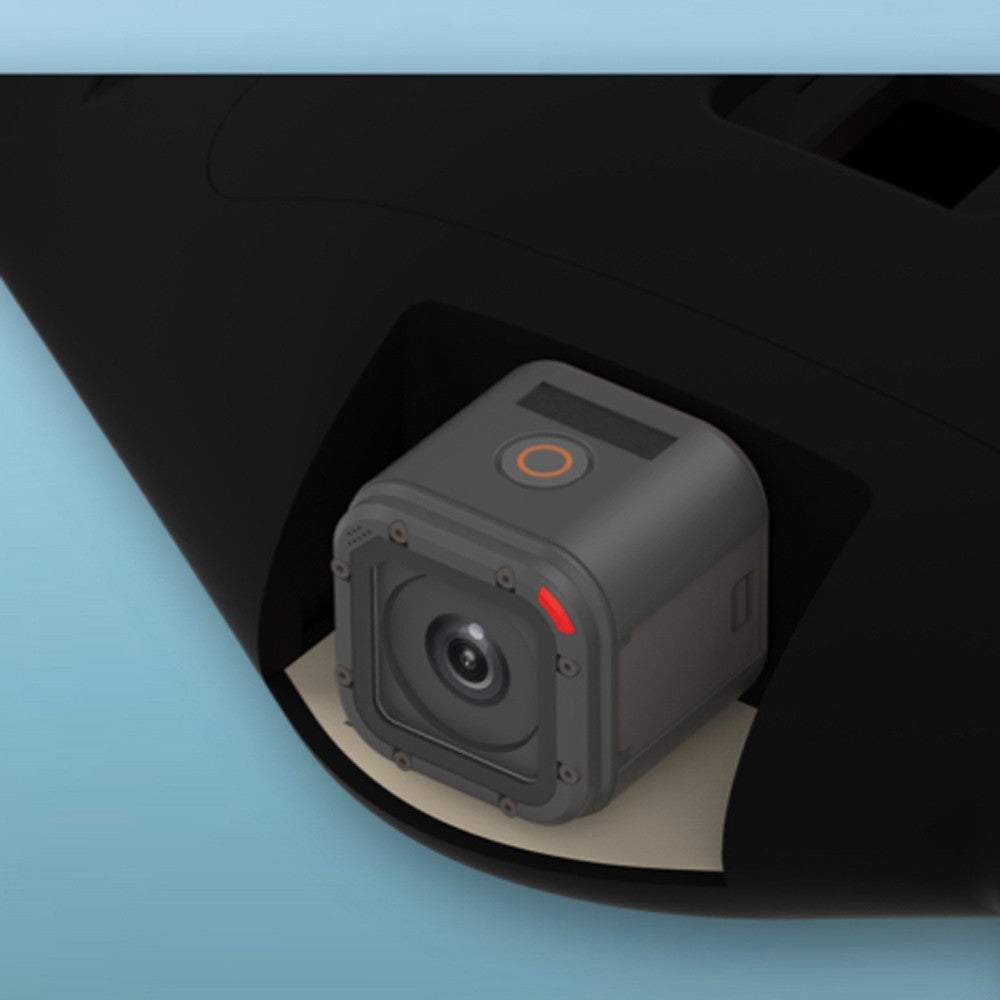

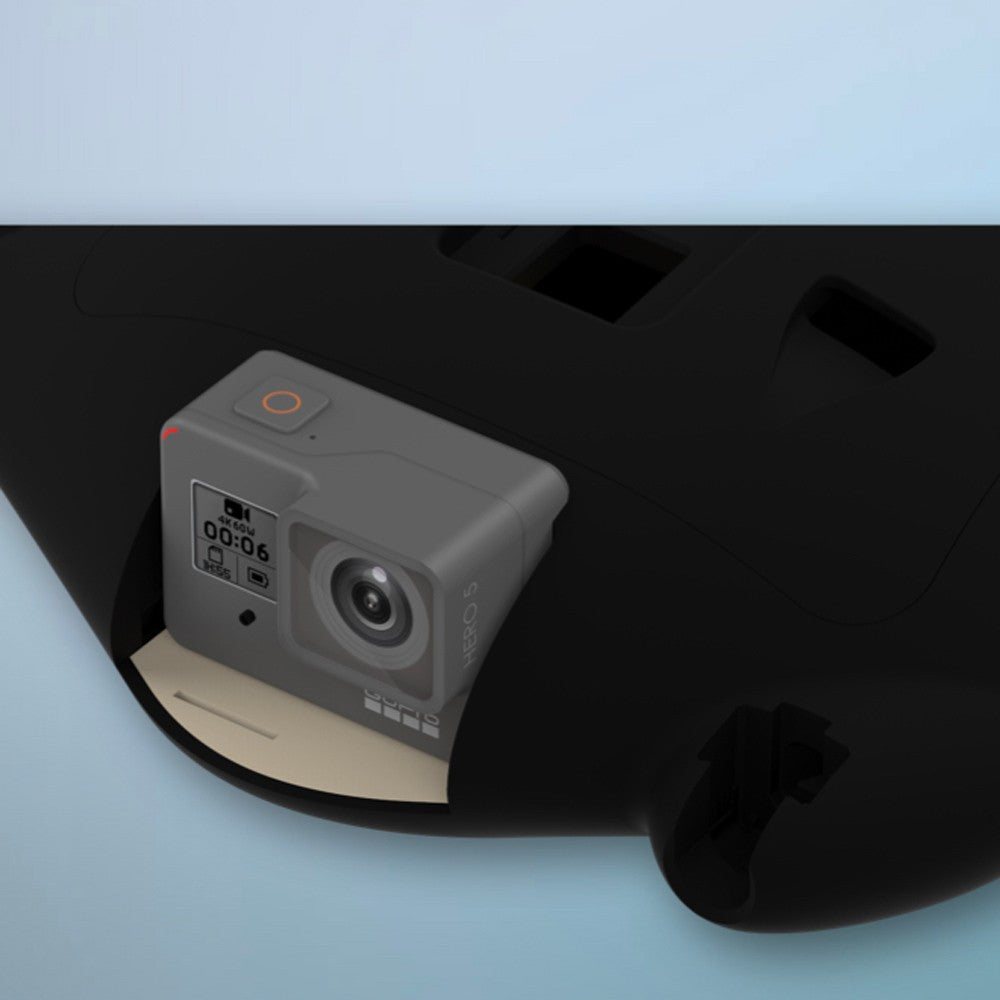

Nose camera slot compatible with all HD Action cameras (DJI, GoPro, Runcam etc) in the market.
Multiple routing inside all equipment bays, allowing you an easy wire layout regardless the design.

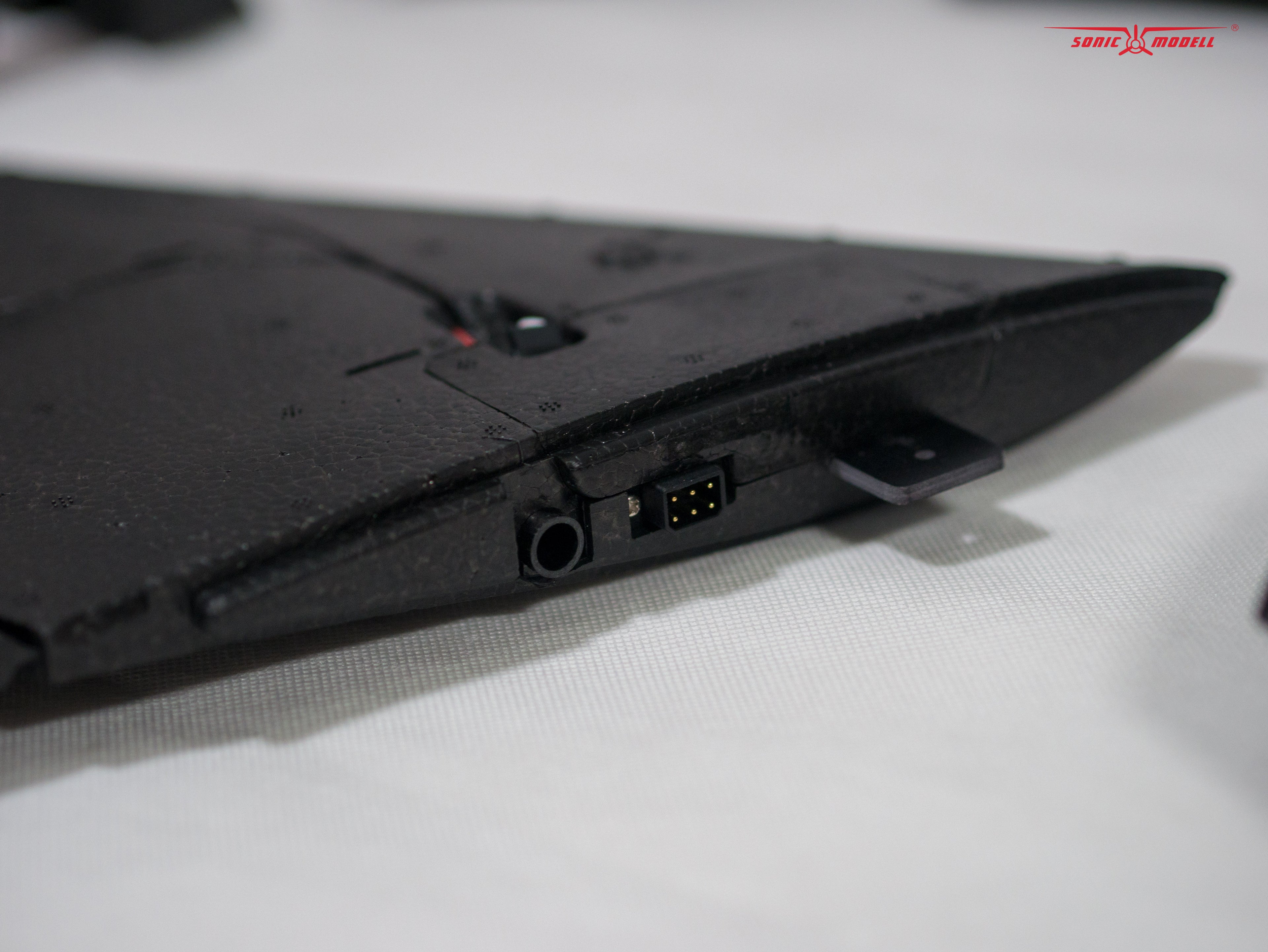

Detachable main wing and wing tip, glue-free assembly, incredibly portable considering the size.
Built-in CF rod in ailerons will give precision and sharp action to your inputs

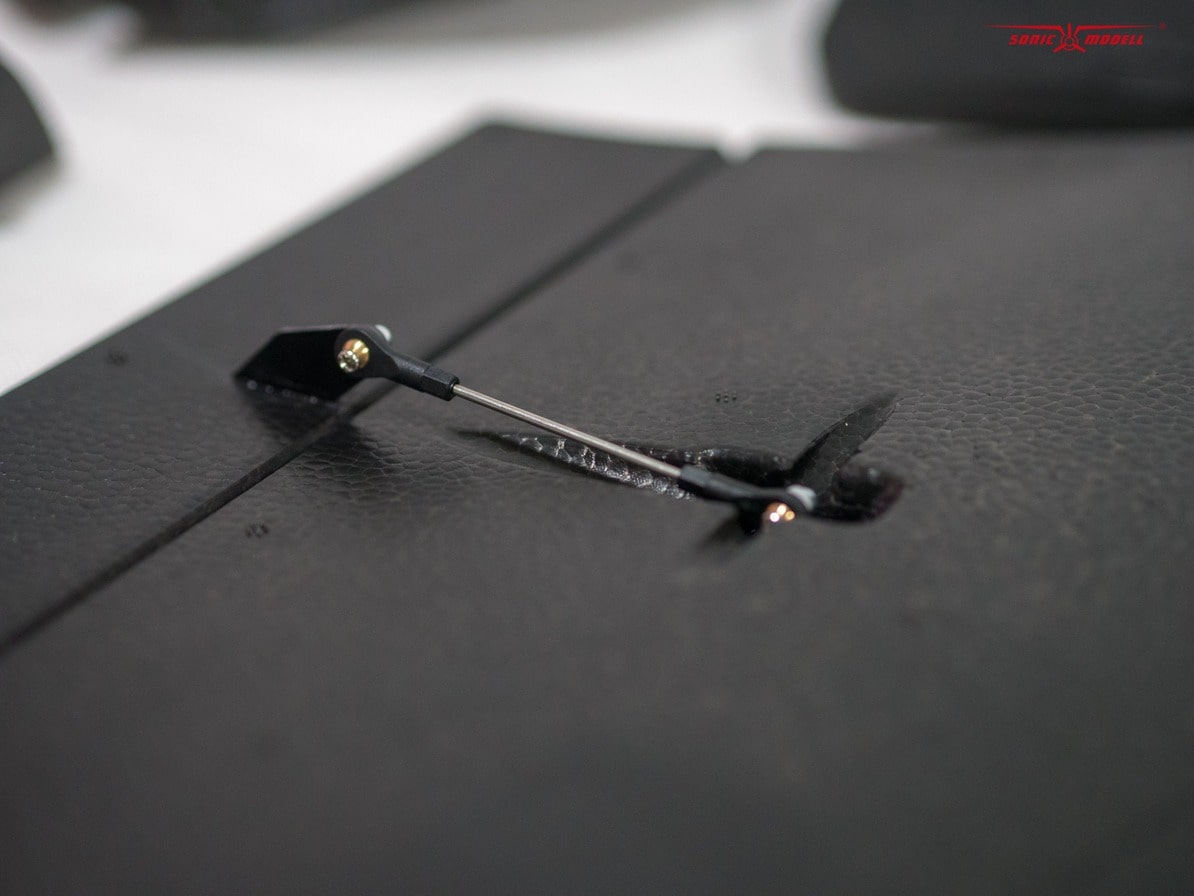

Accurate ball link control system brings agile and quick response to your maneuvers.
Special-designed “servo arm built-in” structure will protect your servo arm from impacts and keep low profile.
Large battery bay for extended flight time and more room for ANY Flight Controller
Decent rear bay for ESC, or other gear isolating interference from other FPV equipment.
Built-in plate inside fuselage for extra enhancement.
Extra CA Hinges for DIY will give you the option of a stiffer and more agile control to your elevons
Optimized main air-cooling design will keep your gear safe from overheating.

AR Wing Pro Specifications

Motor: 2216-1400KV
ESC: 40A w/5V 3A BEC
Servos: 2pcs 9g metal gear servo
Propeller: 2 blades 8x5
Recommended Battery:
Lipo 4S 3200-3500mAh
ZOHD Lionpack 18650 4S2P 7000mAh
Brand Name: SONICMODELL
Item Name: AR Wing Pro
Material: High-Quality EPP
Wingspan: 1000mm (39.37'')
Length: 450mm (17.71'')
Version: KIT, PNP
KIT Empty Weight: 340g
PNP Empty Weight: 500g (with basic power combo)

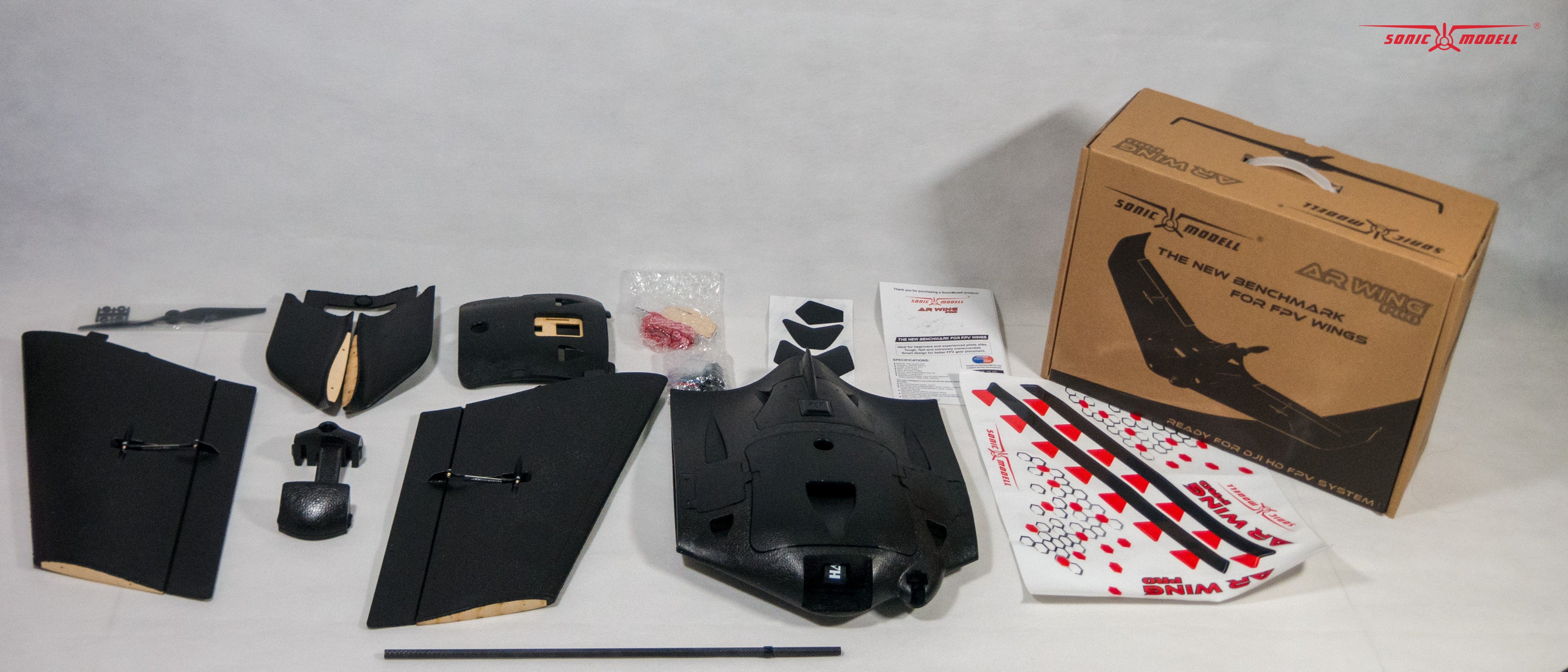

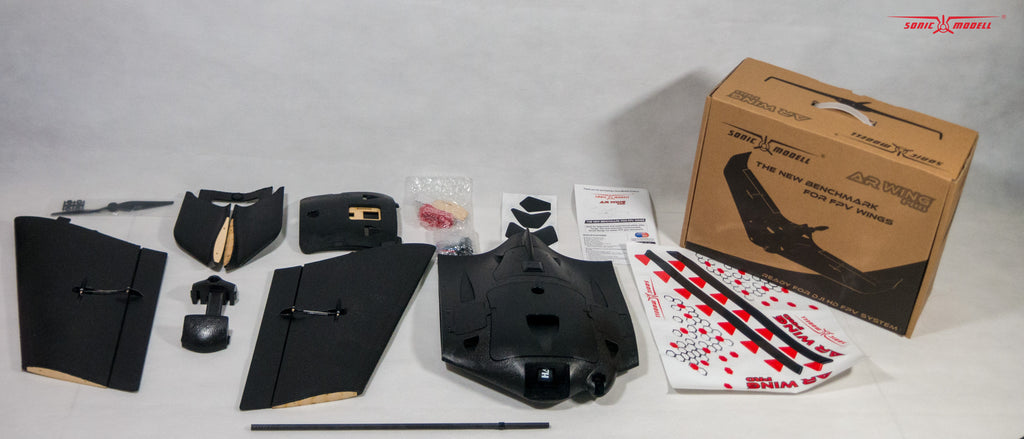

Kit Includes

SONICMODELL AR Wing Pro KIT
x1 hardware pack
x2 Wings
x1 Camera nose peice
x2 Back fins
x1 Body Cap
x1 Full Body Carbon Fibre Rod
KIT package size：40*31*17mm

PNP Includes

x1 Propeller
x1 hardware pack
x2 Wings
x1 Camera nose peice
x2 Back fins
x1 Body Cap
x1 Full Body Carbon Fibre Rod
PNP package size：40*31*17mm
