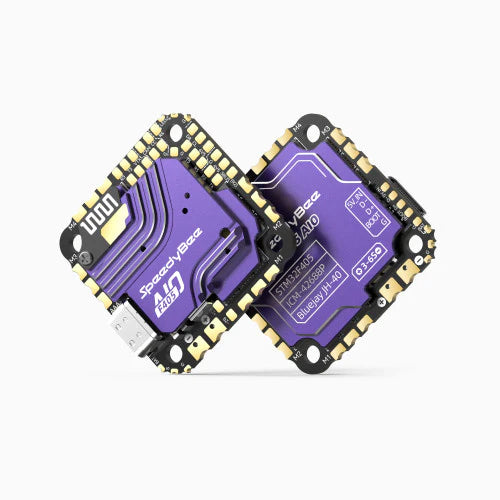

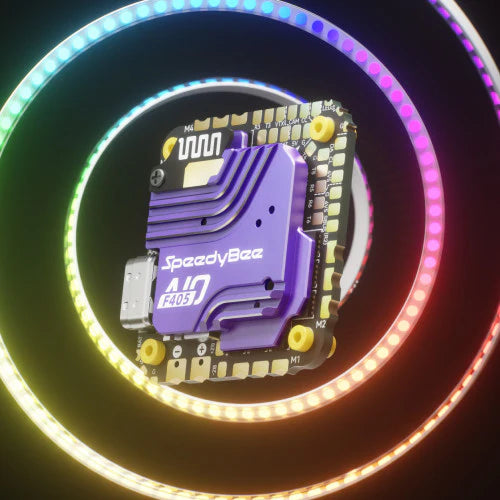

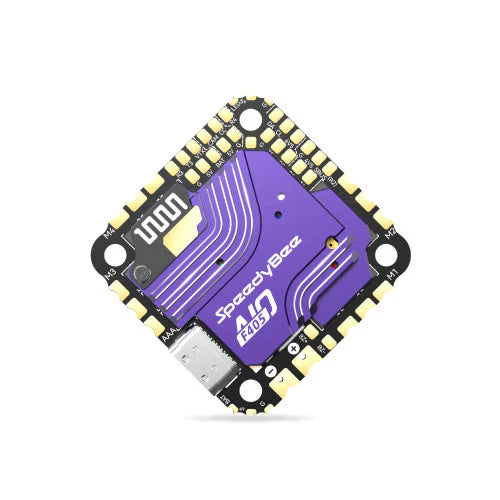

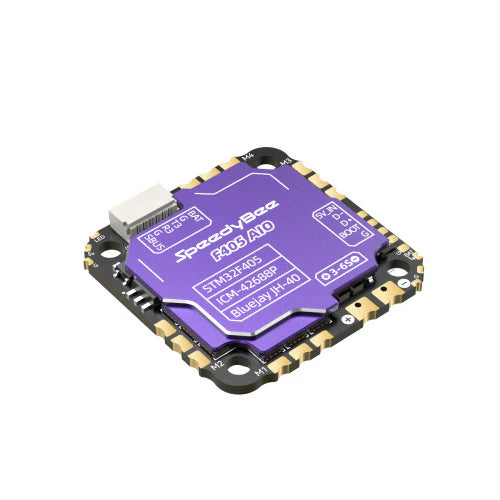

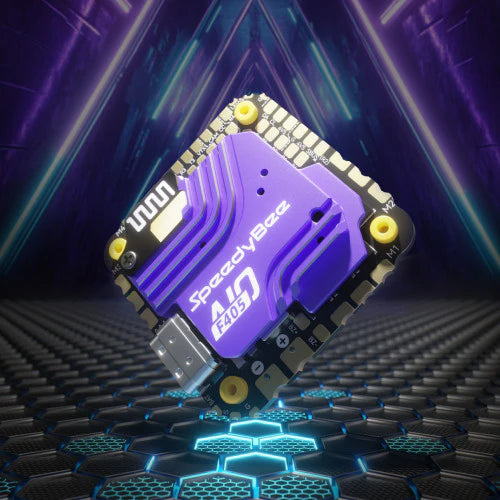

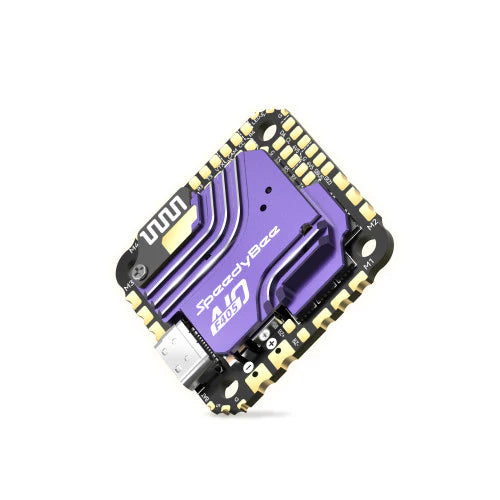

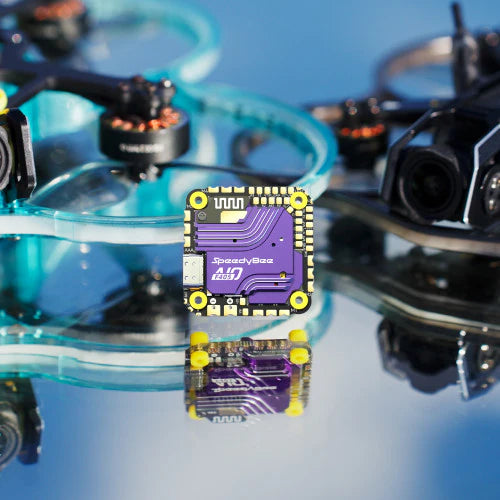

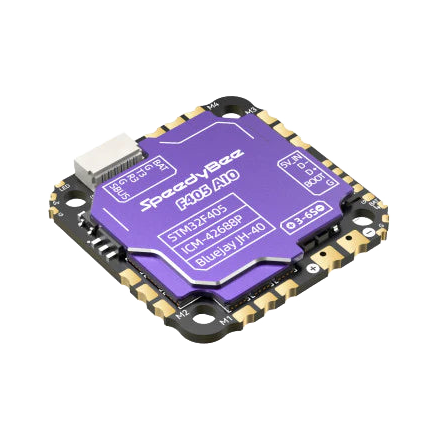

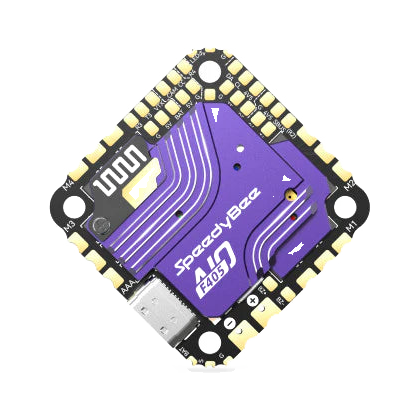

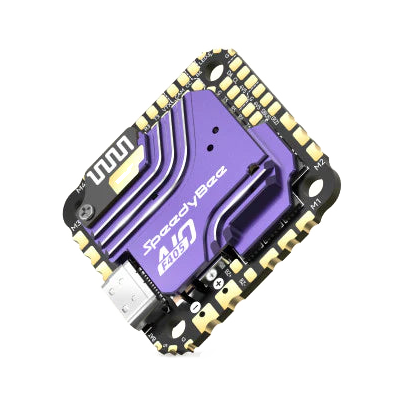

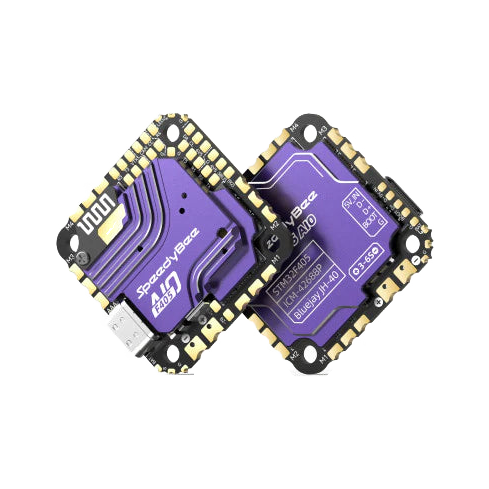

SpeedyBee F405 40A Bluejay 25.5x25.5 3-6S Flight Controller

Name: SpeedyBee F405 40A Bluejay 25.5x25.5 3-6S Flight Controller
Brand: SpeedyBee
SKU: 31516
Price: 155.95 AUD
Availability: OutOfStock

$155.95 AUD

GST included Shipping calculated at checkout.

Out of stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

Product details

SKU: 31516

Categories: 25.5 x25.5 AIO Flight Controllers / ESC Combos, F4 Flight Controllers, Flight Controllers, SpeedyBee

Tags: 25x25 Flight Controllers

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy SpeedyBee F405 40A Bluejay 25.5x25.5 3-6S Flight Controller in Australia?

Introducing the SpeedyBee SpeedyBee F405 40A Bluejay Flight Controller!

SpeedyBee F405-AIO-40A

Specifications

Flight Controller
- Product Name: SpeedyBee F405 AIO
- MCU: STM32F405
- Gyro: ICM-42688P
- USB Port Type: Type-C
- Barometer: SPA06-003
- OSD: Supported
- Bluetooth BLE: Supported, Bluetooth speed enhancement - 2.0
- Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
- Wireless Download & BlackBox Analysis: Not supported
- DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
- 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
- Flash (for BlackBox): 8MB
- Betaflight CC Pads (Camera Parameter Adjustment): Supported
- Input Voltage: 3S-6S LiPo battery
- 4V5 Output: Two 4V5 outputs; total current 1A
- 5V BEC Output: Three 5V outputs; total current 2A; shared with 4V5
- 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
- MOTOR: M1-M4
- UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
- ESC Telemetry: None
- I2C: Supported
- LED Pads: Supported, used to control WS2812 LED lights
- Buzzer Pads: Supported, BZ+ and BZ- pads
- BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
- RSSI Pads: None
- SmartPort: Not supported
- Supported Flight Controller Firmware:: BetaFlight (Default), INAV
- Firmware Target Name: SPEEDYBEE F405AIO
- Mounting: 25.5 x 25.5mm, 3mm hole diameter
- Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)
ESC
- Product Name: SpeedyBee F405 AIO
- Input Voltage: 3-6S LiPo battery
- Continuous Current: 40A
- Burst Current: 45A (10s)
- ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
- Output Voltage: VBAT battery voltage (used to power the flight controller)
- Current Sensor: Supported (Scale = 254, Offset = 0)
- Firmware: Bluejay JH-40 48kHz
- Weight: 13.6g (including CNC)
