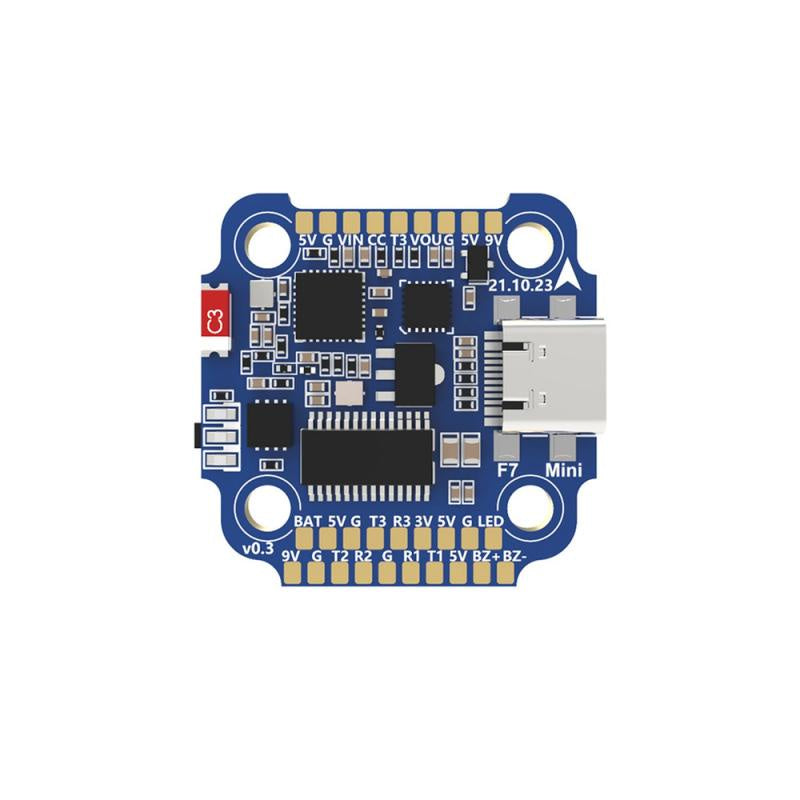

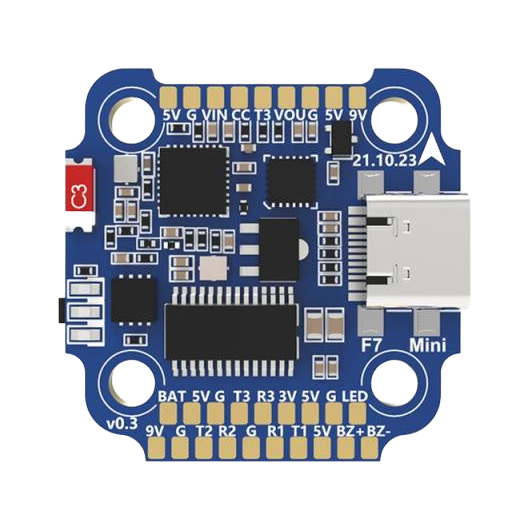

SpeedyBee F7 Mini FC 20x20 Flight Controller
$79.95 AUD
Skip to product information
Out of stock
SpeedyBee F7 Mini FC 20x20 Flight Controller
$79.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
SKU:
23862
W/H:
U-04-C-12
Categories:
20x20 Flight Controller, F7 Flight Controller, Flight Controllers, SpeedyBee
Are you looking to buy a Speedybee F7 Mini Flight Controller in Australia?
Speedybee has released their latest lightweight 20x20 flight controller. All the great features you need in any build in a tiny formfactor.
SPECIFICATIONS
- Input Voltage: 3-6S
- MCU: STM32F722
- Gyro: MPU6000
- Barometer: No
- OSD Chip: AT7456E
- Bluetooth: Yes
- DJI Air Unit Soldering Pads: Supported
- BlackBox: 8MB Flash
- Current Sensor: Yes
- BEC: Yes
- ESC Signal Pads: 4
- UARTs: 3(UART1, UART2, UART3)
- ESC Telemetry: R4(UART4)
- LED Pad: Used for WS2812 LED
- Buzzer: Yes
- Firmware: BetaFlight(Default), EMUFlight, INAV
- Firmware Target: SPEEDYBEEF7MINI
- Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
- Weight 5.7g
