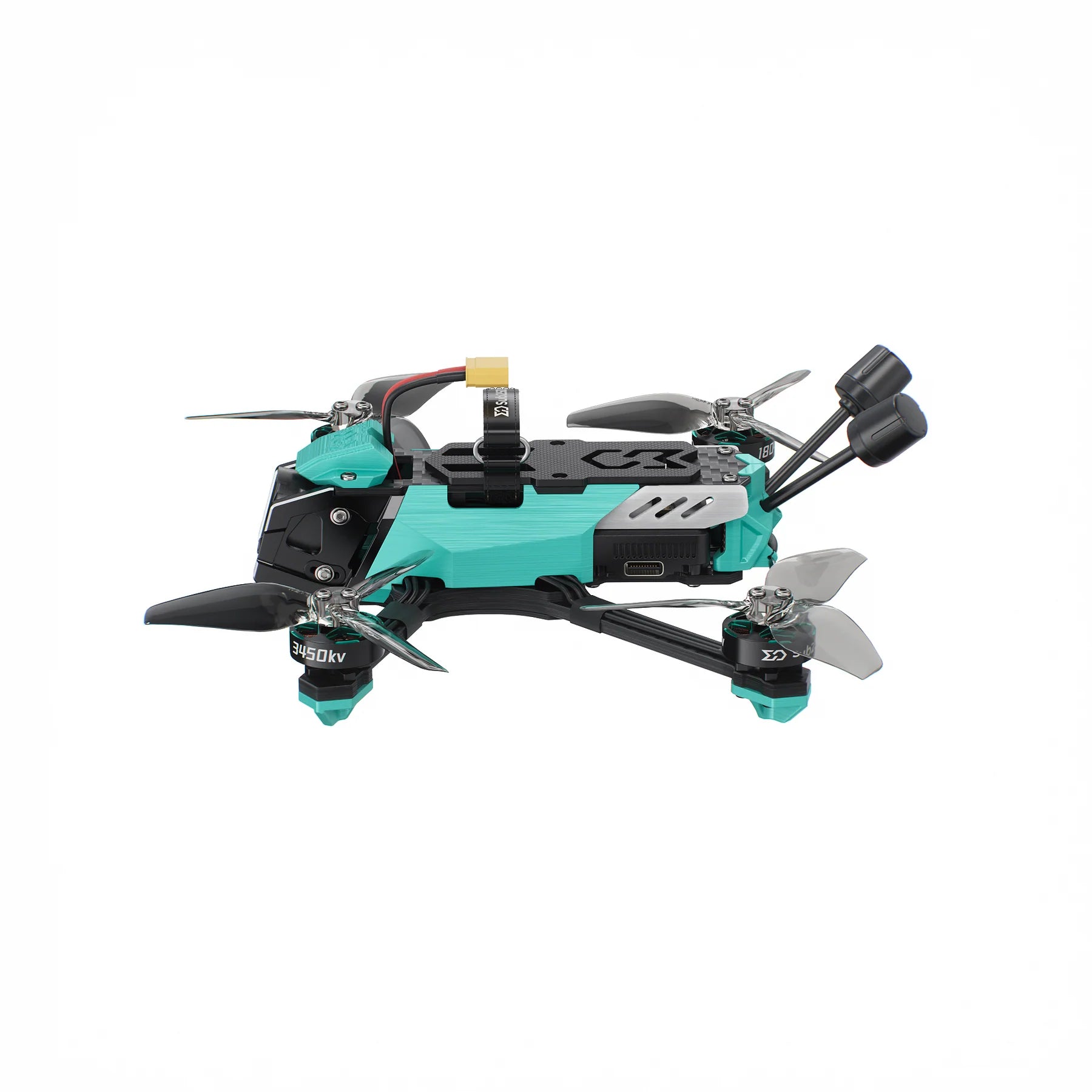

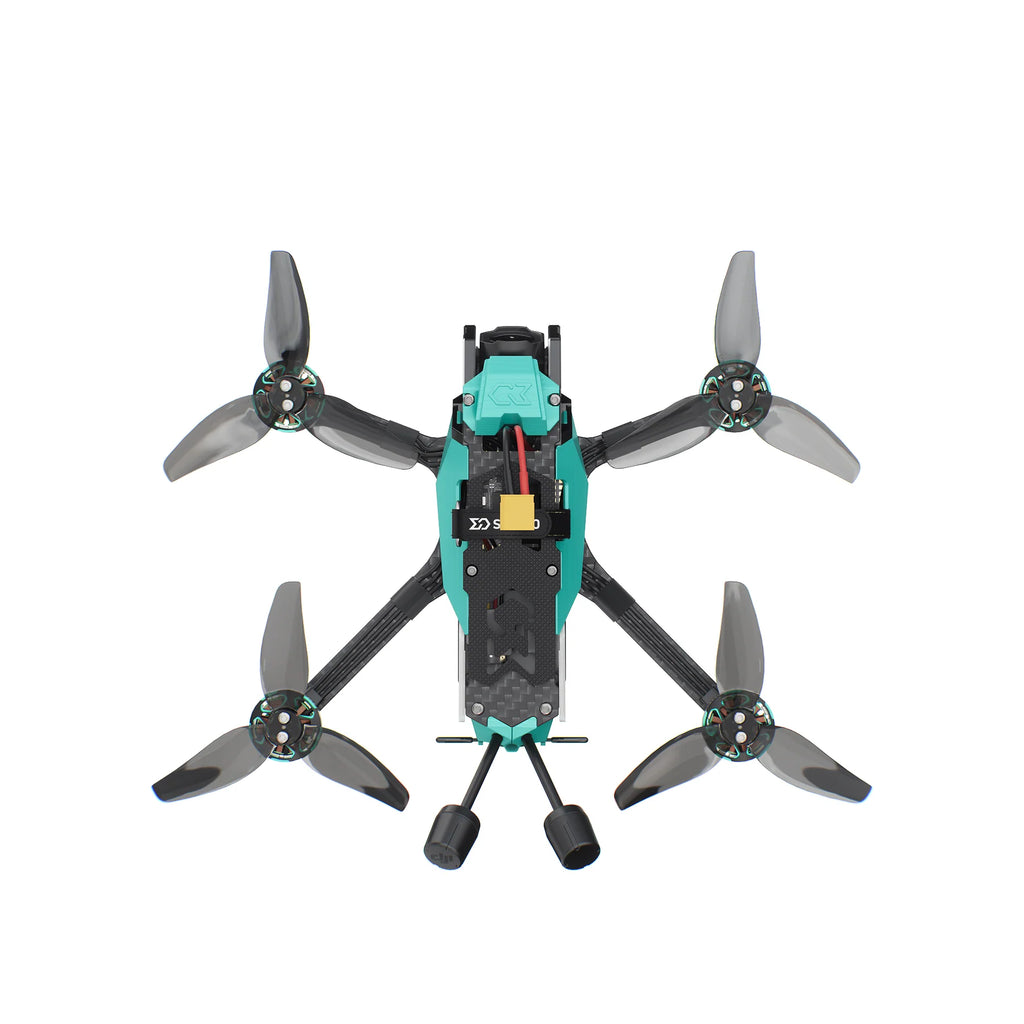

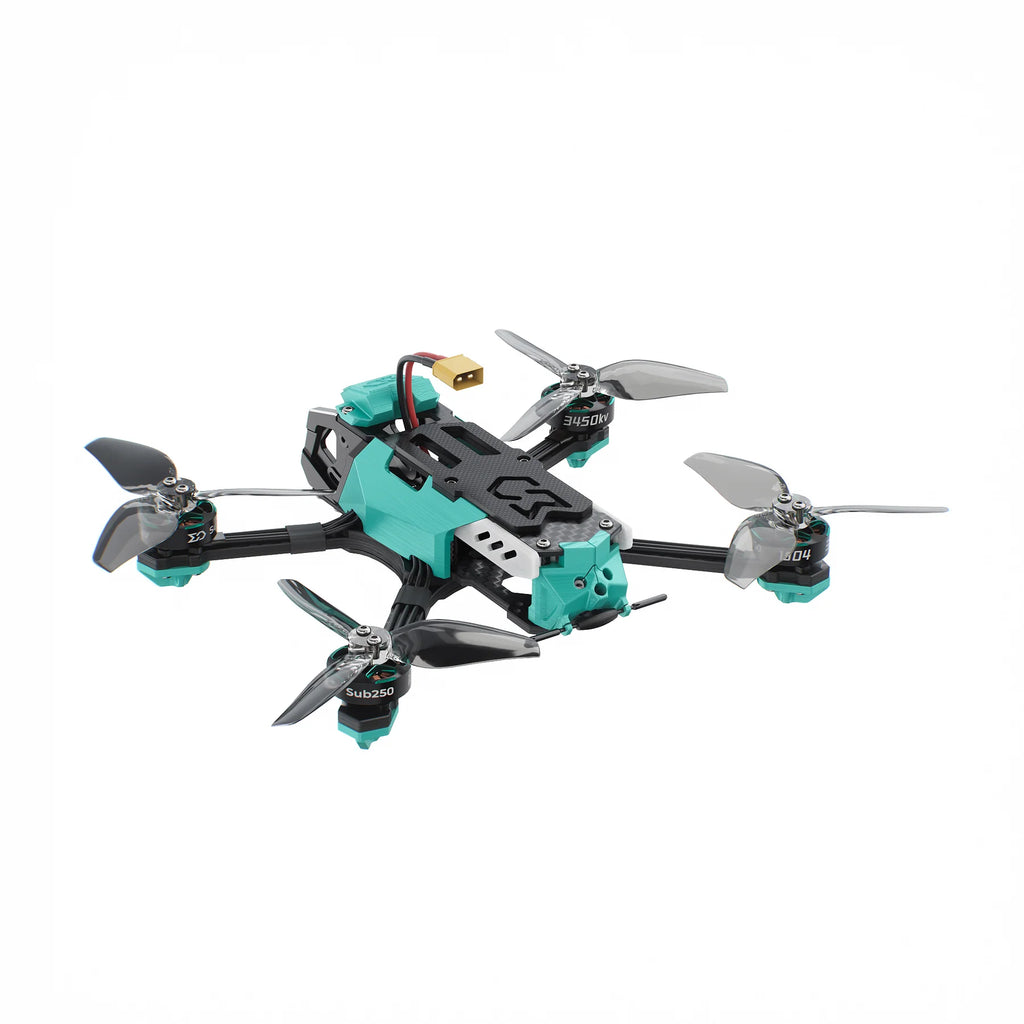

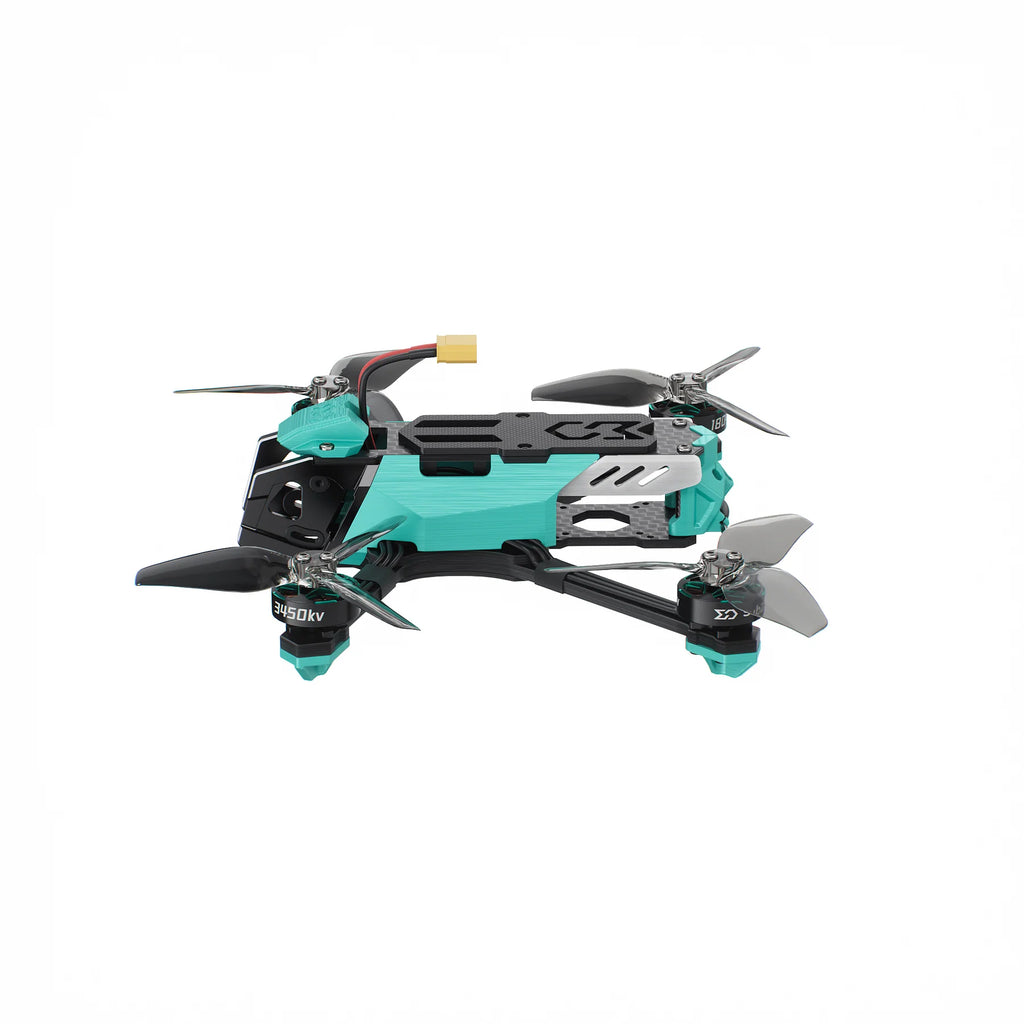

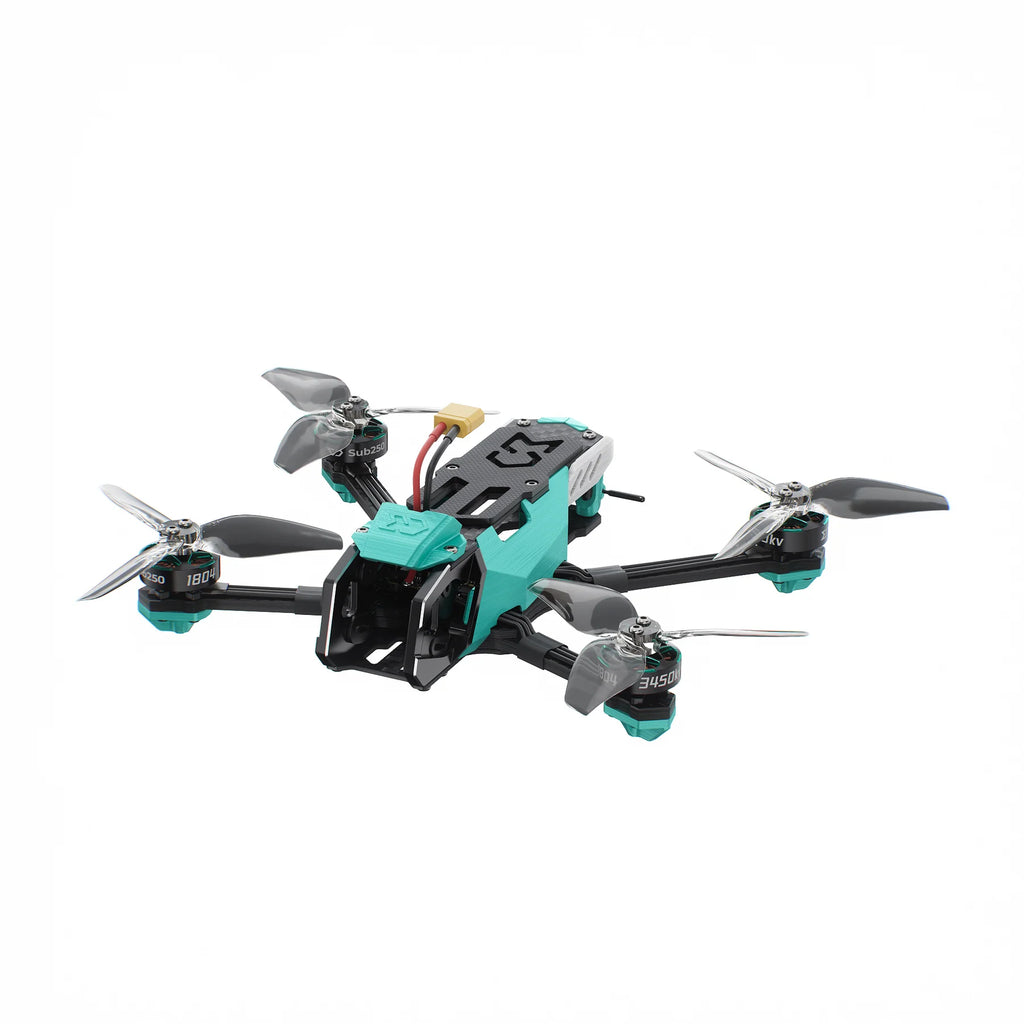

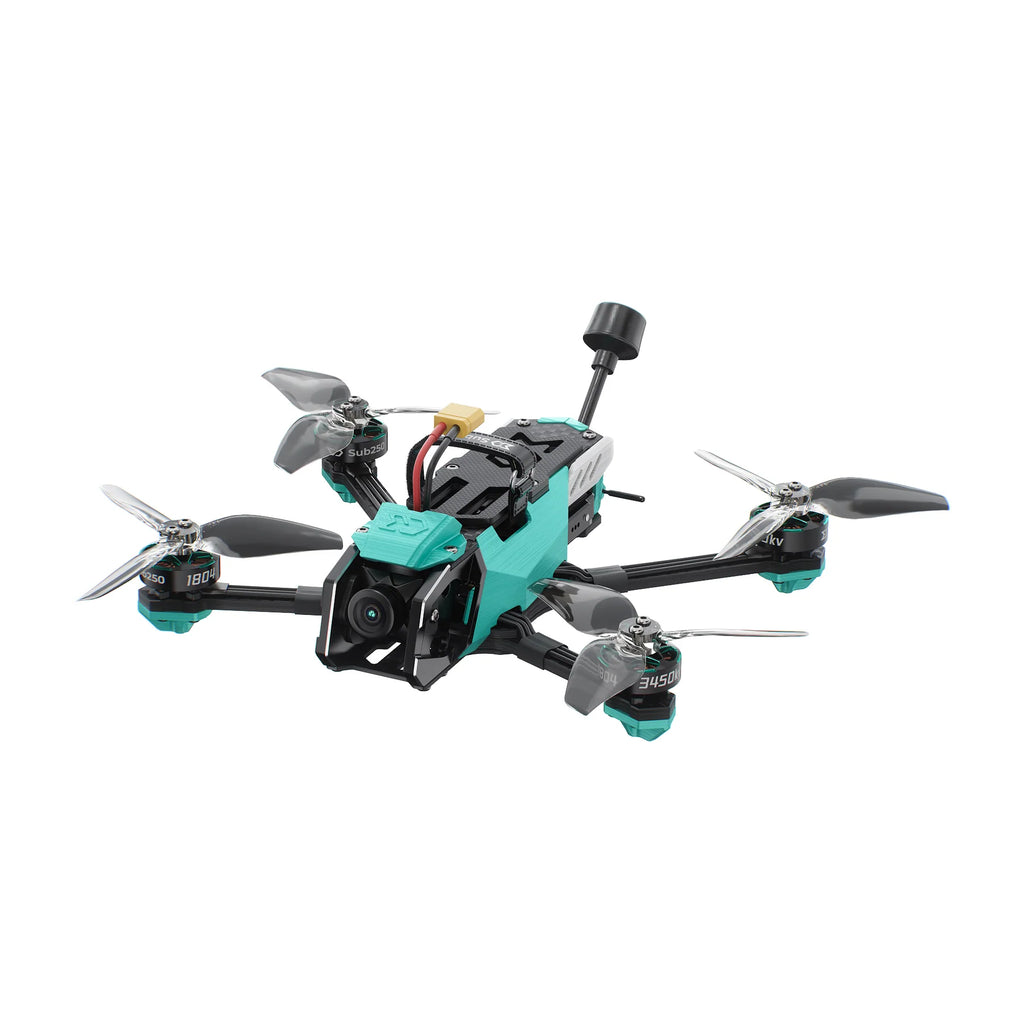

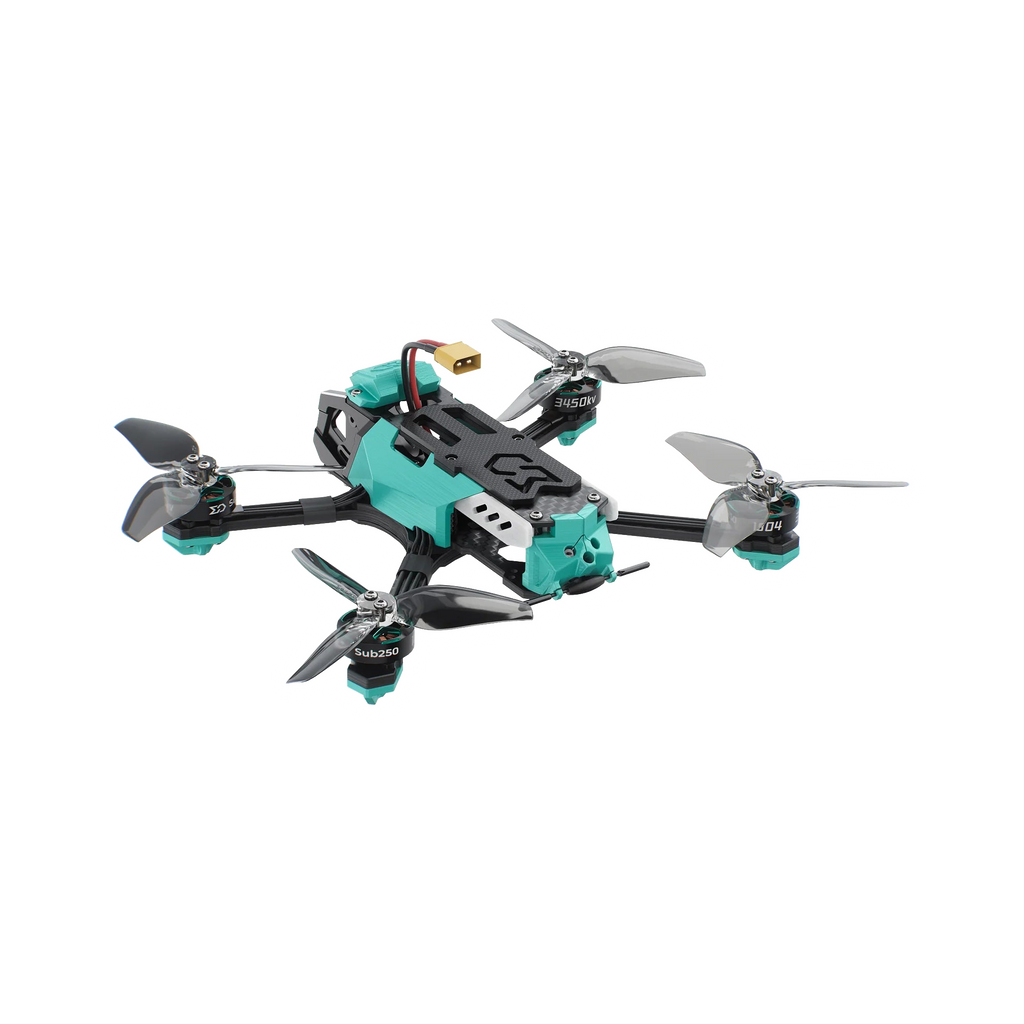

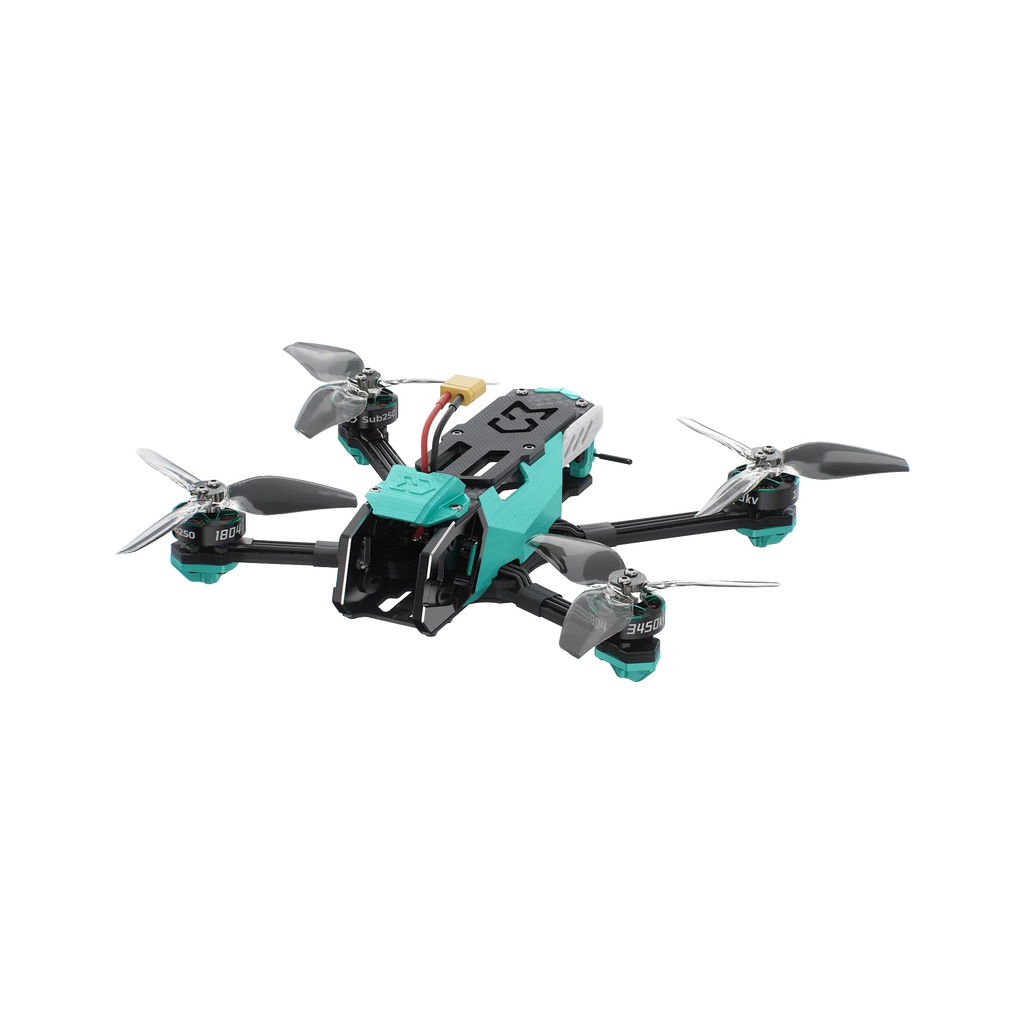

Sub250 Oasisfly35 DC HD O4 Pro GPS ELRS2.4G

Are you looking to buy Sub250 Oasisfly35 DC HD O4 Pro GPS ELRS2.4G in Australia?

The OasisFly35 DC O4 Pro is a lightweight 3.5" FPV drone built for smooth cinematic flying, powerful performance, and maximum compatibility. With a DC frame for clean visuals, strong 1804 motors, the reliable RedFox A3 AIO, and standard GPS on all models, it’s ready for fast freestyle or safe long-distance exploration. Fully optimised for the DJI O4 Pro HD system.

Features

• Crystal-clear wide view with O4 Pro: DC frame gives unobstructed footage, while the DJI O4 Pro HD system captures big, clean, cinematic scenes
• Mecha-style printed side plates for protection: Integrated side plates shield electronics from debris, improve airflow, and enhance durability
• CNC 7-series aluminum camera mount: Ultra-strong aluminum protects the camera and frame during impacts
• Multi-VTX compatible: Supports Analog / O3 / O4 Pro, making it easy to switch between video systems
• High-thrust power system: 1804 3450KV motors + 45A AIO ESC deliver fast response, stable low-altitude flight, and confident high-speed dives
• Standard GPS on all models: SUB-M10 GPS provides safe RTH and GPS Rescue when flying in complex environments
• Sub-250g with battery: Light, efficient, and compliant—only 245 g takeoff weight with 4S 530mAh
• Reliable RedFox A3 45A AIO: Quick processing, smooth control, and high efficiency with STM32F722 + ICM42688-P IMU
• Built-in ELRS 2.4GHz receiver for ultra-responsive control and long-range signal stability

Specifications

• Model: OasisFly35 DC O4 Pro Version
• Wheelbase: 175mm
• Arm Thickness: 3.5mm
• Bottom Plate: 1.5mm
• Mid Plate: 2.5mm
• Top Plate: 2.0 mm
• Motor Mounting Pattern: 9x9mm / 12x12mm
• VTX: DJI O4 Air Unit Pro VTX Module
• VTX Antenna: DJI O4 Air Unit Pro Antenna
• Camera: DJI O4 Air Unit Pro Camera Module
• Motor: 1804  3450KV
• FC: RedFox A3 45A AIO
• ESC Firmware: BLHeli_32
• MCU： STM32F722
• IMU：ICM42688-P
• Propeller: HQ 3.5x3.5x3
• Receiver: ELRS 2.4GHz
• GPS: SUB-M10
• Recommended Battery: 4S 530mAh
• Power Connector: XT30
• Body Weight: 194g
• Takeoff Weight: 245g (with 4S 530mAh battery)
• Max Flight Time: 5min 20s
• FC Firmware & Betaflight_4.5.2-SUB250REDFOXF722AIO

Includes

• 1 × GPS Setup Manual
• 1 × Sub250 RedFox A3 AIO Manual
• 1 × Sub250 Rear Silicone Strap with Zinc-Alloy Buckle (11×170 mm)
• 1 × HQ T3.5×3.5×3 Propellers (2 CW + 2 CCW)
• 1 × Sub250 Redfox A3 AIO USB-C Adapter Board
• 1 × 45 mm Dual-End SH1.0-5P Cable
• 1 × Sub250 Merchandise Sticker
• 1 × Sub250 Drone Series Sticker
• 1 × Battery Anti-Slip Pad
• 1 × Sub250 OasisFly35 Lens Silicone Pad (50°)
• 1 × Landing Gear Vibration-Damping Pad (Pack)
• 1 × L-Shaped Hex Wrench (1.5 mm)
• 2 × M2×4×22 Aluminum Textured Standoff (Black)
• 1 × Spare Screw Pack
• 1 × OasisFly35 DC Analog Camera Mount (3D Print)
• 1 × Right Side Plate (Large)
• 1 × Left Side Plate (Large)
• 1 × Right Rear Side Plate
• 1 × Left Rear Side Plate
• 4 x TPU Landing Pads
