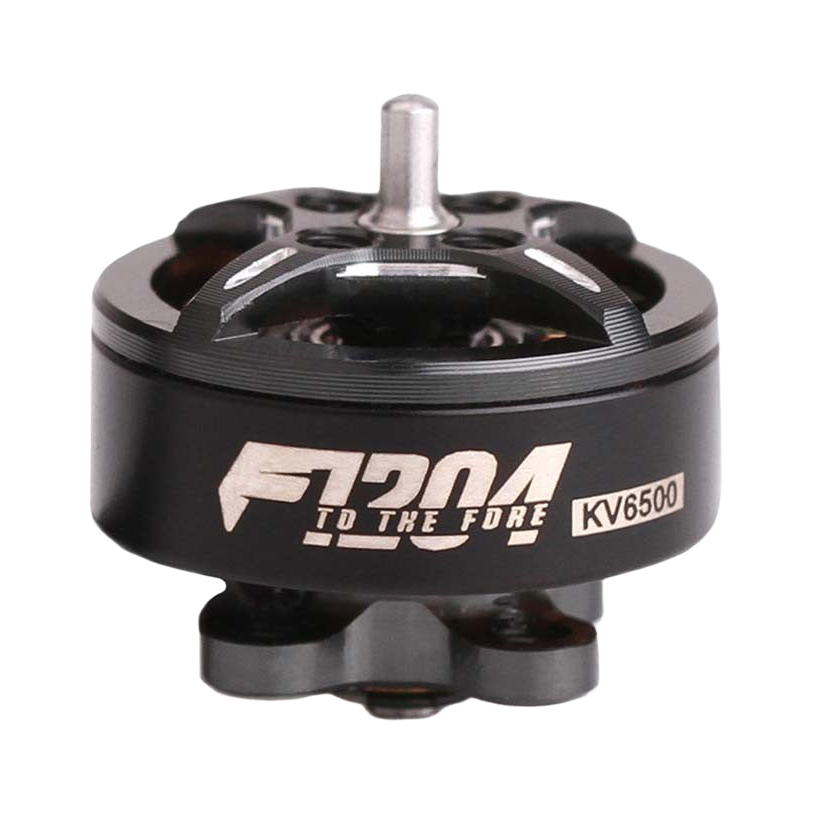

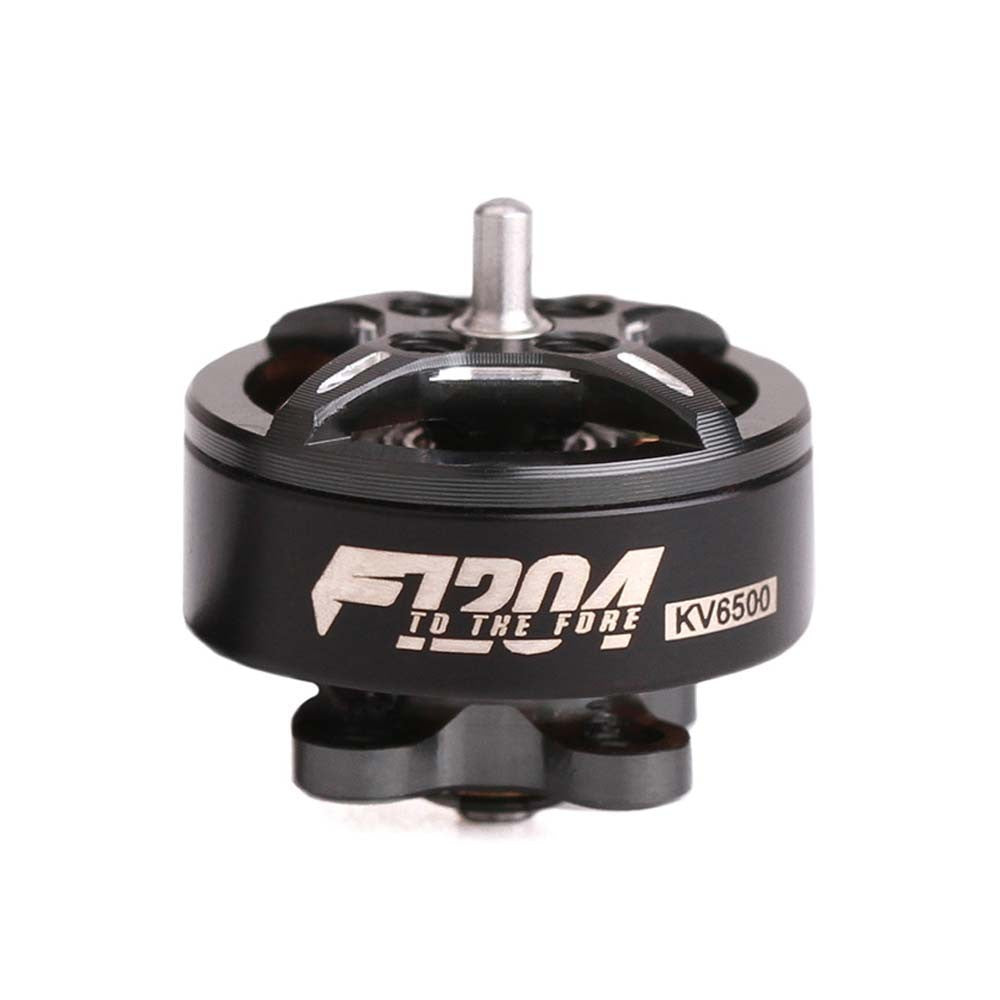

T-Motor F1204 5000Kv/6500Kv Motors
$28.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSWUnavailable for pickup · due back around 6th October
Product details
SKU:
19384
Barcode:
6978412501306
Shipping Weight:
25g
W/H:
W-01-F-05
Categories:
Clearance / Sale Items, Drone Motors, FPV Clearance, FPV Coming Soon, FPV Recent Stock Arrivals, Micro Quadcopter Motors, Quadcopter Motors, T-Motor, T-Motor Motors, Toothpick & Micro Motors (12xx to 14xx)
Tags:
1204, 12XX, 50xxKV, 65xxKV, Drone Motor, Micro Motor, Toothpick Motor
0 Hand-picked accessories
Compatible options selected by our team
Are you looking to buy T-Motor F1204 Micro Motors in Australia?
The F1204 motors from T-Motor are ultralight motors that are specially made for toothpicks and whoops! The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3" builds!
Two KVs to choose from: 5000KV, 6500KV
Specifications
KV: 5000KV
- Motor DimensionS: Φ15.5*15.6mm
- Lead: 24#AWG 100mm
- Shaft Diameter: 1.5mm
- Idle Current: 0.7A
- Max.Power (the 60s): 72W
- Weight (Excl. Cable): 6.1g
- Internal Resistance: 240mΩ
- Configuration: 9N12P
- Rated Voltage (Lipo): 2-3S
- Peak Current (60s): 6A
KV: 6500KV
- Motor DimensionS: Φ15.5*15.6mm
- Lead: 24#AWG 100mm
- Shaft Diameter: 1.5mm
- Idle Current: 0.9A
- Max.Power (the 60s): 60W
- Weight (Excl. Cable): 6.1g
- Internal Resistance: 140mΩ
- Configuration: 9N12P
- Rated Voltage (Lipo): 3-3S
- Peak Current (60s): 7A


Includes
- 1 x T-Motor F1204 5000KV/6500KV Motor
- 1 x Set crews
