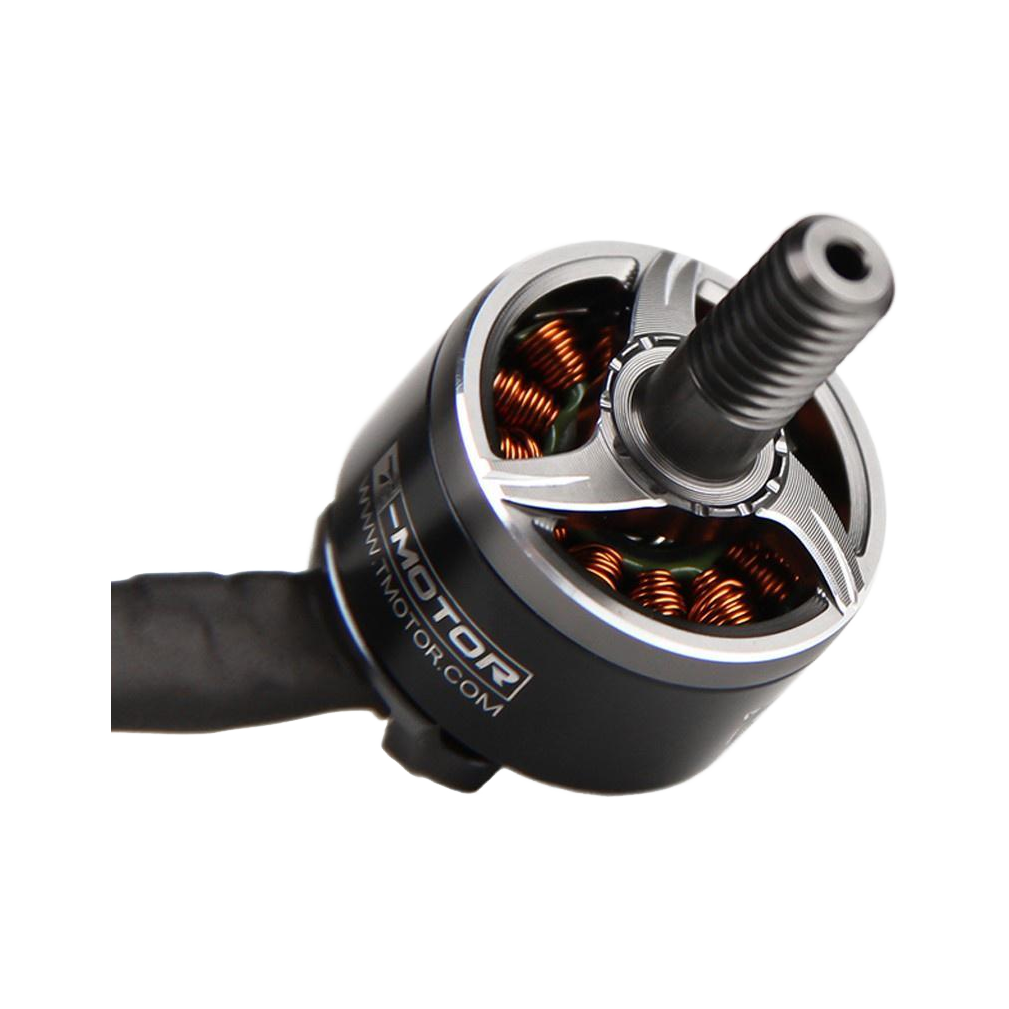

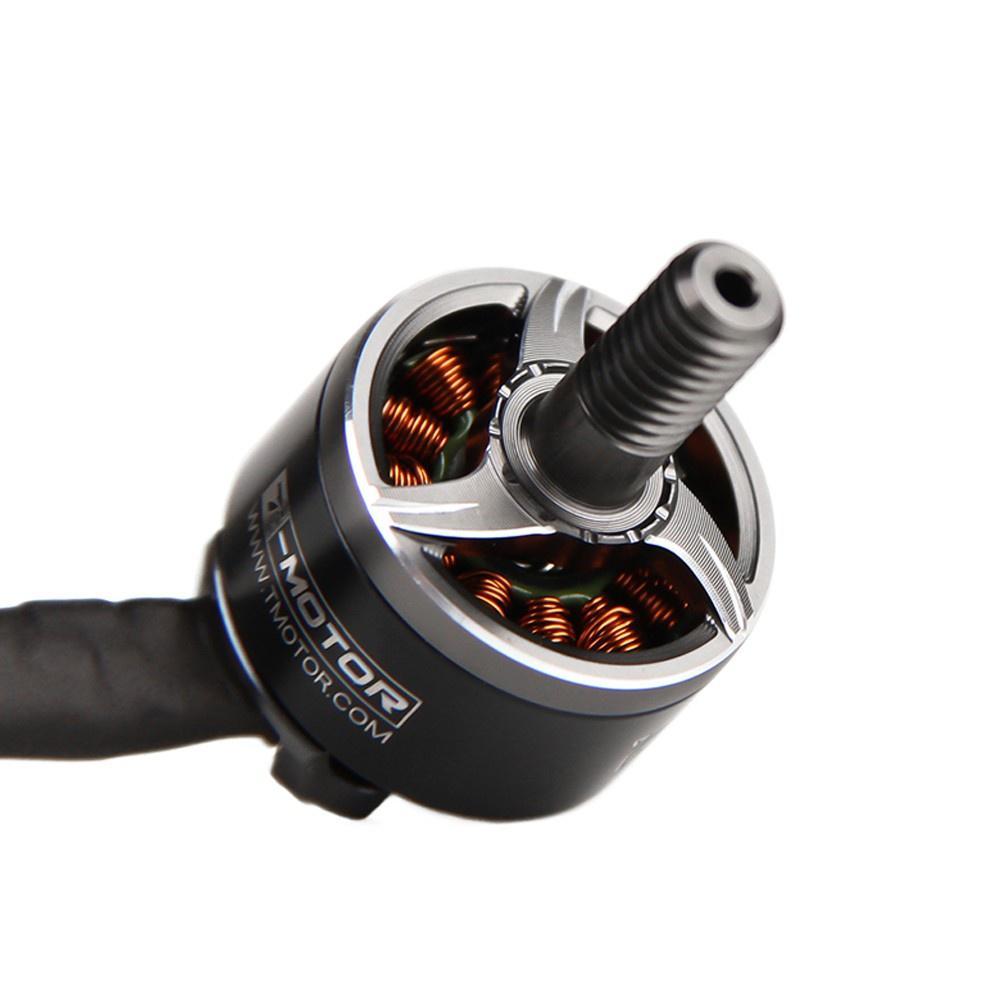

T-Motor F1507 2700KV/3800KV M5 Motor EOL

Name: T-Motor F1507 2700KV/3800KV M5 Motor EOL
Rating: 5.00 (2 reviews)

$28.95 AUD

GST included

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

SKU: 12217

Shipping Weight: 40g

W/H: T-05-B-07

Categories: Drone Motors, Micro Quadcopter Motors, Quadcopter Motors, T-Motor, T-Motor Motors

Tags: 15XX, 27xxKv, 38xxKv, Drone Motor, Micro Motor

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy T-Motor F1507 2700KV/3800KV M5 Motor EOL in Australia?

Are you wanting to buy the T-motor F1507 3-6S CineWhoopMotors in Australia?

The F1507 2700KV/3800KV Motor by T-Motor is specifically designed to perfectly fit your Cinewhoops! The F1507 has Less weight, powerful, smooth and strong flight performance! This will take any Cinewhoop to the next level.

Features

Maximum thrust-to-weight ratio up tp 52.8
Less weight, powerful, smooth, strong flight performance
Tailor-made for Cinewhoops

Specifications

KV : 2700
Configuration: 12N14P
Shaft Diameter : 5mm
Motor Dimensions (Dia.*Len): Ø18.9*29.7mm
Weight Including Cables (g): 15.2g
No.of Cells (Lipo): 3-6S
Idle Current@10v (A): 22A
Internal Resistance : 131mΩ
Max Continuous Power (60S): 519W
Idle Current (5V): 0.6A

KV : 3800
Configuration: 12N14P
Shaft Diameter : 5mm
Motor Dimensions (Dia.*Len): Ø18.9*29.7mm
Weight Including Cables (g): 15g
No.of Cells (Lipo): 3-4S
Idle Current @10v (A): 23A
Internal Resistance : 81mΩ
Max Continuous Power (60S): 372W
Idle Current (5V): 0.9A

Includes

1 x T-Motor F1507 2700KV/3800KV Motor
4 x M2*5 Hexagon Socket Head Cap Screw
4 x m2*5 Hexagon Socket Head Cap Screw
1 x M5 Black Self-Locking Nut
1 x E-clips
1 x H62 Washer

BROWSE MORE

Browse all T-motor Drone Motors
Browse all T-motor
Browse all Drone Motors

5 stars: 2 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Weapon Power

These motors were not for quads but for weapon motors in combat robots in the ant-weight (150 gram) class.
The 2700kV motor was for Kirbang, a horizontal spinner, see photo. The 3800kV motor is for a vertical spinner, Kirboom, still on the drawing board.
I was surprised at the robustness at this arduous duty, Kirbang's motor lasting intact for the full three days of the Havoc6 event in Adelaide.
It finally met it's demise in Wollongong last weekend at the hands of some really heavy hitters.

Crazy little motors

Running these on a 6S 3.5' build and these motors are the business - I get similar race times to my 5' setup. Pretty robust too - they need a real hard hit to do any damage.
