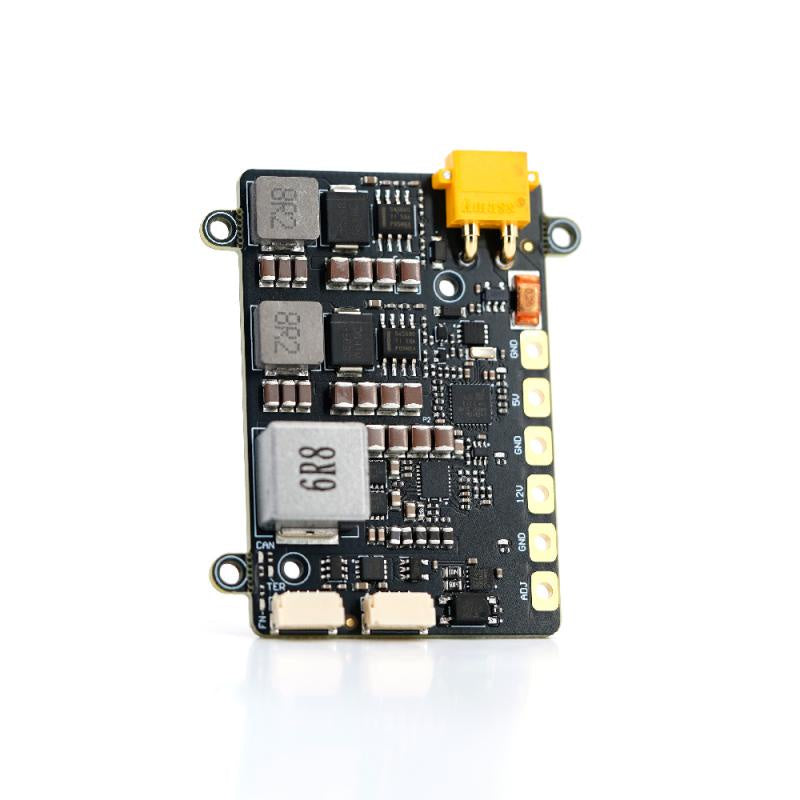

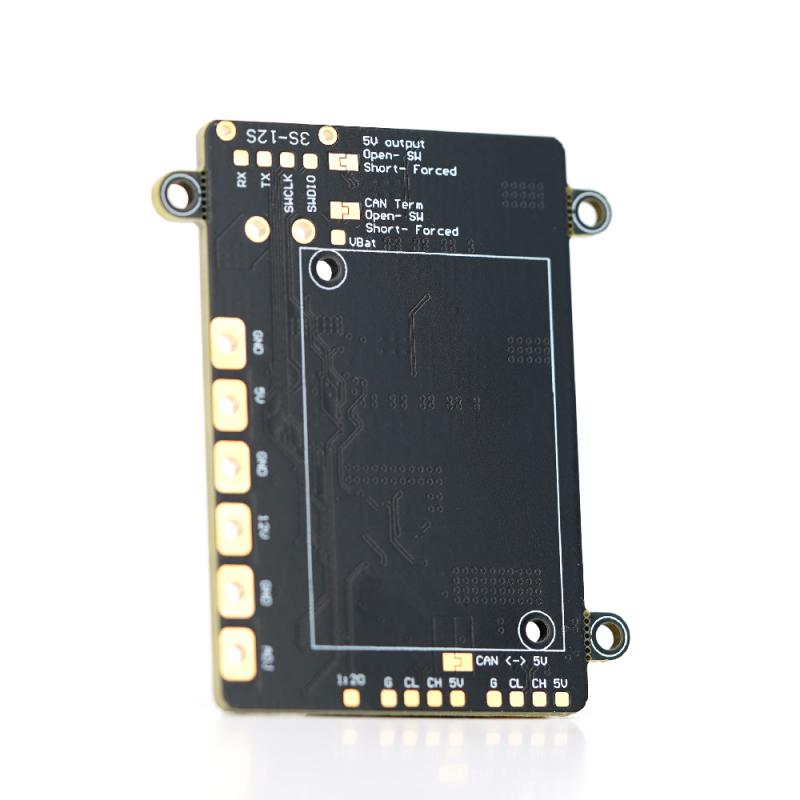

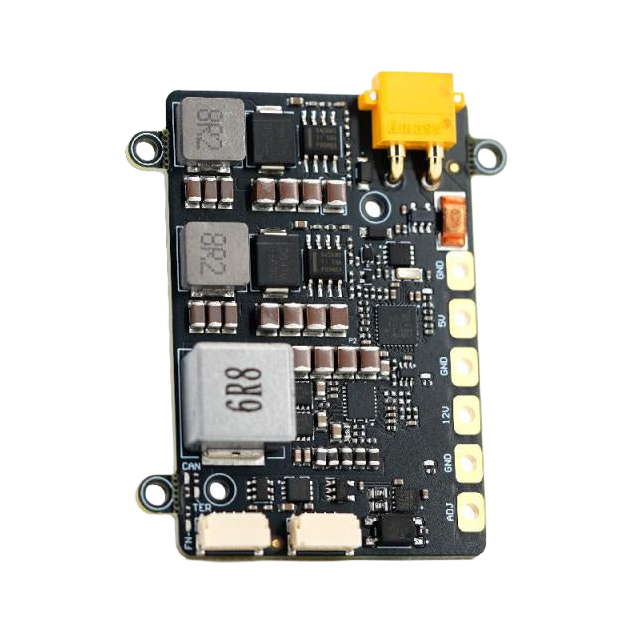

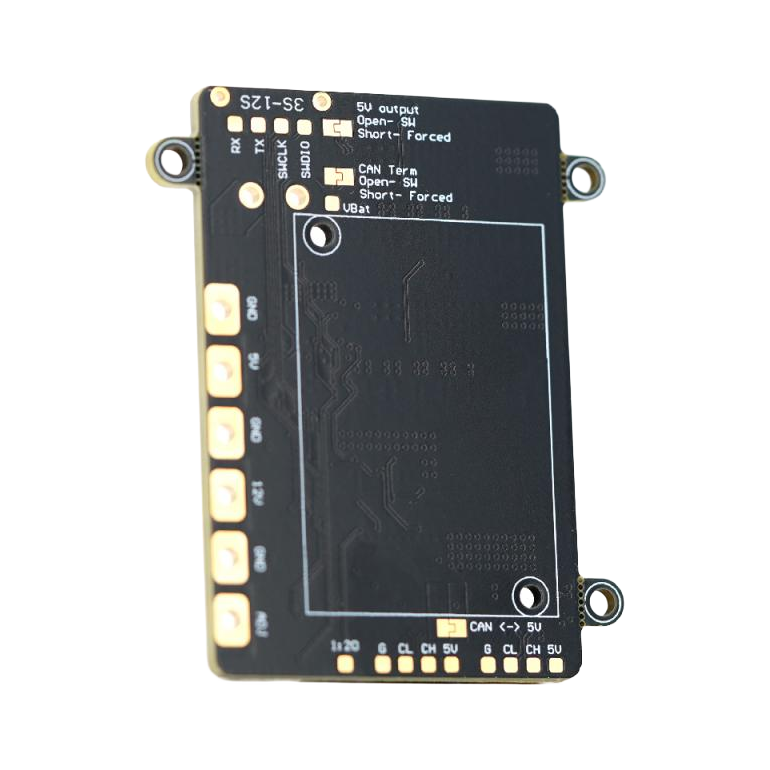

TBS Lucid Dronecan 20A Power Supply

Are you looking to buy TBS Lucid Dronecan 20A Power Supply in Australia?

The TBS Lucid DroneCAN 20A Power Supply is a workhorse that will sit at the center of your drone to supply it with stable, filtered and reliable power. With up to 12S power input, it has plenty of support for large batteries. And 3 independent step-down voltage regulators, the module offers flexible output options with continuous current support up to 20A, while being one of the most lightweight power supplies around.

Features

• Triple Step-Down Voltage Regulators
• Large input voltage range support (3-12S)
• Configurable output voltage on one circuit (5V 4A, 12V 4A, 3V-16V 20A)
• Firmware: ArduPilot AP_Periph TBS-L431-BattMon  (Update via DroneCAN GUI Tool)
• Plug and play voltage supply
• Integrated current sensor
• LED: (FN LED blinking, Booting)(TM LED solid, CAN BUS termination active)

Specifications

• Input Voltage Range: Supports 9V to 55V DC
• Independent Step-Down Voltage Regulators
• Regulator 1: 5V, up to 4A, on/off by software
• Regulator 2: 12V, up to 4A, on/off by software
• Regulator 3: 9V - 16V, up to 20A, voltage by software
• Continuous current of up to 20A
• 1K: 25K voltage divider built-in for 3.3V-based voltage ADC
• Size & Weight: 61x40x15mm, 63g

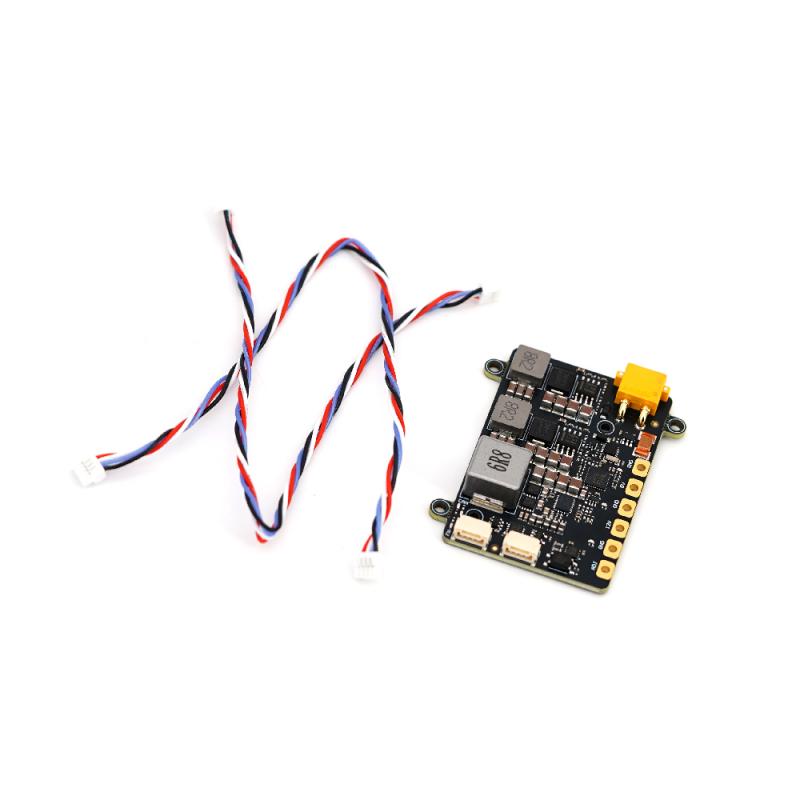

Includes

• 1x TBS Lucid DroneCAN 20A Power Supply
• 2x CANBUS cable (4pins 20cm)
