Are you looking to buy TBS Lucid H7 FC in Australia?

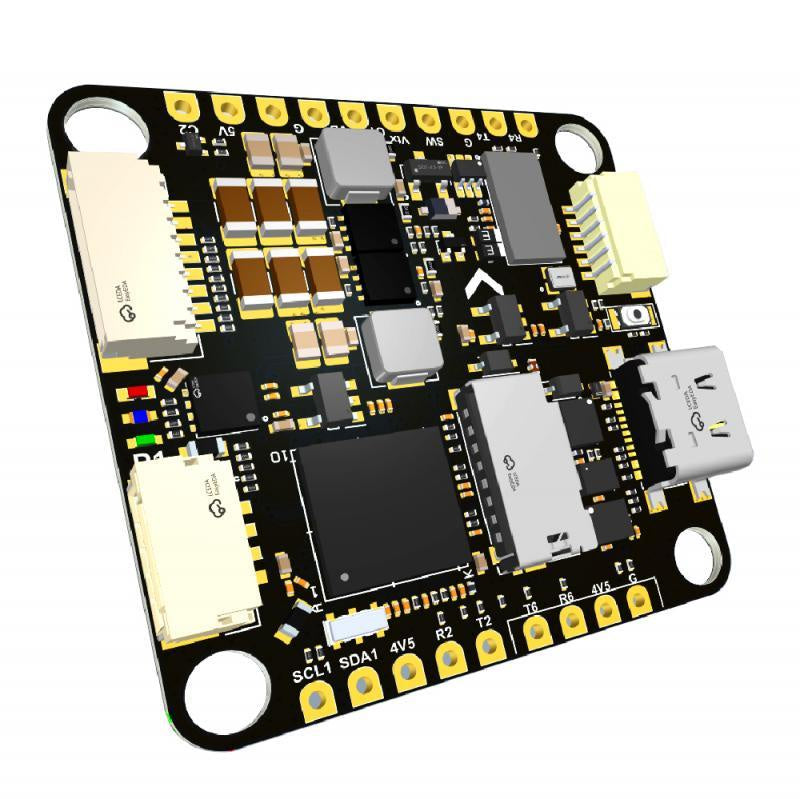

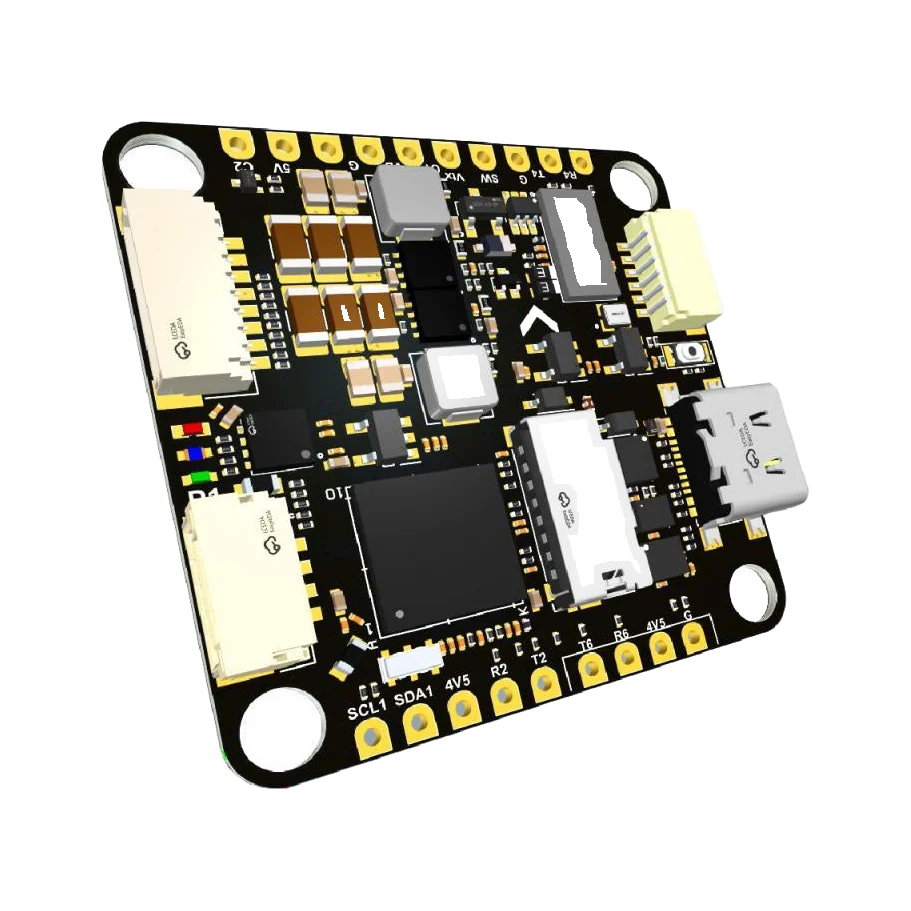

The TBS Lucid H7 FC is a powerhouse built for those who crave peak performance and adaptability in their drones. Whether you're ripping through freestyle moves or fine-tuning a racing rig, the TBS Lucid H7 delivers with its robust 480MHz processor and seamless support for Betaflight, ArduPilot, and INAV. Featuring dual camera inputs, DJI FPV OSD compatibility, and a compact design, it fits effortlessly into any setup. Designed for both seasoned pros and enthusiastic newcomers, this flight controller makes pushing the limits of your drone easier than ever.

Specifications

  • MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
  • OSD Chip: AT7456E (SPI2)
  • Barometer: Infineon DPS310 connected via I2C2.
  • PWM Outputs: 13 channels, including a dedicated “LED” pad.
  • Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
  • UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
  • I2C Buses: 2 available.
  • CAN Bus: 1 available.
  • Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
  • LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
  • Breakout: SPI3 breakout available.
  • USB Interface: Type-C connector (USB 2.0 standard).
  • JST Connectors:
    • 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
    • 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
  • Dual Camera Input: Switchable inputs for two cameras.
  • Power Control: Switch for filtered 5V/Vbat output power.
  • DJI FPV OSD: Compatible via any spare UART port.
  • Power Specifications
    • Input Voltage: 6 - 36V (2 to 8S LiPo).
    • BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
    • LDO 3.3V: Supports up to 200mA.
    • Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider).
    • Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.

Includes

  • 1x TBS Lucid H7 FC
  • 1x FC-to-ESC cable (plug & play)
  • 1x DJI O3 cable (plug & play)
  • 4x M3 rubber dampers
  • 4x M3x8 screws
