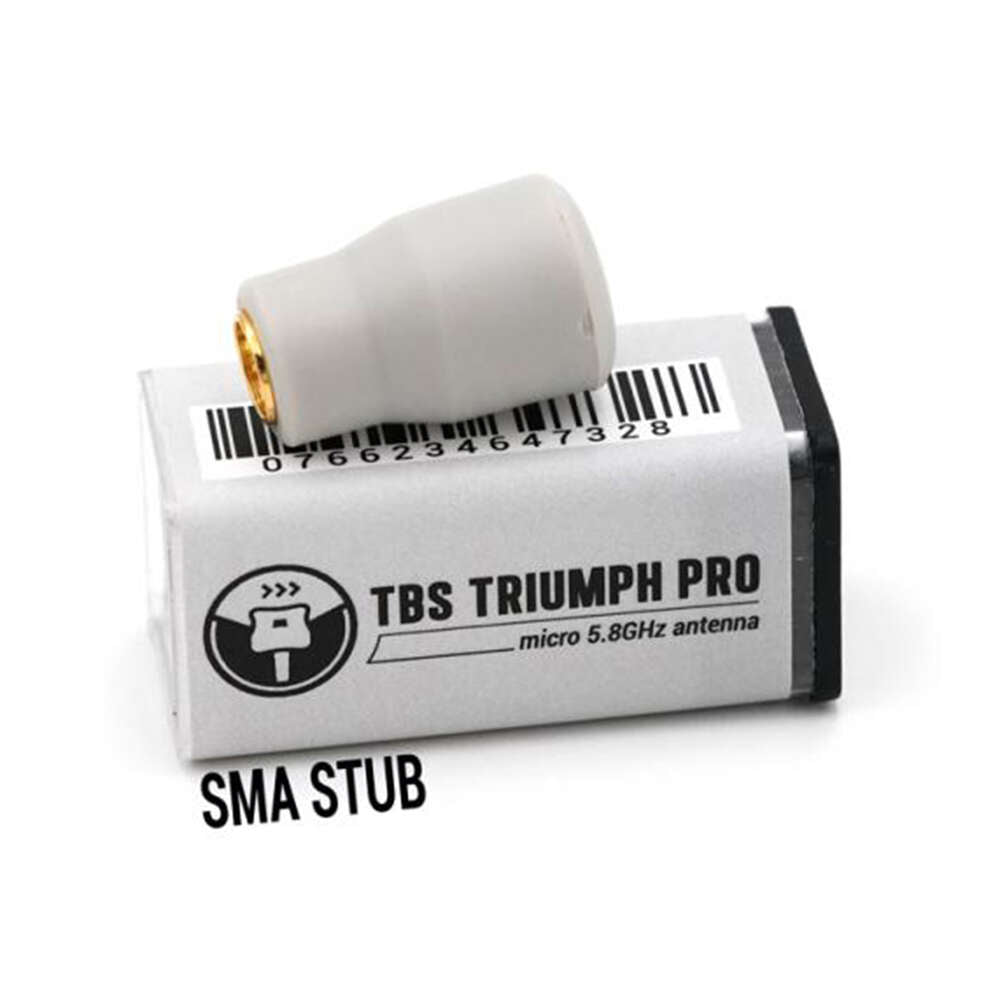

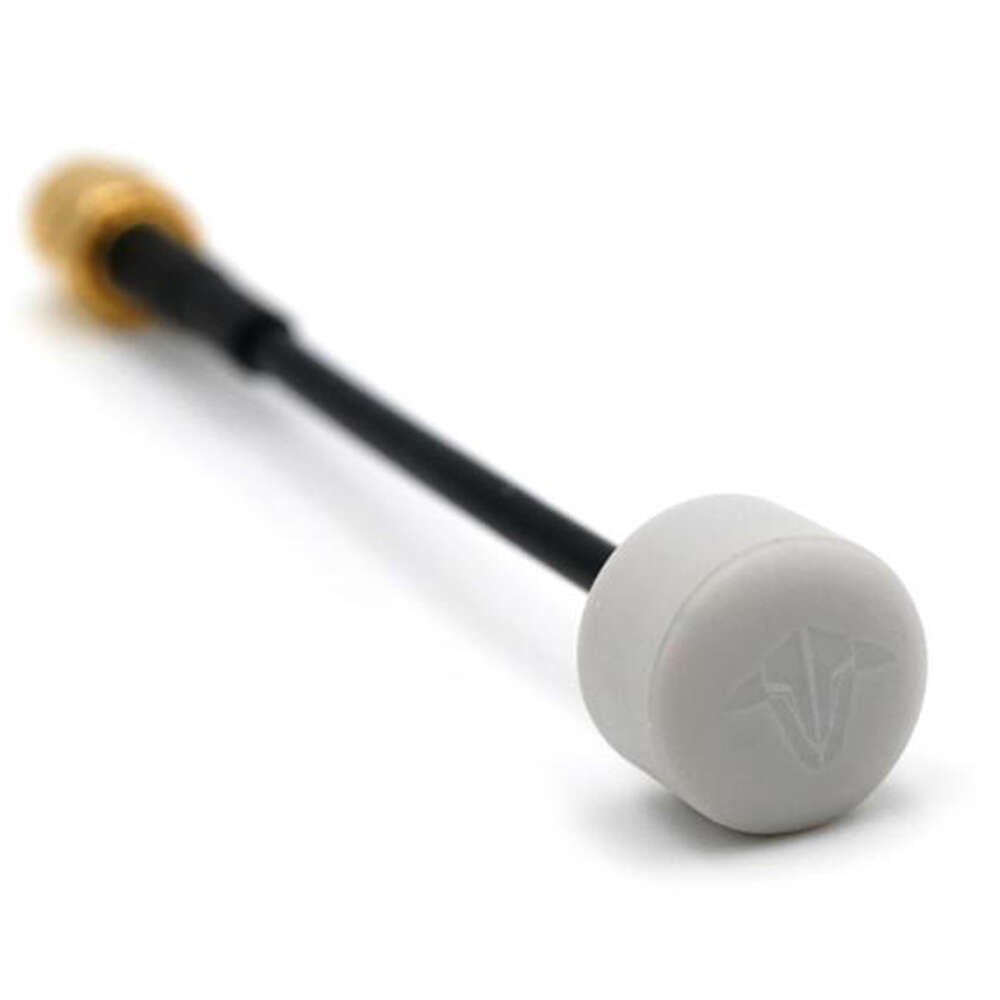

TBS Triumph Pro LHCP 5.8ghz Antenna

Name: TBS Triumph Pro LHCP 5.8ghz Antenna
Rating: 5.00 (1 reviews)

$25.69 AUD $31.80 AUD Save 19%

GST included Shipping calculated at checkout.

--d --h --m --s

3 In stock

Price match

Style SMA UFL SMA Stubby MMCX 90 MMCX

Style

Check stock by style Hide stock breakdown

Stock status
Variant	Status
SMA
UFL
SMA Stubby
MMCX 90
MMCX

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 17034

Shipping Weight: 20g

W/H: W-03-D-08

Categories: 5.8ghz Antennas, Clearance / Sale Items, FPV Antennas, FPV Gear, FPV Gear & Equipment, Radio Gear, TBS Antennas, TBS Team Black Sheep

Tags: 5.8ghz, Aerials, FPV Antenna, LHCP, MMCX, TBS, TBS FPV Antennas, UFL

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy TBS Triumph Pro in Australia?

The next revolution in circular polarization technology, the Triumph Pro gives a professional performance in a compact, durable package. Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance. Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent-pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allows mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

FEATURES

Manufactured and tested to highest standards
Best in class range and signal quality
Incredibly small and low weight
Ultrasonic welded and foam infused cover for ultimate crash-protection
Double-jacket semi-rigid cable for heavy impact resistance

SMA TECHNICAL SPECIFICATIONS

Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Weight: 11.5g
Height: 78mm, 3in
Connector: SMA

U.FL TECHNICAL SPECIFICATIONS:

Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Cable: RG405/U
Weight: 2-3g
Height: 85mm, 3.3 in
Connector: u.FL
Dimensions (PDF)

MMCX 90 TECHNICAL SPECIFICATIONS

Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Cable: RG405/U
Weight: 2-3g
Height: 85mm, 3.3 in
Connector: MMCX (90º angle)
Dimensions (PDF)

MMCX TECHNICAL SPECIFICATIONS

Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Cable: RG405/U
Weight: 2-3g
Height: 85mm, 3.3 in
Connector: MMCX
Dimensions (PDF)

PACKAGE CONTENTS

1x TBS Triumph Pro Antenna

Browse More

View other TBS Antennas.
View all other TBS products .
View other FPV Antennas.

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Comparing hard to tell, but a top shelf performer.

I cant seem to see a difference between TrueRC Singularity and TBS Triumph Pro, in other words they are both the best performers in the Digital LHCP antenna space for 50Mb/s rates. I wish I had a SWR meter to see exactly so relying on range and keeping an eye on the MB/s drop off, they both seem to get identical results in my flights.
