TBS Triumph Pro RHCP 5.8ghz Antenna

Name: TBS Triumph Pro RHCP 5.8ghz Antenna
Rating: 4.57 (7 reviews)

$37.90 AUD

GST includedShipping calculated at checkout.

7 In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Style SMA UFL SMA Stubby MMCX 90 MMCX

Style

Stock status Stock status

Stock status
Variant	Status
SMA
UFL
SMA Stubby
MMCX 90
MMCX

Pickup available

1/80 Somersby falls RD, Somersby NSW

Usually ready in 2 hours

SKU: 14513

Barcode: 0741587433125

Shipping Weight: 21g

W/H: W-03-D-08

Categories: 5.8ghz Antennas, BMS RACING - JS-1/JS-2/JS-3 - FPV Racing Frames, BMS RACING JS-2 Quad Frame, BMS RACING JS-3 Quad Frame, FPV Antennas, FPV Best Sellers, FPV Gear & Equipment, Radio Gear, TBS Antennas, TBS Team Black Sheep, Thomas Bitmatta | Pilot Profile

Tags: 5.8ghz, Aerials, Antenna, FPV Antenna, JS-2, JS-3, RHCP, TBS, TBS FPV Antennas

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy TBS Triumph Pro RHCP 5.8ghz Antenna in Australia?

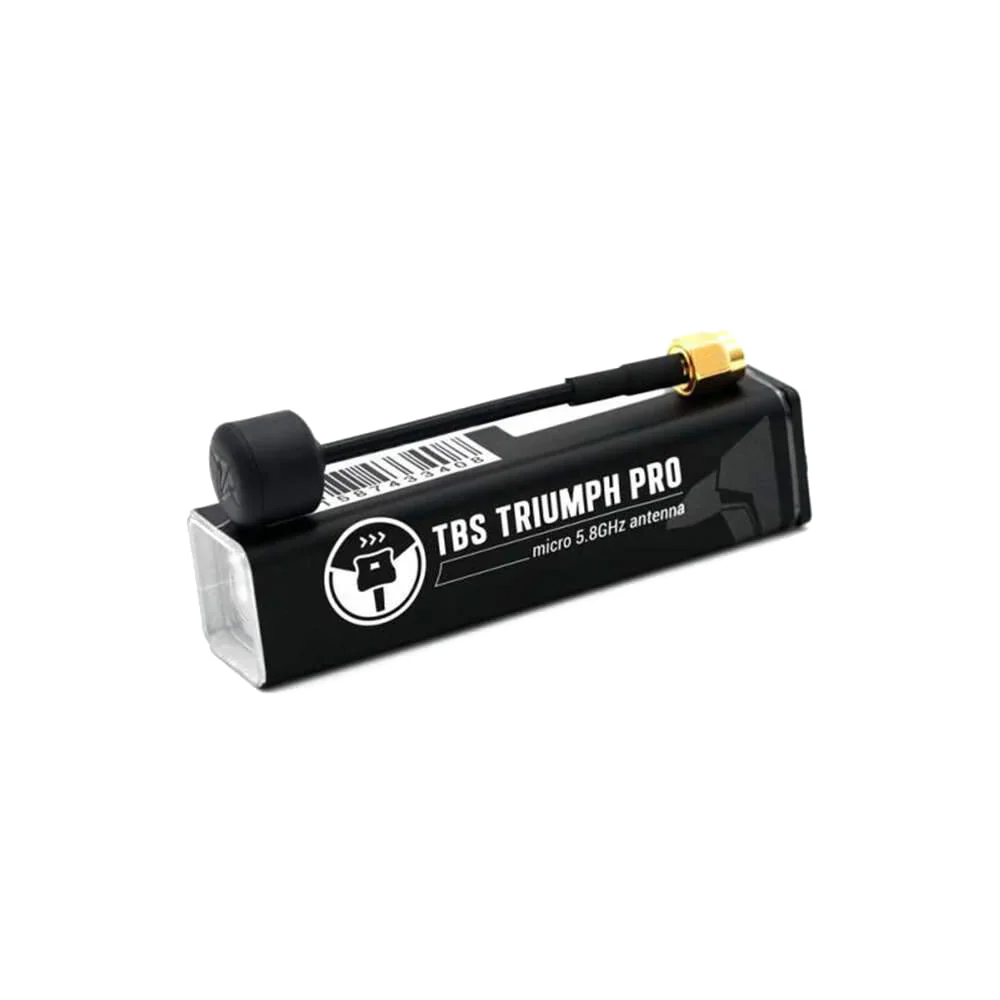

The next revolution in circular polarisation technology, the Triumph Pro gives a professional performance in a compact, durable package. Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance. Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent-pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allows mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

Features

Manufactured and tested to highest standards
Best in class range and signal quality
Incredibly small and low weight
Ultrasonic welded and foam infused cover for ultimate crash-protection
Double-jacket semi-rigid cable for heavy impact resistance

Specifications

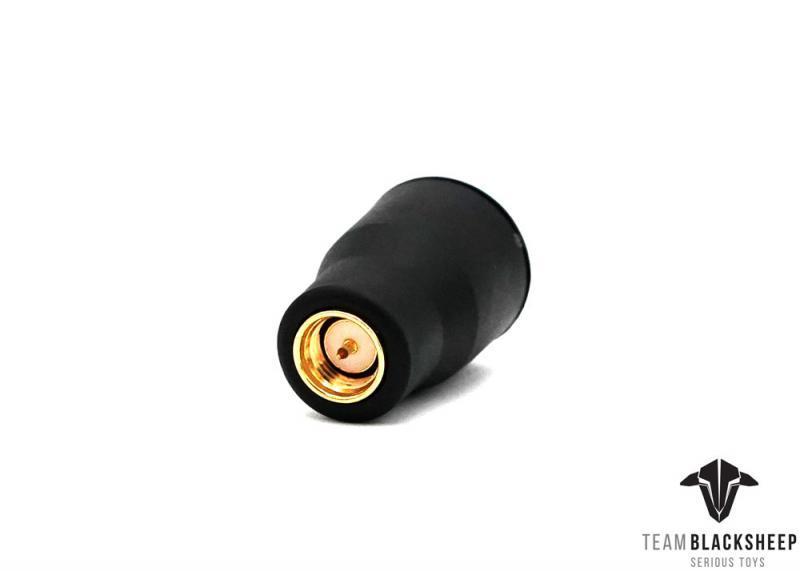

SMA
- Frequency range: 5500-6000MHz
- Polarisation: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Weight: 11.5g
- Height: 78mm, 3in
- Connector: SMA

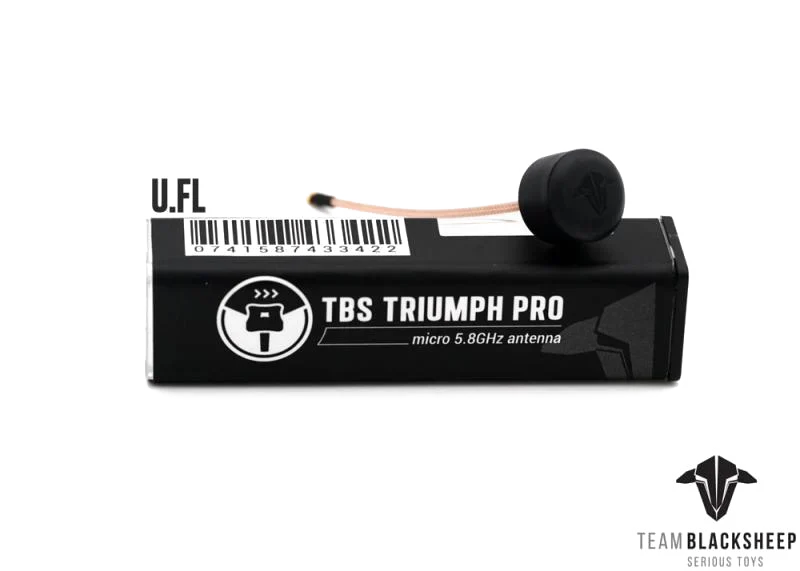

U.FL
- Frequency range: 5500-6000MHz
- Polarisation: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG405/U
- Weight: 2-3g
- Height: 85mm, 3.3 in
- Connector: u.FL
- Dimensions (PDF)
MMCX 90
- Frequency range: 5500-6000MHz
- Polarisation: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG405/U
- Weight: 2-3g
- Height: 85mm, 3.3 in
- Connector: MMCX (90º angle)
- Dimensions (PDF)
MMCX
- Frequency range: 5500-6000MHz
- Polarisation: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG405/U
- Weight: 2-3g
- Height: 85mm, 3.3 in
- Connector: MMCX
- Dimensions (PDF)

Includes

1x TBS Triumph Pro Antenna

Browse More

View other TBS Antennas.
View all other TBS products .
View other FPV Antennas.

5 stars: 6 (86%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 1 (14%)
1 star: 0 (0%)

Great antenna

Perfect antenna for your quad or goggle,can't go wrong with tbs.

I have always been happy with tbs products but this stubby sma is not what I expected I get heaps of lines on arming an multi parthing is bad

Tbs triumph

I run the triumph Pro straight to my tbs unify pro32 hv vtx so I have no need for an sma adapter the coverage is awesome and no more broken sma bits an pieces
