Are you looking to buy TBS Unify Pro32 DP (MMCX) in Australia?

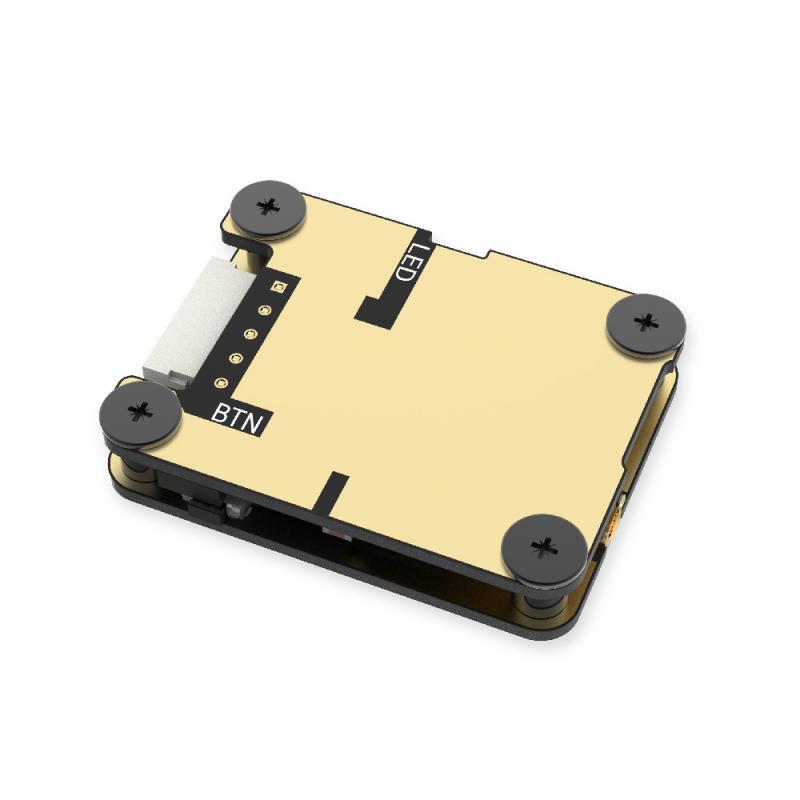

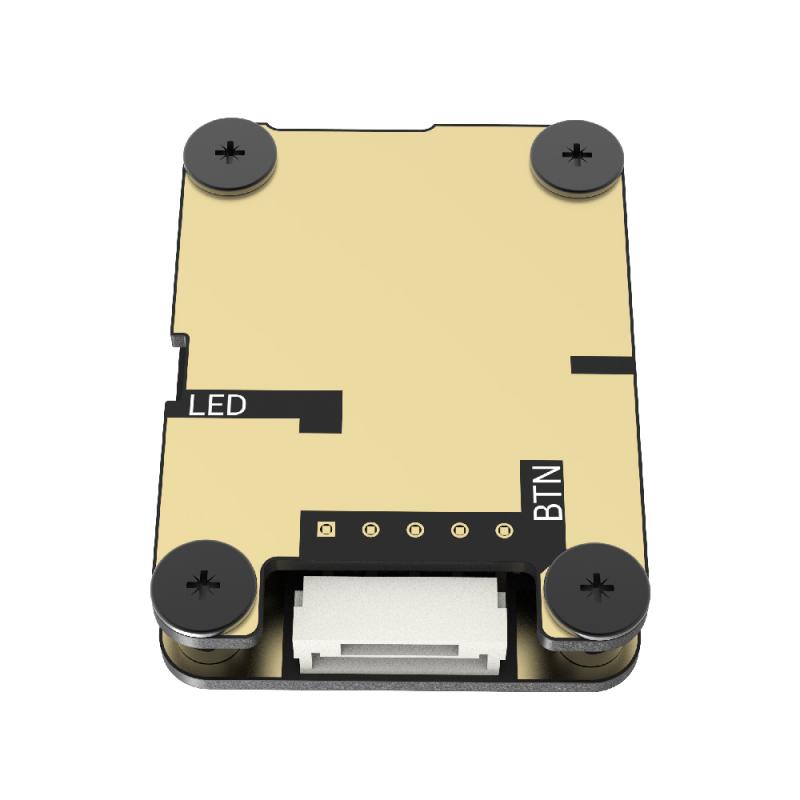

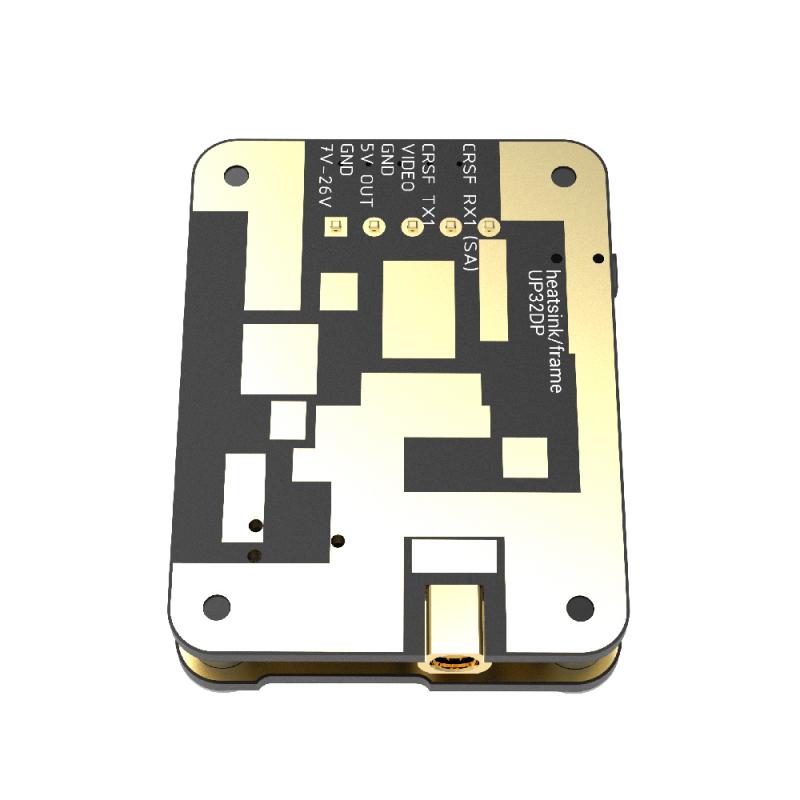

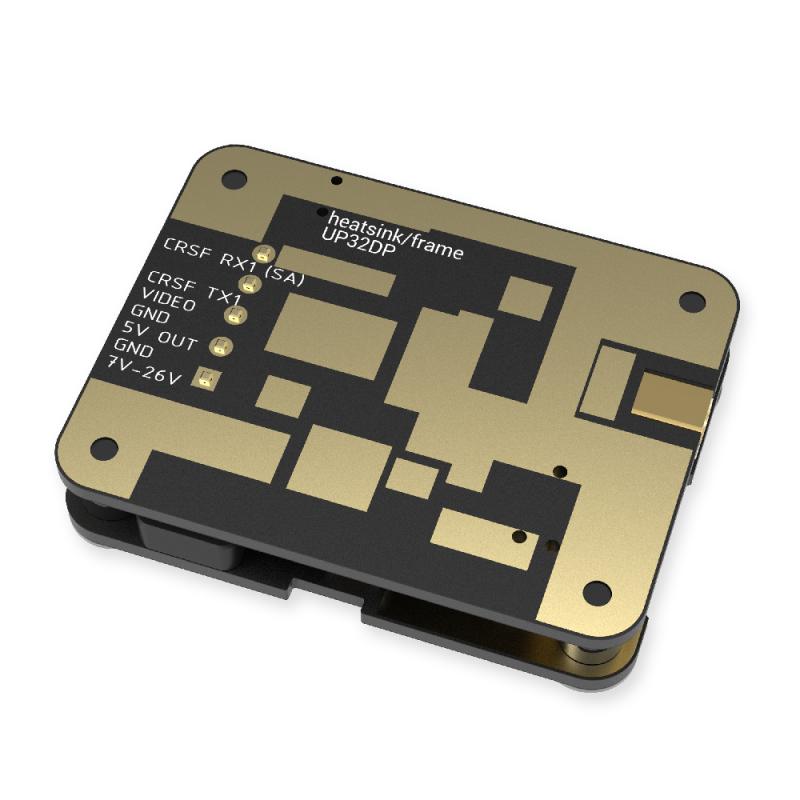

The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption. Enhanced performance and durability through advanced heat dissipation which requires no additional heatsink or fan.
Features
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 MHz - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1
- (via Betaflight, TBS Crossfire / Tracer or Ardupilot)
- One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimised heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
Specifications
- Operating Voltage: 6V - 25V (2 - 6S)
- Video Input Impedance: 75 Ohm
- SNR: >63dBm
- Weight: 8.7g
- Dimensions: 37 x 25 x 5.8mm
- Antenna Connector: MMCX
- Video Format: NTSC/PAL
- Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 33dBm+ (2000mW+)
Includes
- 1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
- 1x Silicone cable (ends pre-tinned)
- 1x MMCX to SMA pigtail
- 1x Heat transfer tape for easy FPV drone mounting
