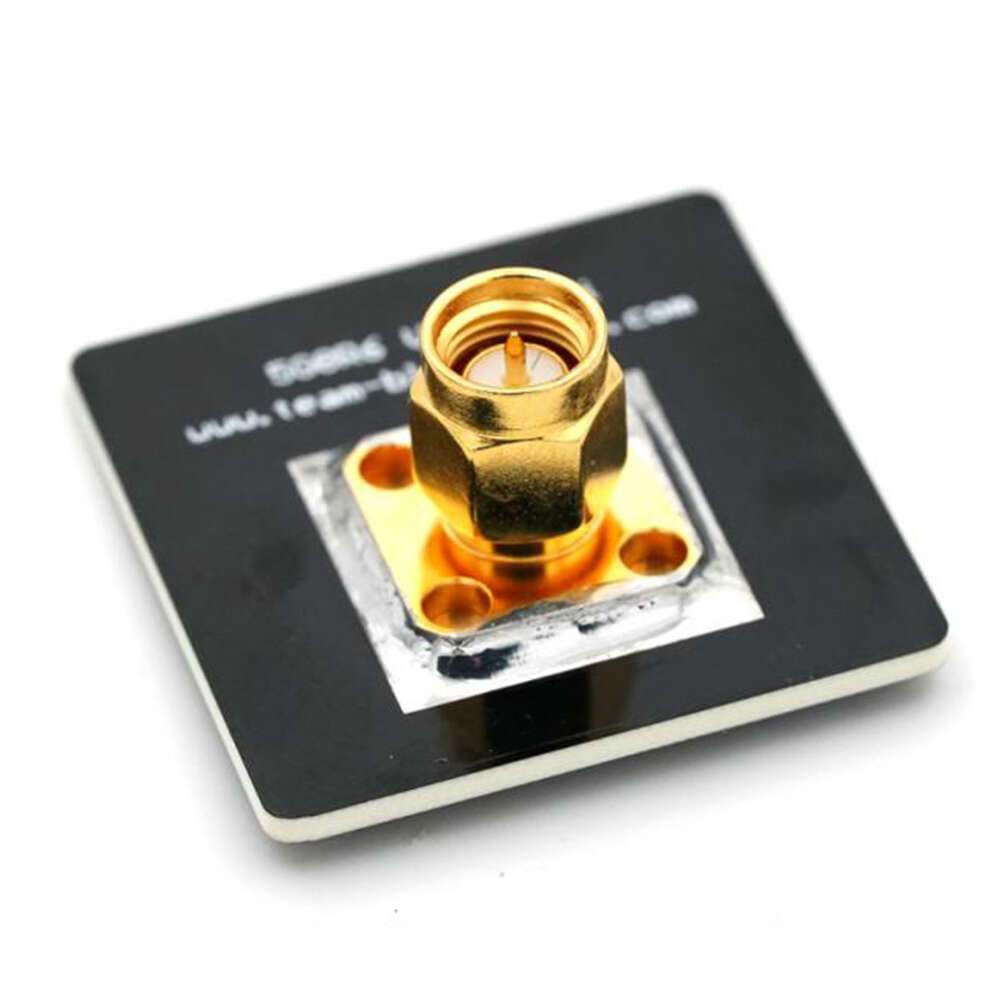

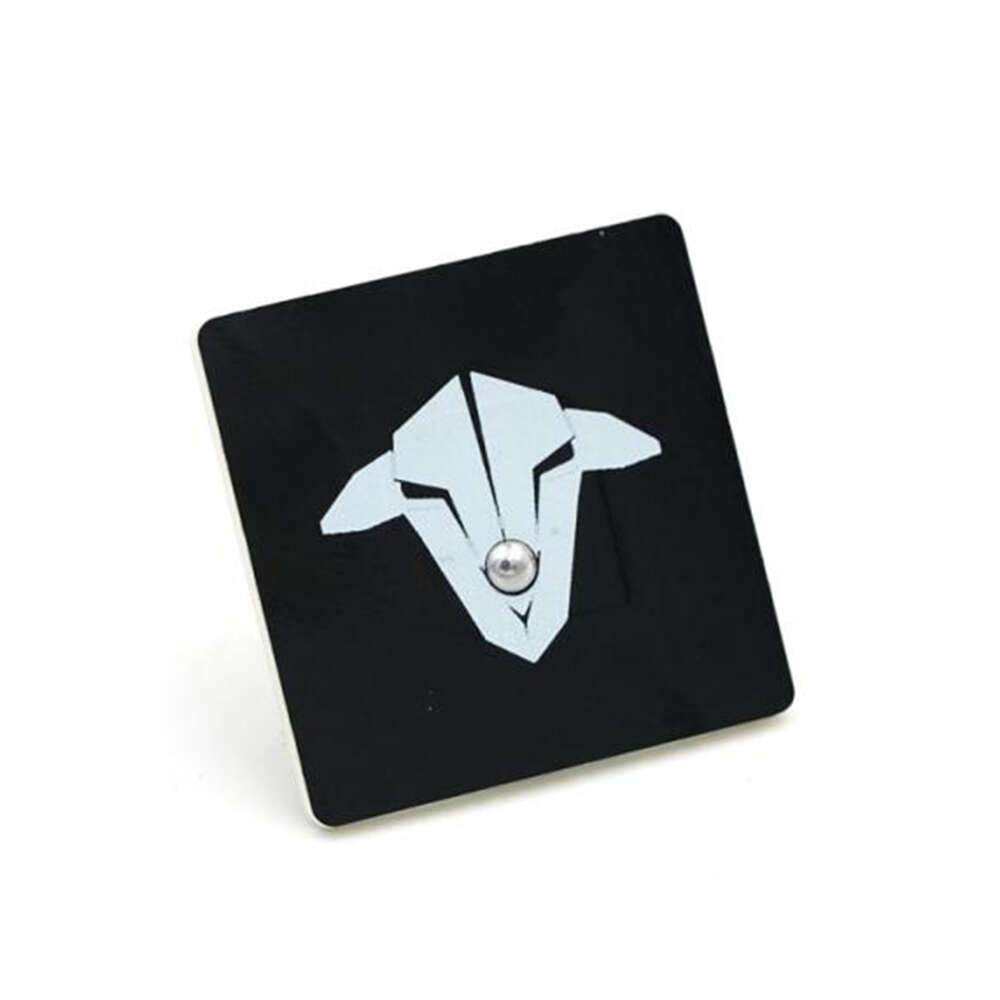

TBS 5G8 RHCP PATCH (SMA)
$22.88 AUD
Skip to product information
Dispatches once stock arrives
TBS 5G8 RHCP PATCH (SMA)
$22.88 AUD
GST includedShipping calculated at checkout.
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Pickup unavailable today.
SKU:
4701
Shipping Weight:
40g
W/H:
W-03-E-06
Categories:
5.8ghz Antennas, FPV Antennas, FPV Gear, FPV Gear & Equipment, Radio Gear, TBS Antennas, TBS Team Black Sheep
Tags:
5.8ghz, Aerials, FPV Antenna, RHCP, SMA, TBS, TBS FPV Antennas
Are you looking to buy TBS 5G8 RHCP PATCH (SMA) in Australia?
Manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver.
The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter (which translates to 3-4km if we use the same metrics as our competition). It thus matches or outperforms all existing Cloverleaf / Skew-Planar-Wheel combinations, but it only has a
Use this antenna for your everyday flights at the field in combination with our Fatshark Dominator 5.8 GHz receiver.
SPECIFICATIONS:
- 5dBi Gain
- Circular Polarization
- 5700 - 5900 MHz working frequency
- 110° beam width
- 35 x 35mm
- SMA connector
