Are you looking to buy a ToolkitRC MC8 Cell Checker and Multi Tool in Australia?

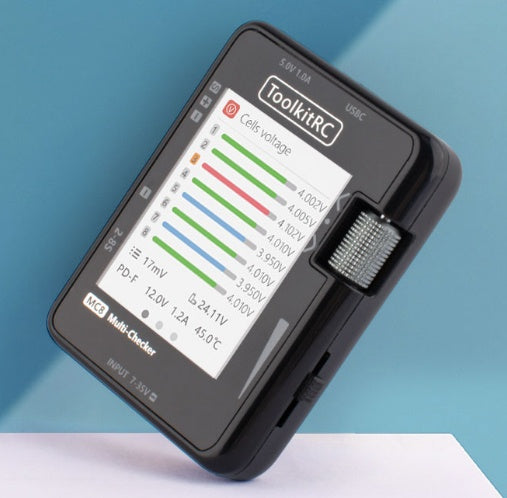

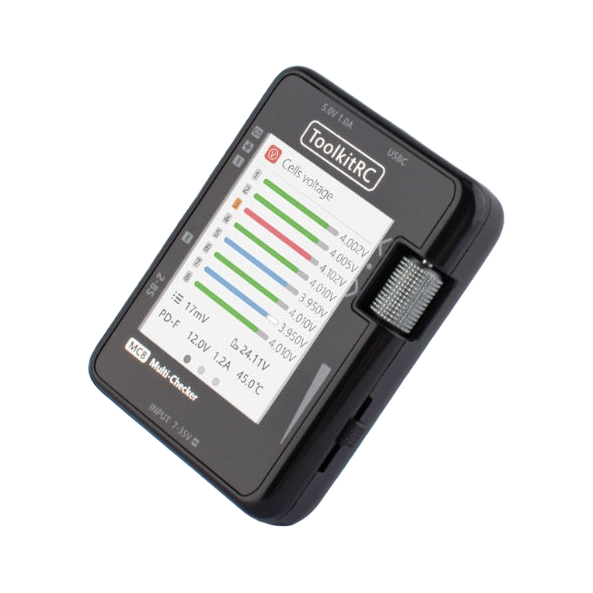

ToolkitRC is back with another essential for your drone toolbox! The MC8 Cell checker and multi tool with USB fast charging
Specifications
- Main input port XT60 7.0V-35.0V
- Balance input 0.5V-5.0V Lixx 2-8S
- Signal port input <6.0V
- Balance current MAX 60mA @2-8S
- Balance accuracy <0.005V @ 4.2V
- USB-A output 5.0V@1.0A firmware upgrade
- USB-C output 5.0V-12.0V @MAX 20W
- USB-C protocol PD3.0 QC3.0 AFC SCP FCP
- Measurement
- PWM 500-2500us @20-400Hz
- PPM 880-2200us*8CH @20-50Hz
- SBUS 880-2200us *16CH @20-100Hz
Output
- PWM 1000-2000us @20-1000Hz
- PPM 880-2200us*8CH @50Hz
- SBUS 880-2200us *16CH @74Hz
- Item Size 68mm*50mm*15mm
- Item Weight 50g
- Package Size 76mm*60mm*30mm
- Package Weight 100g
- LCD IPS 2.0 inch 240*240 resolution
|
