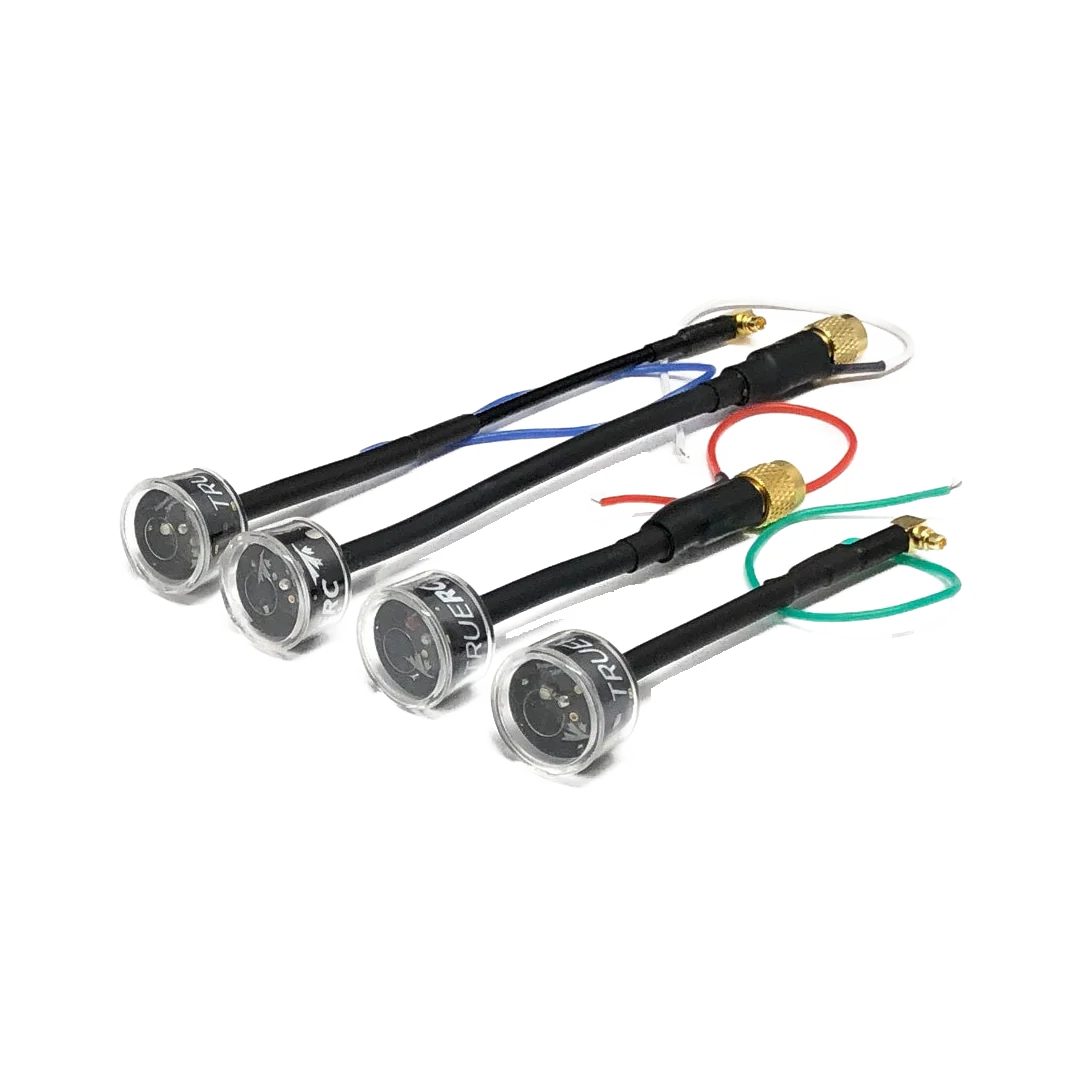

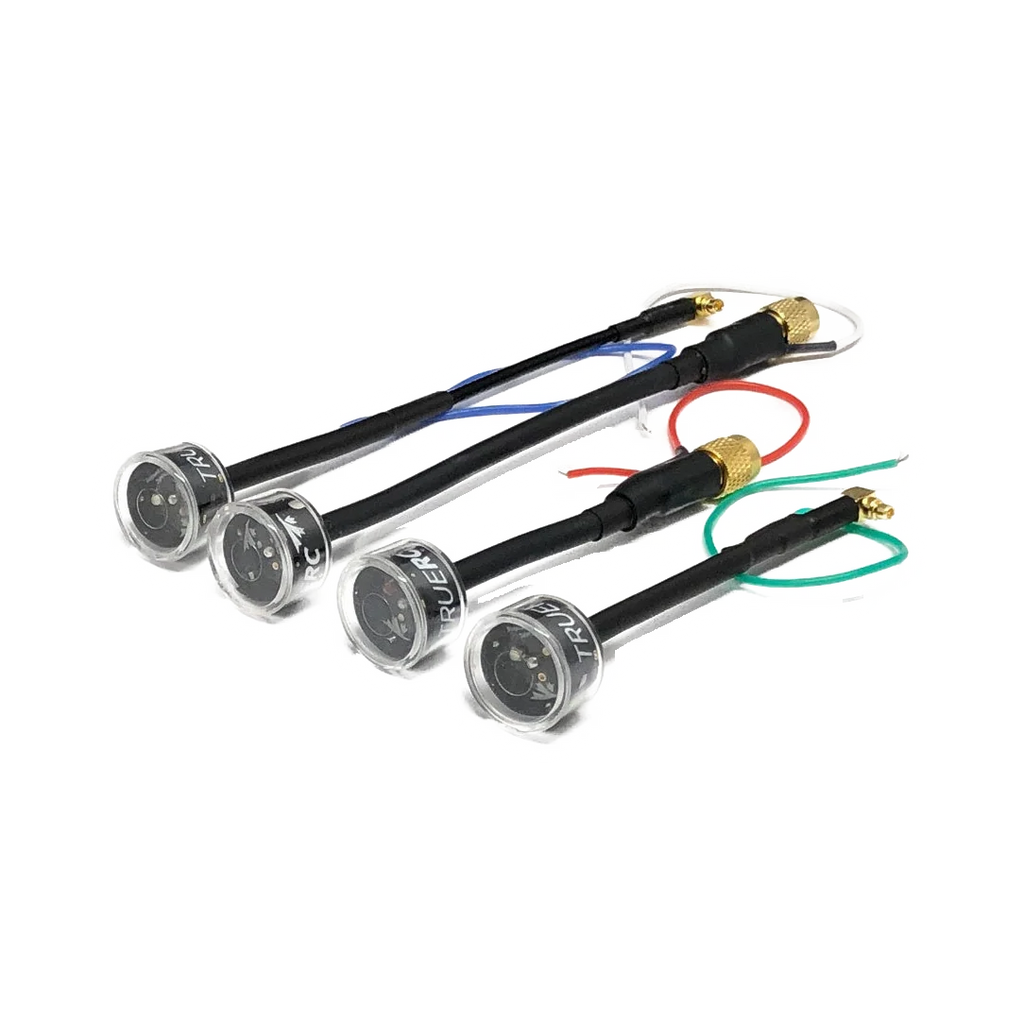

TrueRC Blaze LED Singularity Antenna – dark mode image 1

TrueRC Blaze LED Singularity 5.8GHz Antenna

Red / RHCP / U.fl Long
$39.95 AUD $41.95 AUD
Skip to product information
TrueRC Blaze LED Singularity Antenna – dark mode image 1
  • TrueRC Blaze LED Singularity Antenna – dark mode image 1
  • TrueRC Blaze LED Singularity Antenna – dark mode image 2
  • TrueRC Blaze LED Singularity 5.8GHz Antenna
  • TrueRC Blaze LED Singularity 5.8GHz Antenna
  • TrueRC Blaze LED Singularity 5.8GHz Antenna
  • TrueRC Blaze LED Singularity 5.8GHz Antenna
TrueRC Blaze LED Singularity 5.8GHz Antenna

TrueRC Blaze LED Singularity 5.8GHz Antenna

$39.95 AUD $41.95 AUD
GST included Shipping calculated at checkout.

Delivery options

TrueRC Blaze LED Singularity 5.8GHz Antenna

Pickup

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. We open 7:30am Monday - weekend orders are usually ready to collect by 10am.

Delivery options
Sale ends in
--d --h --m --s
Out of stock
Price match

Request a price match

TrueRC Blaze LED Singularity 5.8GHz Antenna Our price: $39.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.
ColourRed
Protocol
Style
Check stock by colour Hide stock breakdown
Stock status for Blue
Style RHCP LHCP
SMA Long
MMCX90 Long
MMCX90 Regular
SMA Regular
U.fl Long
U.fl Regular
Stock status for Green
Style RHCP LHCP
SMA Long
MMCX90 Long
MMCX90 Regular
SMA Regular
U.fl Long
U.fl Regular
Stock status for Red
Style RHCP LHCP
SMA Long
MMCX90 Long
MMCX90 Regular
SMA Regular
U.fl Long
U.fl Regular
Stock status for White
Style RHCP LHCP
SMA Long
MMCX90 Long
MMCX90 Regular
SMA Regular
U.fl Long
U.fl Regular
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU: 18447
Shipping Weight: 21g
W/H: W-04-G-10
Categories: 5.8ghz Antennas, Black Friday Sale 2025 | FPV Quads Drones & 3D Printing, Drone LED, FPV Antennas, FPV Gear, FPV Gear & Equipment, Radio Gear, True RC, WEEKEND 48 HOUR DEALZ
Tags: 5.8ghz, Aerials, EOL, FPV Antenna, LED, LHCP, RHCP, Sale, Truerc


Are you looking to buy a TrueRC Blaze FPV Antenna in Australia?

The Blaze 5.8GHz features TrueRC's latest high-fidelity-circular-polarized-antenna-design plus the CREE™ XQ-E high-intensity LED! This antenna is like no other - it features high-performance CP Omni doubling as a powerful LED light, advanced RF design, and heat management.

This antenna possibly outshines anything in both the 5.8GHz and visible spectrum!

WARNING. Make sure you install the resistor or you will fry the LED.

READ MANUAL HERE

Features

  • Durable polycarbonate, Injection Molded, ultra-sonically welded Housing.
  • CREE™ XQ-E high intensity LED.
  • Wider Bandwidth (5.4-6.3GHz).
  • *Pattern stays true even in harsh/sub-optimal installations.
  • Single wire 5V LED power hookup with micro connector.
  • Available in red, green, blue, and white.
  • Available with True-SMA connector.
  • Available with high-quality DJI compatible MMCX.
  • Available with support tube and U.fl pigtail (vista).

Specifications

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB, (1.9%)
  • Bandwidth: 5.4GHz-6.3GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.2:1
  • Weight: 7.9 g
  • Dimensions(head): 16.5mm dia. X 10.7mm height.
  • Length: 80mm to 125mm.
  • Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.
  • Connector: True-SMA, MMCX90 or U.fl w/support tube (Vista)
  • Current draw: 100-110mA with an included resistor.
  • Max current: 400mA.
  • Supply voltage: 5V with an included resistor.
  • l Approx luminous flux @100mA: 20 to 50 Lumen depending on color.

Installation Video

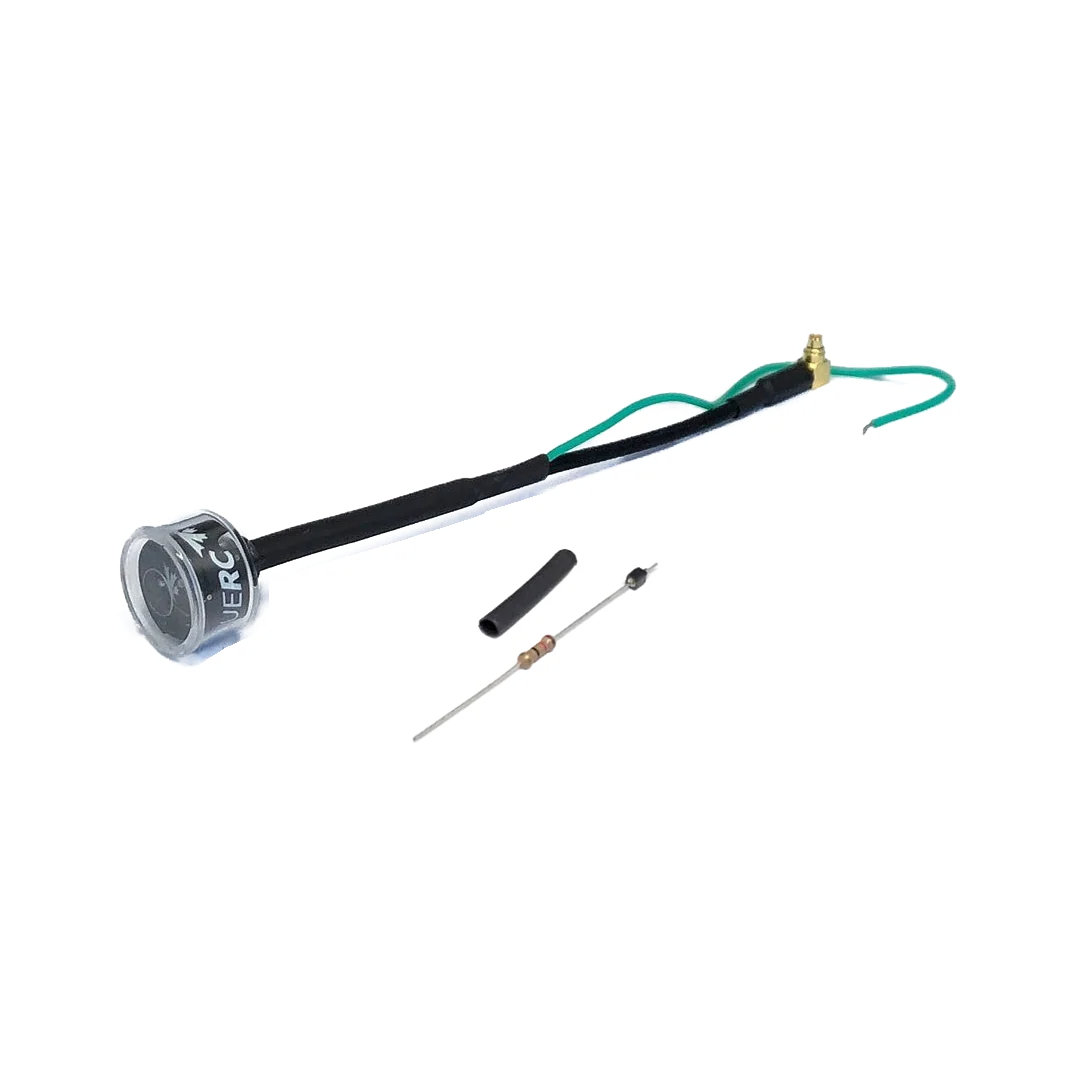

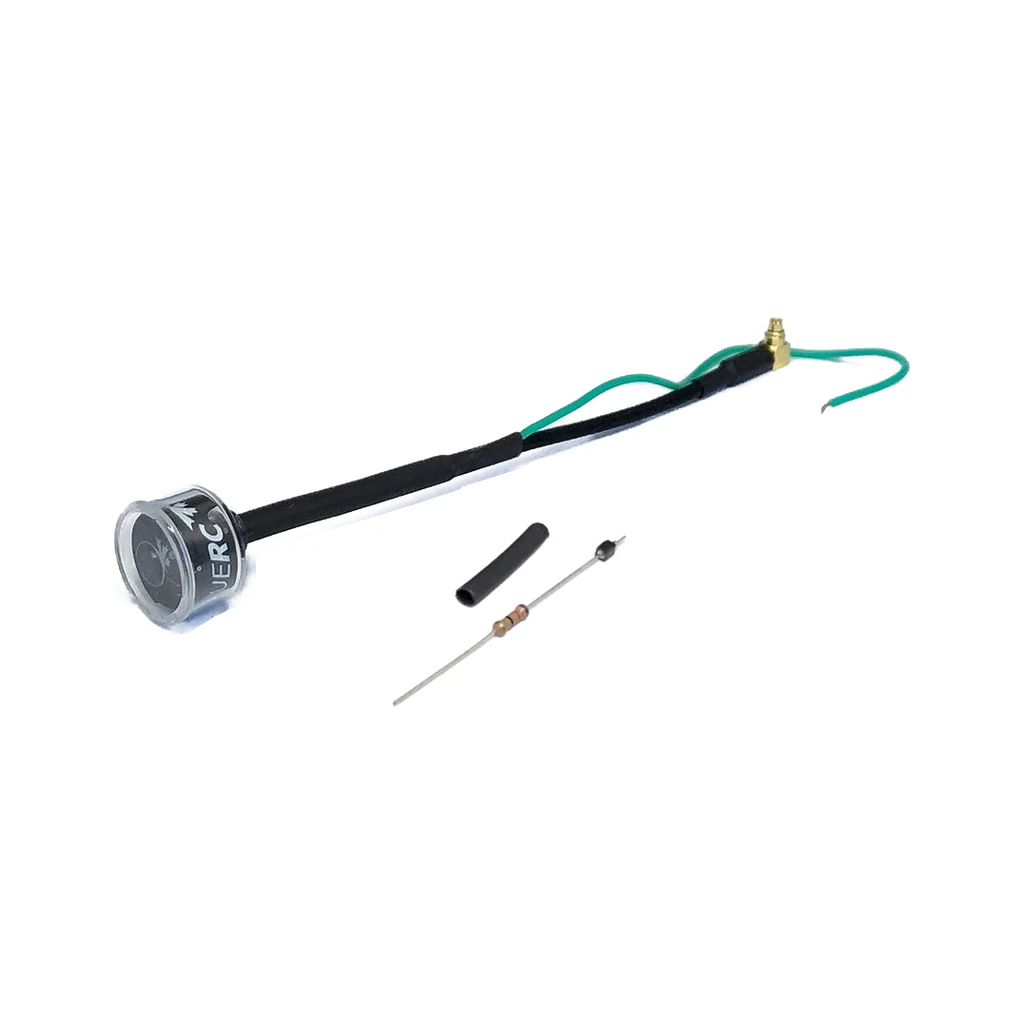

Includes

  • 1 x Antenna
  • 12 or 18ohms resistor (depending on the color)
  • Micropower connector
  • Heat shrink
