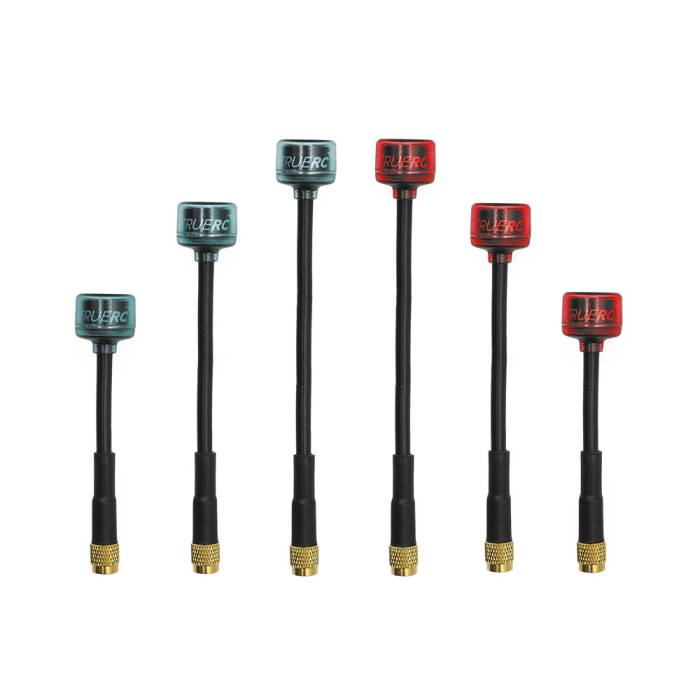

TrueRC CORE 5.8GHz Antenna

Are you looking to buy a TrueRC CORE 5.8GHz Antenna in Australia?

The exclusive TrueRC CORE 5.8Ghz Antenna is a distillation of all those years working with drone enthusiasts and professionals alike. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. TrueRC then added a very durable outer shell that protects the antenna from inevitable crashes.

• Choose a Length: 80mm, 125mm, or 160mm
• Choose a Polarization: RHCP or LHCP
• Choose a Color: Teal or Red

Features

• Durable polycarbonate, Injection Molded, ultra-sonically welded housing
• Smooth radiation pattern with even gain in all directions
• Exclusive knurled True-SMA for easy tightening
• Flexible coax cable option that deflects impacts
• Clear indication of polarization direction
• Excellent axial ratio and efficiency

Specifications

• Dimensions (head): 16.9mm dia. x 13.1mm height.
• Cable: TrueRC RG316S/RG402/RG178 coax
• Weight: Vary with connector/cable option
• Cross-Polar Rejection: -10 to -20dB
• Lengths: 80mm, 125mm, or 160mm
• Polarization: RHCP or LHCP
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• Color: Red or Teal
• Connector: SMA
• SWR: <=1.2:1
• Gain: 1.9dBic

Includes

• 1x TrueRC CORE 5.8GHz Antenna - SMA (Choose Options)
