Are you looking to buy a TrueRC CORE 5.8GHz Side Feed SMA 100mm Antenna in Australia?

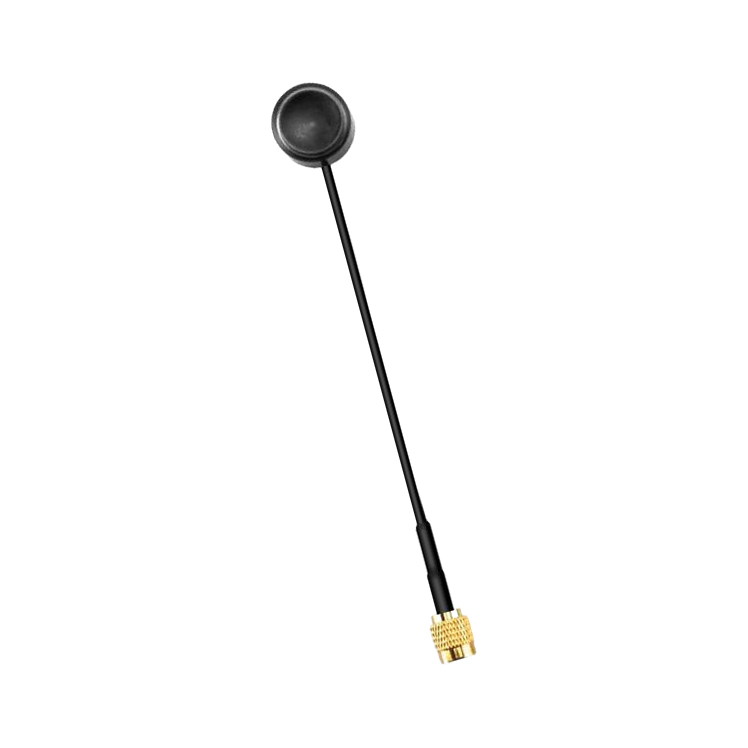

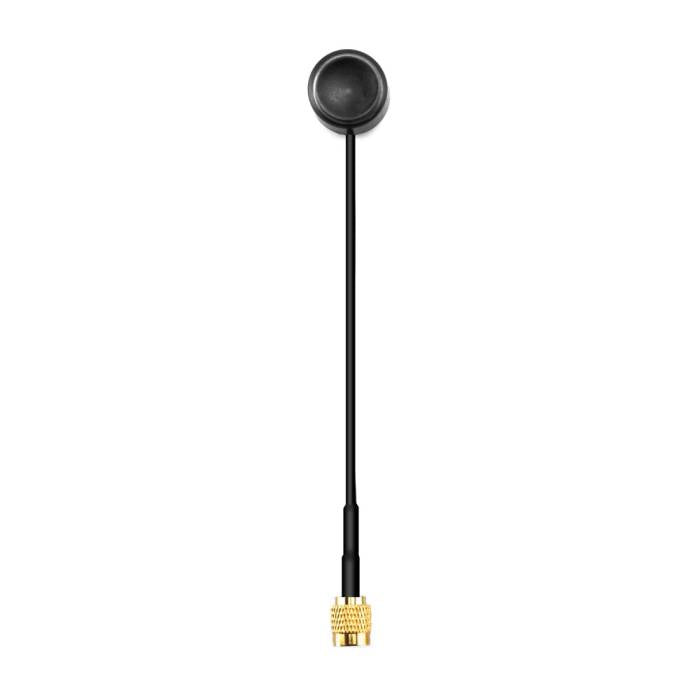

The exclusive TrueRC CORE 5.8Ghz Side Feed Antenna is a distillation of all those years working with drone enthusiasts and professionals alike. This is a special version with an SMA connector and side exit cable. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. TrueRC added a durable outer shell that protects the antenna from inevitable crashes.

Choose a Polarisation:

  • RHCP
  • LHCP

Features

  • Durable polycarbonate, Injection Molded, ultra-sonically welded housing
  • Smooth radiation pattern with even gain in all directions
  • Exclusive knurled True-SMA for easy tightening
  • Flexible coax cable option that deflects impacts
  • Clear indication of polarization direction
  • Excellent axial ratio and efficiency
  • Side Feed Cable

Specifications

  • Dimensions (head): 16.9mm dia. x 13.1mm height.
  • Cross-Polar Rejection: -10 to -20dB
  • Polarization: RHCP or LHCP
  • Cable: TrueRC RG178 coax
  • Bandwidth: 5.5GHz-6.1GHz
  • Radiation Efficiency: 98%
  • Connector: SMA
  • Length: 100mm
  • SWR: <=1.2:1
  • Gain: 1.9dBic
  • Color: Black
  • Weight: 5g

Includes

  • 1x TrueRC CORE 5.8GHz Side Feed Antenna - SMA 100mm (Choose Polarization)
