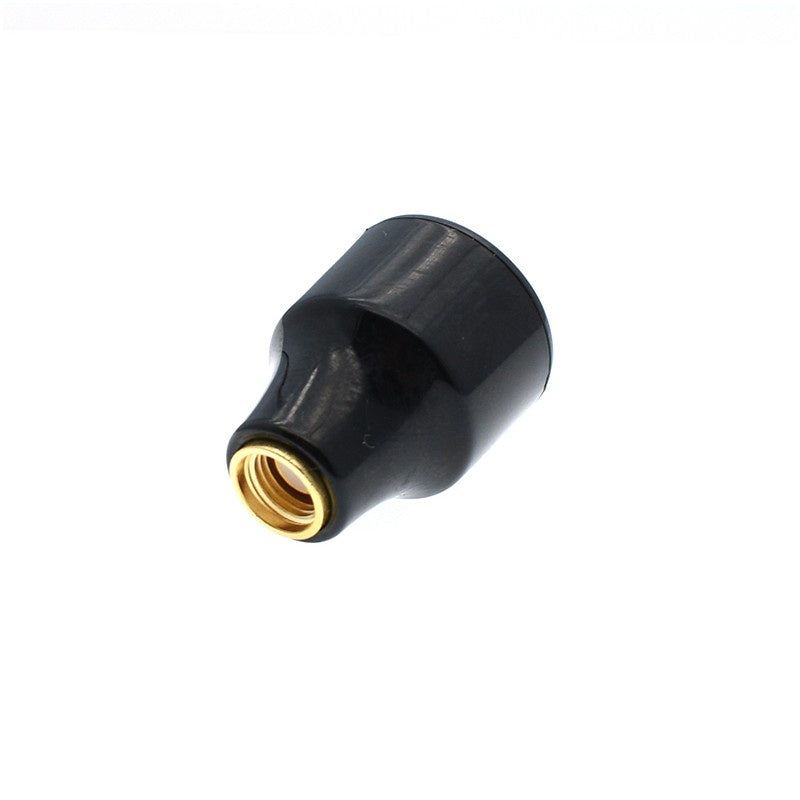

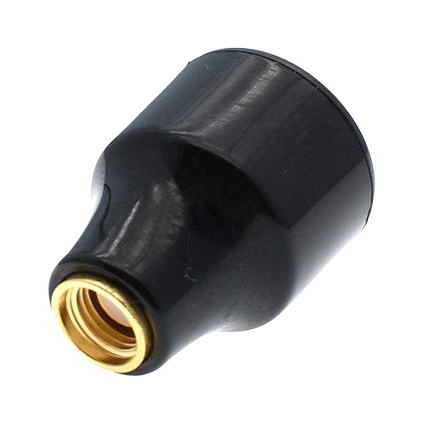

TRUERC CP5 5.1-5.9GHz Wifi/Mimo Applications

TRUERC CP5 5.1-5.9GHz Wifi/Mimo Applications

LHCP / Stubby / RP-SMA
$35.95 AUD
Skip to product information
TRUERC CP5 5.1-5.9GHz Wifi/Mimo Applications

TRUERC CP5 5.1-5.9GHz Wifi/Mimo Applications

$35.95 AUD
GST includedShipping calculated at checkout.
10 In stock
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Style
Size
Cable Exit
Stock status Stock status
Stock status for LHCP
Size SMA RP-SMA
Stubby
Long
Stock status for RHCP
Size SMA RP-SMA
Stubby
Long
Usually ready in 2 hours
SKU: 25075
Shipping Weight: 21g
W/H: W-03-D-07
Add to Wishlist


Are you looking to buy TRUERC CP5 5.1-5.9GHz Wifi/Mimo Applications in Australia?

The CP5 is a full 5.1-5.9GHz range antenna. Useful for Wi-FI/Wi-LAN applications and other high bandwidth digital links like teradek high definition video transmission systems. They are available in both RHCP and LHCP polarization to improve the diversity characteristic of MIMO wireless systems when used in alternating polarisation.

Features

  • Durable poly-carbonate, Injection Moulded, ultra-sonically welded Housing
  • Compact stubby form factor or 120mm low-loss semi-rigid cable
  • Excellent axial ratio and efficiency

Specifications

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.1GHz-5.9GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight:
  • Dimensions: 18mm dia. x 24mm height.
  • Connector: SMA or RP-SMA (Select RP-SMA for teradek)
