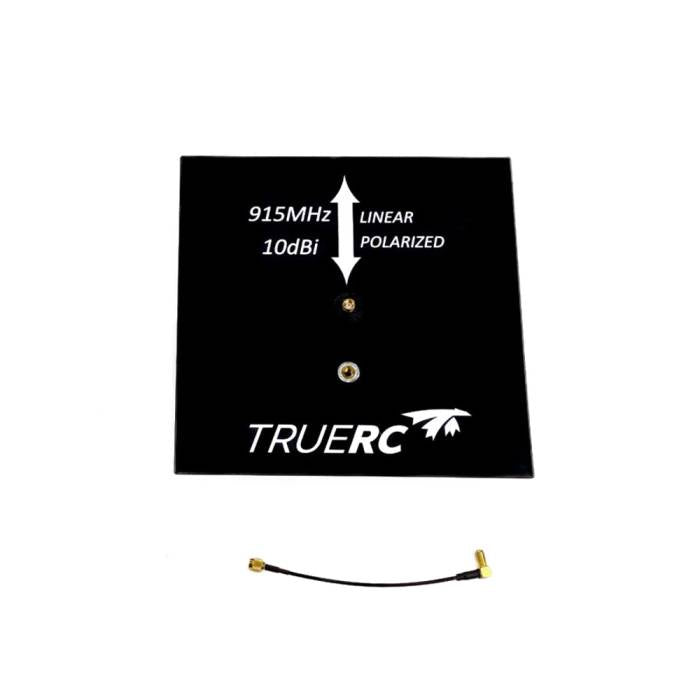

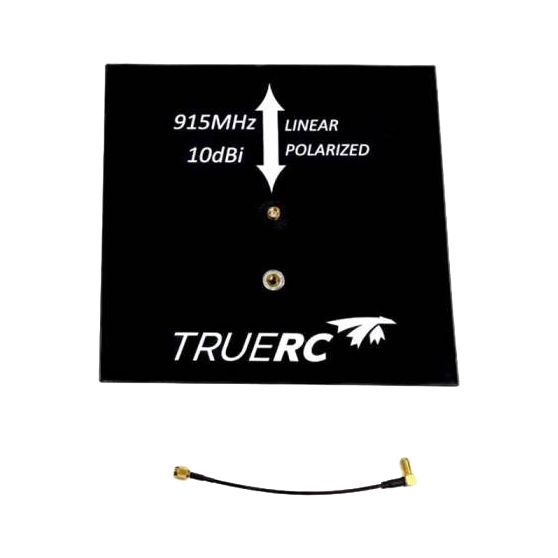

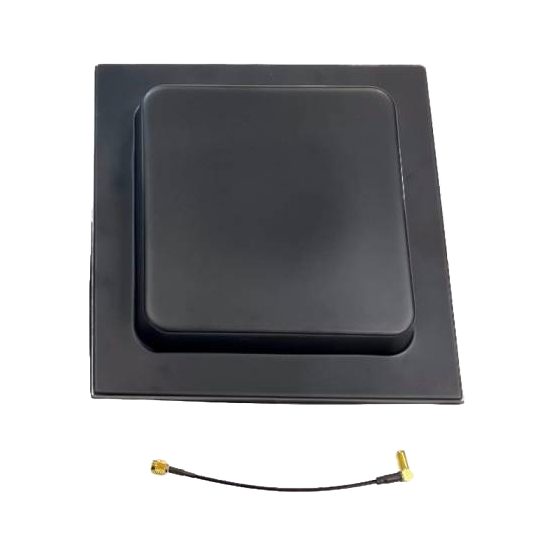

TrueRC Line-Air 900MHz Linear Patch Antenna
$189.00 AUD
Skip to product information
1 In stock
TrueRC Line-Air 900MHz Linear Patch Antenna
$189.00 AUD
GST includedShipping calculated at checkout.
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
35049
Shipping Weight:
20g
W/H:
U-02-E-11
Categories:
1.3Ghz Antennas, FPV Antennas, FPV Gear & Equipment, Radio Gear, True RC
Are you looking to buy TrueRC Line-Air 900MHz Linear Patch Antenna in Australia?
The TrueRC Line-AIR 900 is the latest redesign of the Biquad antenna. TrueRC has managed to pack the famous Biquad punch in less than half the typical size. A 1/4-20 mounting point in the back makes it featherweight and super easy to attach to your ground station.
Features
- 15cm flexible low loss extension
- 1/4-20 mounting point
- Ultralight
- 900MHz
Specifications
- Mounting: Standard 1/4-20 flush thread
- Dimension: 222mm x 222mm x 45mm
- Frequency: 900MHz ISM band
- Beam-width @-3dB**: 68deg
- Radiation efficiency: 99%
- Connector: SMA male
- Beam-width*: 120deg
- Polarisation: Linear
- Gain: 10 dBic
- Weight: 224g
**Coverage where at least 70% of the max range is obtained.
*Coverage where reception is at least equivalent to an omni.
Includes
- 1 x TrueRC Line-Air 900 Linear Patch Antenna
- 1 x 15cm flexible low loss extension
