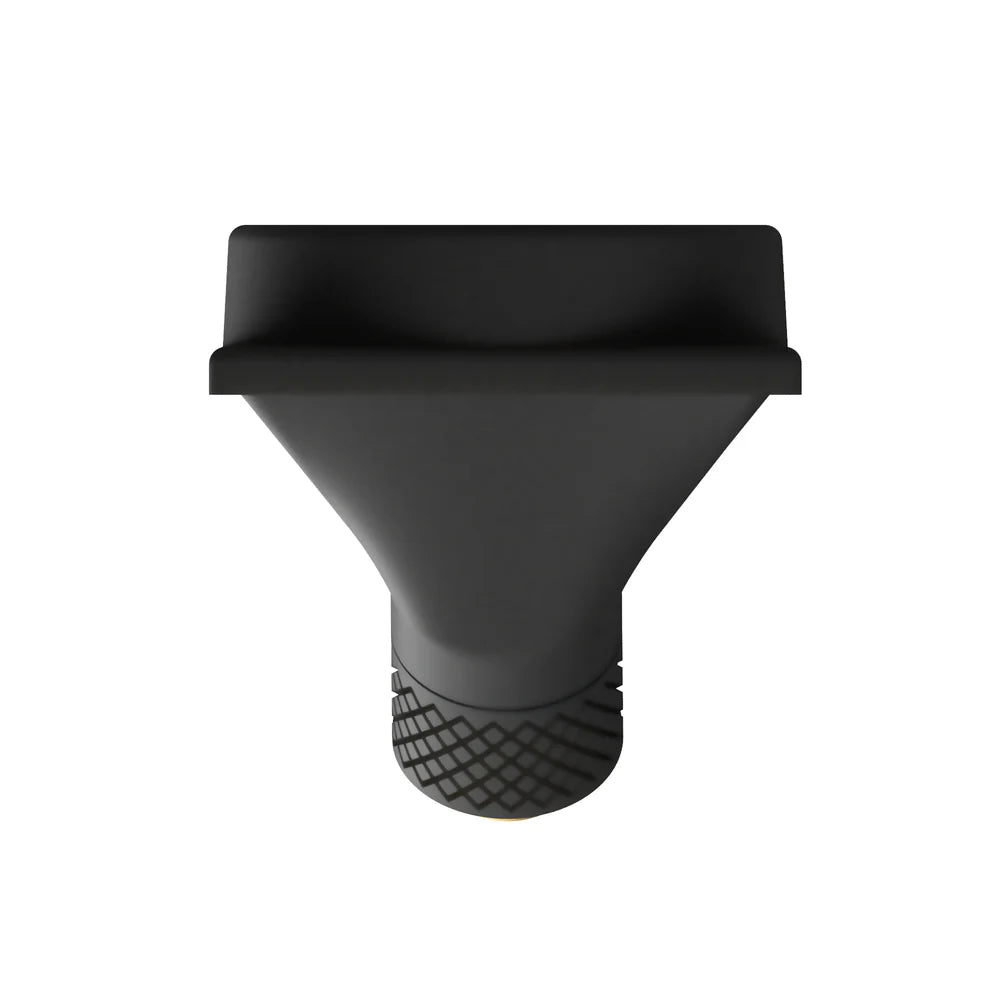

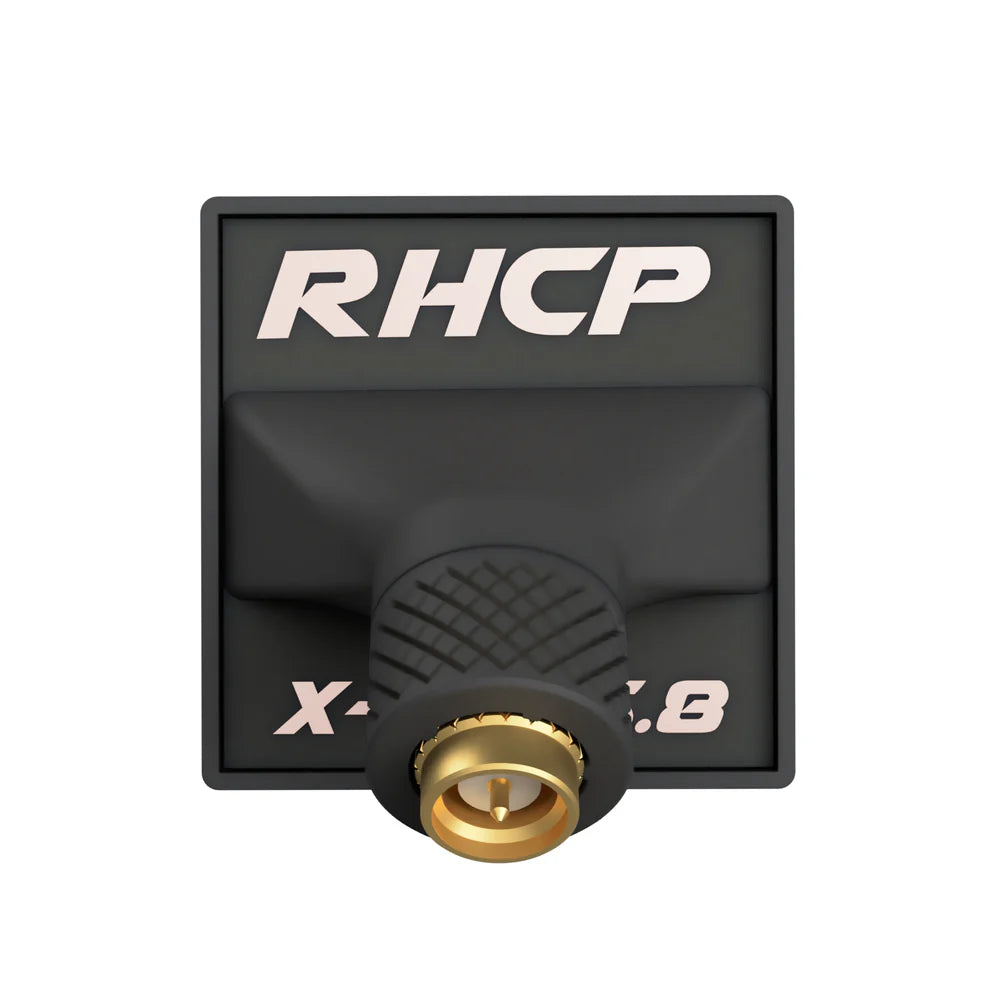

TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

TrueRC X-Air 5.8 MKII Antenna SMA (45deg)

$44.95 AUD
GST includedShipping calculated at checkout.
2 In stock
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Style
Usually ready in 2 hours
SKU: 34228
Shipping Weight: 20g
W/H: U-04-C-08
Add to Wishlist


Are you looking to buy TrueRC X-Air 5.8 MKII Antenna SMA (45deg) in Australia?

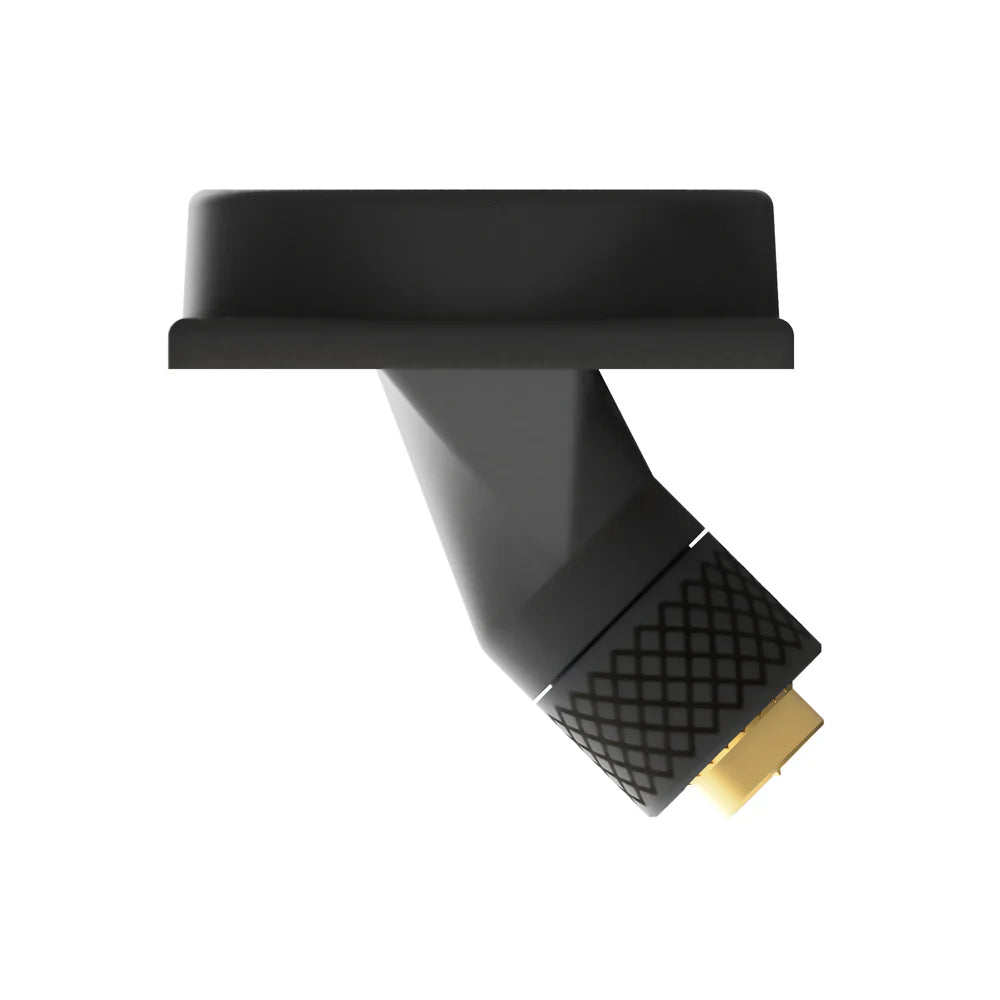

Now with built-in 45deg angled SMA connection! No more adapter needed to fit them on diversity analog modules, no more collision with nearby SMA.

The X-AIR 5.8 Mk. II is our latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.

Specifications

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarisation: RHCP or LHCP
  • Beam-width (H and V)*: 120deg
  • Beam-width @-3dB(H and V)**: 68deg.
  • Connector: SMA or RP-SMA male
  • Dimension: 32 x 32 x 39mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
