Are you looking to buy TBS Mojito (Kit) - FPV Flying Wing - ETA FEB 24 in Australia?

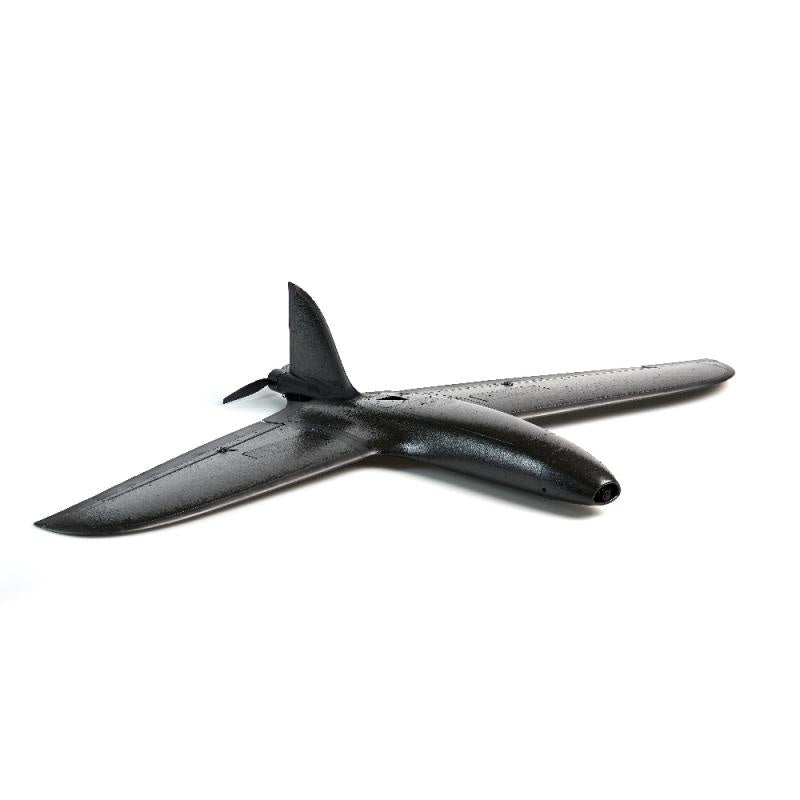

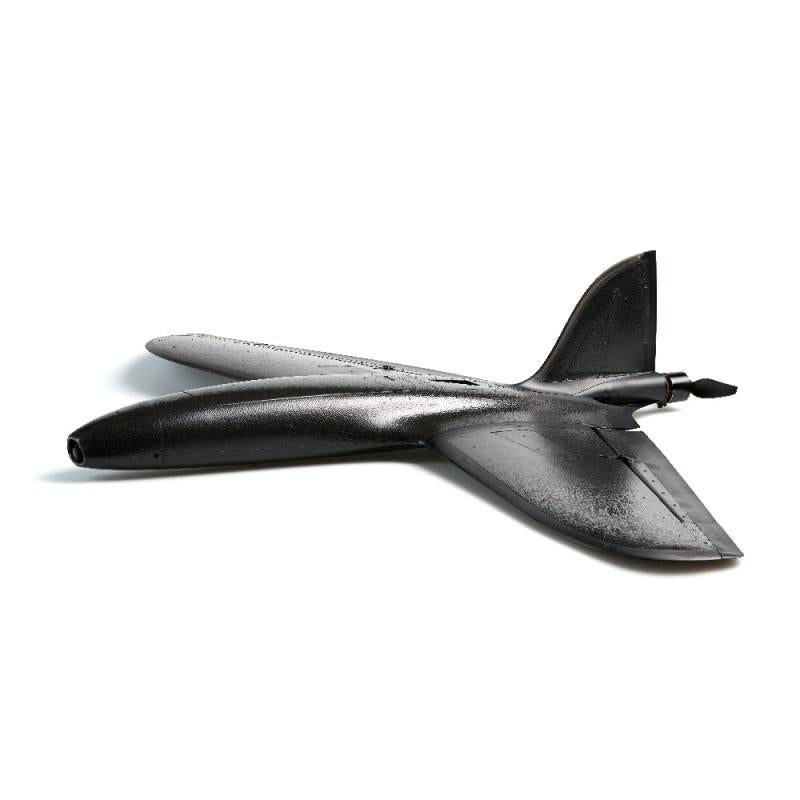

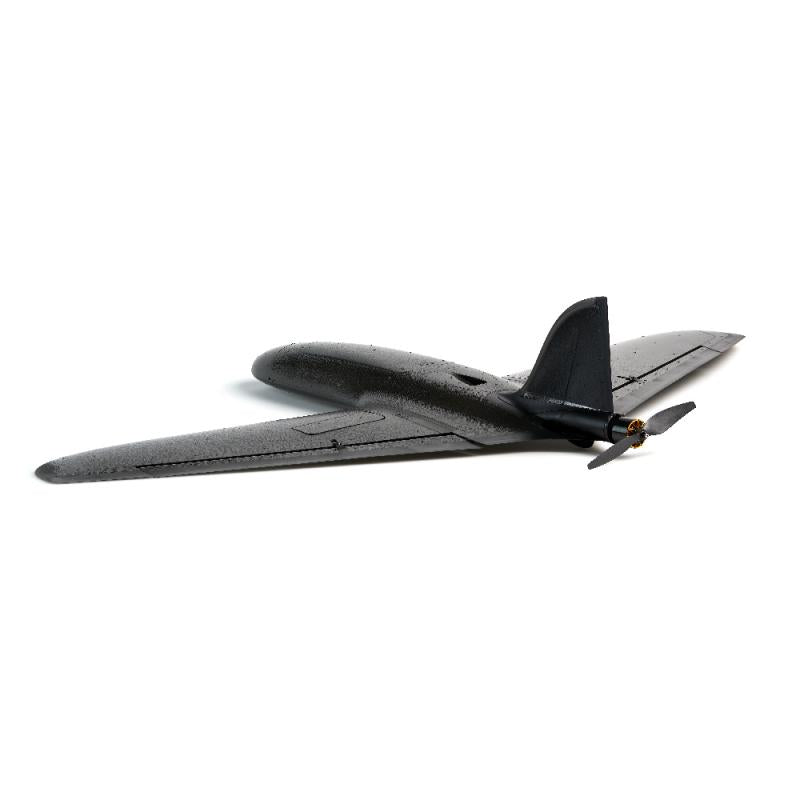

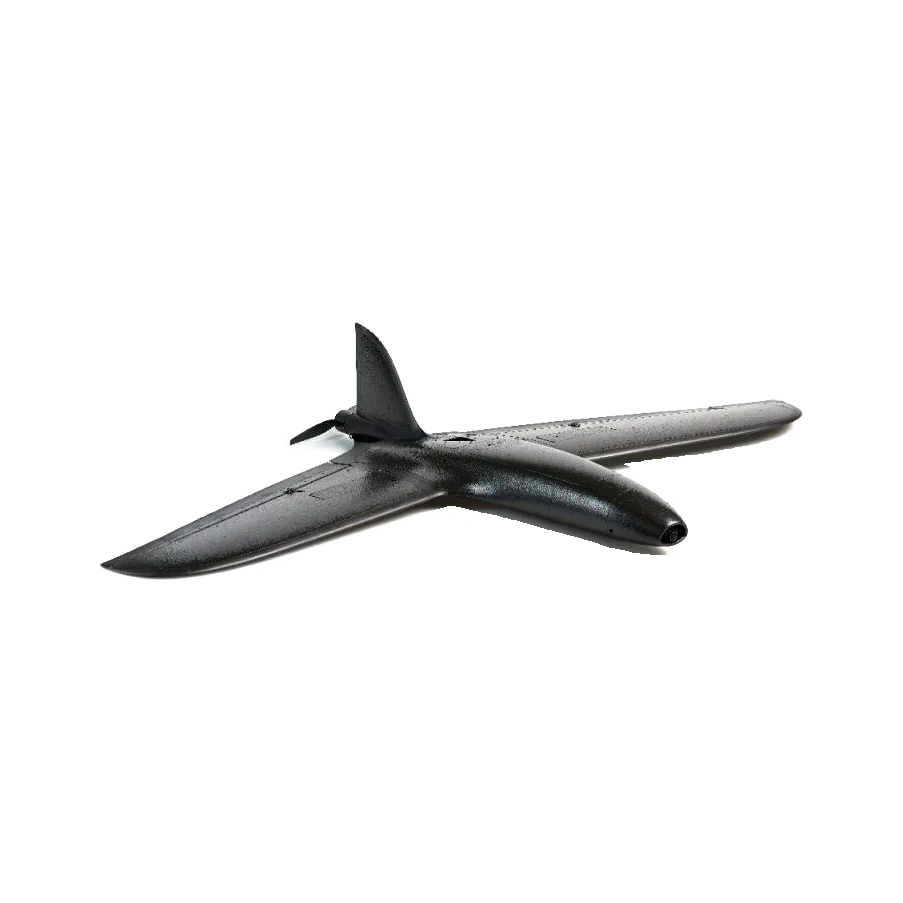

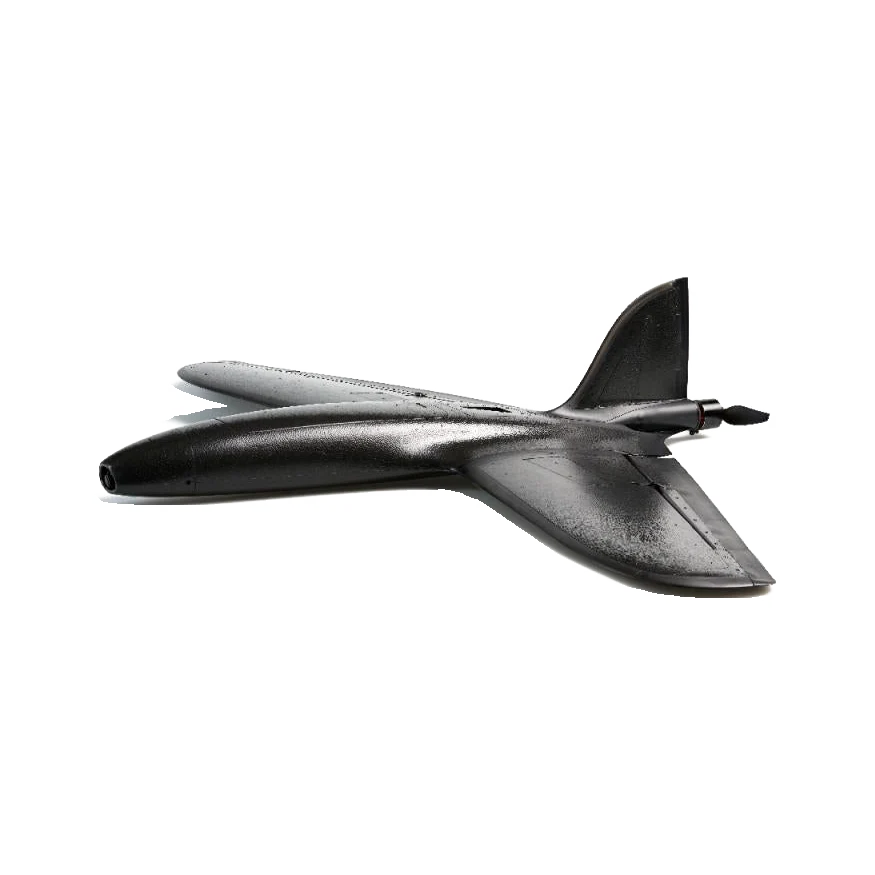

The TBS Mojito is an advanced forward-swept FPV flying wing platform that delivers unmatched efficiency and flight endurance. By focusing relentlessly on minimizing drag, the wing reaches speeds upwards of 200km/h (125mph), while cruising at 90-120km/h (60-75mph) with minimal power consumption. This efficiency allows longer flight time, great distances and dart-like tracking through the skies at a face-melting pace. It easily outperforms anything else currently available in its price range and conveniently dismantles into 3 pieces using push-to-release buttons at the end of every flight session.
The wing is built for analog and digital video links. We've made available 3D print files for front noses and camera mounts for a wide array of cameras and FPV systems and customizations, making it the perfect wing to experience and document your FPV adventures!
Airfoil and drag
The airfoil is derived from dynamic soaring gliders. All control surfaces and provisions for electronics are built internally to minimize drag. The leading and trailing edges are plastic injection molded to allow more precise chanelling of airflow. Additionally, the plane is made from the highest density foam to give the wing the thinnest possible airfoil, allowing the plane to cut through the sky effortlessly. For pinpoint accuracy landings, optional airbrake servos can be installed. All the measures combined make the plane durable, efficient, easy to build and usable for a variety of use cases.
Build and appearance
We've spared no expense to minimize building tolerances, using only the highest quality materials and manufacturing techniques. The Kit version comes 90% assembled out of the box. The plastic leading edge covers for the wings and vertical stabilizer are not glued to give you the ability to mount LED strips. That is the only building step required to finish the wing itself. Electronics installation is a breeze and is doable in an afternoon. We've put together a set with recommended electronics that you may choose to use - or roll your own! For the enthusiast, the DIY version delivers the wing in its raw form: The fuselage and wings are both delivered as two halves, and all plastic parts are provided separately. This gives the seasoned builder the capability to internally mount advanced sensors, and to completely customize the wing from the ground up.
Features
- High speed and extremely efficient performance envelope
- Ultra dense EPP material with plastic and carbon fiber reinforcements
- Optional airbrake servos installable to brake and slow down for landings
- Pre-cut camera, servo, battery, R/C receiver and receiver antenna slots

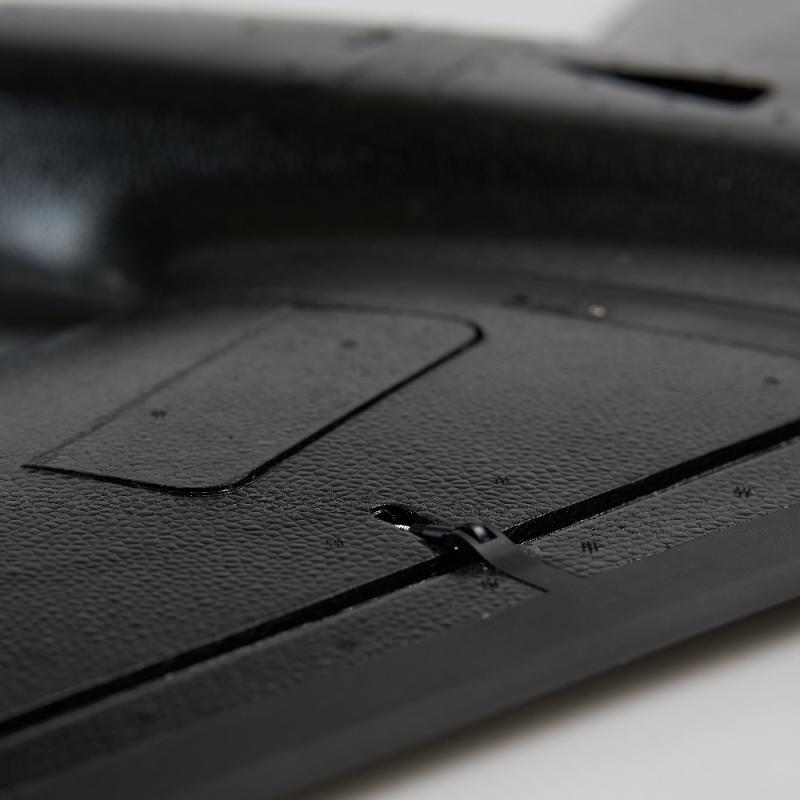

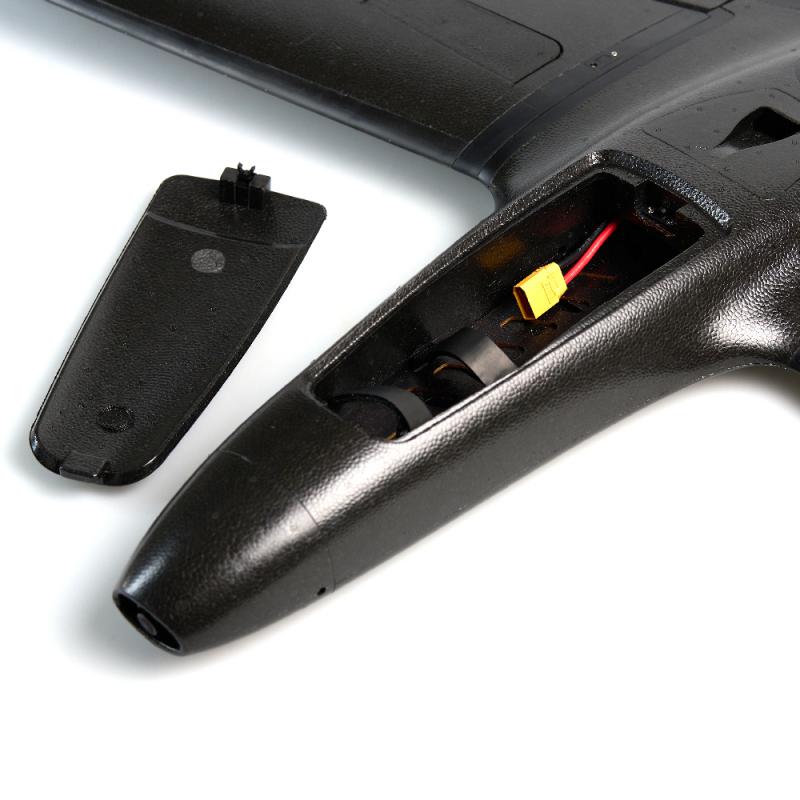

- 2x push-to-open equipment bays for R/C and FPV electronics

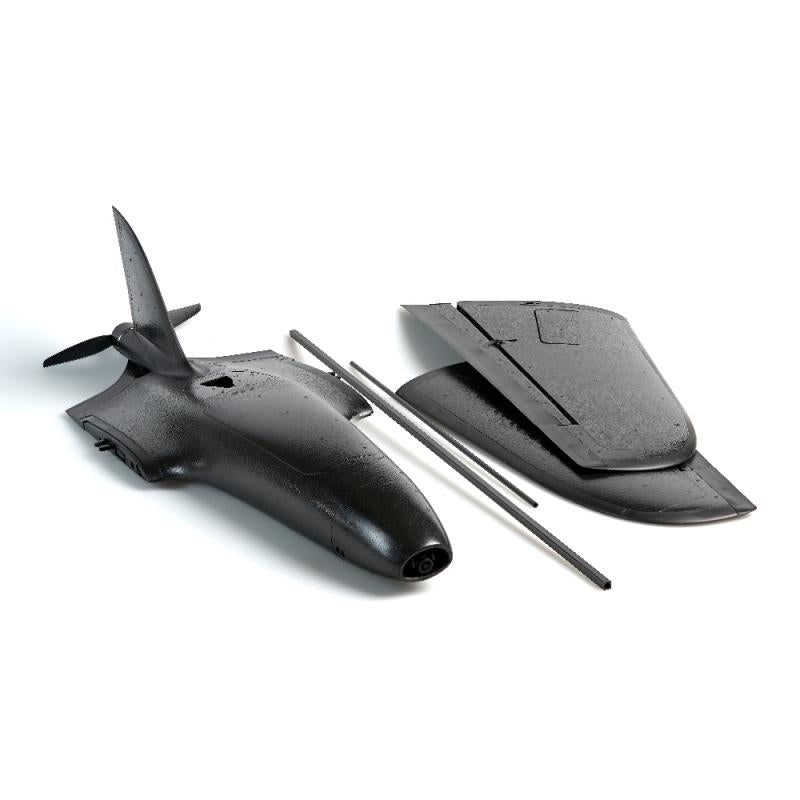

- Both wings are easily removable using push-to-open buttons
- Fully internal mechanical linkages
Specifications
- 50in / 130cm wingspan!
- 65oz / 1800g AUW or more
- Up to 60min flying time
- 60mi / 100km endurance
- Battery (6S-8S). Max dimensions 70 x 50 x 230 mm. 5000mAh 8S1P LiIon ideal
Recommended FPV and Radio equipment
- FPV: DJI O3 or O4, Walksnail or any analog video system
- R/C: TBS Crossfire Nano RX Pro or TBS Crossfire Nano RX
Includes
- TBS Mojito flying wing pre-assembled
- 2 servos installed for elevons
- TBS Mojito sticker sheet
- Carbon fiber reinforcement strips
