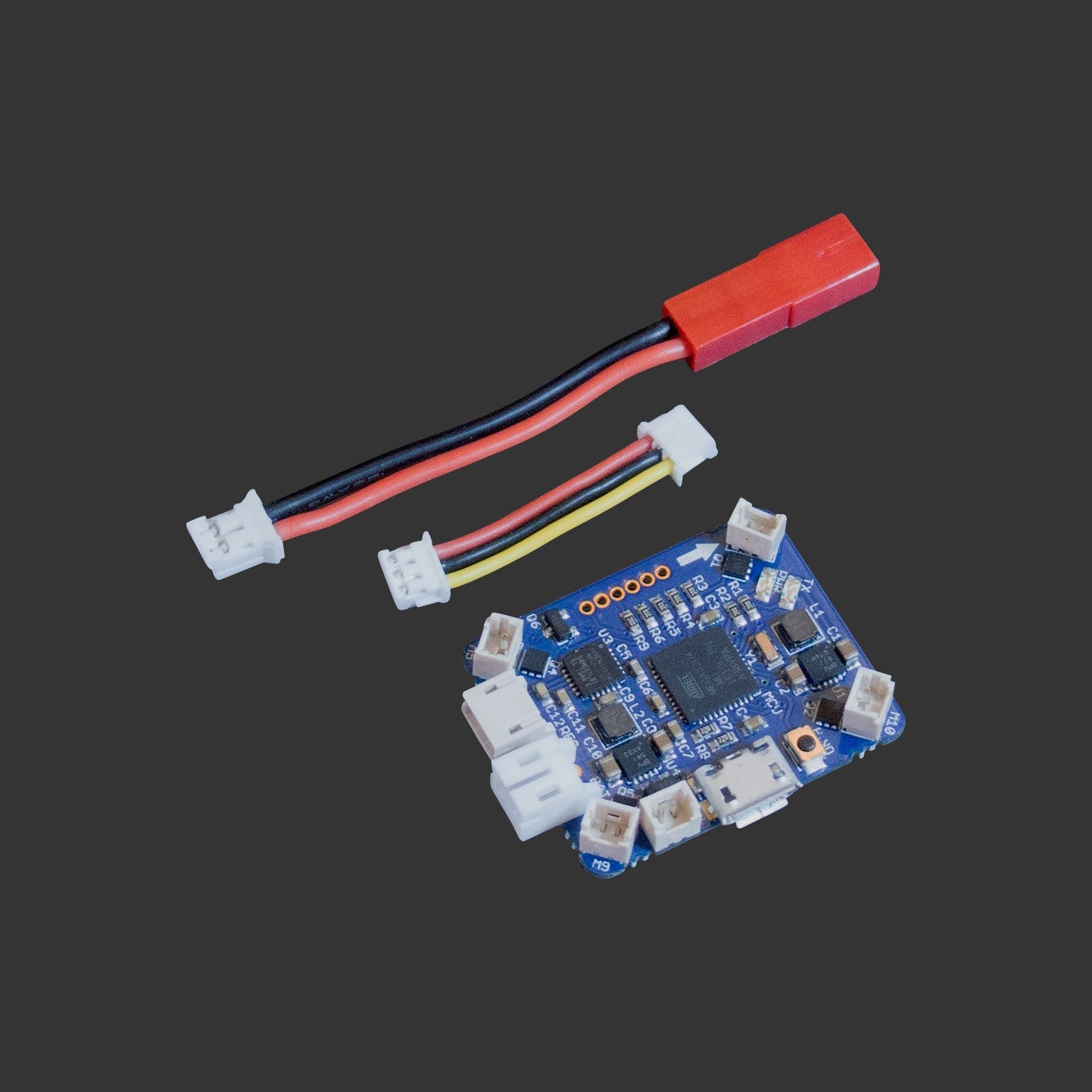

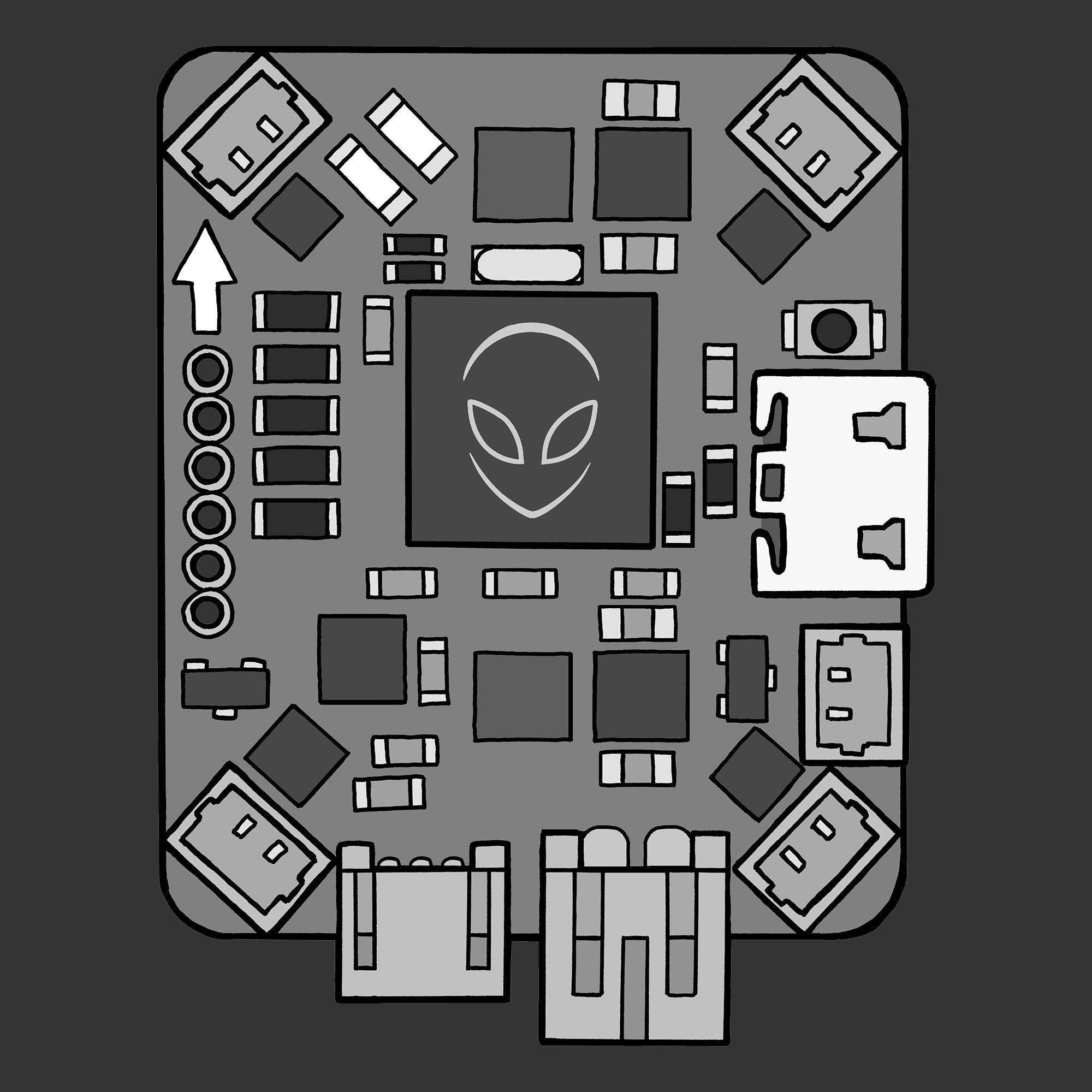

AlienFlight "Classic Narrow" Brushed FC
$41.95 AUD
Skip to product information
100+ In stock
AlienFlight "Classic Narrow" Brushed FC
$41.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
We open 7:30am Monday - weekend orders are usually ready to collect by 10am
Product details
SKU:
931
Shipping Weight:
10g
W/H:
U-02-G-06/10/12
Are you looking to buy AlienFlight "Classic Narrow" Brushed FC in Australia?
This is a historic flight controller!
Based on the original AlienWii design by Lance (2013), produced to the highest enterprise grade quality standards in Germany.
Every single controller is tested and programmed, FETs are load-tested individually.
To make it fly, you will need the following hardware:
- DSM(X) satellite receiver
- DSM(X) transmitter
- 100-150mm frame
- 7-10mm DC motors
- 50-70mm propellers
- 400-700mAh battery
specifications:
- ATmega32u4 mcu
- MPU6050 accelerometer/gyro sensor unit
- 4x 9.5A ESCs, integrated
- USB programmer, integrated
- serial connection for external DSM2/DSMX sat receiver
- bind button
- modular wiring and plugs
- dimensions: 26.7mm x 31.75mm
- weight: 3.6g (without Rx)
- included: receiver cable, JST power cable
IMPORTANT:
To configure basic settings (such as input ranges and receiver settings, you need to edit and compile an Arduino sketch.
You can find the latest sketch here: -> AlienWii Classic Narrow firmware
To fly this FC, you need an external DSM receiver. We recommend the LemonRX DSMX satellite RX.
To use a DSMX sat you must enable DSMX_BIND_11 or DSMX_BIND_22 and the corresponding SPEKTRUM 1024 or SPEKTRUM 2048
defines in config.h file and recompile with Arduino.
for more information, got to the related forum thread:
http://community.micro-motor-warehouse.com/t/alienflight-classic-narrow-interactive-manual/2580
or use the red help button below to send us a message!
