Product description
Are you looking to buy an Octopus V1.1 Control Board in Australia?

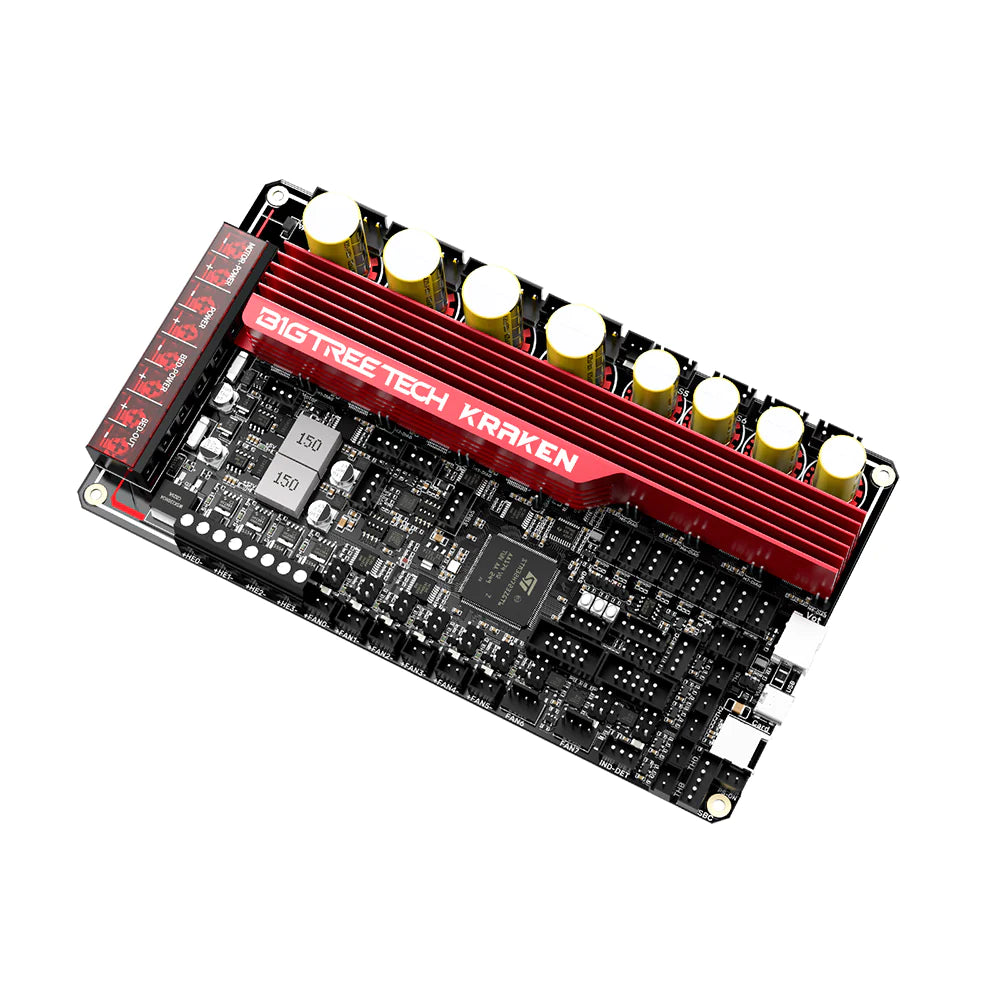

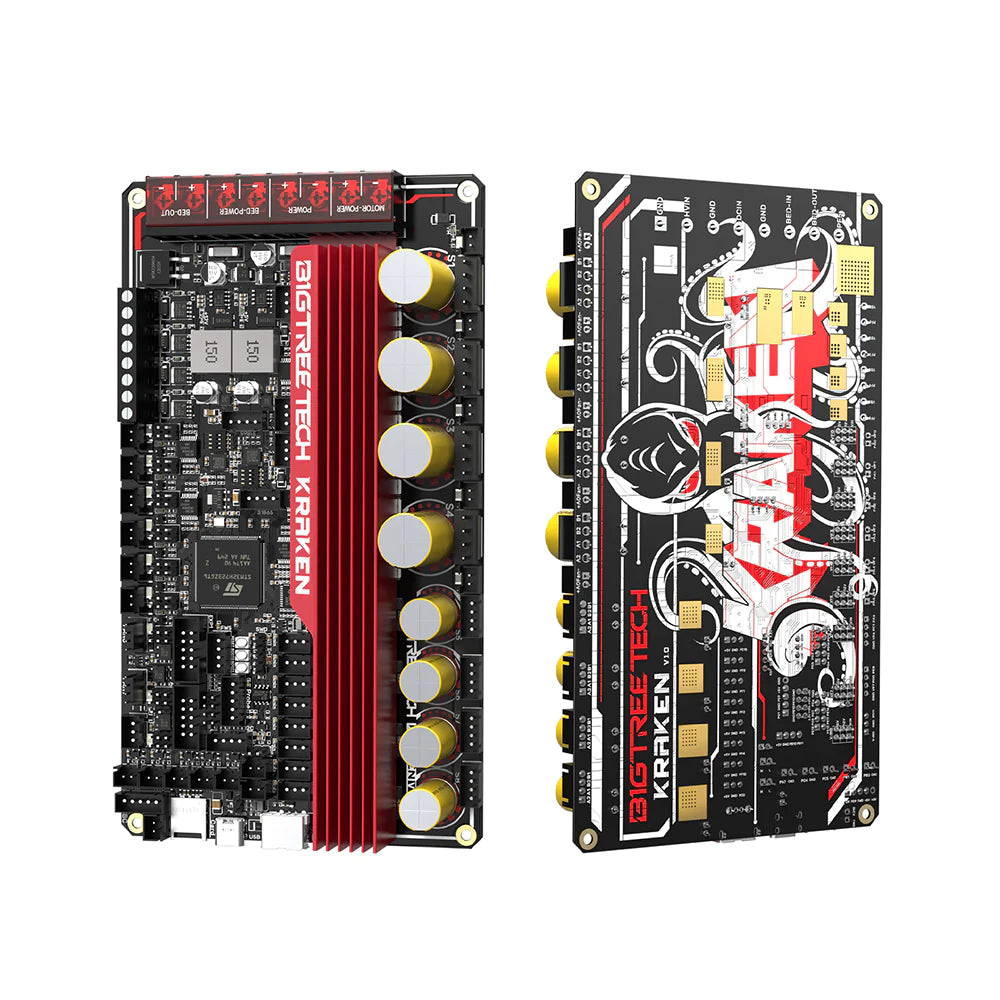

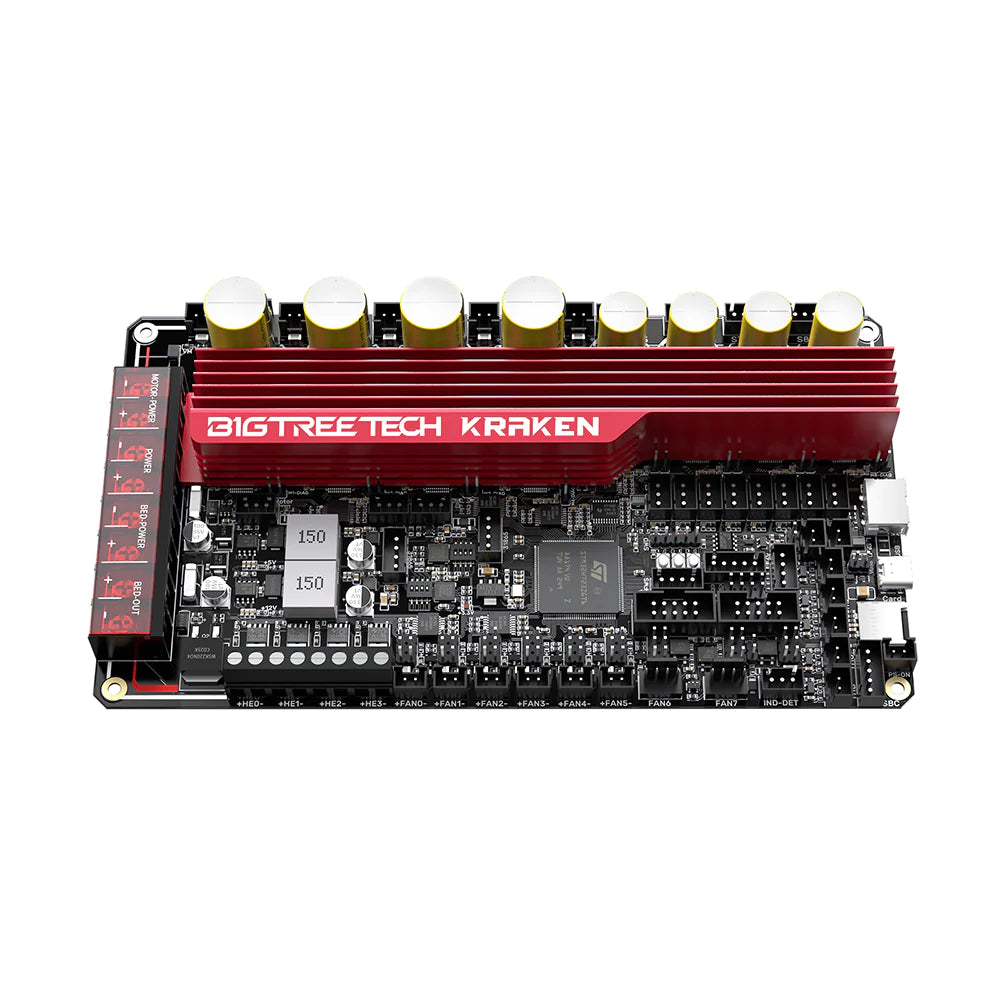

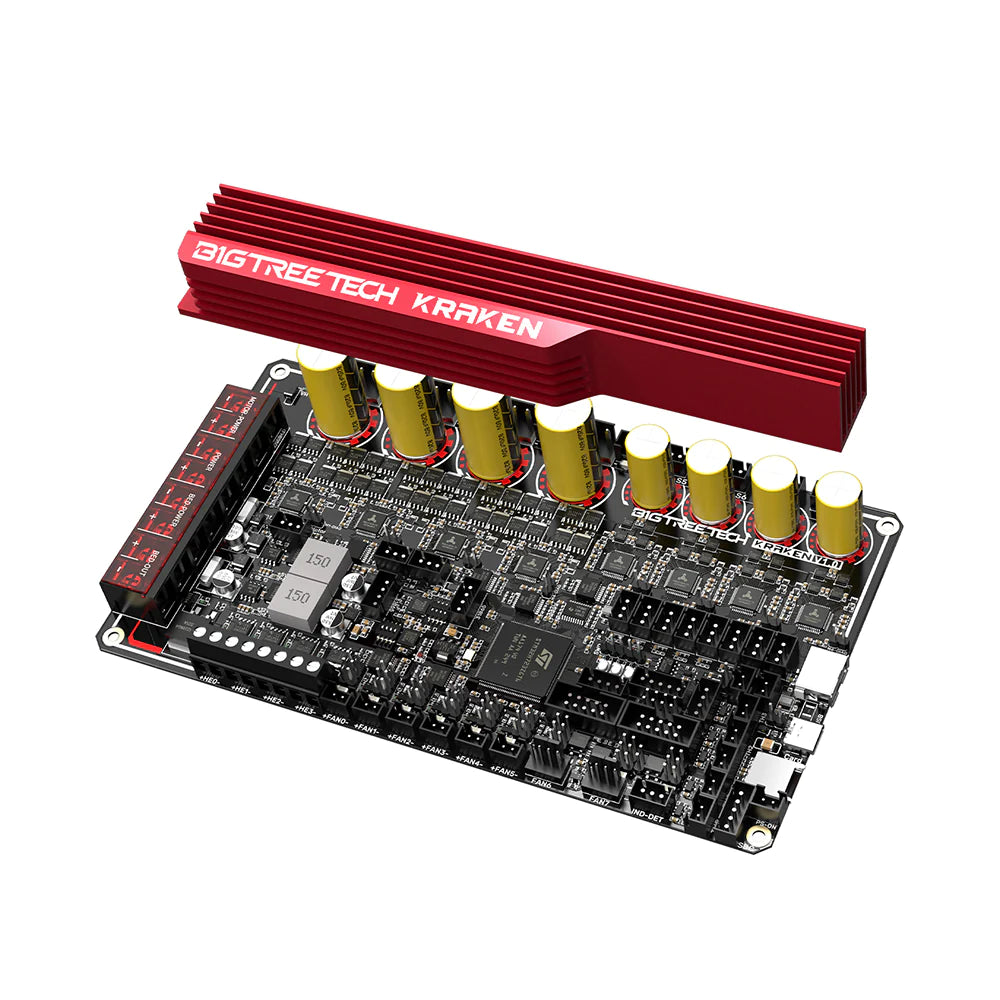

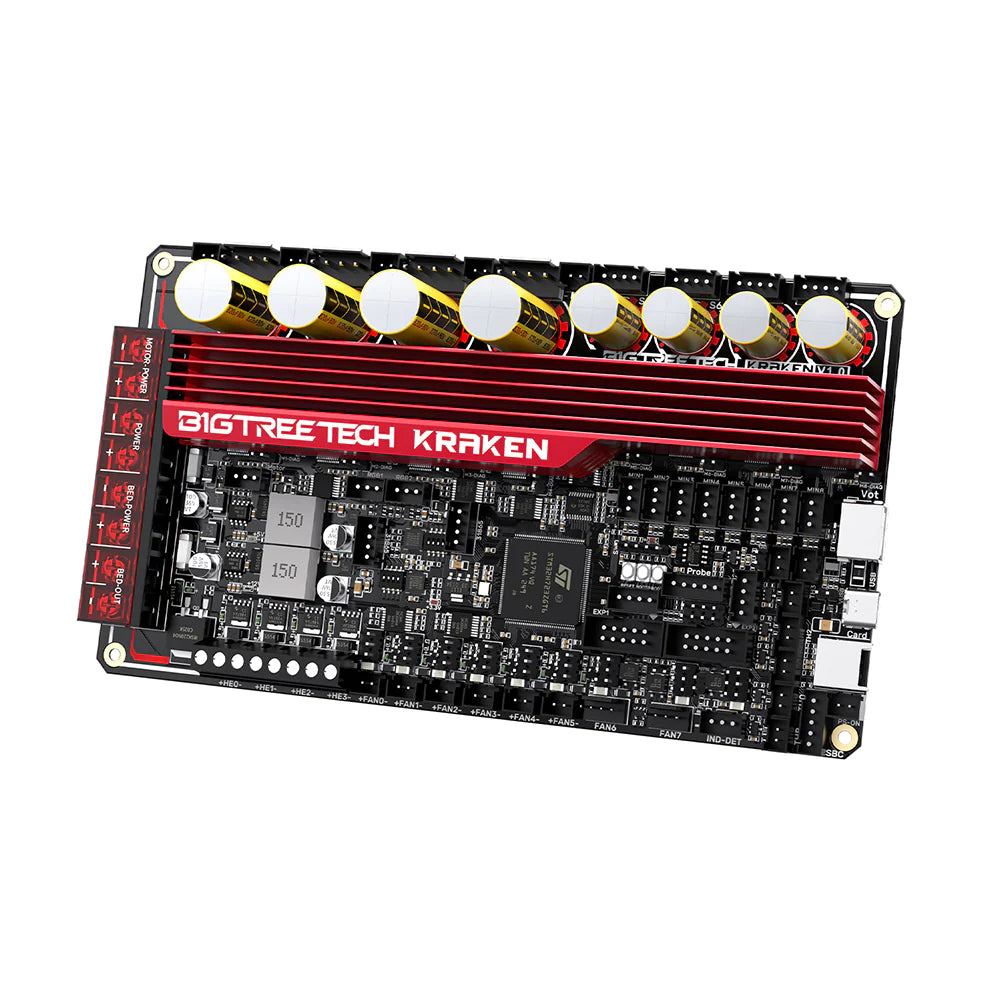

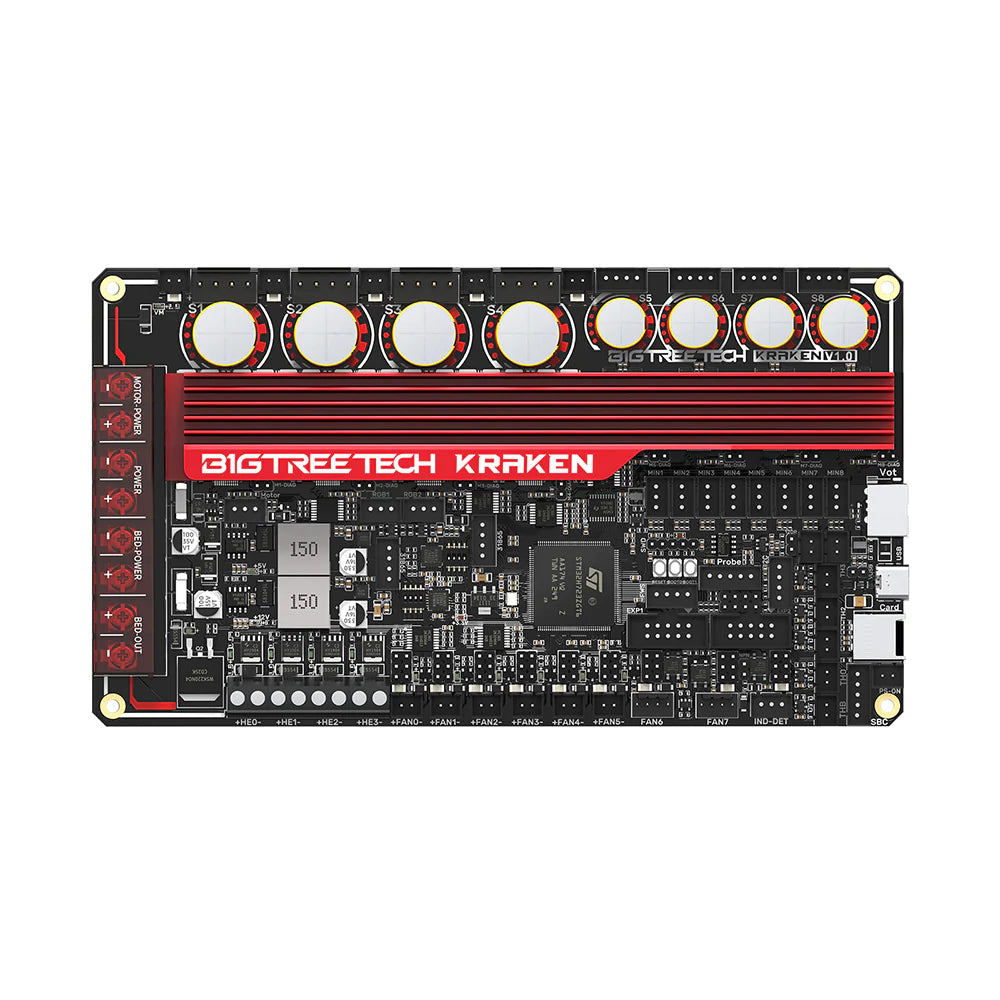

Introducing the BIGTREETECH Kraken High Current 8-axis motherboard, a powerhouse for 3D printing enthusiasts. Boasting a robust ARM Cortex-M7 STM32H723ZGT6 processor at 550MHz, this motherboard supports a wide array of expansion interfaces including BLTouch, servos, probes, and more. With versatile motor drivers (TMC2160) accommodating 24-60V and up to 8A driving current for M1-M4, it provides flexibility for various printer setups.
Operating on 12V or 24V, the Kraken supports multiple driver modes, including SPI, and caters to different heated bed input voltages. With compatibility for Cartesian, Delta, Kossel, Ultimaker, and CoreXY kinematics, it adapts seamlessly to diverse printing styles. The motherboard features a Type-C PC communication interface and supports popular slicers like Cura and Simplify3D.
Measuring at a compact 200 x 113mm, the Kraken offers impressive connectivity with fan interfaces, multiple temperature sensor interfaces, and convenient mounting dimensions. Compatible with Voron PHOENIX, Voron 2.4, Voron Trident, Vzbot, and more, the BIGTREETECH Kraken High Current 8-axis motherboard is the key to elevating your 3D printing experience.

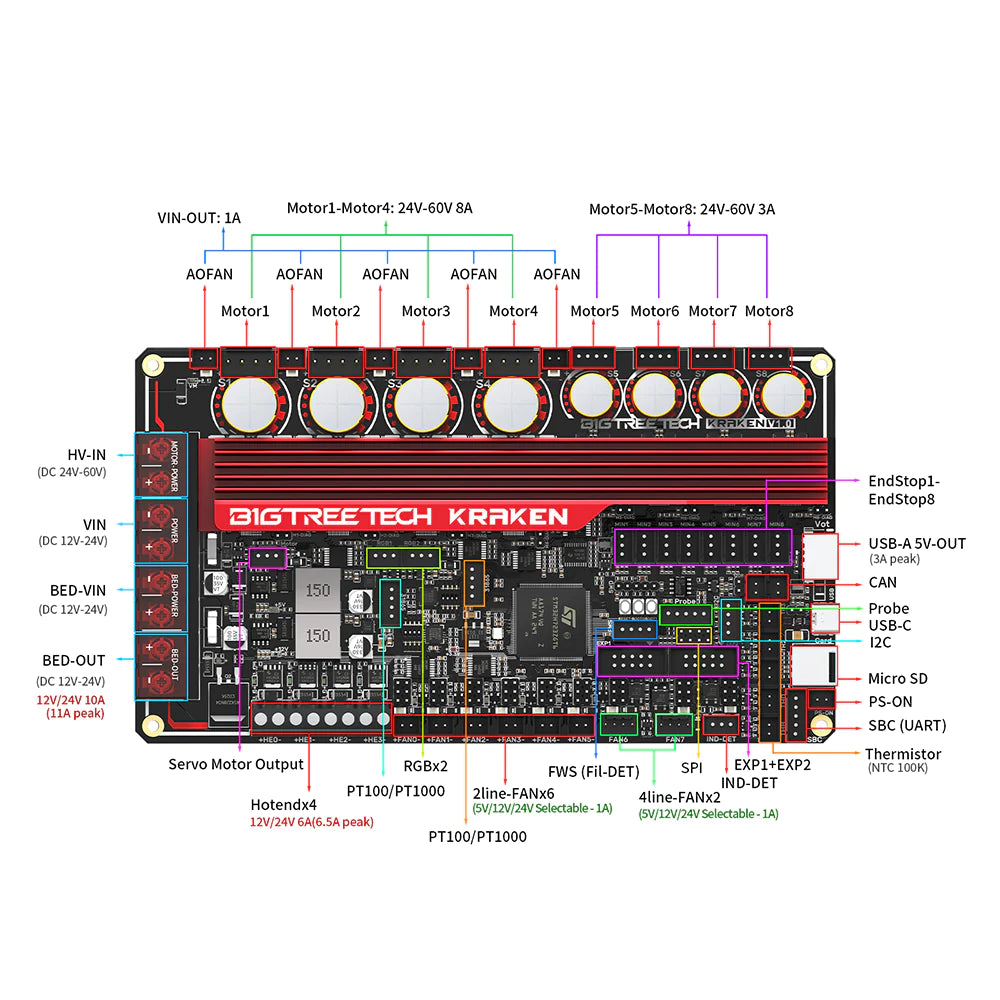

Specifications
- MCU: ARM Cortex-M7 STM32H723ZGT6 550MHz
- Driver Input Voltage: 24V, HV (24-60V)
- Motherboard Input Voltage: DCIN=DV12V or DC24V
- Heated Bed Input Voltage: BED IN= DC12V or DC24V
- Logic Voltage: DC3.3V
- Heating Interface: Heated Bed (HB), Heater Cartridge (HE0, HE1, HE2, HE3)
- Max Heated Bed Ouput Current: 10A, Peak 11A
- Max Heater Cartridge Output Current: 6A, peak 6.5A
- Fan Interfaces: 6x 2-pin CNC Fans (FANO, FAN1, FAN2, FAN3, FAN4, FAN5) 2x 4-pin CNC Fans (FAN6, FAN7), 5x Always-On Fan, CNC Fans Voltage (5V, 12V, 24V) Selectable
- Max Fan Ouput Current: 1A, peak 1.5A
- Total Current for Heater Cartridge + Fans: Less than 14A
- Motherboard Max 5V Output Current: 5A (peak 6A)
- Motherboard Max 12V Output Current: 5A (peak 6A)
- Expansion Interfaces: BLTouch (Servos, Probe), Servo, Filament Sensor, PS-ON, I2C. RGBx2, SPI, SBC (UART), EXP1+EXP2, CANx2, PT100/PT1000x2, USB-A 5V Power, Proximity Switch, etc.

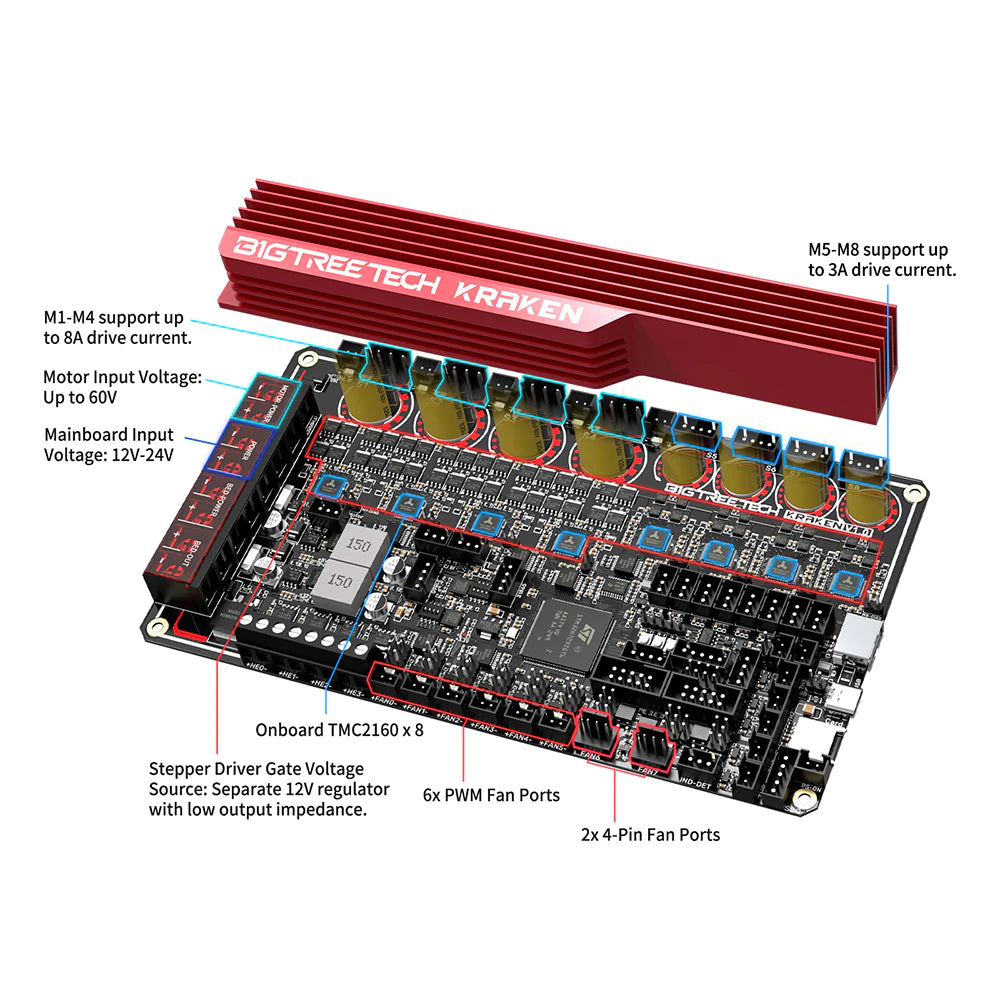

- Motor Drivers: Onboard TMC2160, support 24-60V, Max 8A driving current for M1-M4, Max 3A for M5-M8
- Driver Modes: SPI
- Motor Interfaces: M1, M2, M3, M4, M5, M6, M7, M8
- Temp Sensor Interfaces: 5x 100K NTC, 2x MAX31865
- Display: LCD
- PC Communication: Type-C
- Supported Kinematics: Cartesian, Delta, Kossel, Ultimaker, CoreXY
- Recommended Slicer/Console: Cura, Simplify3D, Pronterface, Repetier-host, Makerware
- Firmware Support: Klipper, Marlin, RRF

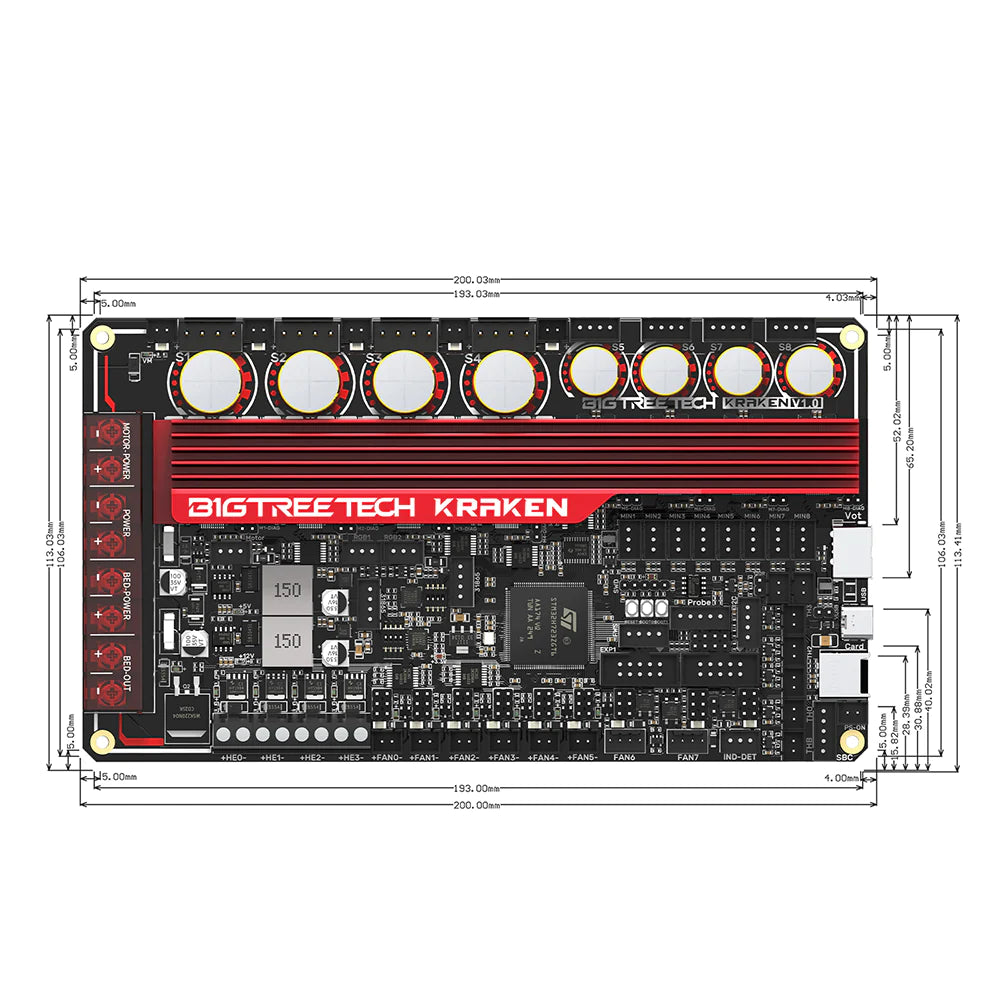

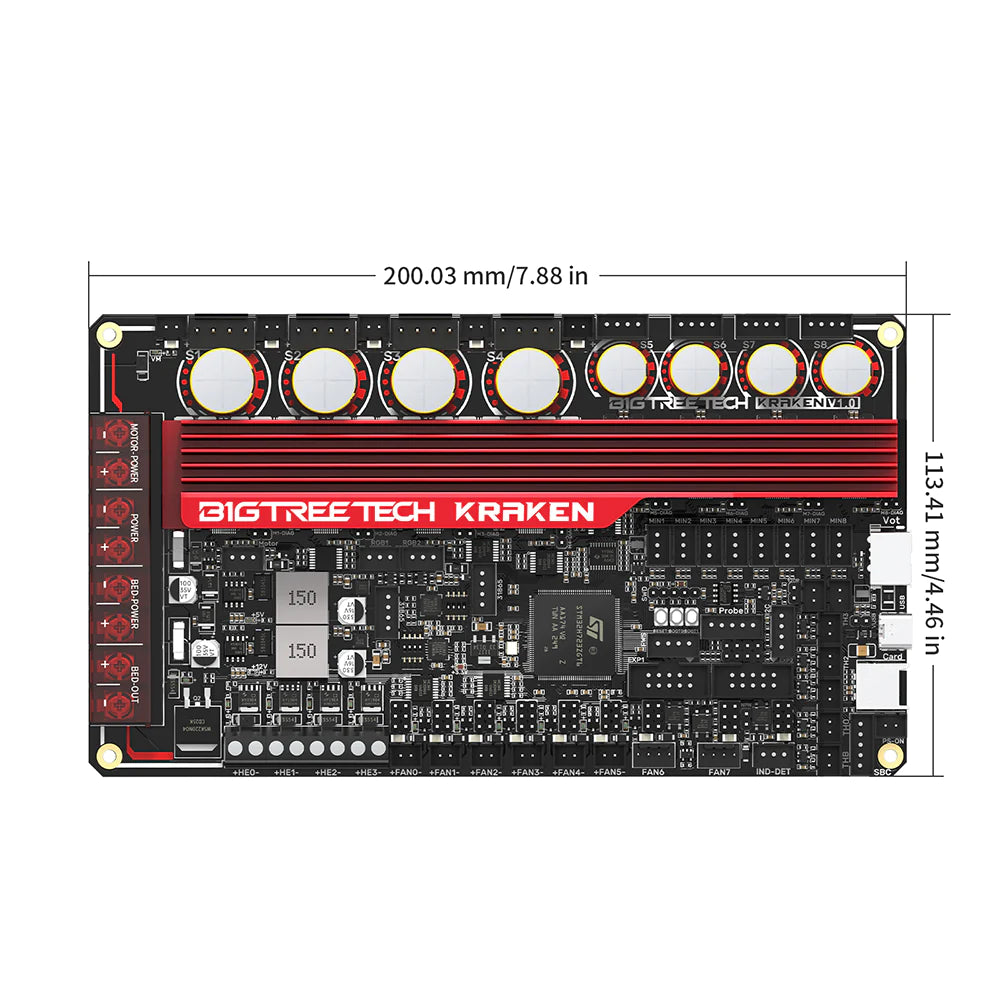

- Dimensions: 200 x 113mm
- Mounting Dimensions:193 x 106mm
- Compatibility: Voron PHOENIX,Voron 2.4,Voron Trident,Vzbot,etc.

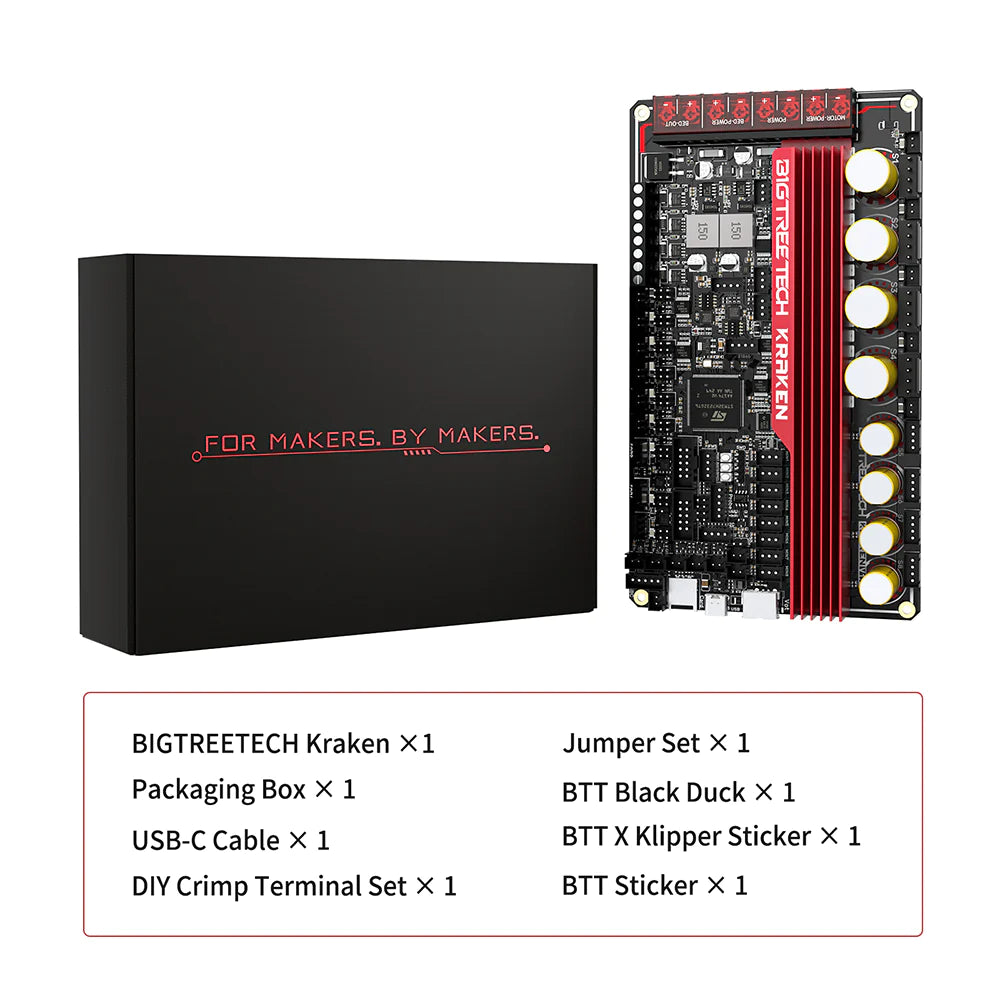

Includes
- 1x BigTreeTech Kraken
- 1x USB-C Cable
- 1x DIY Crimp Terminal Set
- 1x Jumper Set
- 1x BTT Black Duck
- 1x BTT X Klipper Sticker
- 1x BTT Sticker
