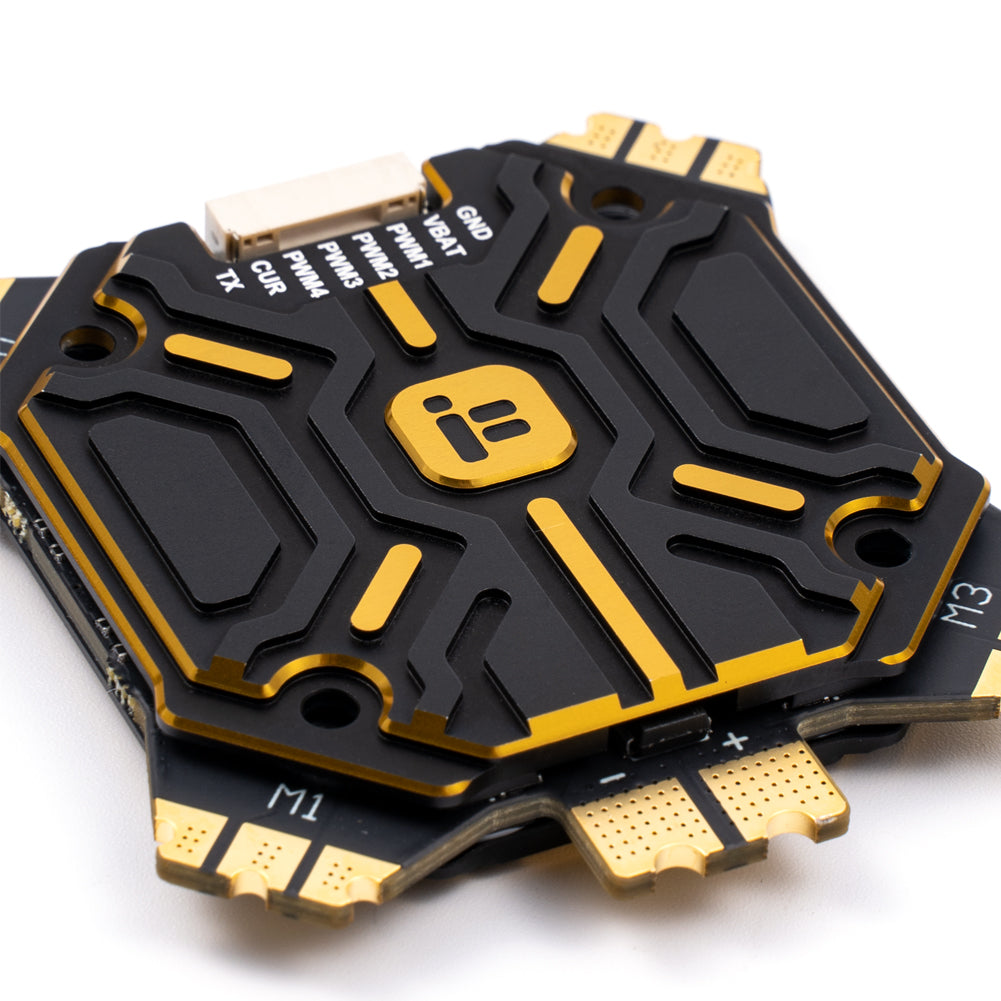

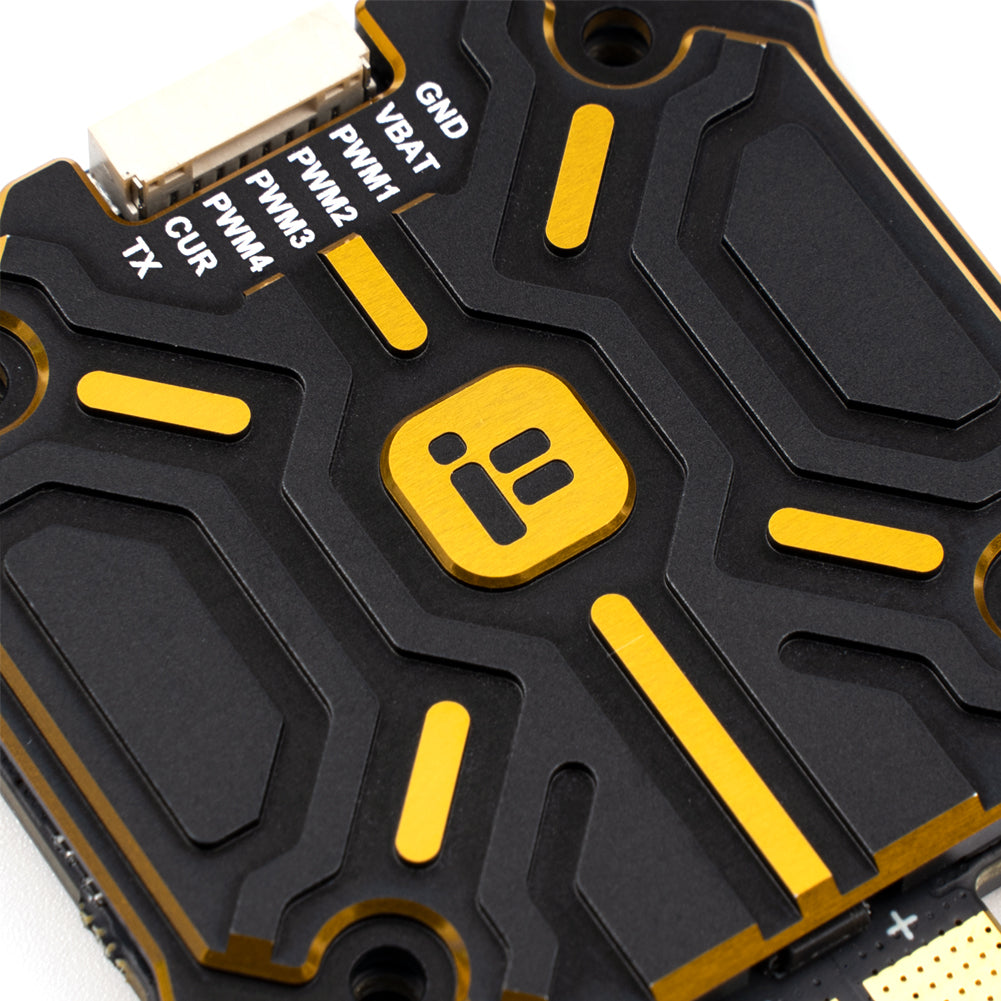

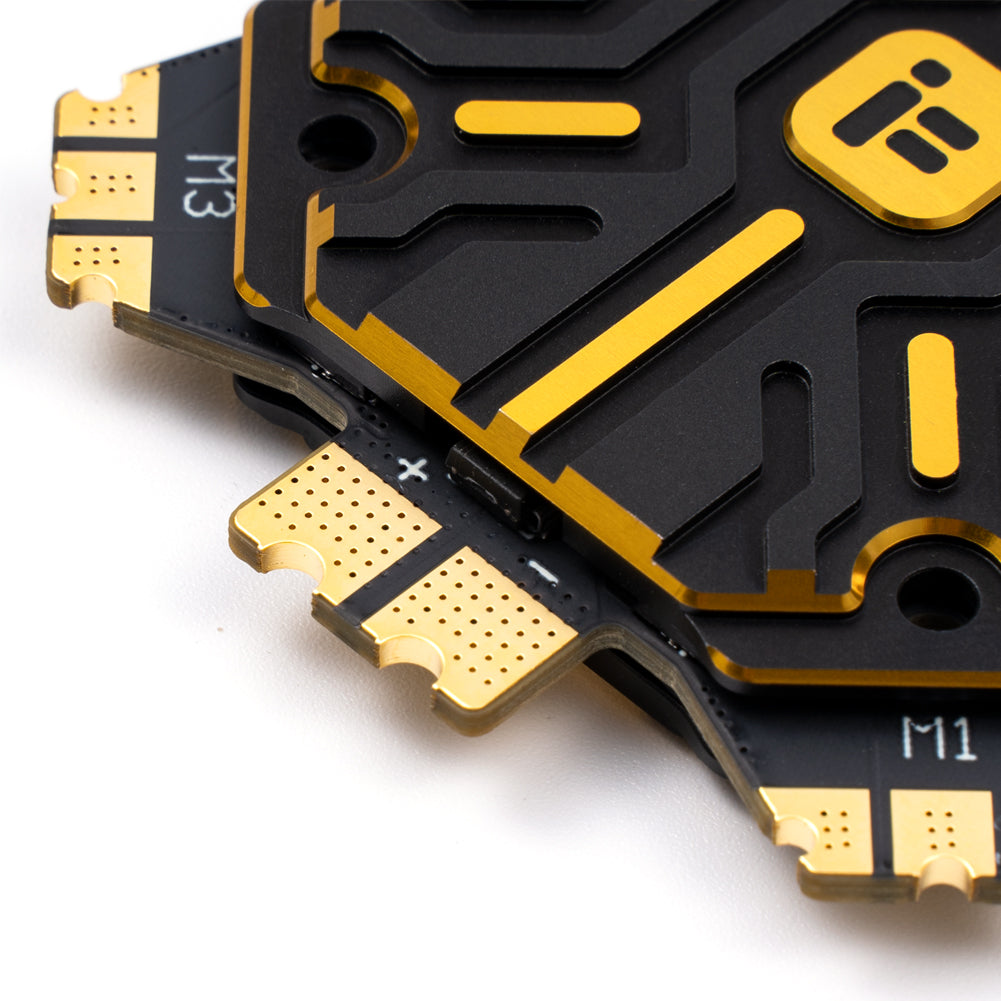

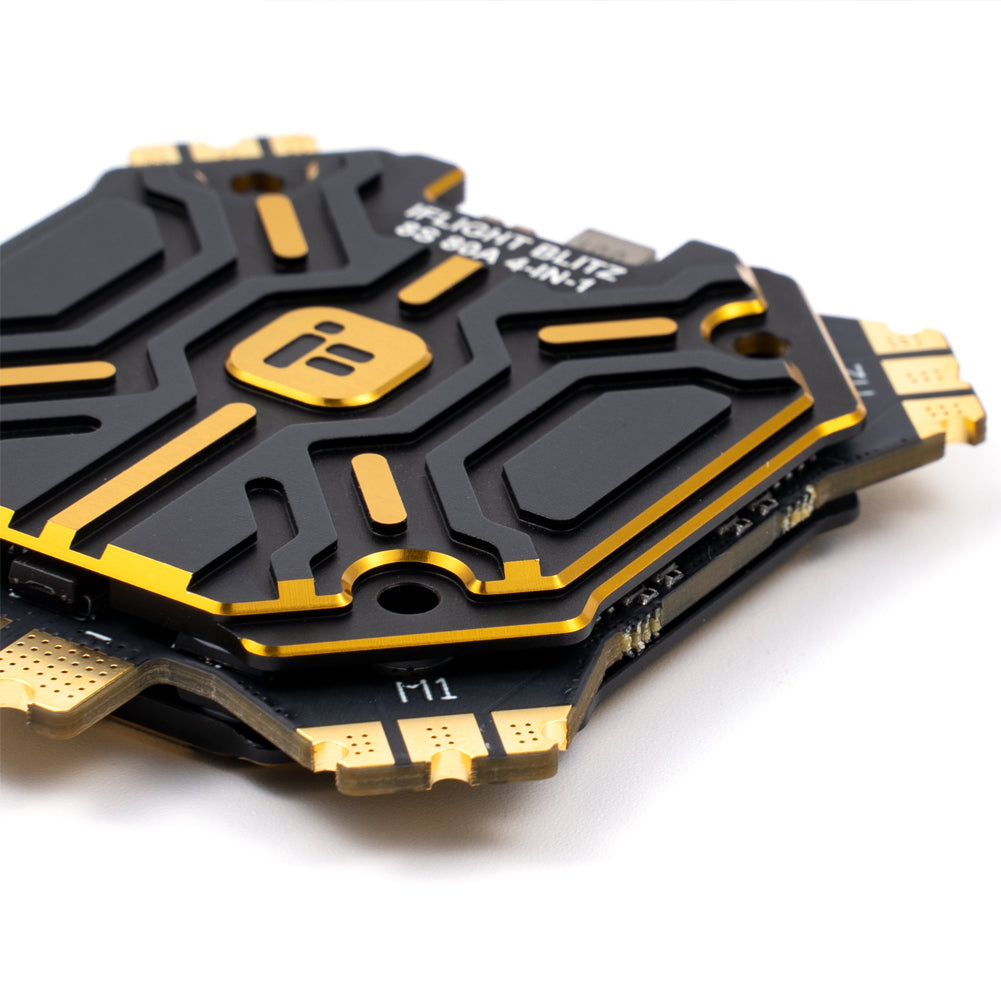

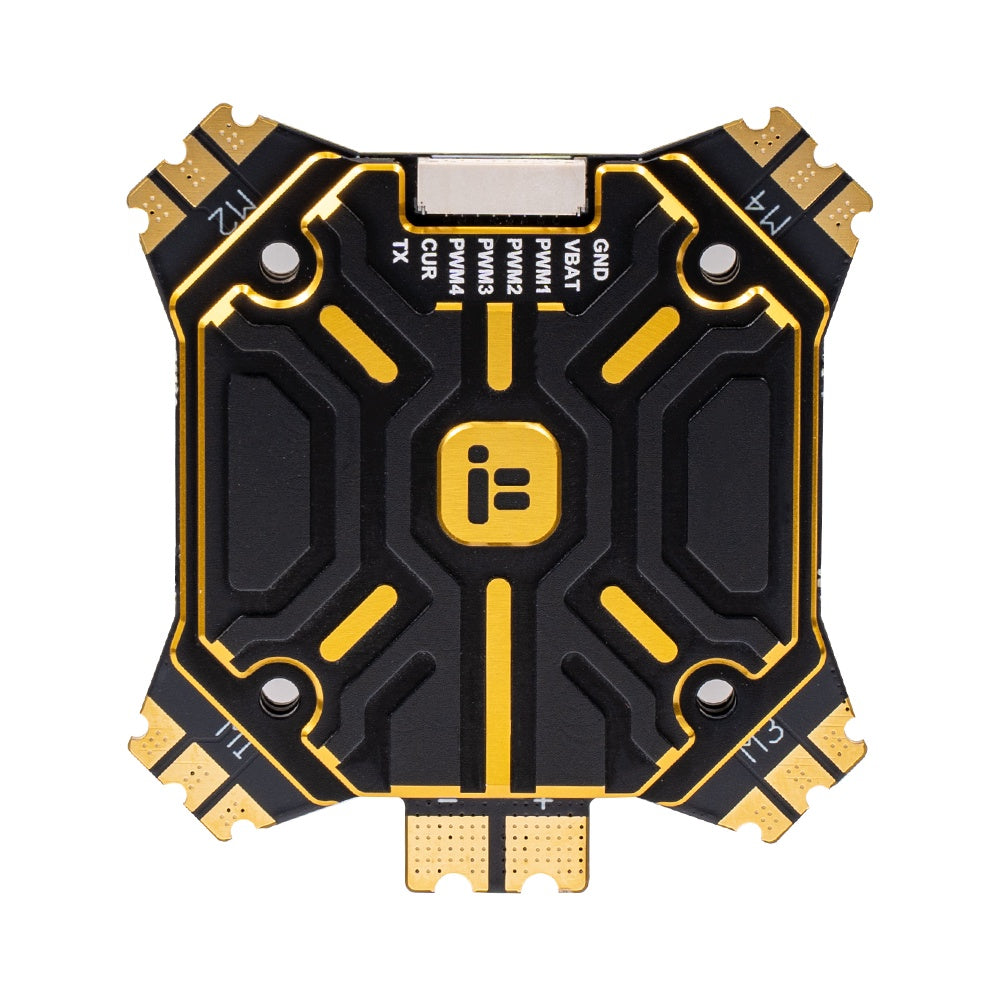

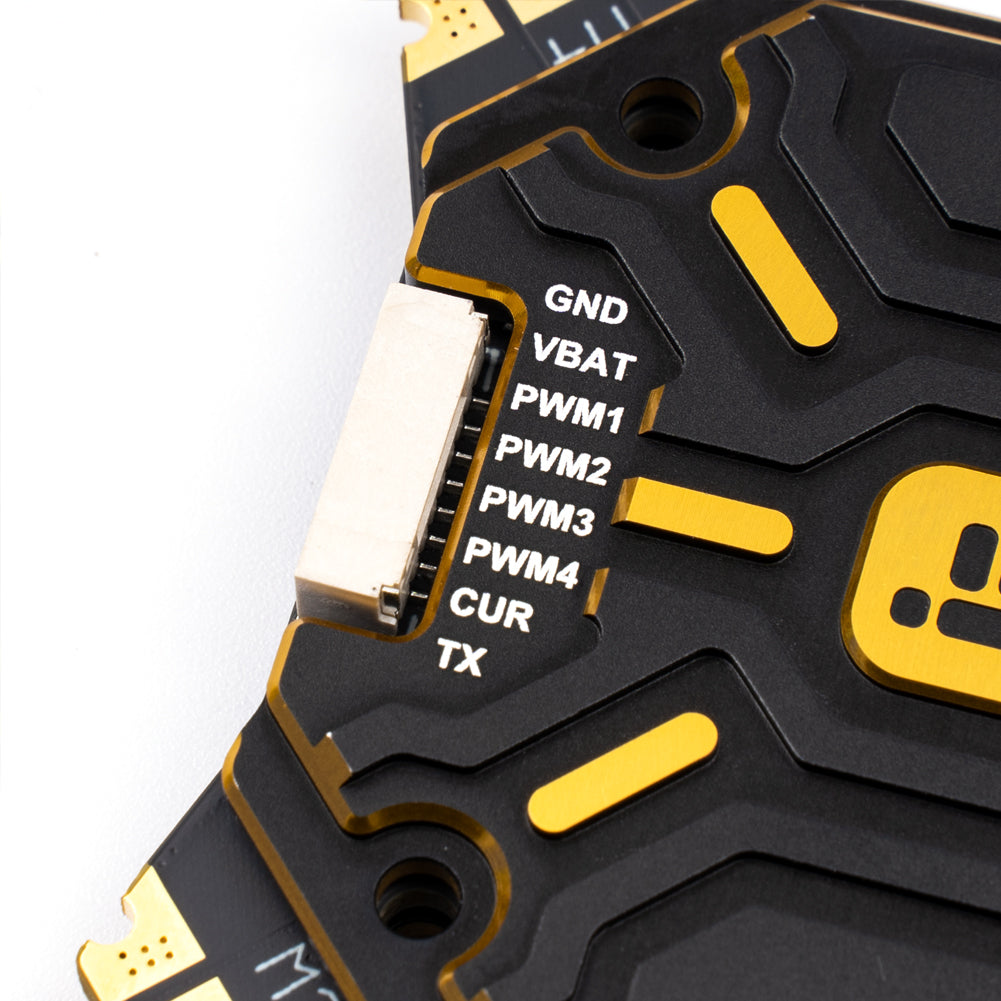

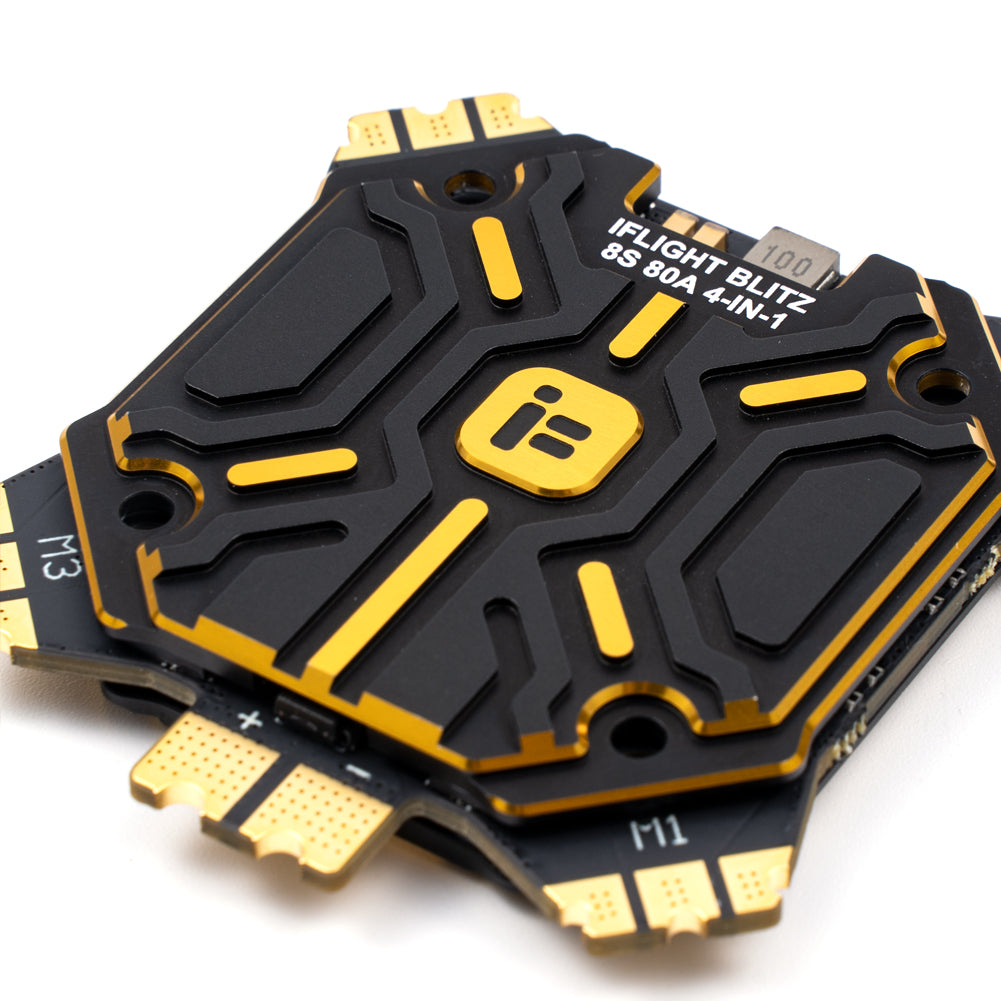

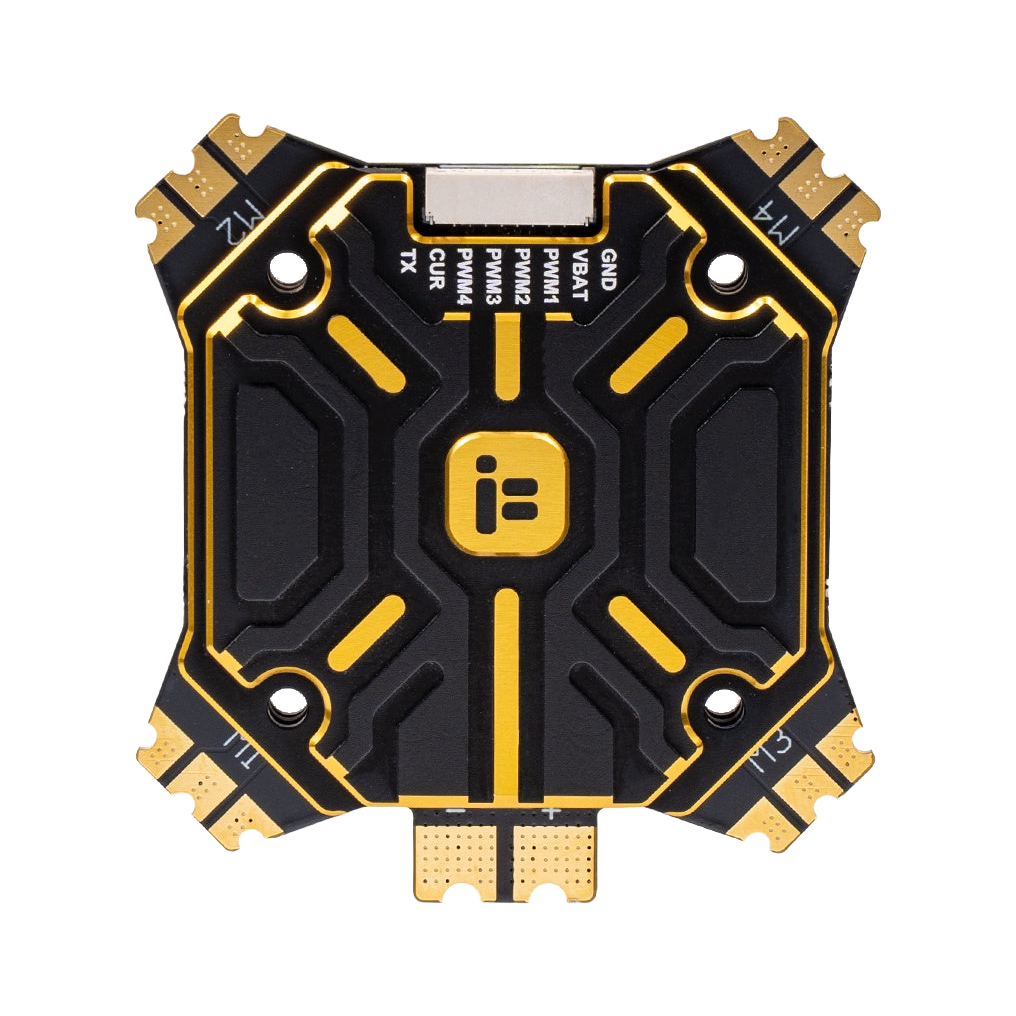

iFlight BLITZ E80 4-IN-1 Pro 80A ESC (G2)

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features:

•  Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
• G071 MCU, 48mHz maximum clock speed;
• TDK MLCC Low ESR ceramic capacitors;
• Top grade PSMN1R0-40YLD MOSFET;
• 8 layers double-sided PCB board

Specification:

• BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases
• Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
• Constant current：80A，100A（Burst)
• Mounting Holes: 35*35mm/Φ3mm
• Current sensor: Yes, scale 100
• Firmware: IFLIGHT_BLITZ_G2
•  Telemetry: Supported

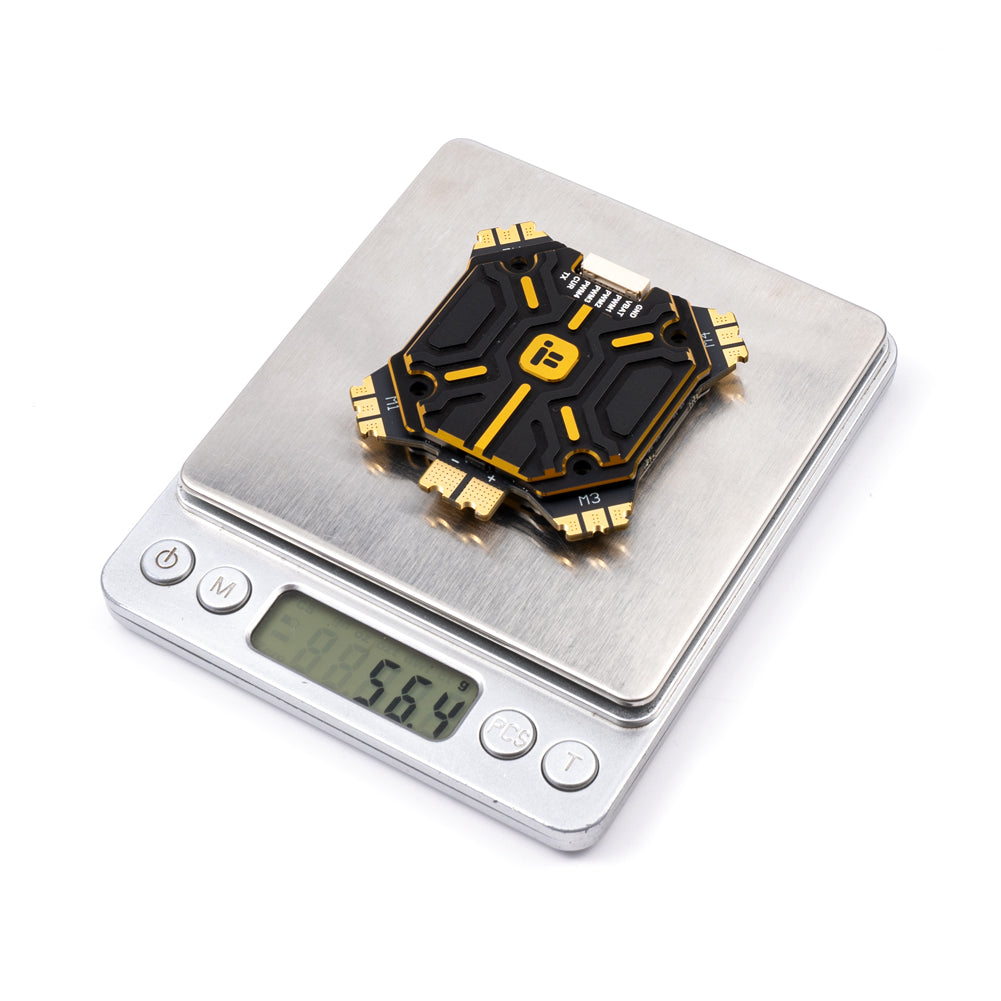

•  Weight:65g(±10)
• Volts input: 2-8S
• BEC: No

Package included:

•  1 x BLITZ E80 4-IN-1 Pro ESC (G2）
