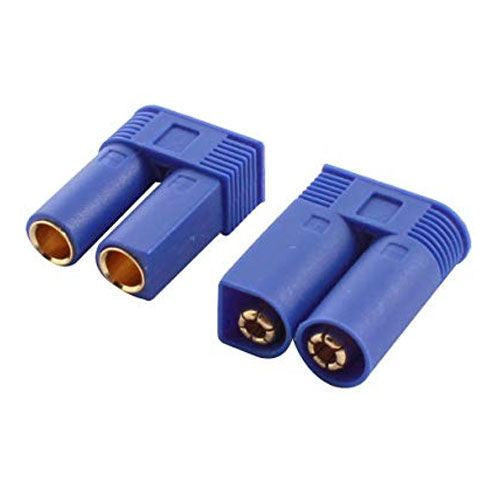

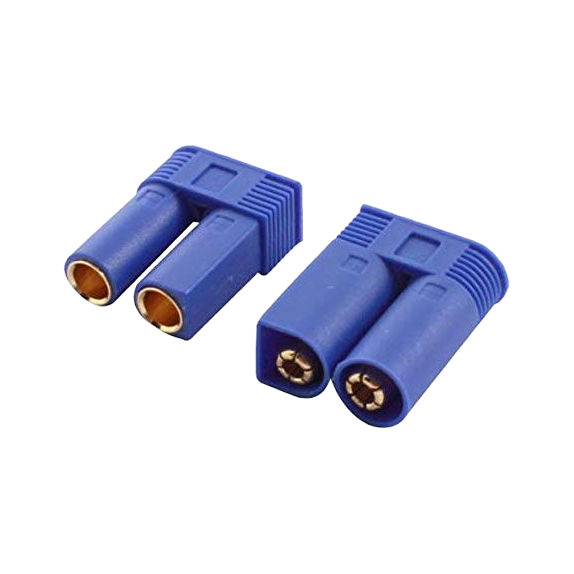

EC5 Connector Male & Female Pair
$4.95 AUD
Skip to product information
20+ In stock
EC5 Connector Male & Female Pair
$4.95 AUD
GST included
Sale ends in
--d
--h
--m
--s
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
SKU:
26130
Shipping Weight:
35g
W/H:
T-05-E-02
Tags:
Connectors, EC5
Are you looking to buy EC5 Connectors in Australia?
EC5 Connectors are rated for up to 120 amps of continuous load. These are perfect for large 1/4 scale electrics and 700 size electric helis. They are the more expensive connectors in the market but offer a good solution for very high current situations.
EC5 plug for middle & high current RC and robotics projects.High quailty fireproof materials and low resistance metal connectors.100A continuous / 150A maximum with 10AWG wire.Longer 5.0mm bullet connectors for more secure connection.Ergonomically pleasing and easy to grip.Protected to avoid shorting and reverse polarity. Designed with convenience and reliability in mind.
Common Connection Methods
| ESC / Charger Side: | Male Golden Bullets Inside The Bigger Plastic Case |
| Battery Side: | Female Golden Bullets Inside The Smaller Plastic Case |
Dimensions of plugs while attached together is 9.5mm x 19.6mm x 33.4mm.

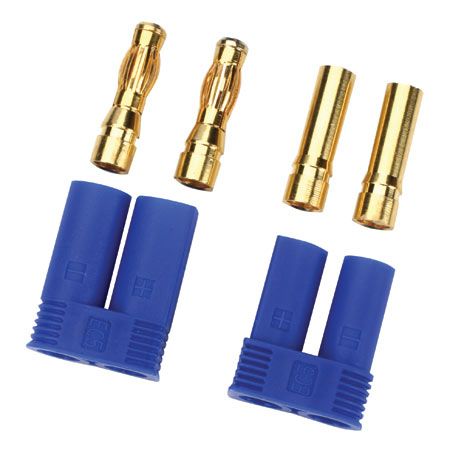

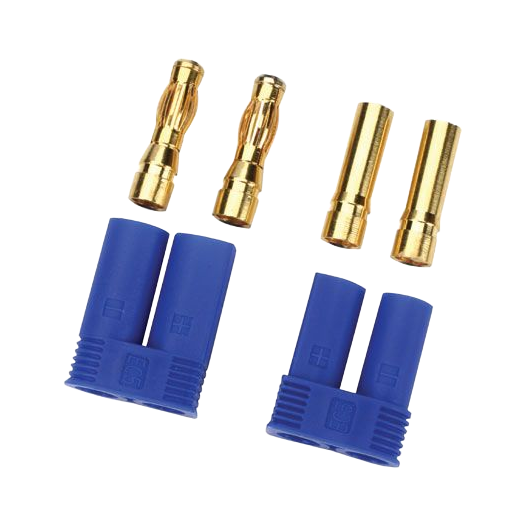

Includes
- 2x EC5 male plastic case
- 1x EC5 female plastic case
- 2x15mm male bullet connectors
- 2x25mm female bullet connectors
