Specifications

FC

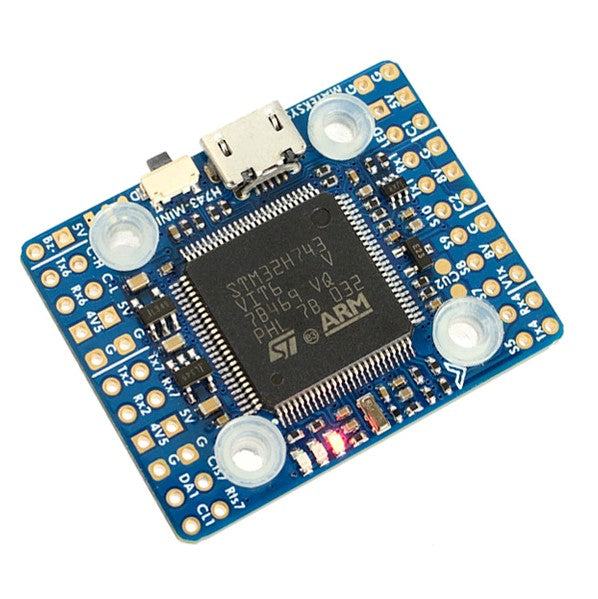

  • MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
  • IMU: ICM42688P & ICM42605
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card socket (SDIO)
  • 5.5x Uarts (1,2,4,6,7, Rx8)
  • 11x PWM outputs(S1~S10, LED)
  • 2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)
  • 1x CAN (C-H, C-L pads)
  • 5x ADC (VBAT, Current, RSSI, VB2, CU2)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
  • Dual Camera Inputs switch
  • 8V power ON/OFF switch

Power

  • Vbat Input: 6.3~36V (2~8S LiPo)
  • BEC: 5V 1.5A cont. (Max.2A)
  • BEC: 8V 1.5A cont. (Max.2A),   8V outputs stable when Vbat>=10V,  8V outputs 80% of Vbat when
  • Vbat< 10V
  • LDO 3.3V: 200mA
  • VB2 pad supports Max. 69V (voltage divider 1K:20K)
  • Static power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot

FC Firmware

  • ArduPilot(ChiBiOS): MATEKH743
  • BetaFlight: MATEKH743
  • INAV: MATEKH743 (To be supported soon)

Physical

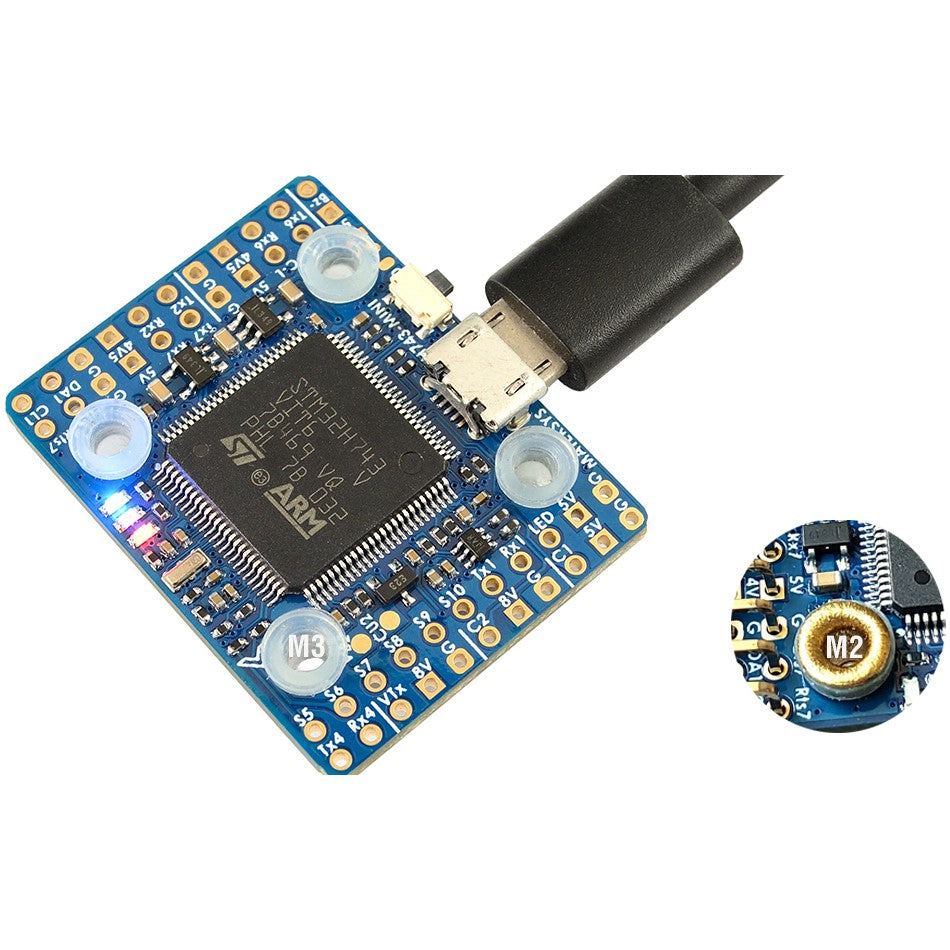

  • Mounting
    • 20 x 20mm/Φ3mm with Silicon Grommets
    • 20 x 20mm/Φ2mm with Silicon & Brass Grommets

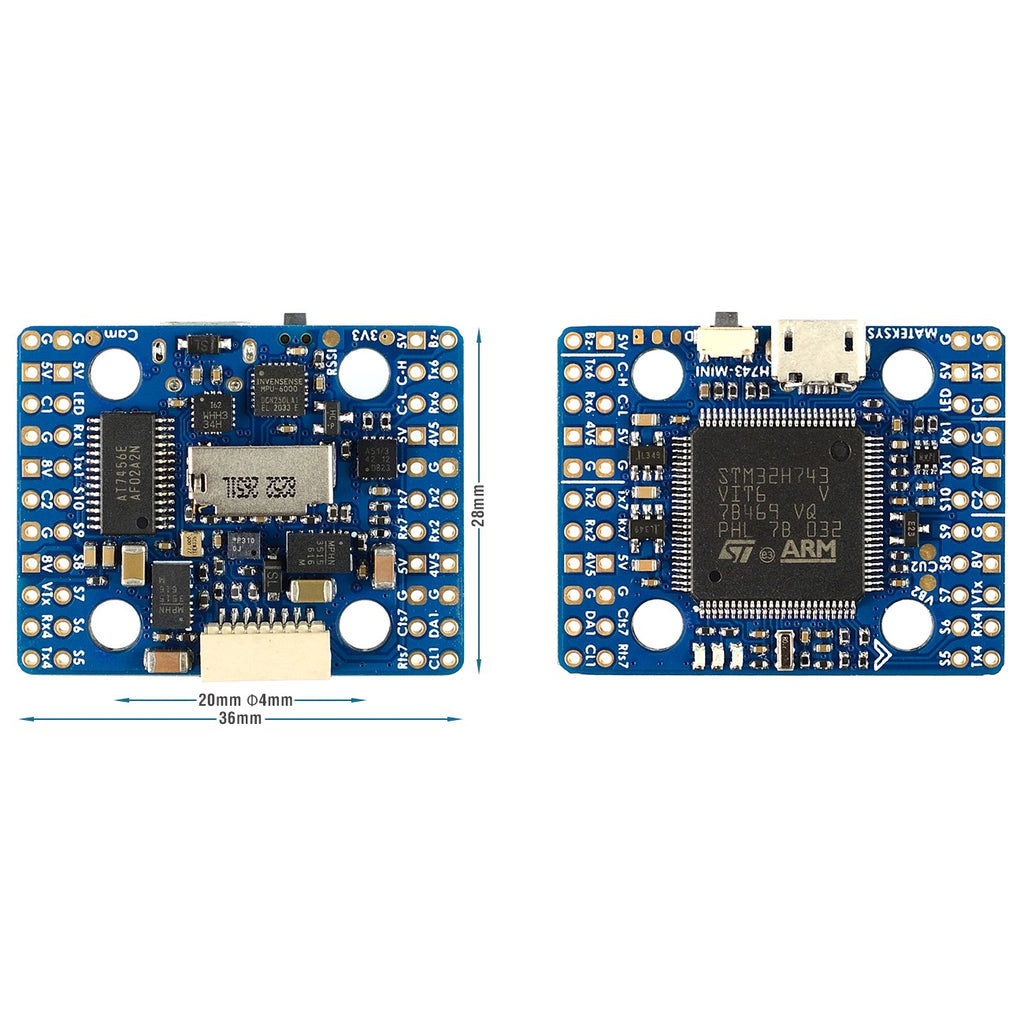

  • Dimensions:  36 x 28 x 6.5mm
  • Weight: 7g

Includes

  • 1x H743-MINI
  • 6x Silicon grommets M4 to M3
  • 6x Brass grommets M3 to M2
  • 1x JST-SH1.0_8pin cable, 5cm
  • 2x JST-SH1.0_8pin connectors
