LDO NiteHawk 36 Toolhead

Are you looking to buy LDO NiteHawk 36 Toolhead in Australia?

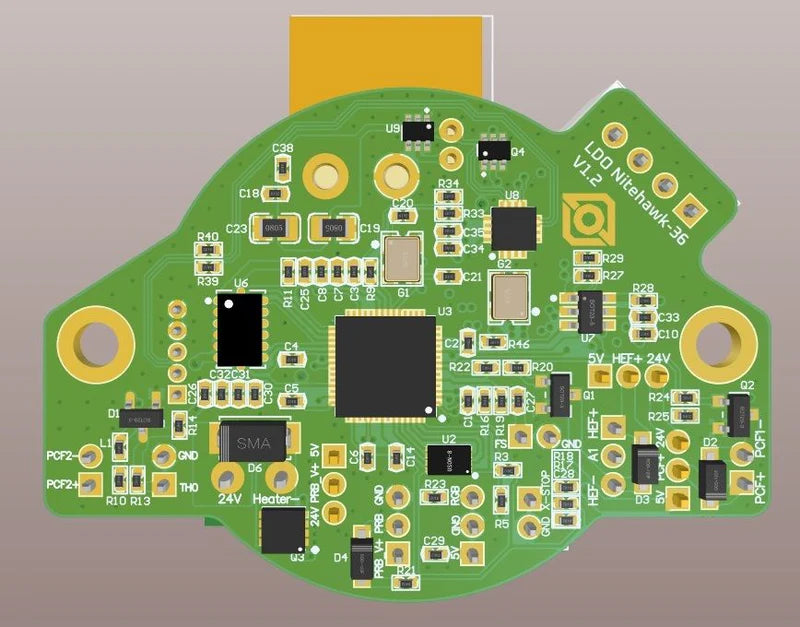

Nitehawk-36 by LDO is a toolboard featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB based connection method allows for a simple and easy setup compared to other CAN toolboards. The USB connnection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe.

Features

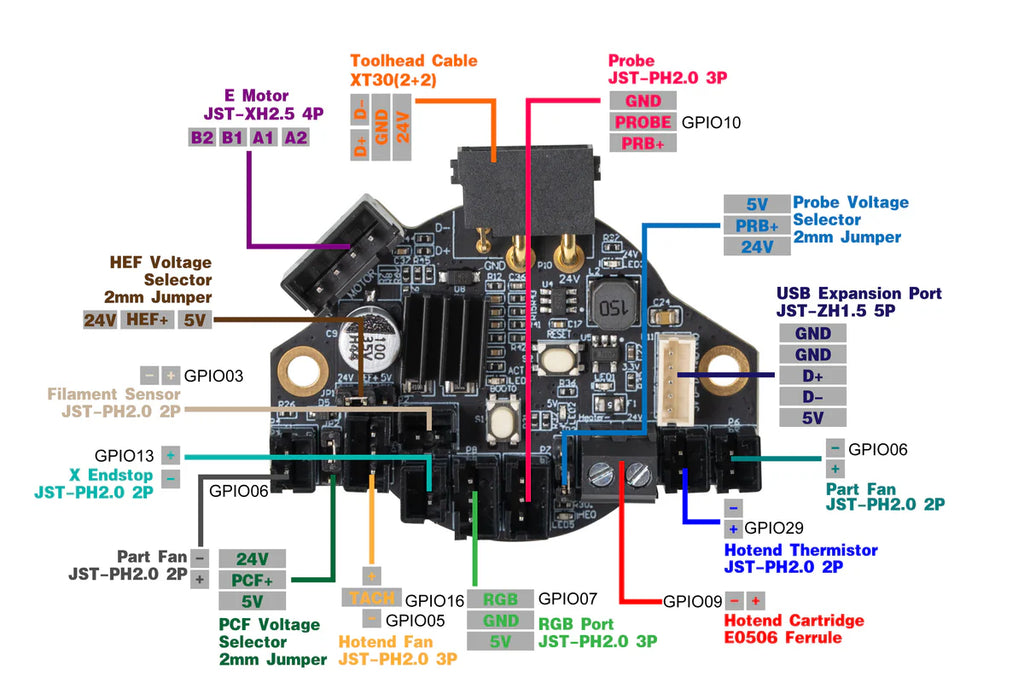

• Convenient wiring, no more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host.
• USB Klipper connection, no additional software or hardware setup compared to CAN.
• Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.
• Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
• Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer.
• Tacho enabled HEF, the hotend fan port is three pin tachometer compatible, allowing for additional diagnostics and safety.

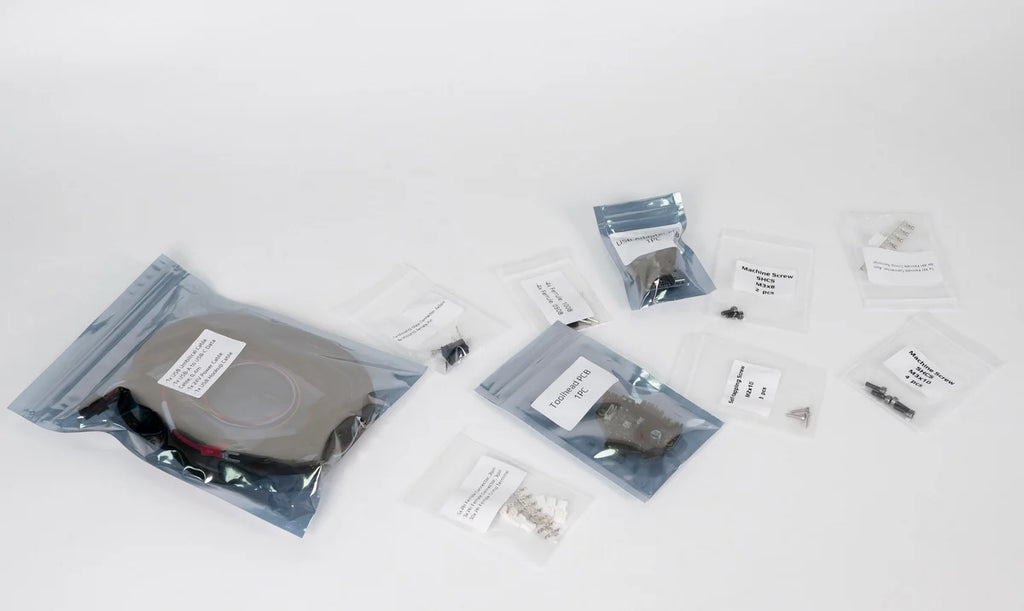

Includes

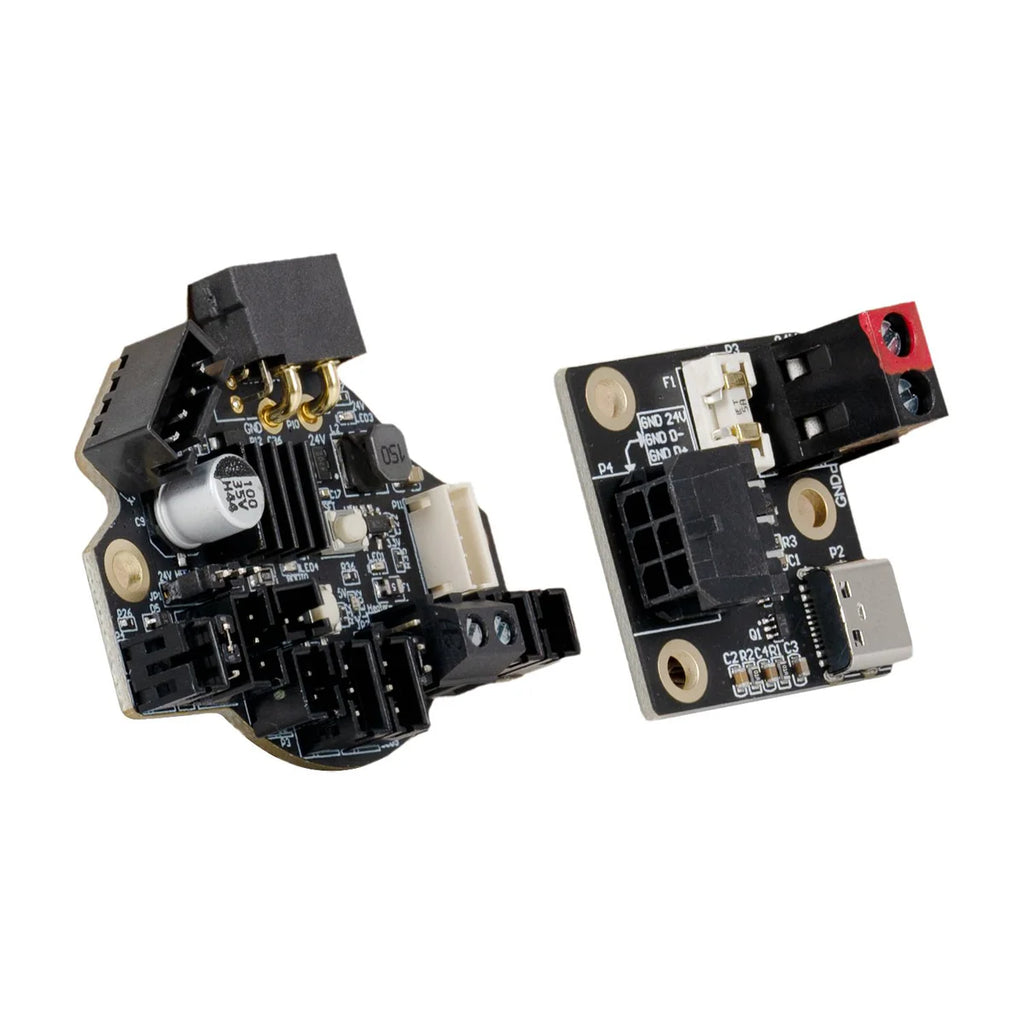

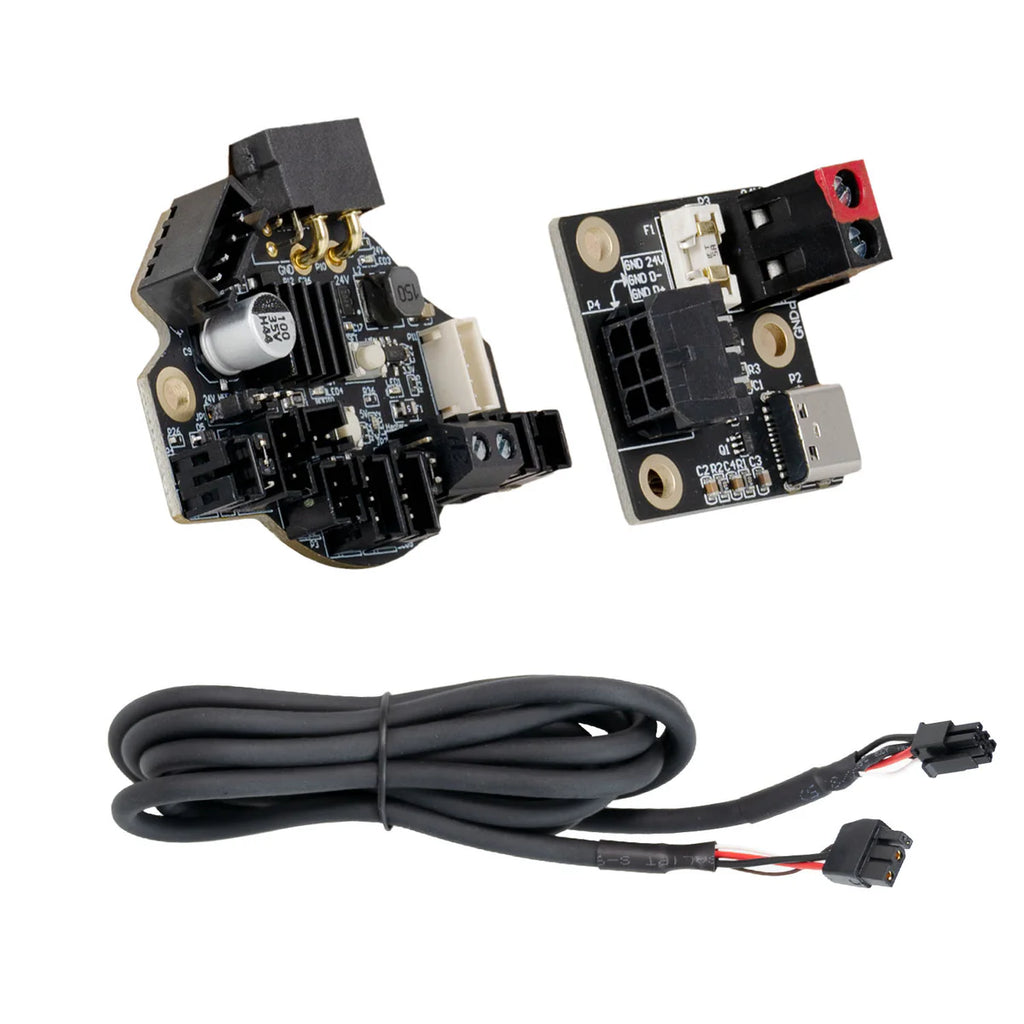

• 1x Toolhead PCB
• 1x USB Adapter PCB

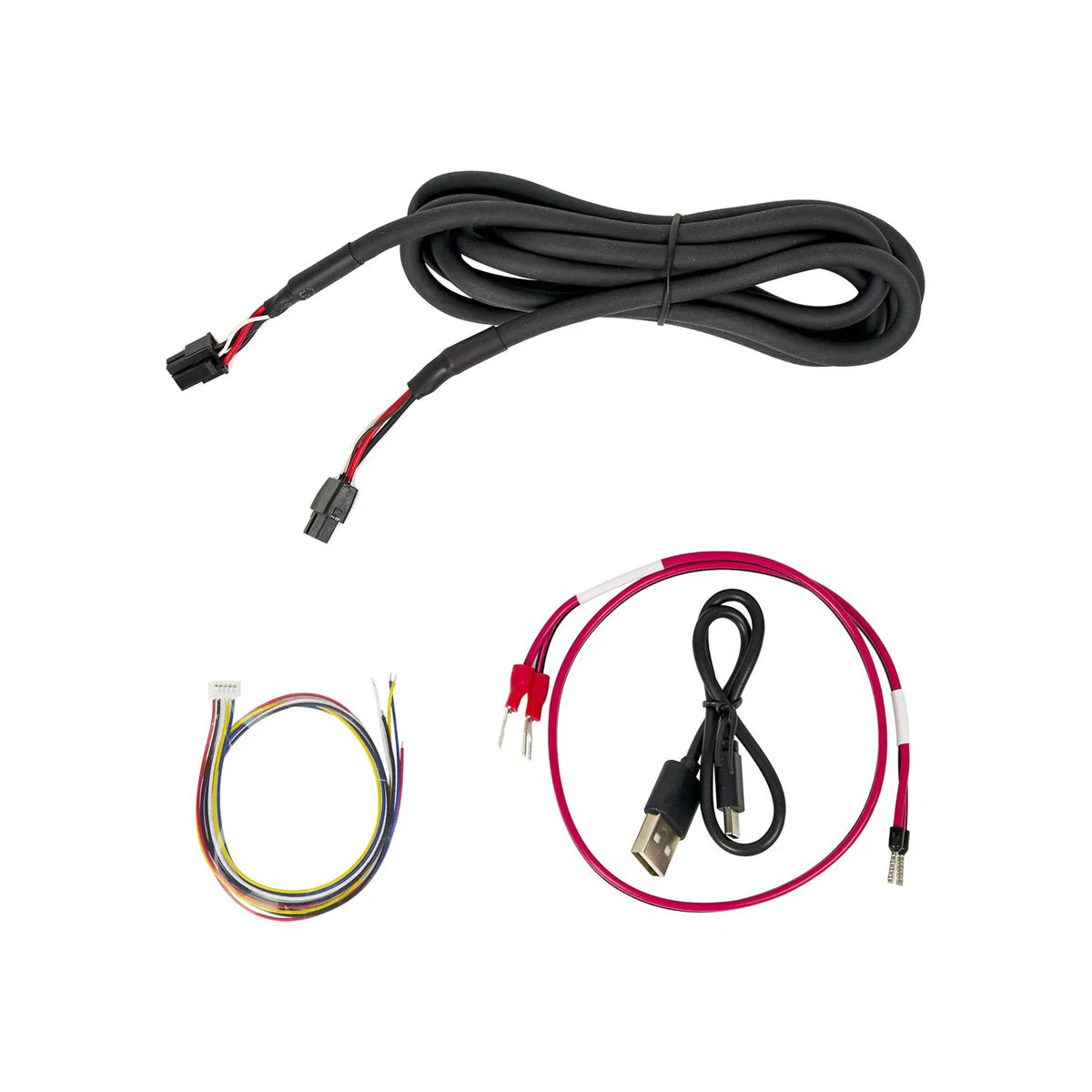

• 1x USB Umbilical Cable 2.15m
• 1x USB-A to USB-C Data Cable 0.4m
• 1x 24V Power Cable
• 1x USB Hookup Cable
• 3x Self-tapping Screws M2x10
• 2x Machine Screws SHCS M3x8
• 4x Machine Screws SHCS M3x12
• 1x MicroFit3 style Male Connector 3x2pin
• 8x Microfit3 style Female Crimp Terminals
• 1x XH2.5 Connector 4pin
• 8x XH2.5 Female Crimp terminals
• 5x PH2.0 Female Connector 2pin
• 3x PH2.0 Female connector 3pin
• 30x PH2.0 Female crimp terminals
• 4x Ferrule 1008
• 4x Ferrule 0508
