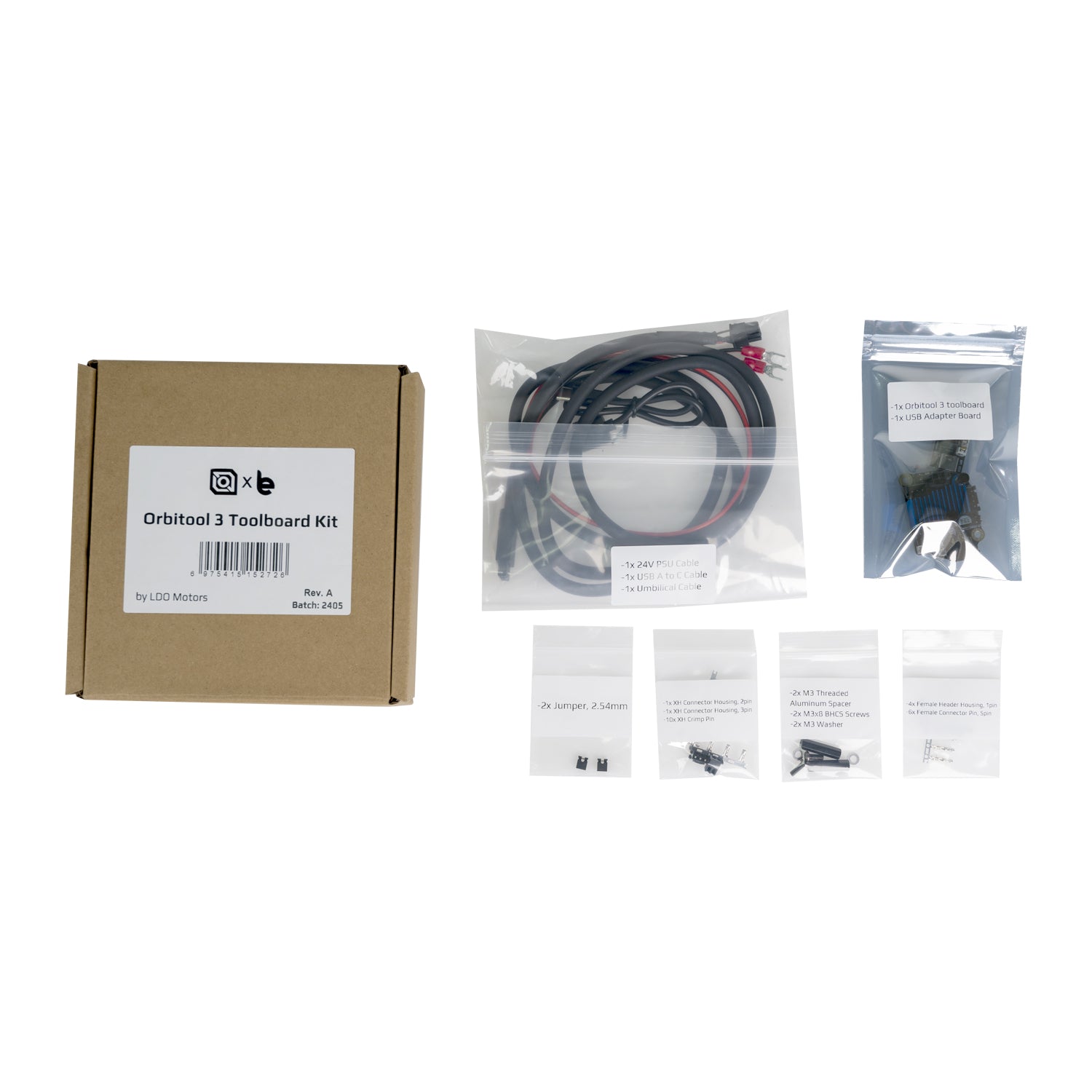

LDO Orbitool SO3 Toolboard Kit (for Orbiter v3)

Name: LDO Orbitool SO3 Toolboard Kit (for Orbiter v3)
Brand: LDO
SKU: 30572
Price: 67.72 AUD
Availability: InStock

$67.72 AUD $89.95 AUD Save 25%

GST included Shipping calculated at checkout.

--d --h --m --s

1 In stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby falls RD, Somersby NSW

We open 7:30am Monday - weekend orders are usually ready to collect by 10am

Product details

SKU: 30572

Shipping Weight: 220g

W/H: T-05-D-09

Categories: 3D Printer Extruders, 3D Printer Parts, Clearance / Sale Items, LDO

Tags: Extruders

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy LDO Orbitool SO3 Toolboard Kit (for Orbiter v3) in Australia?

Should a tool board produce magic smoke because of user error? Why? Should a tool board be destroyed by a fault in your 3D printer? Why?

The answer is NO! And this is what this tool board is all about!

We are hobbyists, professionals, and let's face it, we all make mistakes. When the magic smoke appears, everyone is disappointed, even if we know it's user error.

With this board, I promise you the magic smoke is kept inside extremely tight! Introducing the Orbitool SO3!

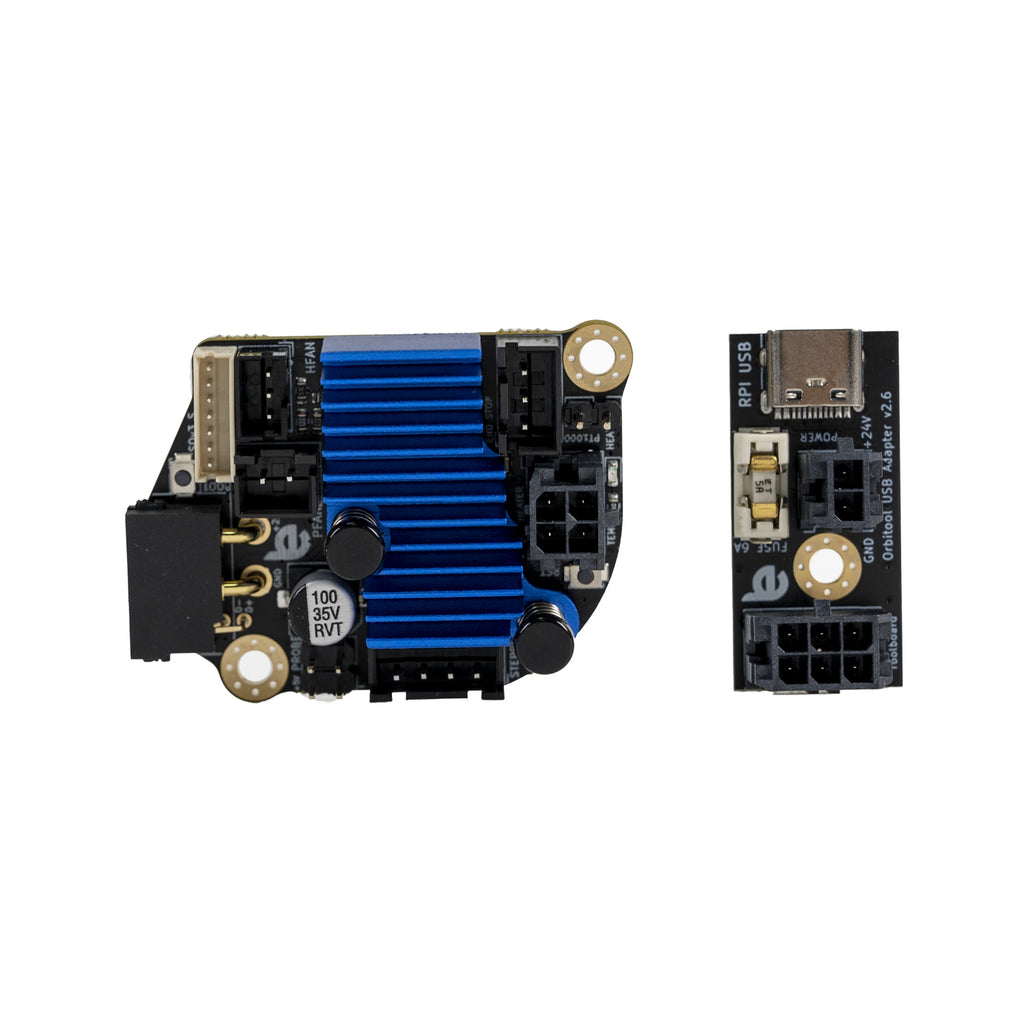

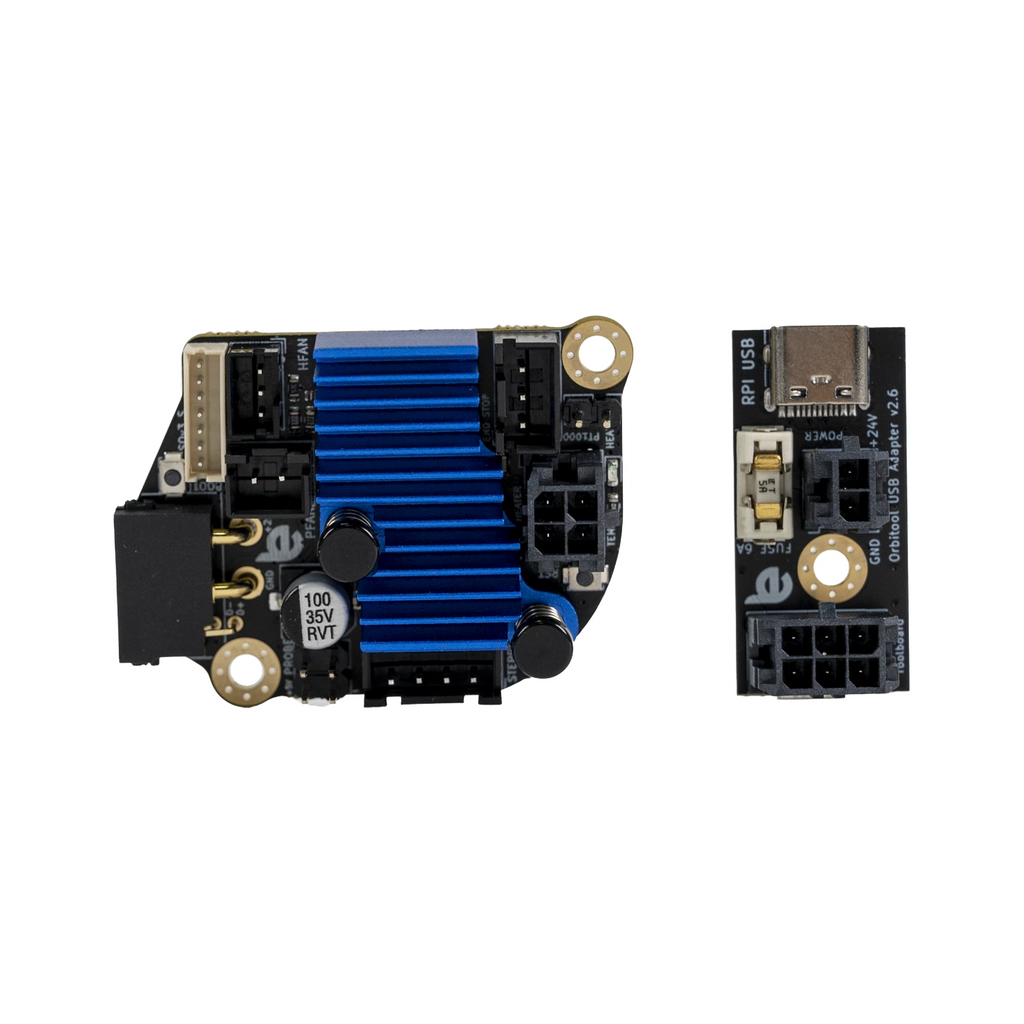

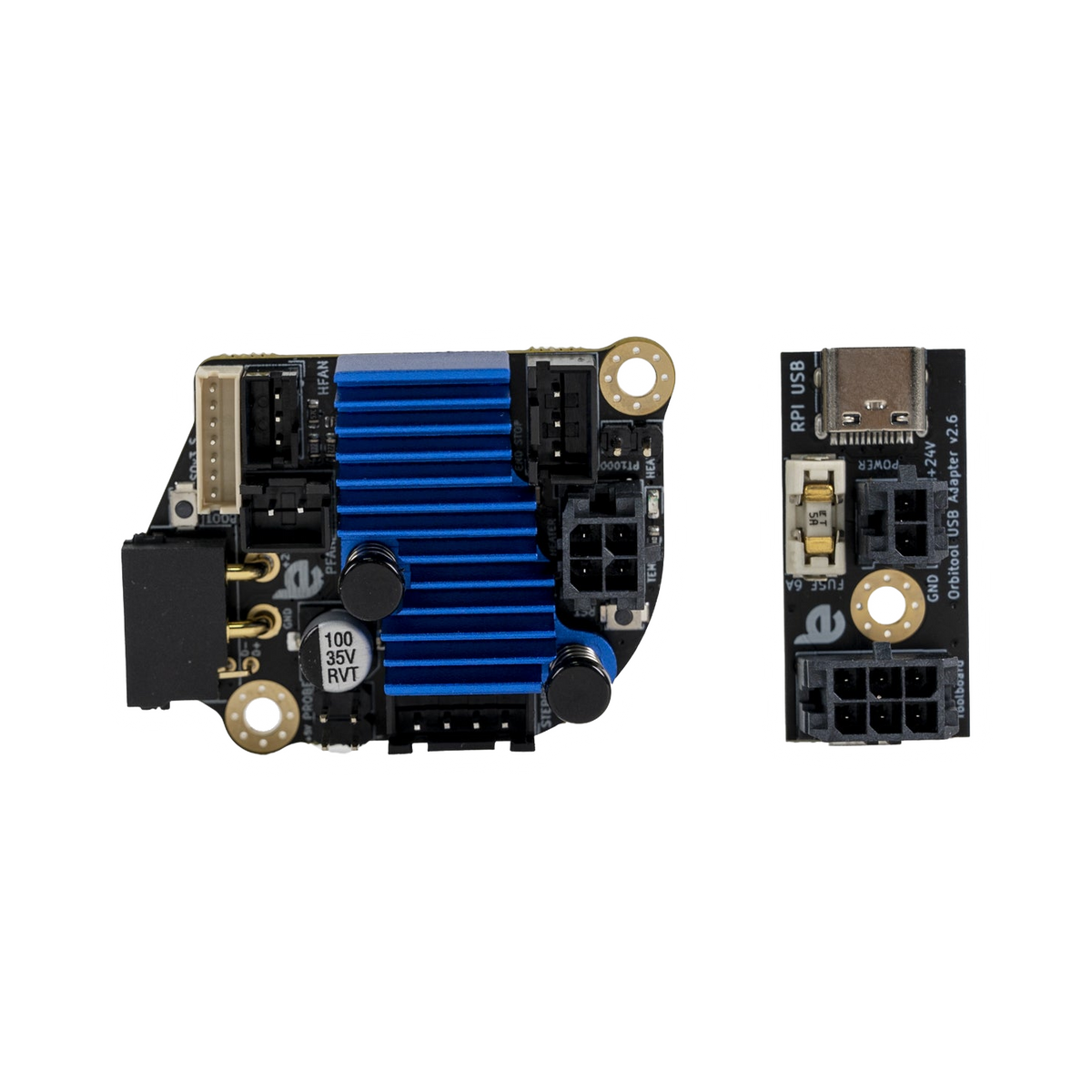

Smokeless Features

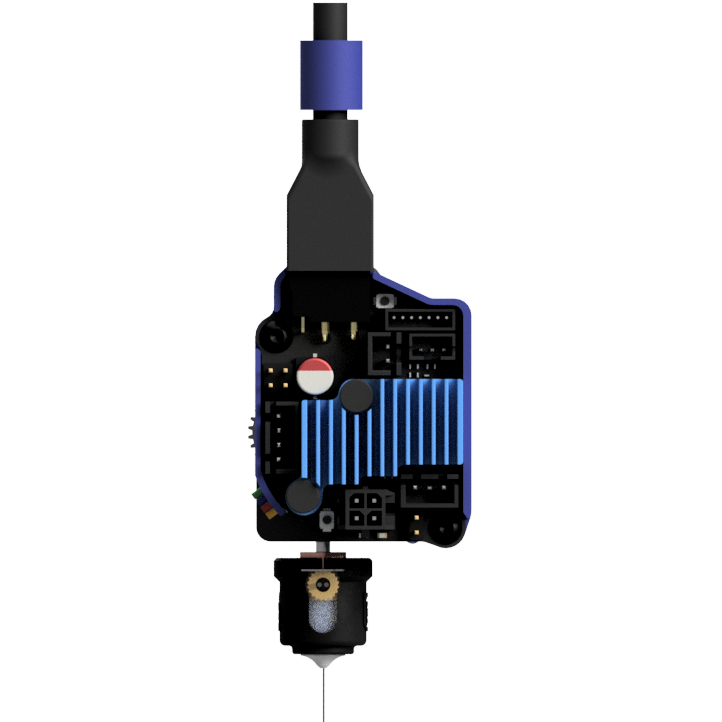

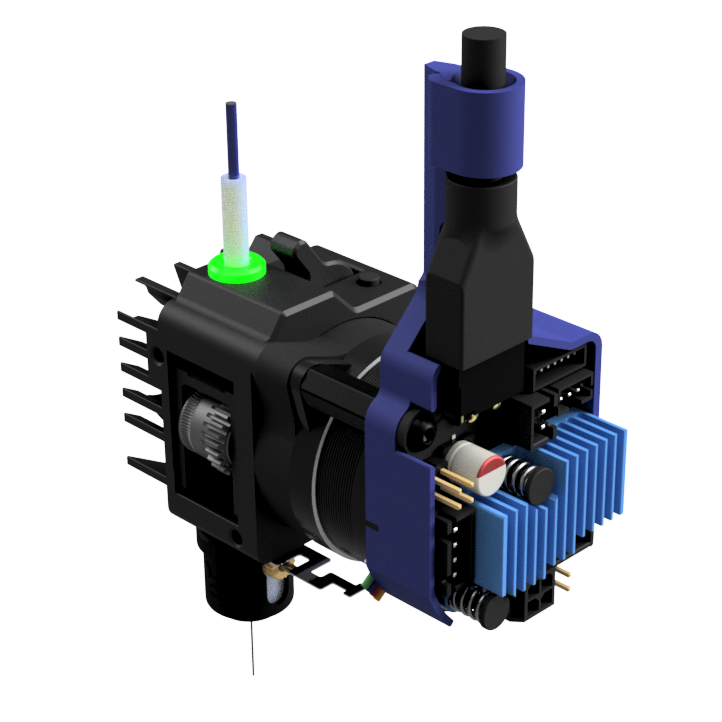

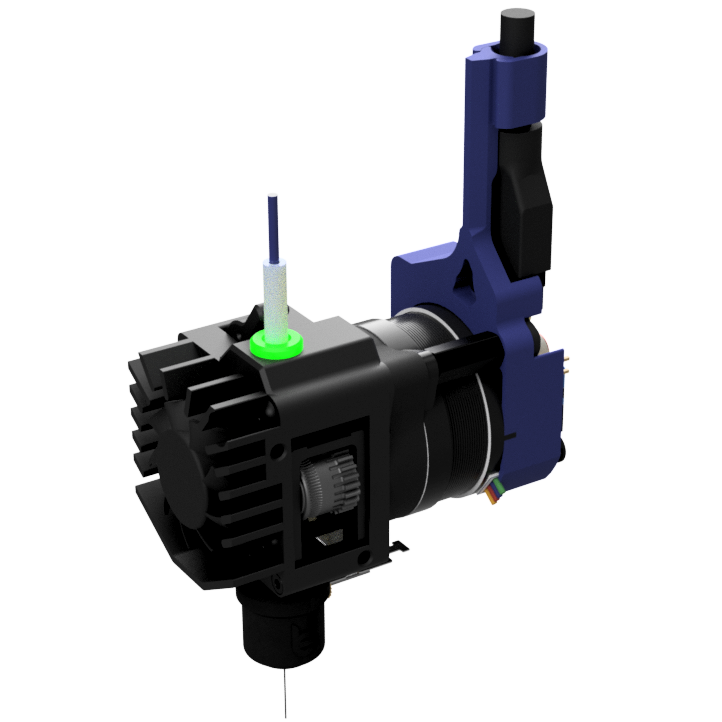

Optimised for Orbiter v3 shape and features
STM32F042 microcontroller running on 48MHz
Automotive USB communication with Raspberry PI
Onboard LIS2DW12 accelerometer
TMC22009 extruder stepper driver
Direct connection to SO3 integrated board
1x PWM controlled fan outputs
DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal
Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types
I/O for bed level sensing
X-Stop sensor input
Onboard temperature sensor
Advanced thermal management system

Protection Features

Active short ceircuit protected Hot-end output
Active short circuit protected fan driver outputs
Active Protection circuit against reverse power supply connection
Protection against loss of GND supply
Analogue and digital inputs protected against short to +24V supply voltage
USB data lines protected against short circuits to GND and +24V
RGB LED power supply pin protected against short to GND
EMI interference and ESD protection an all inputs and outputs
Heater and thermal runaway protection in case of short between heater and sensor thermistor wires
