Product description
Are you looking to buy LDO Rook MK1 DIY Kit Rev.A Batch 2409 in Australia?

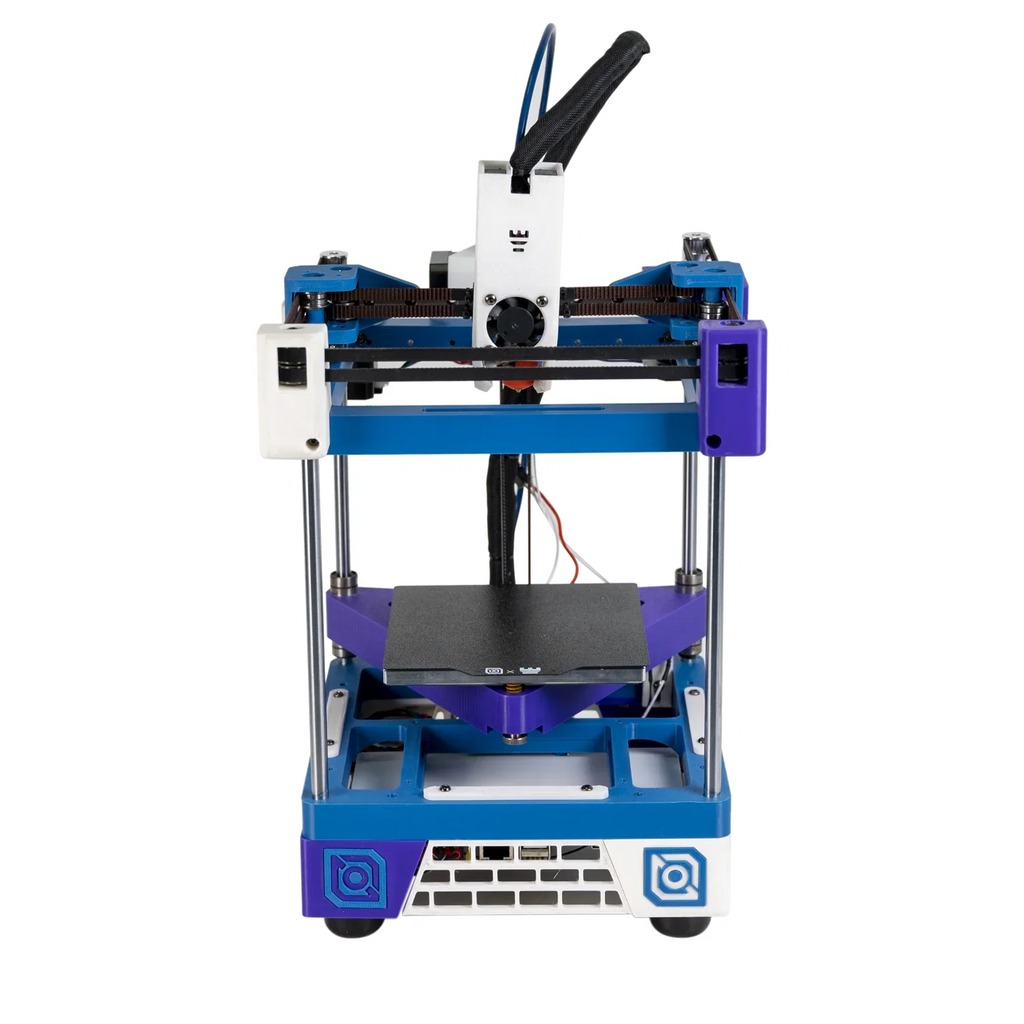

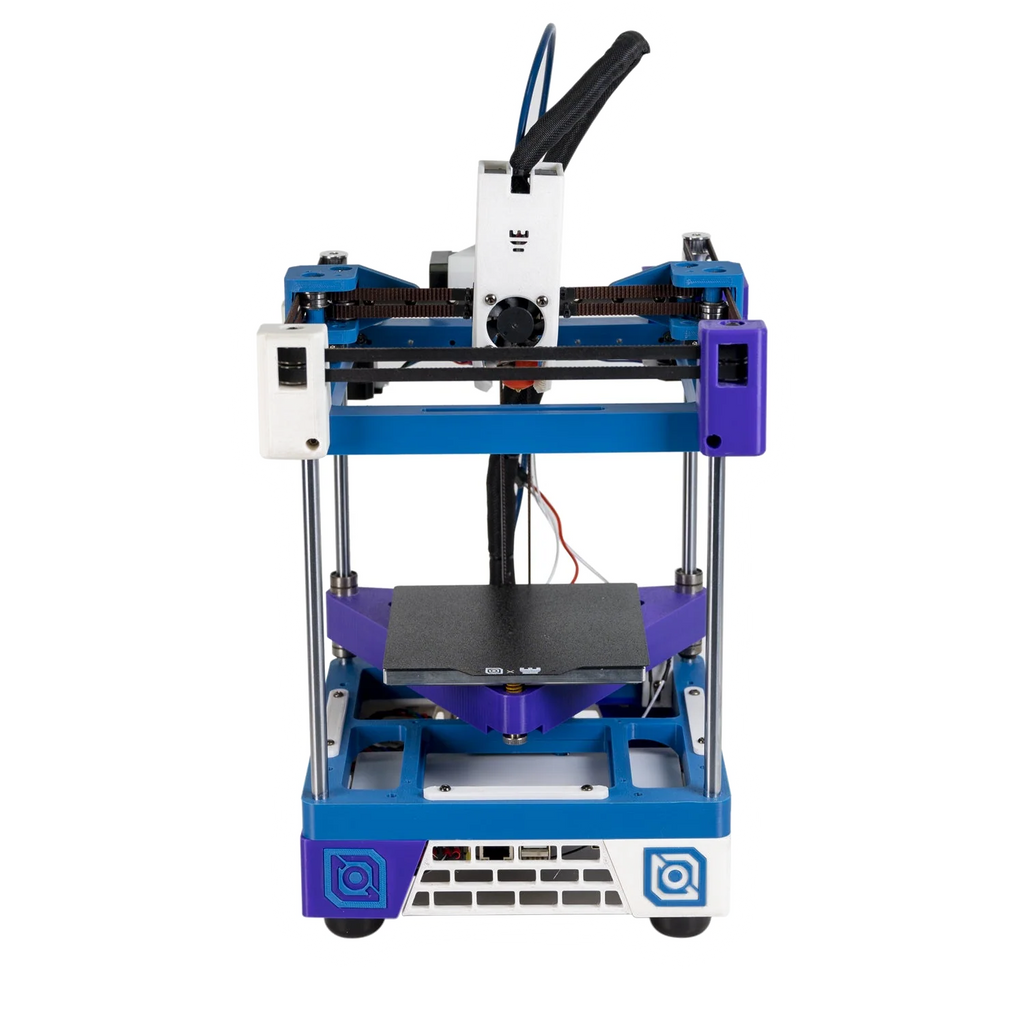

The Rolohaun3d and the Rook MK1 teams worked together for over a year to create this complete printer kit. This kit from LDO includes everything you need to build your own Rook MK1 3D printer!
Specifications
- Printer Type: FDM 3D printer DIY kit, self assembly
- Model: LDO-MK1
- Construction: Core XY
- Print bed size: 110x110x100mm
- Motherboard: BTT m4P with TMC2209
- Pi Board: BTT CB1
- Bed temp: 110°C MAX
- Display type: No screen in the kit, but can source your own Klipper Screen
- Compatible filament size: 1.75mm
- Layer height: 0.05mm~0.3mm
- Hotend: Trianglelab TCHC TR6 hotend ceramic heating core model B
- Printing speed: 150~200mm/s
- Power supply: Brick PSU 200W with necessary certifications (UL, CUL, TUV, CB, CE, FCC, UKCA)
- Motors: LDO MK1 motor kit, with slow dropping Z motor
- Firmware: Klipper
- Printer external size: 220x275x370mm after assembly
- Packing size/weight: 350x350x170mm, gross 5.5kg/kit

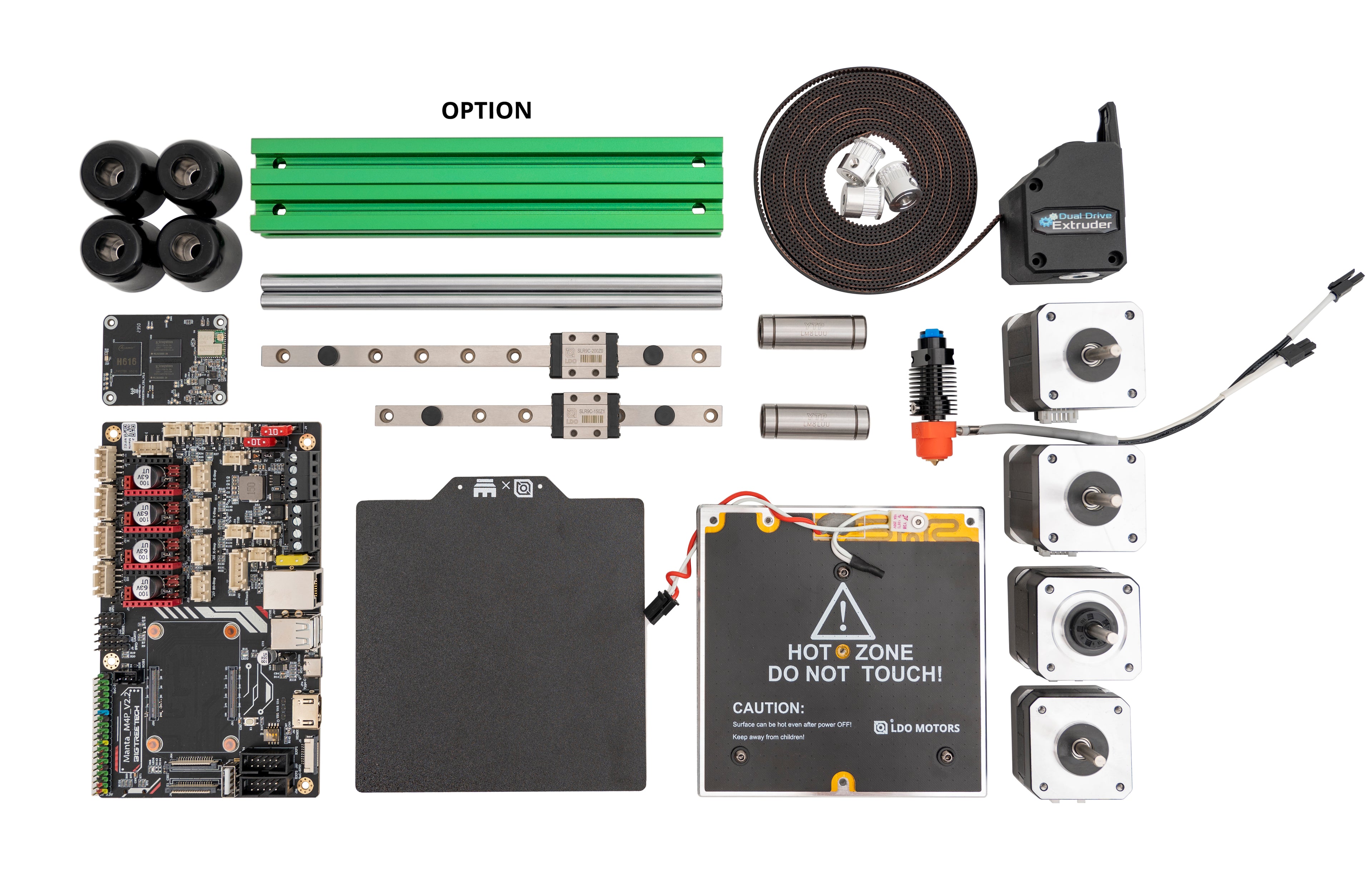

Kit Includes
- Motors & Fasteners
- 20x Zip tie
- 1x Open belt, 2GT 6mm, 4m
- 3x Pulley, 2GT, 20T, (5mm ID 6mm W)
- 20x Bearing, F695-2RS
- 2x Linear Bearing, 8x15x45mm
- 4x Rubber Foot, 4x32x22mm
- 1x Bowden Tube (length 1/2 meter)
- 4x Machine Screw, BHCS, M2.5x4
- 2x Machine Screw, BHCS, M2x10
- 2x Machine Screw, BHCS, M2x12
- 4x Machine Screw, BHCS, M3x5
- 24x Machine Screw, BHCS, M3x6
- 44x Machine Screw, BHCS, M3X10
- 6x Machine Screw, BHCS, M3X12
- 17x Machine Screw, BHCS, M3x16
- 4x Machine Screw, BHCS, M3x18
- 8x Machine Screw, BHCS, M3x20
- 5x Machine Screw, BHCS, M3x30
- 8x Machine Screw, BHCS, M3x40
- 24x Machine Screw, BHCS, M5x16
- 9x Machine Screw, BHCS, M5x25
- 7x Machine Screw, BHCS, M5x30
- 100x Nut, M3
- 32x Shim Washer, M5X10X1mm
- 2+3x M3x4x5 Heatset Inserts for Rookery Toolhead
- 13x M3x8x5 Heatset Inserts for Rookery Toolhead
- 8x Set Screw, M4x4, Pre-applied Threadlocker
- Electronics
- 4x TMC2209
- 1x SD Card, 32GB
- 1x SD Card, 32GB
- 1x Cable Kit
- Linear Rail Kit
- 2x Linear Rail SLR9C, 200mm LDO-SLR9C-1R-200Z0
- 1x Linear Rail SLR9C, 150mm LDO-SLR9C-1R-150Z1
- 4x Linear Rod, 8x200mm
- Build Plate & Parts
- 1x Aluminium Build Plate, 120x 120mm
- 1x PI Film Heater (Installed), 24VDC 100W, w/ Thermal Fuse
- 1x Heater Cover Plate (Installed)
- 1x Spring Steel Flex Plate, 120x120mm, Textured
- 1x Magnetic Pad, 120x120mm
- 3x Die Springs, Yellow, 8x4x20mm
- 3x Knurled Nut, M3
- Motor Kit
- 1x Knurled Nut, M3
- 1x Motor Z, LDO-42STH40-1684AC(RSS), 20mm cable
- 2x Motor XY, LDO-42STH48-2504MAC(F), 50cm cable
- Other
- 1x Motor XY, LDO-42STH48-2504MAC(F), 50cm cable

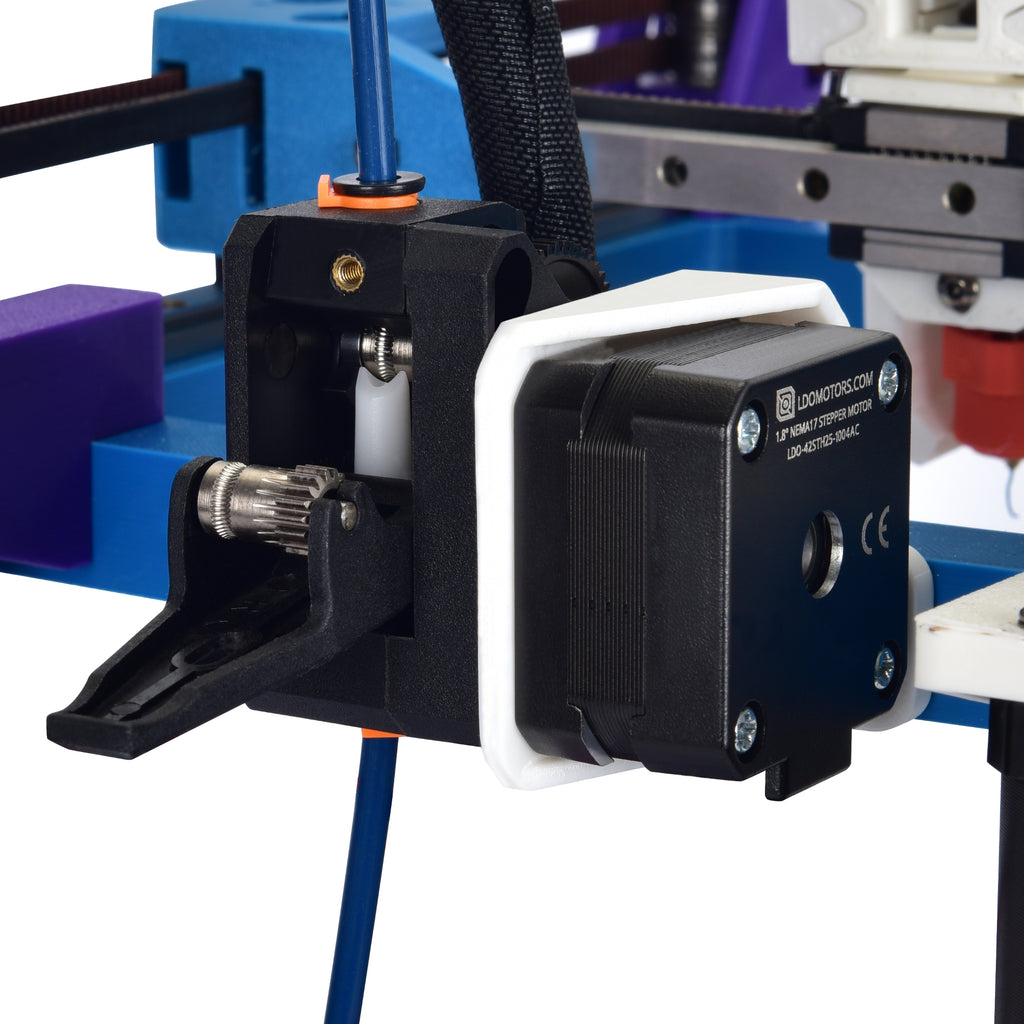

- 1x Triangle-lab BMG Extruder
- 1x Triangle-labTR6 Hotend Ceramic Heating Core Model B
- 1x BTT Manta M4P V2.2
- 1x BTT CB1 V2.2
- 1x C13 Power Cord (Make sure to get the right type plug for your conuntry)
