Are you looking to buy an LDO Toolhead PCB in Australia?

For use in conjuction with the breakout board and Toolhead Cable by LDO

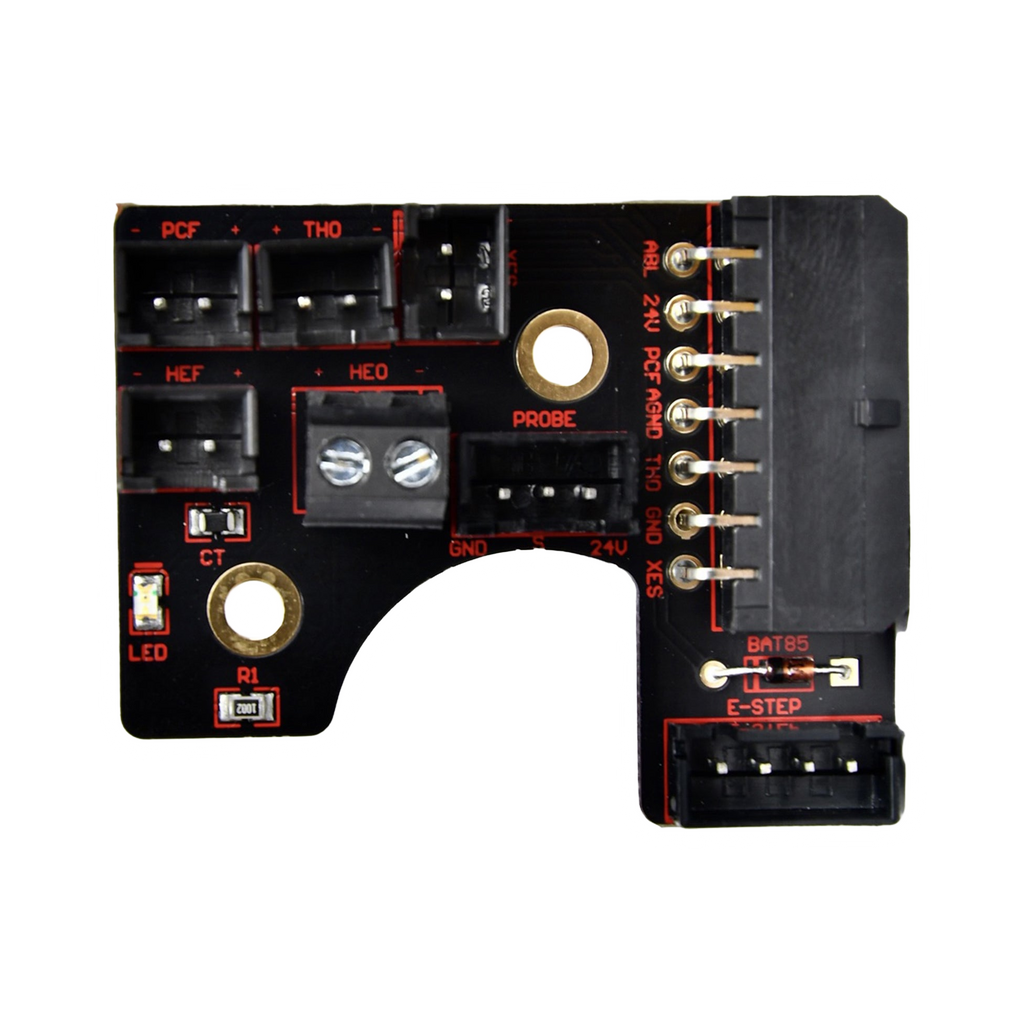

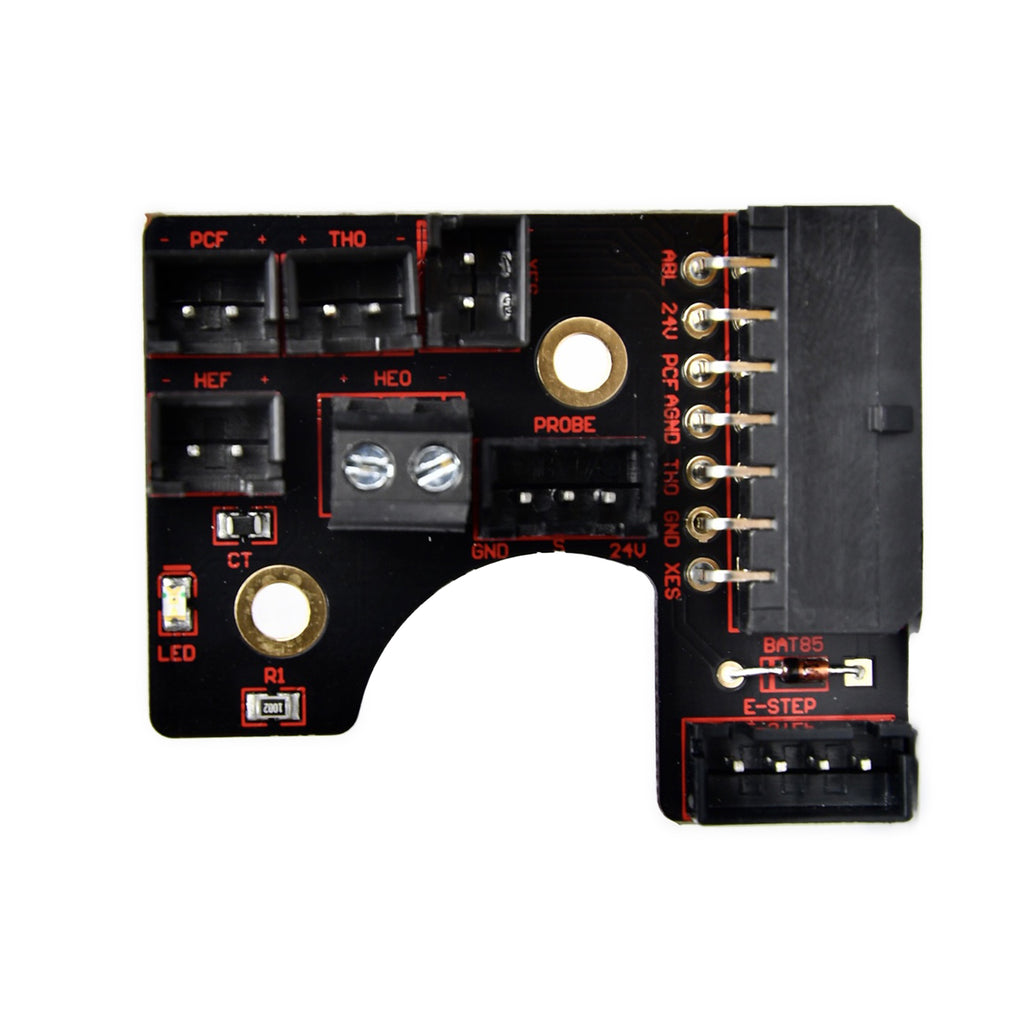

The Toolhead PCB

The toolhead PCB is based on hartk's toolhead PCB design. The main purpose of the toolhead PCB is to combine all the signals and wires (e.g. thermistors, fans, hotend) on the toolhead PCB into a single cable. Compared to the orignal hartk design, the LDO PCB has a few minor differences:

The hotend cartridge connector is screw terminal instead of a microfit 3 connector.
The onboard thermistors use NTC10K thermistor, more info here.

Apart from the above mentioned differences our PCB has the same shape and mounting hole positions, and the 14 pin microfit pinout is 100% compatible with the original hartk PCB.

Port Descriptions

The table below briefly describes the purpose of each port located on the toolhead PCB.

PCB Label	Name	Connector	Description
HEF	Hotend Fan	JST-XH-2P	Fan port for cooling the hotend heatsink. Note that only 24V fans are compatible
PCF	Part Cooling Fan	JST-XH-2P	Port for part cooling fan. Note that only 24V fans are compatible
HE0	Hotend Heater	Screw Terminal	Port for hotend heater cartridge.
TH0	Hotend Thermistor	JST-XH-2P	Thermistor port for hotend
XES	X Endstop	JST-XH-2P	X endstop port. Only used in Switchwire builds, unused in V2 and Trident.
PROBE	Probe	JST-XH-3P	Probe port. Accepts 24V inductive probes, also compatible with klicky probes.
E-STEP	E Stepper Motor	JST-XH-4P	Extruder stepper motor port

Connection Diagram
